DINA-DRMICRO DIN Rail Mounted Set and Forget Lighting Controller
DINA-DRMICRO DIN Rail Mounted Set and Forget Lighting Controller
Nicolaudie Group

DINA-DRMICRO DIN Rail Mounted Set and Forget Lighting Controller

Regular price

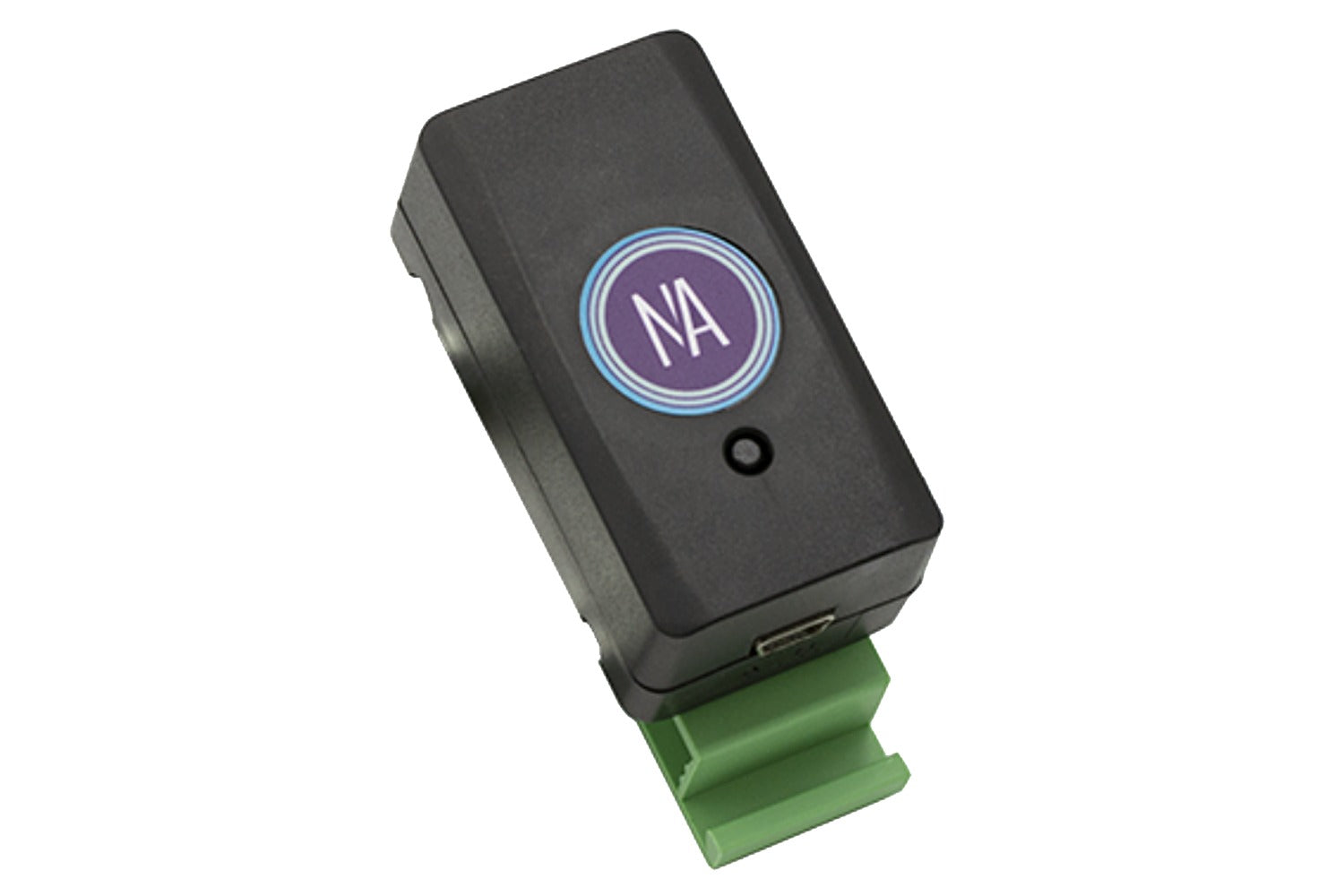

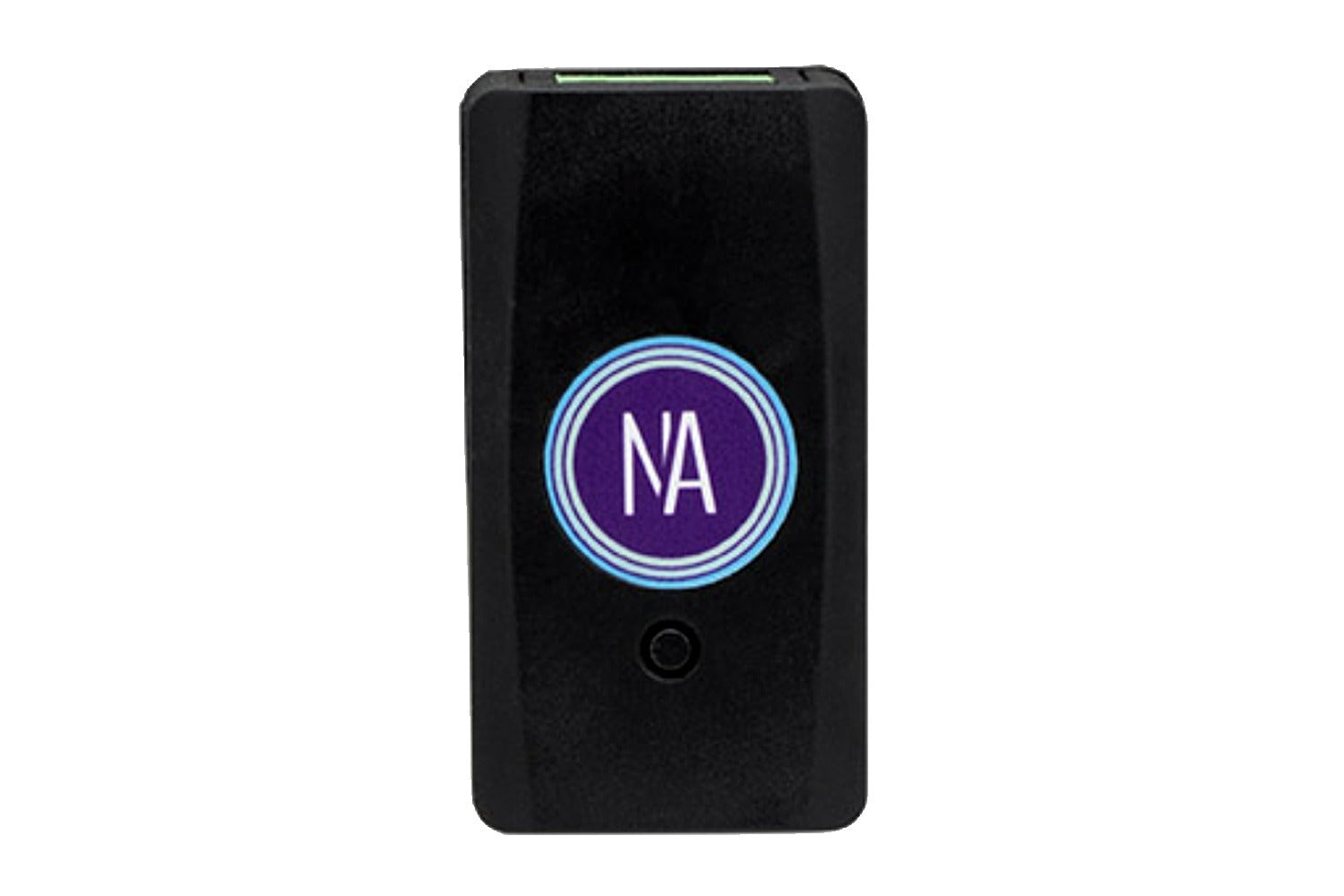

The DINA-DR MICRO is the perfect standalone lighting controller for simple DMX installations. It offers an affordable and programmable solution to replace automatic controllers. Delivered with a DIN rail adapter, the DINA-DR MICRO can be mounted in an electrical cabinet and affords significant ease of installation. Create your static or dynamic lighting scenes with ESA Pro 2 software and upload them to the DINA-DR MICRO through its USB connection.

Key Features

  • DMX Stand Alone controller
  • 60 DMX channels
  • USB connectivity for programming
  • Stand Alone mode with 10 scenes
  • Windows/Mac software to set dynamic colors/effects
  • SUT Technology allows the device to be used with other Nicolaudie Group software via an online upgrade



Optional Accessories

POWER 5V AC/DC power supply



Technical Data
Input Power 5v DC
Output Protocol DMX512
Programmability PC, Mac
Connections USB
Screw terminal for DMX
Environment IP20 / 0 to +50°C
Buttons 1 for scene selection
Dim / Weight 52 x 29 x 24 mm 16g
OS Requirements Mac OS X 10.8-10.14
Windows 7/8/10
Standards CE, Low voltage, EMC, and RoHS
