Nicolaudie Group

DINA-DR2 DIN Rail Mounted Lighting Controller

DINA-DR2 DIN Rail Mounted Lighting Controller

Regular price $2,139.00
Regular price Sale price $2,139.00
Sale Contact Us for Availability

The DINA-DR2 is built on the latest generation of lighting controllers from Nicolaudie Architectural and combines all our recent innovations. Designed for DIN rail mounting, the DINA-DR2 is the perfect solution for mid-range lighting installations. Delivered with 1024 DMX channels (512 for DINA-DR2 LITE), the controller can be upgraded to 1536 by adding a 3rd DMX universe. The lighting levels, color and effects can be programmed from a PC, Mac, Android, iPad or iPhone using software from our website.

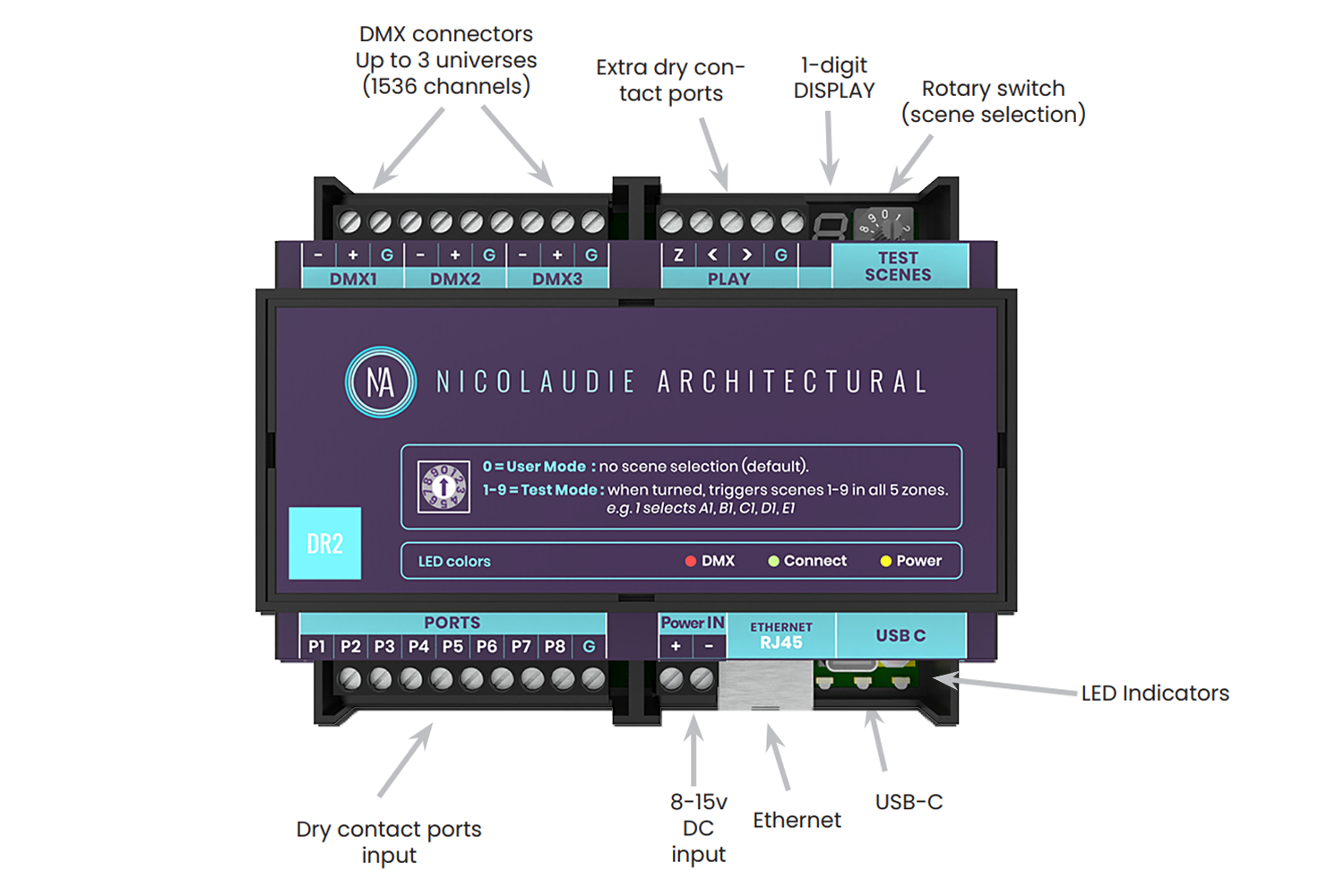

Key Features

  • DMX Stand Alone controller
  • Up to 3 x DMX512 universes (1536 channels)
  • RDM compatible
  • USB & Ethernet connectivity for programming/control
  • Stand Alone mode with 99 scenes
  • Play scenes in 5 areas / zones
  • microSD slot
  • 8+3 dry contact trigger ports
  • Test scenes rotary switch
  • Windows/Mac software to set dynamic colors/effects
  • iPhone/iPad/Android remote and programming apps
  • SUT Technology allows the device to be used with other Nicolaudie Group software via an online upgrade
  • LS cloud compatibility (optional with DINA-DR2 LITE)



Optional Accessories

POWER 12V AC/DC power supply



Technical Data
Input Power 12v DC (8-15V range)
Output Protocol DMX512 (x3)
Programmability PC, Mac, Android, iOS
Connections USB-C
Ethernet
Screw terminals for :
- 3 DMX / RDM Universes
- 8+3 Contact ports
- 12v power-in

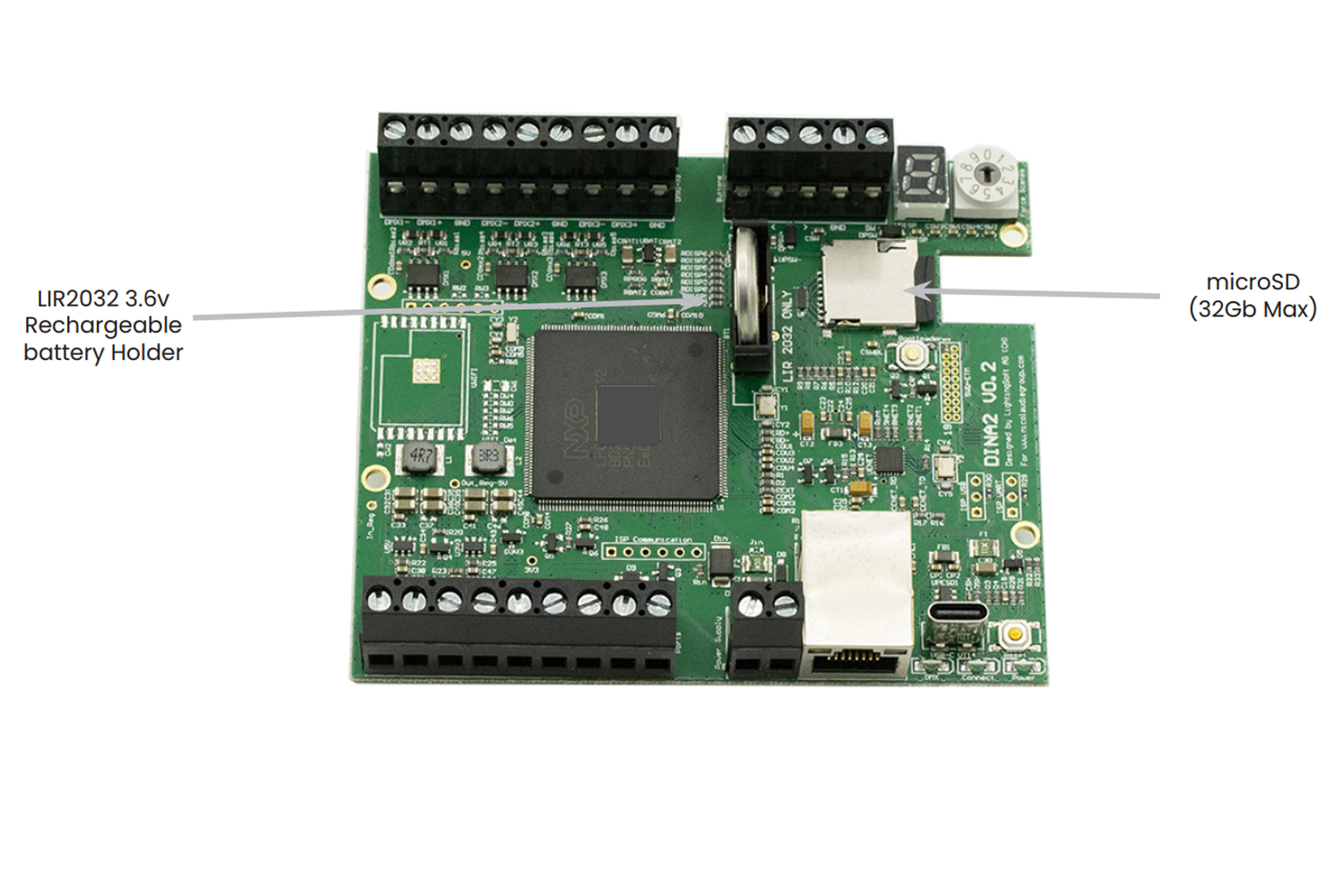

Battery holder (CR2032)
microSD slot
Memory SD Card
Environment IP20 / to 0 to +50°C
Buttons Rotary switch
Dim / Weight 160 x 91 x 62 mm 317g
OS Requirements Mac OS X 10.8-10.14
Windows 7/8/10
Standards CE, ETL, Low voltage, EMC, and RoHS
View full details
