DINA-DR1LITE DIN Rail Mounted Lighting Controller
DINA-DR1LITE DIN Rail Mounted Lighting Controller
Regular price
$1,959.00
Regular price
Sale price
$1,959.00
Unit price
/
per
Entirely based on the DINA-DR1 lighting controller, the LITE version comes with limited but expandable features. Because there is no perfect controller for all projects, the DR1 LITE is the "on demand" answer to the most demanding projects.
Refer to the DINA-DR1 page for more information about the product, the table below shows what is standard and what is optional.
General | |

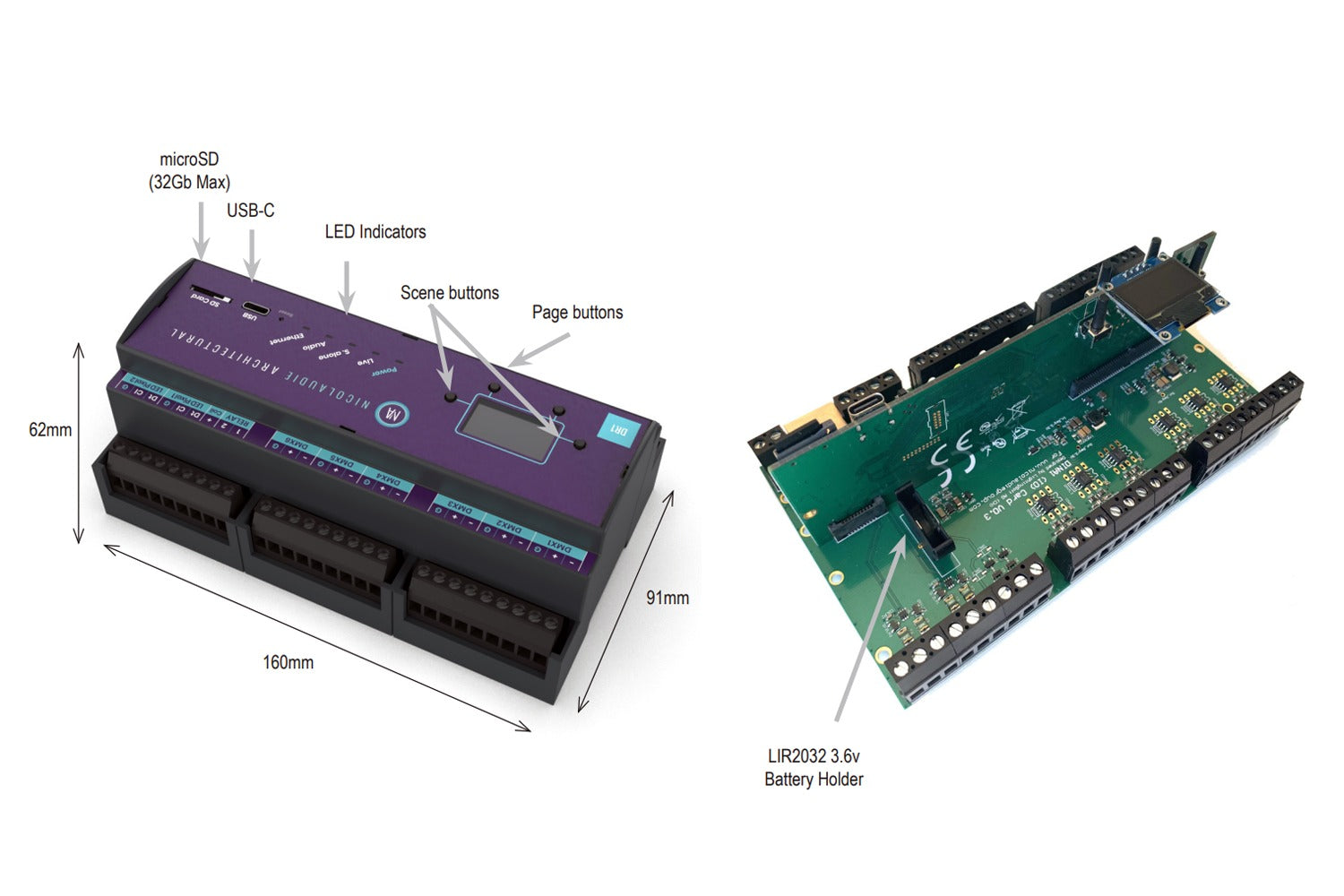

Dimensions | 160 x 91 x 62 mm |
Weight | 317g |
USB connection | √ |
Ethernet connection | √ |
OUTPUT channels | 1024 (expandable to 6144 with eDMX) |
Scalable | Coming soon |
RDM | √ |
LED Pixel output | Coming soon |
eDMX | √ |
DALI | Coming soon |
Internal memory capacity | 16 MB |
Micro SD card | √ |
Nicolaudie Cloud | optional |
Stand Alone |
|
Number of scenes | 2000 |
Number of zones | 20 |
Power voltage | 8-15V DC |
Power connector | Screw terminal |
Triggering |
|
Ports | 8 |
Clock/calendar triggers | √ |
RS232 | optional |
Ethernet integration | √ |
AUDIO | optional |
DALI | Coming soon |
Remote control apps | iOS/Android |
Programming software/app |
|
ESA2 | PC/Mac |
ESA Pro 2 | PC/Mac |
Arcolis | iOS/Android |
