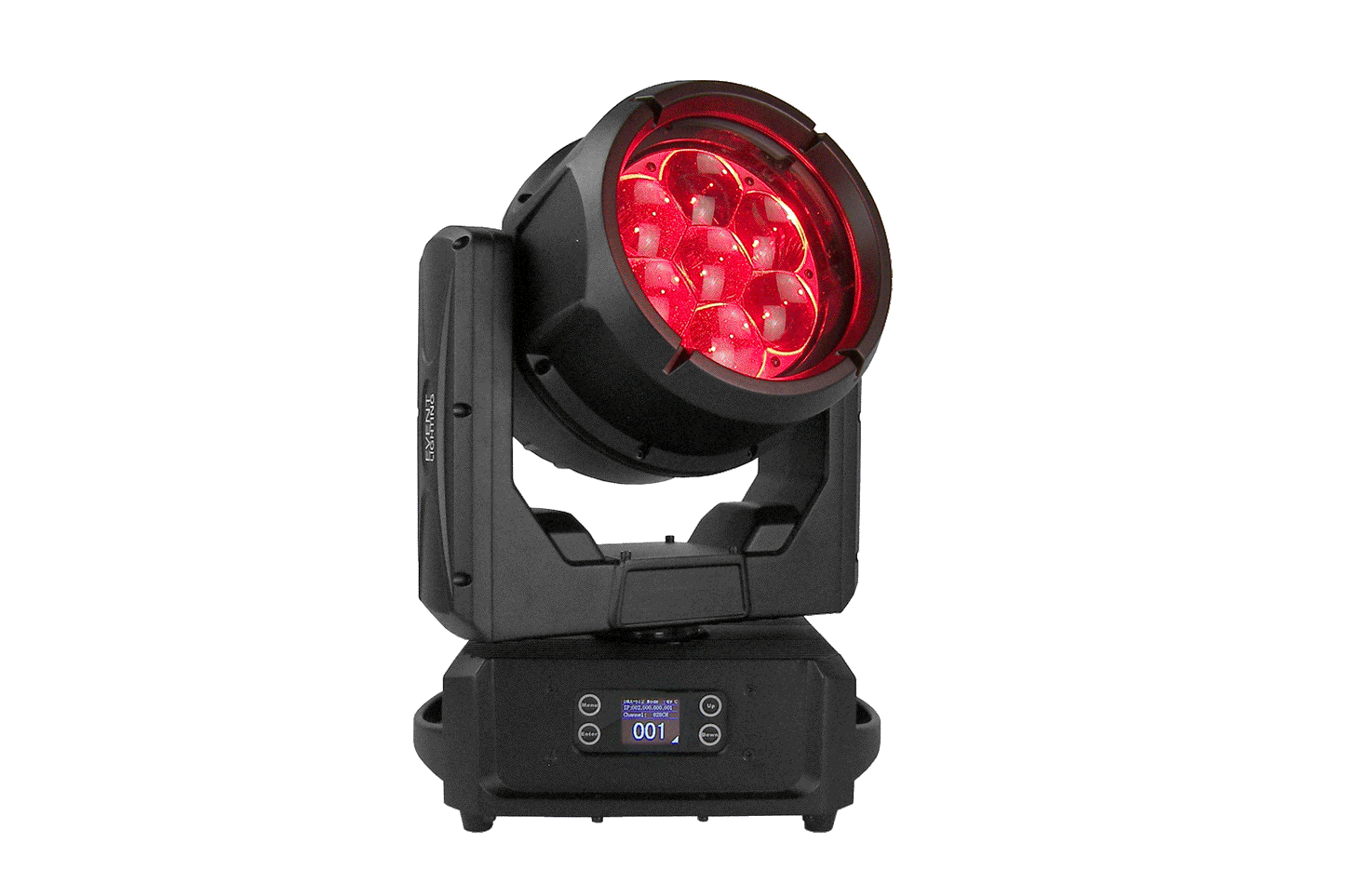

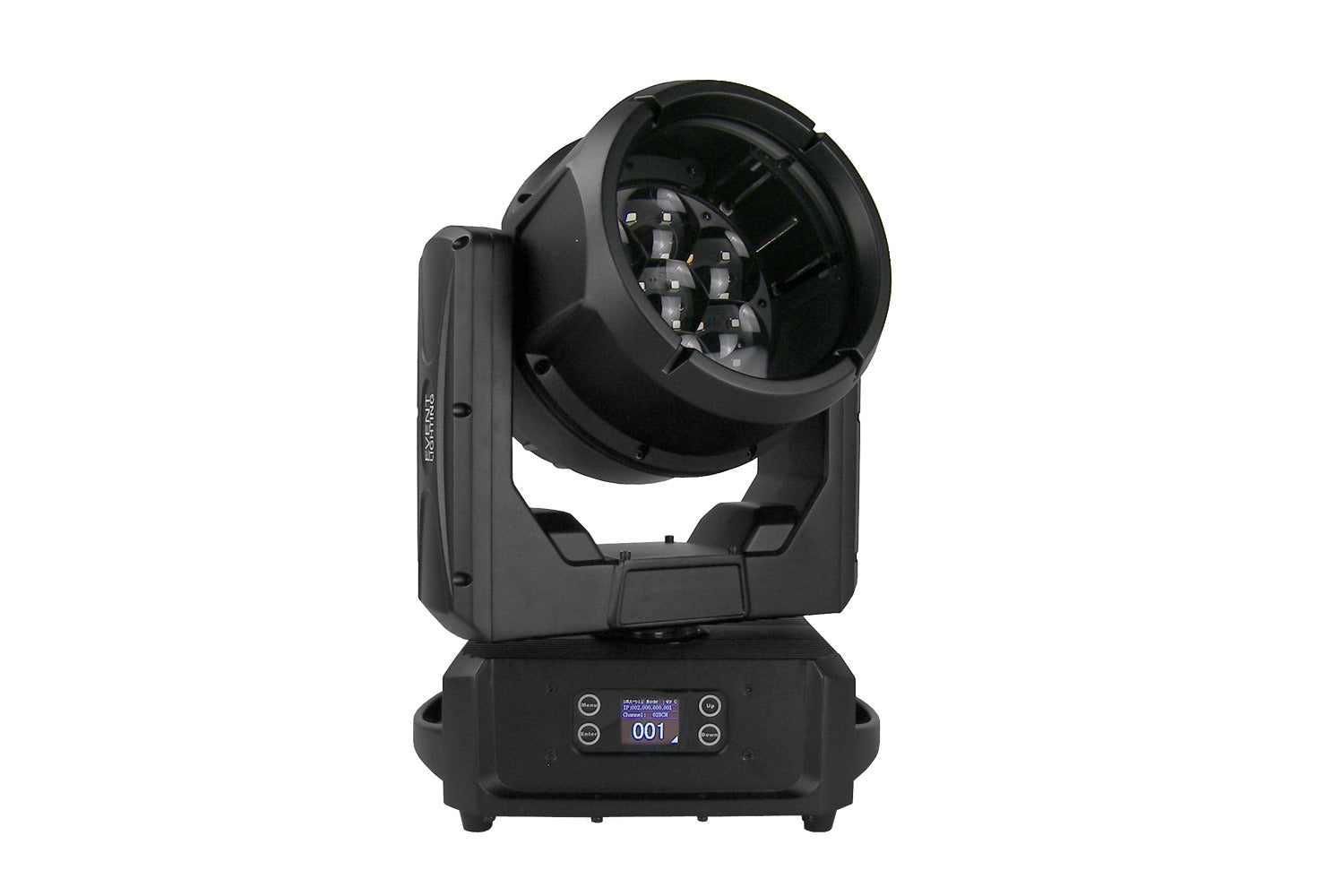

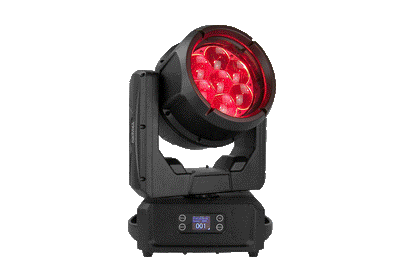

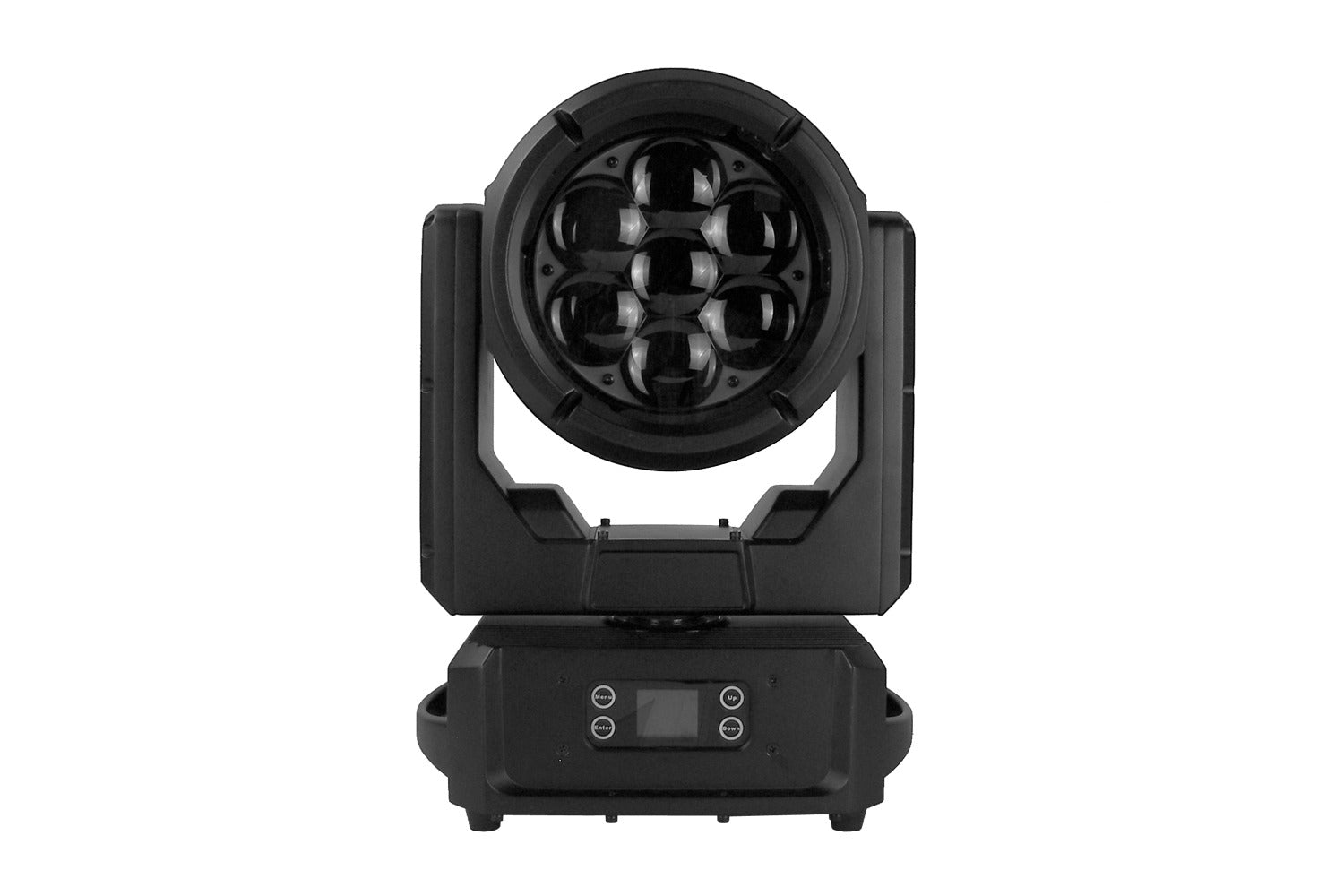

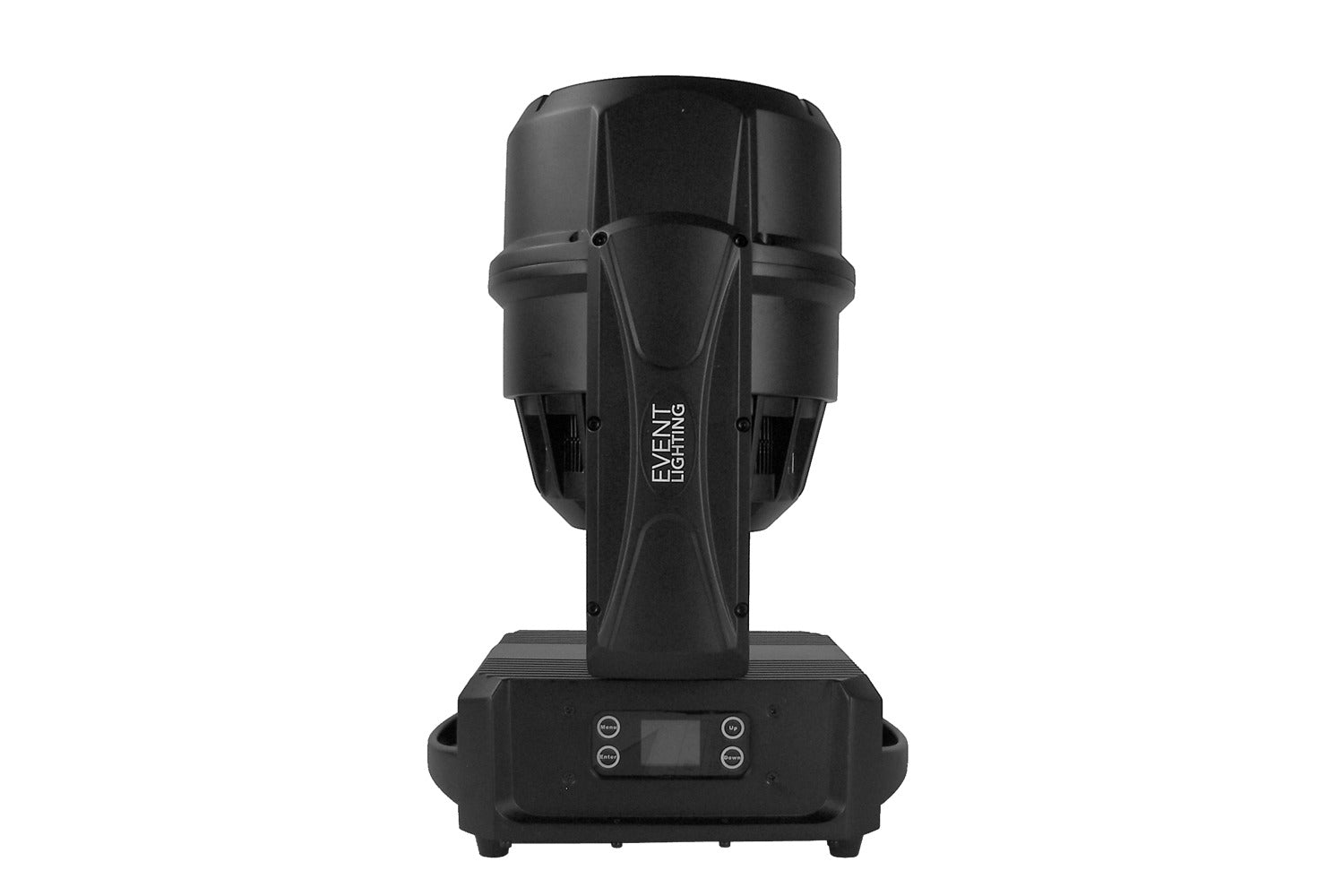

DELUGEM7X60WFX - IP65 Moving Head Zoom Wash with 7 x 60W RGBW + 28 x 0.5W RGB LEDs

Constructed to endure all conditions, the DELUGEM7X60WFX is the versatile and compact partner to the 19X60WFX. It features a powerful 7 x 60W RGBW LED source supported by 28 x 0.5W RGB Aura LEDs, delivering excellent brightness and rich colour mixing. Versatile colour capabilities are driven by the RGBW LEDs, providing seamless colour control across a wide spectrum. Dynamic effects include motorised zoom with a wide range of 3° to 45°, individual pixel control for compelling visual mapping, and a dedicated Aura LED effect. Crucially, this fixture also features a rotating front lens that creates a captivating split beam effect for unique aerials and washes. Control options include 5-pin DMX, RDM, ArtNet, and sACN as well as RJ45 connection capabilities, all housed in an IP65 rated enclosure.

Specifications:

Photometrics

• Light Source:
  — 7 x 60W RGBW LEDs
  — 28 x 0.5W RGB LEDS
• Beam Angle: 3° - 45°

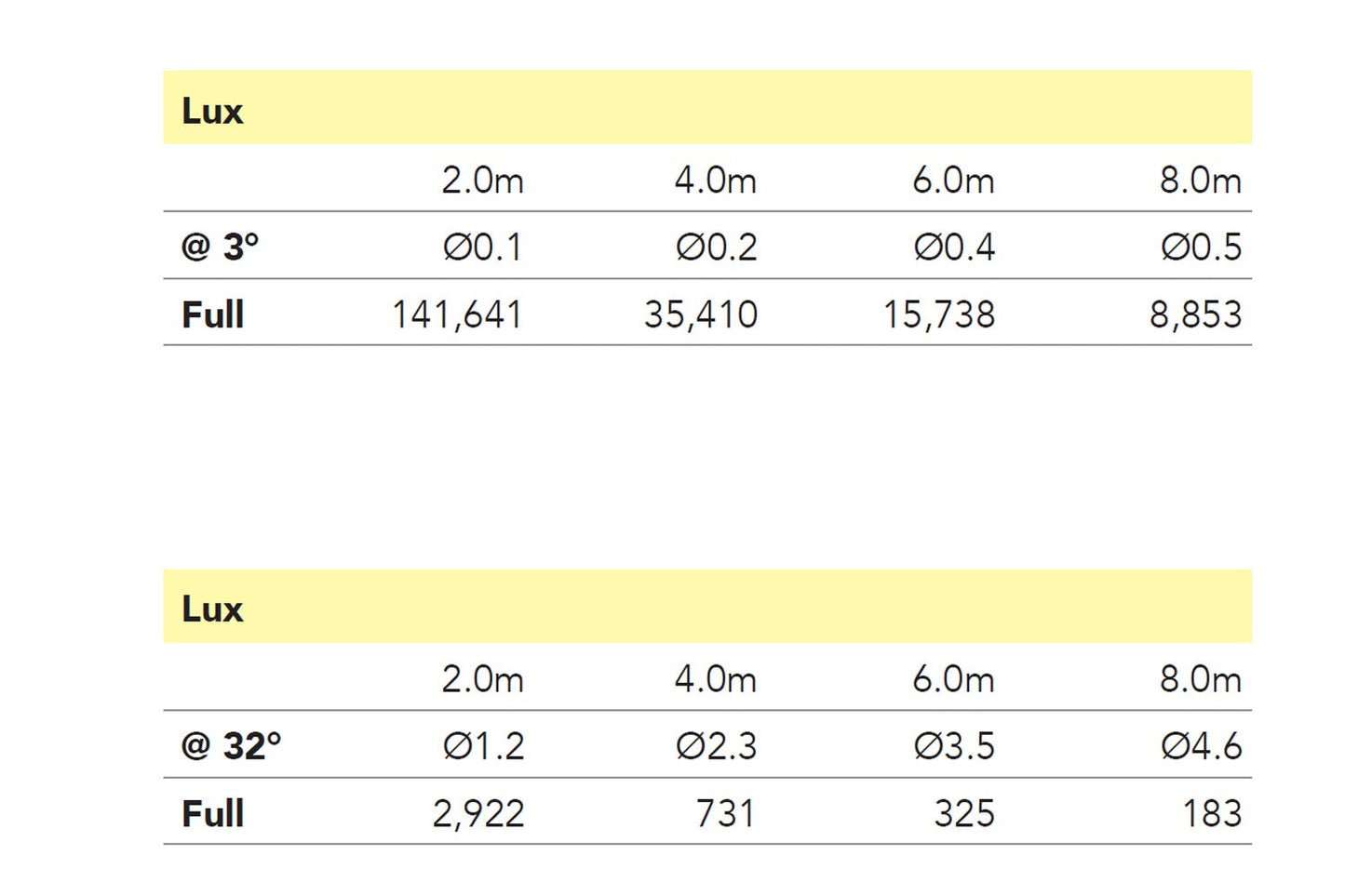

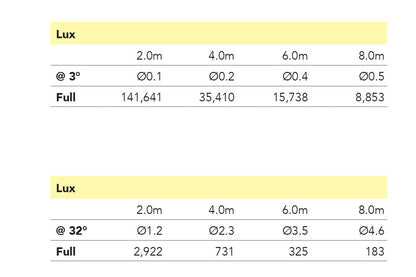

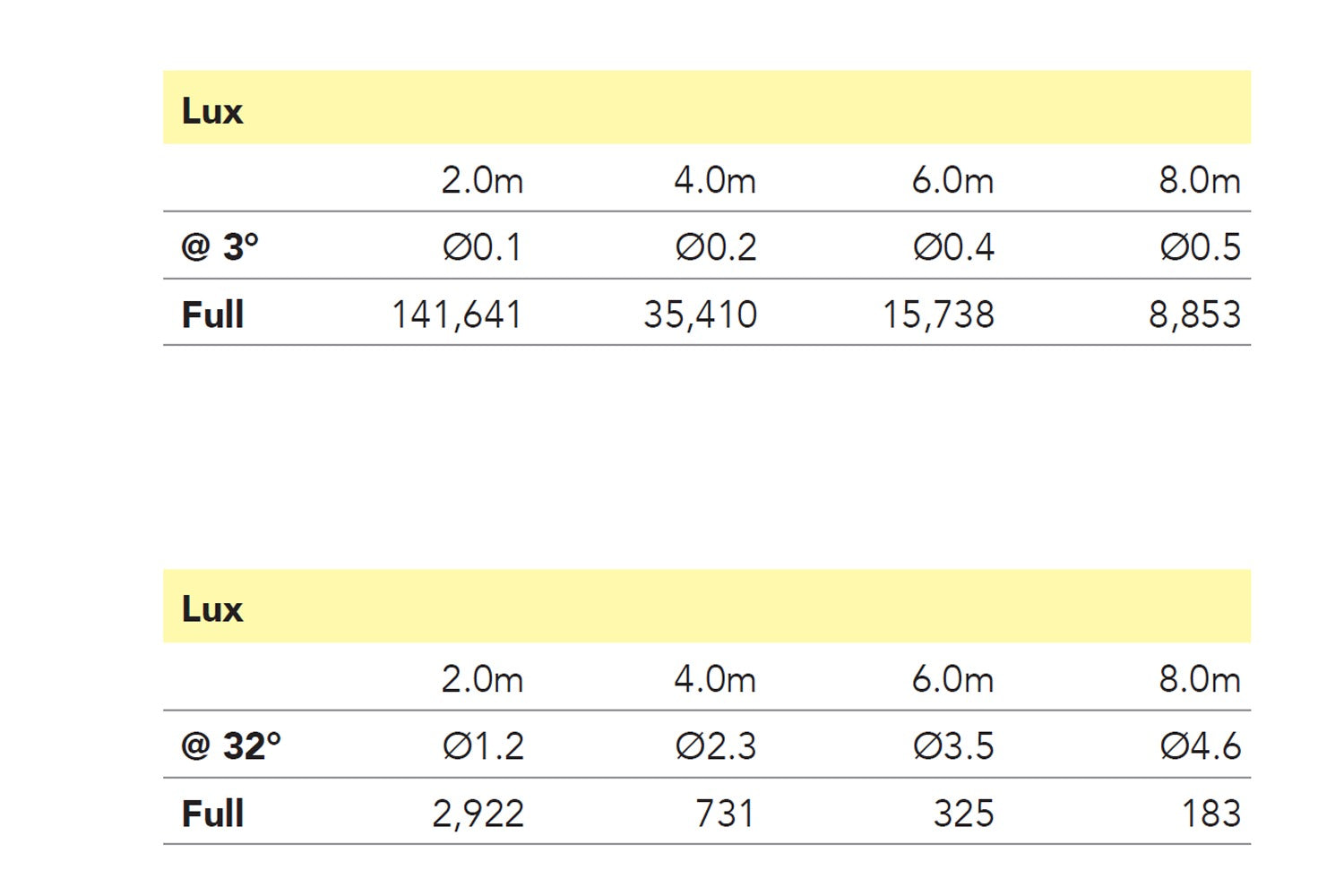

• Output: 141,641 Lux @ 2m (3°); 2,922 Lux @ 2m (32°)
• LED Lifespan: 50,000 hours

Effects

• Dimming: 0-100%, 16 bit
• Pixel Control: Yes
• Aura LEDs Effects (RGB LEDs)
• Strobe: Yes
• Zoom: Motorised, 3° - 45°

Movement

• Pan: 540°

• Tilt: 205°

Power

• Input Voltage: 100-240V AC, 50/60 Hz
• Power consumption Max.: 700W
• Connection: IP65 True1 in/out

Control

• Operation Modes: DMX, auto, sound active, master/slave
• Control Protocol: DMX, RDM, ArtNet, sACN
• DMX Channels: 28 / 49 / 105 / 127

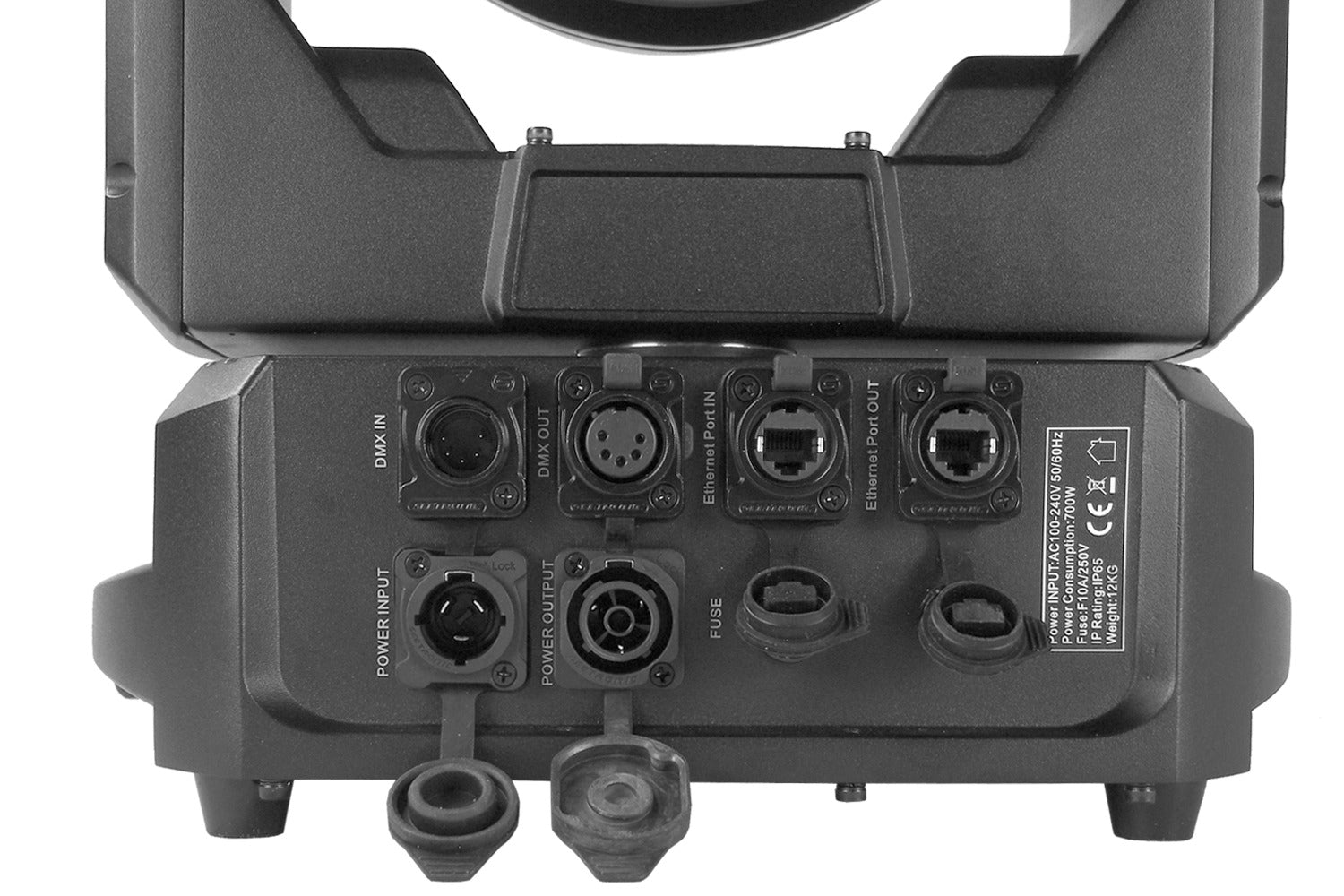

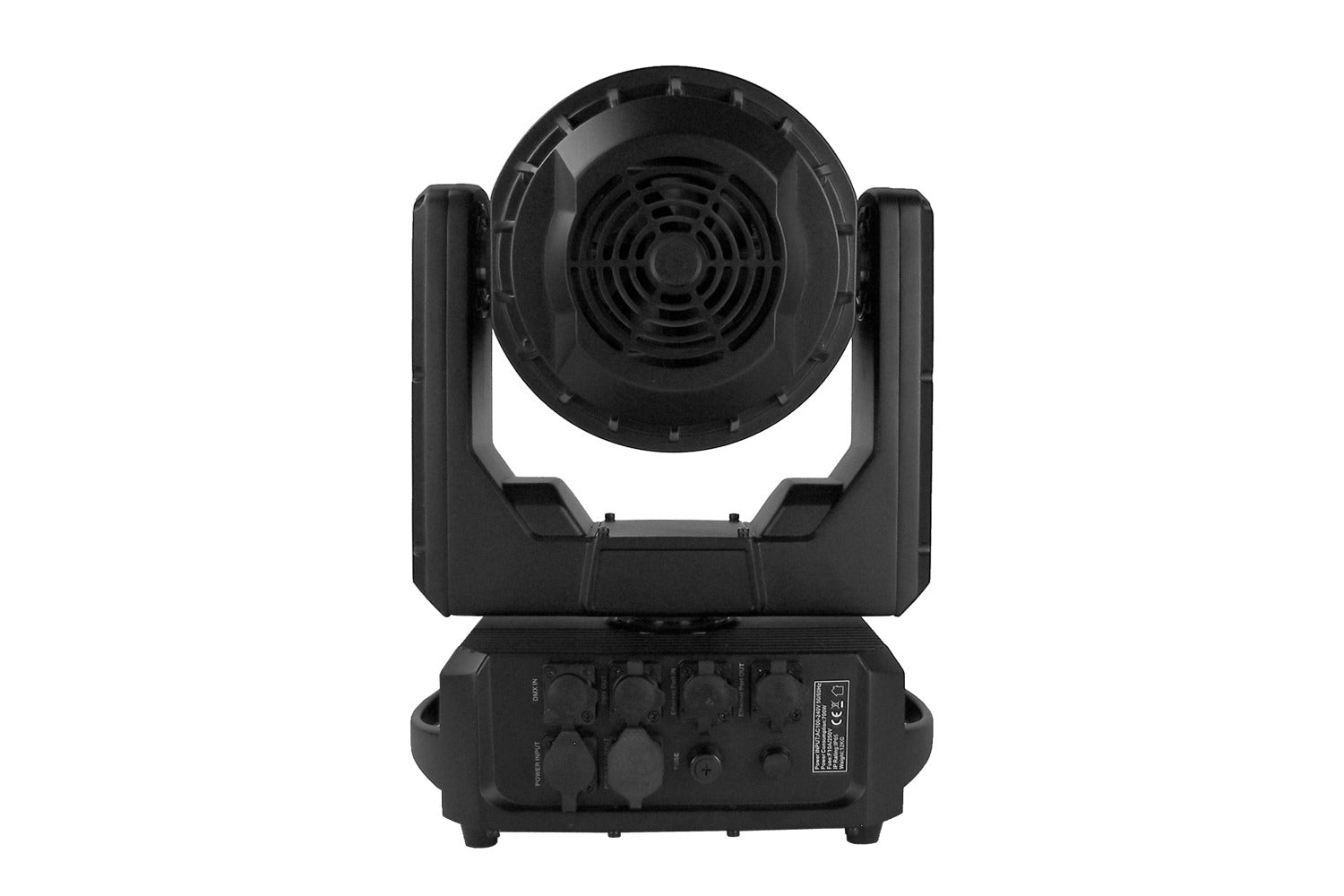

• Control Interface: 5-pin DMX in/out, RJ45 in / out
• Display: Full colour 180° reversible LCD control panel
• Software upgrade via RJ45 cable

Housing

• Housing Materials: ABS and steel, matte black finish
• IP Rate: IP65

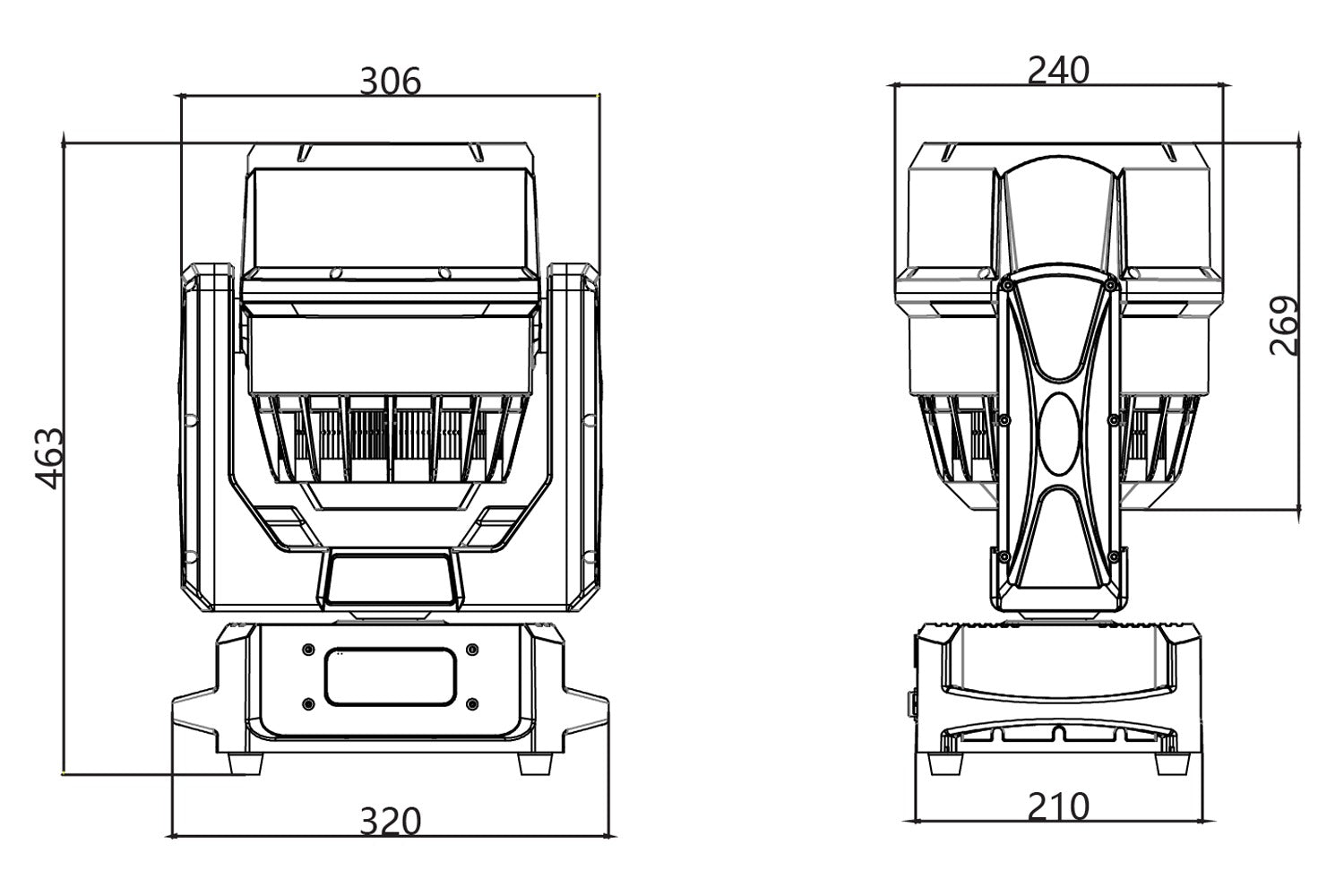

• Size: 310 x 210 x 463 mm / 12.2" x 8.3" x 18.2"
• Net Weight: 12 kg / 26 lbs 7.2 oz
• Road Case: DELM7X60CASE4

• 2 x Omega brackets included

Download DMX Chart

Download the User Manual

Download Product Datasheet

Warranty: 3 years
