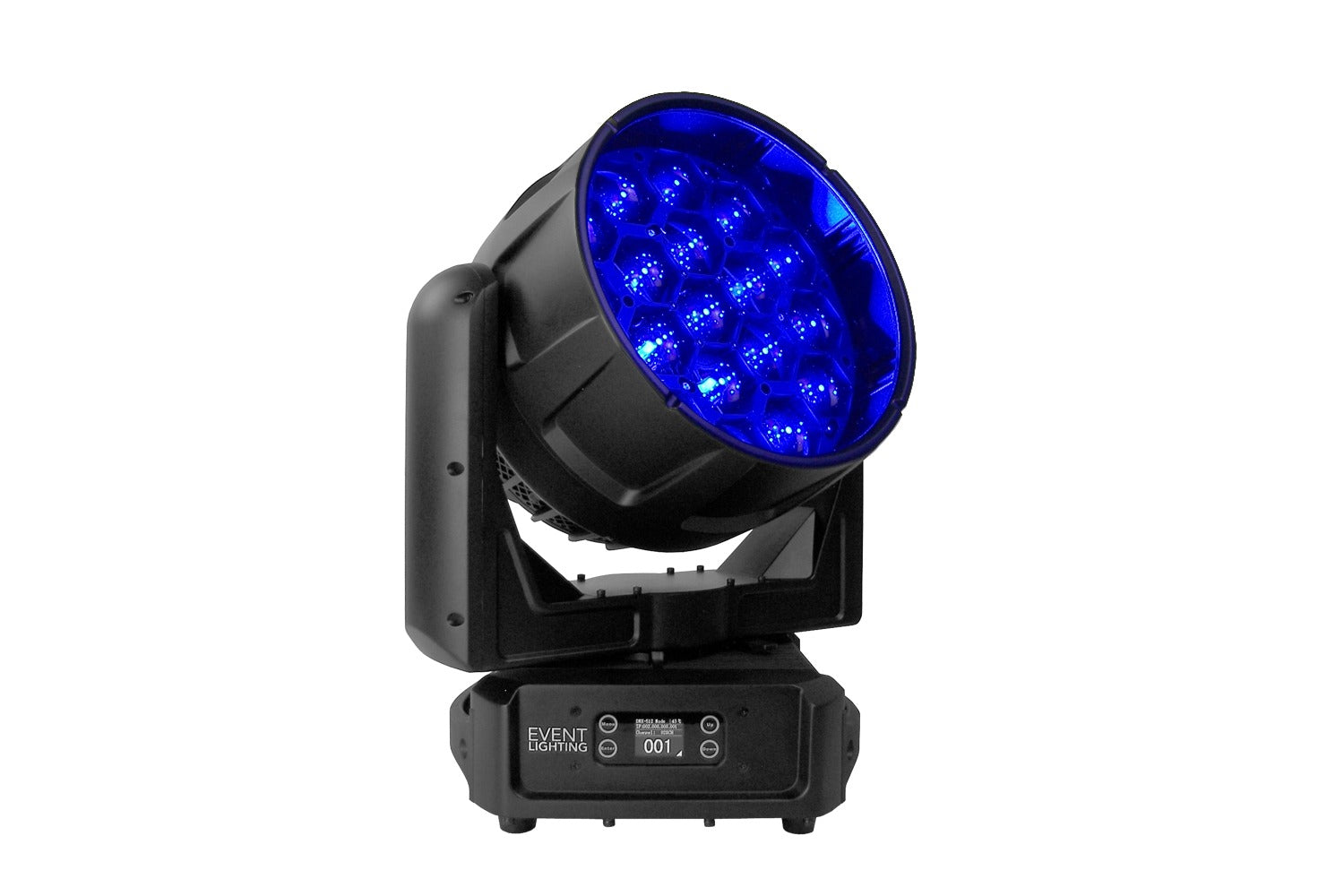

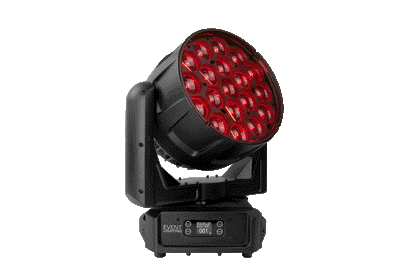

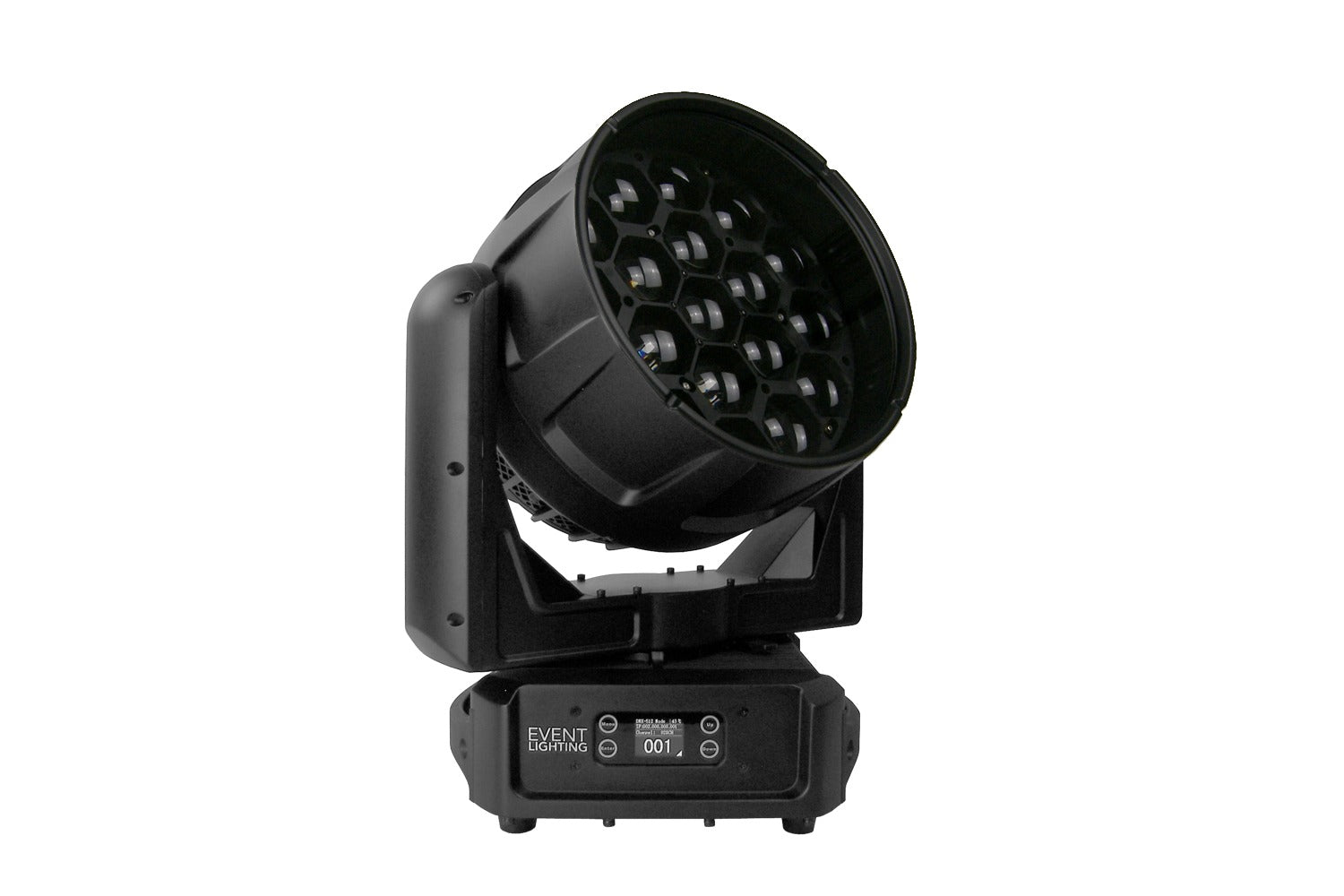

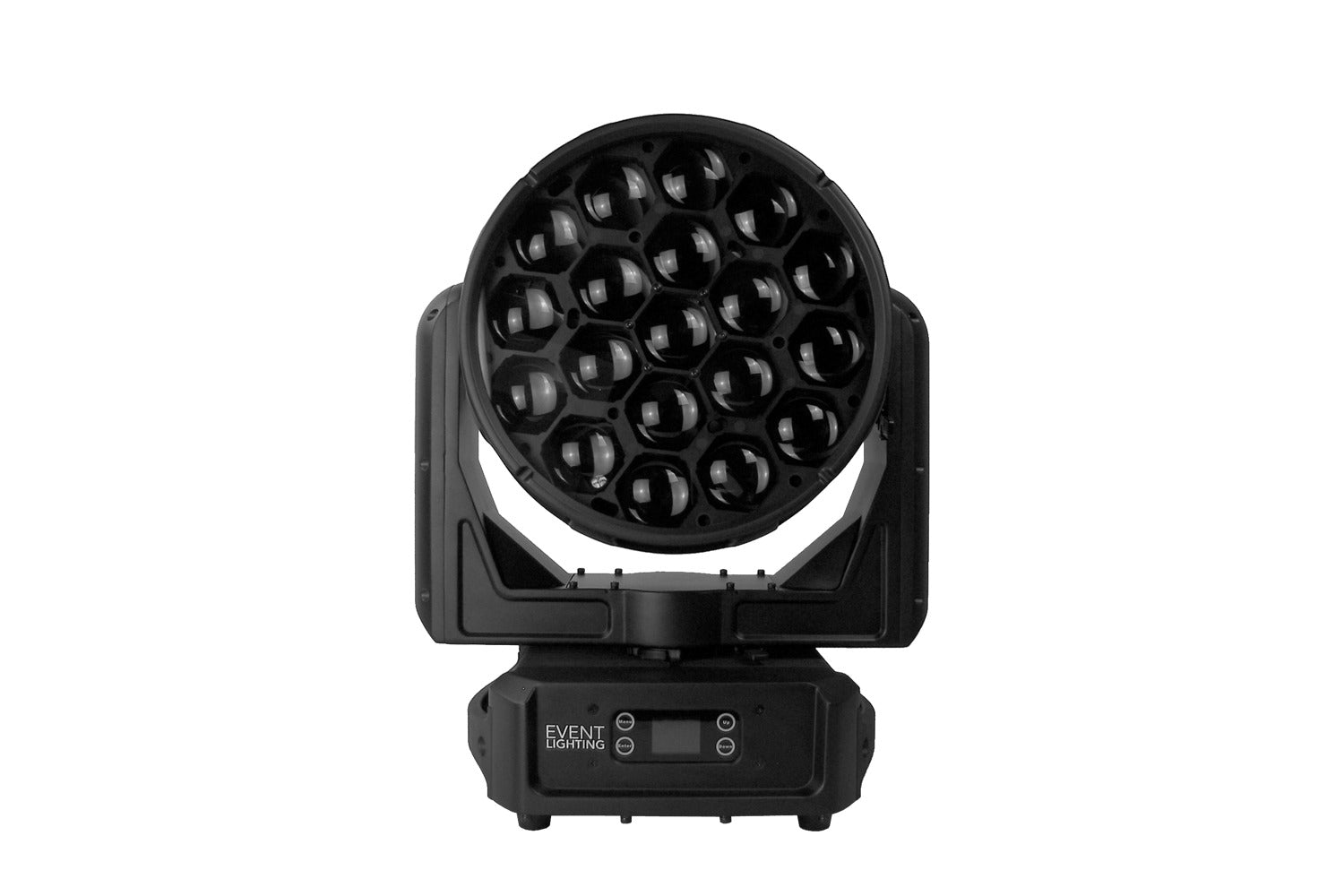

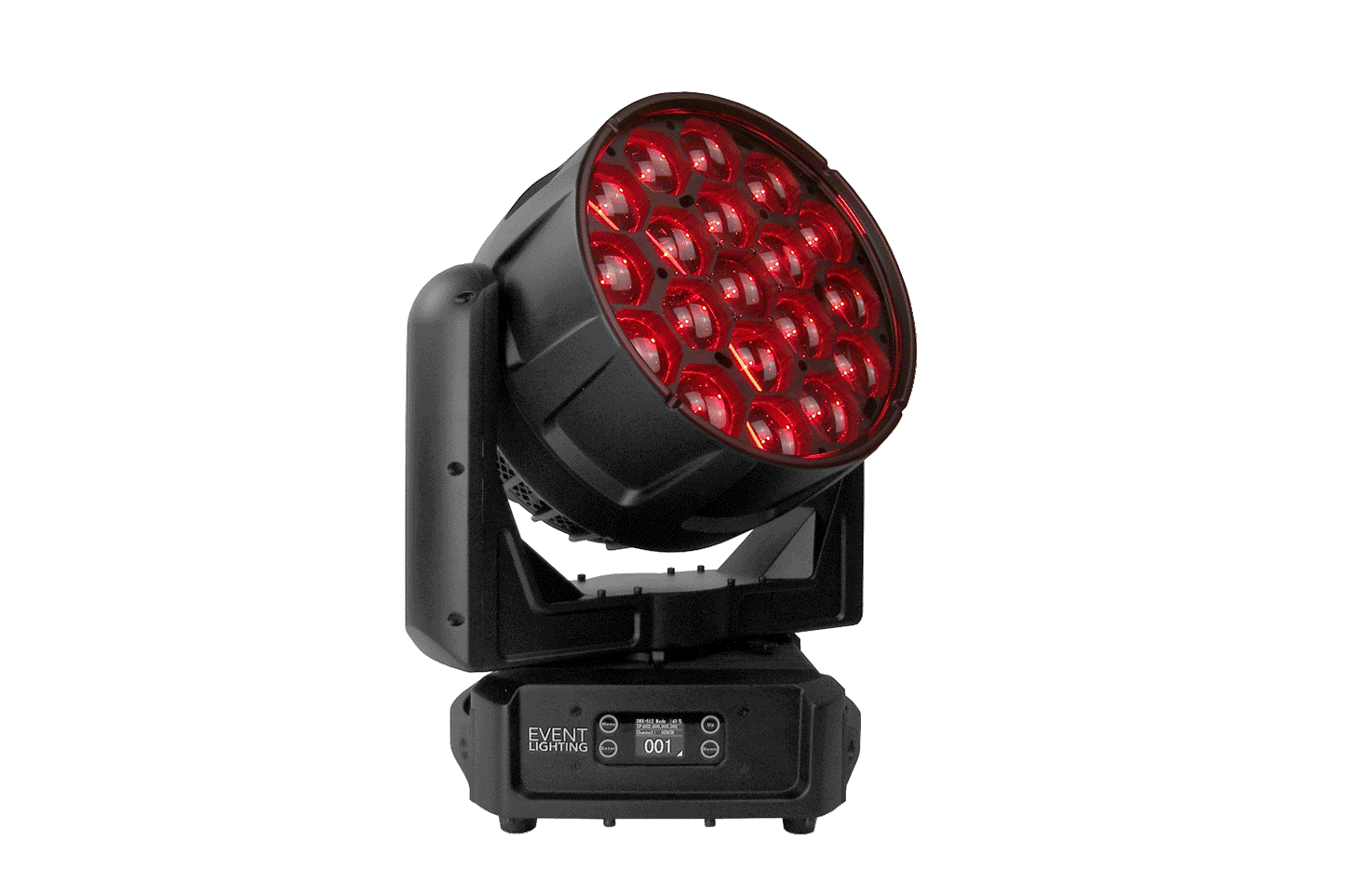

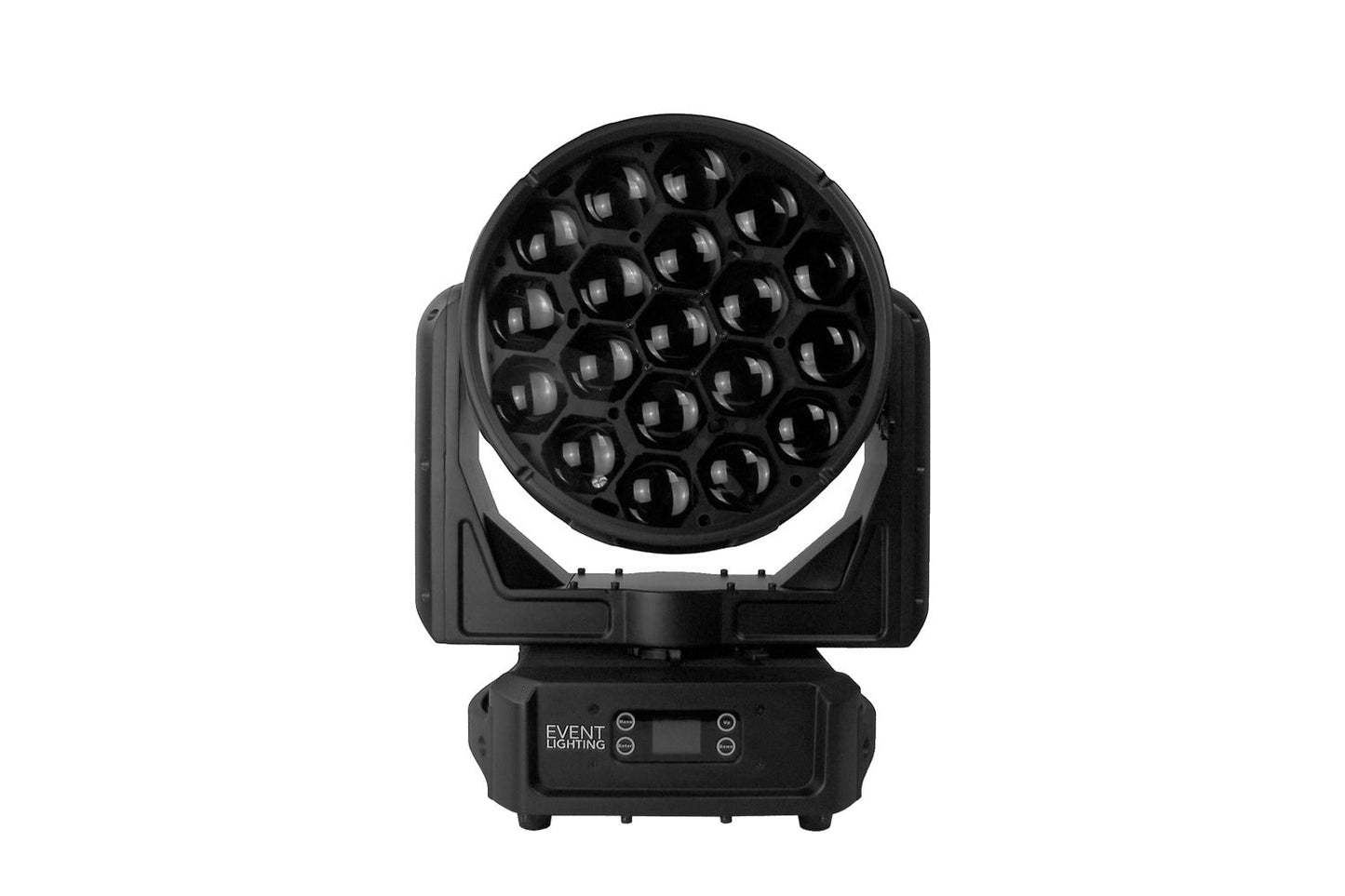

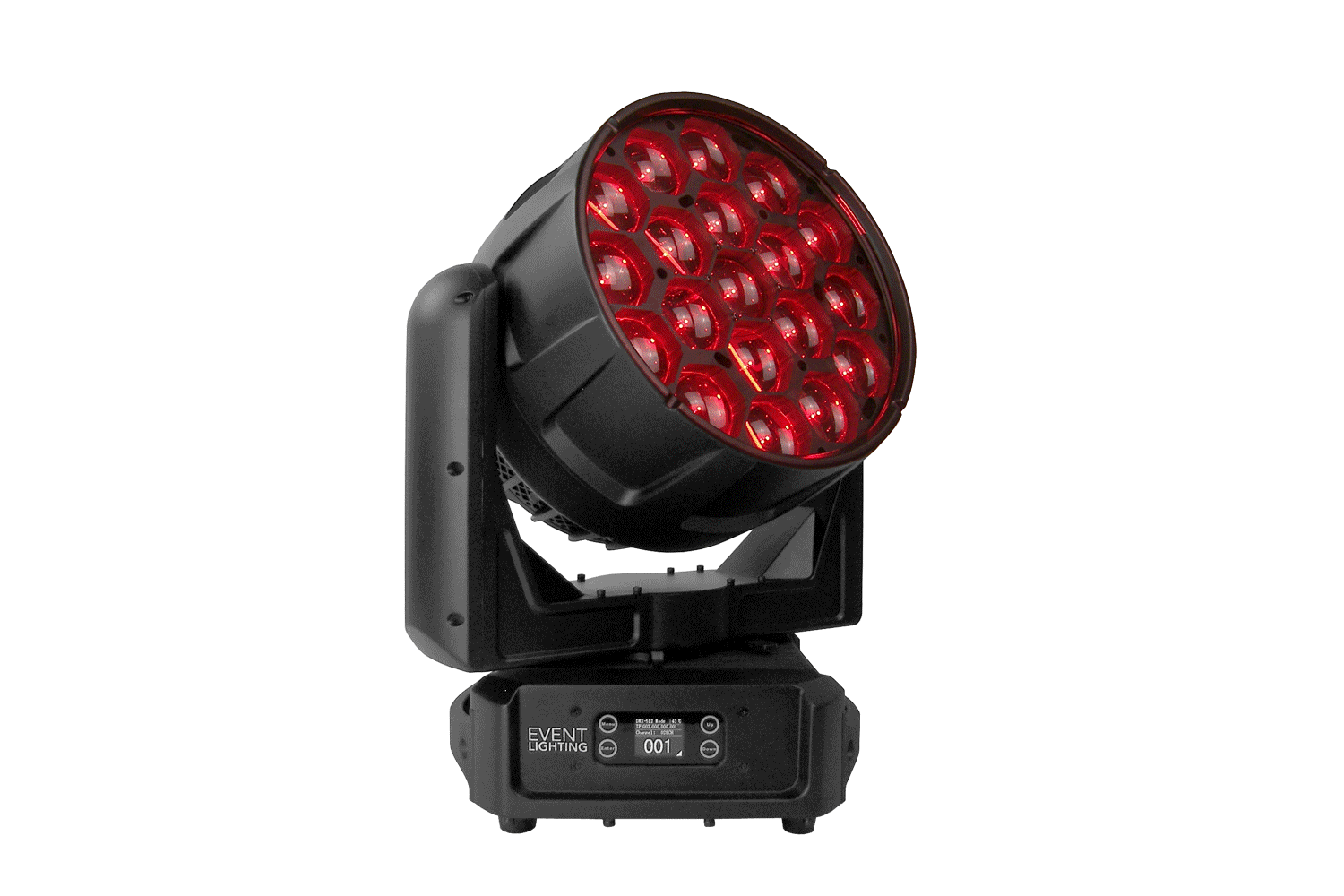

DELUGEM19X60WFX - IP65 Moving Head Zoom Wash with 19 x 60W RGBW + 76 x 0.5W RGB LEDs

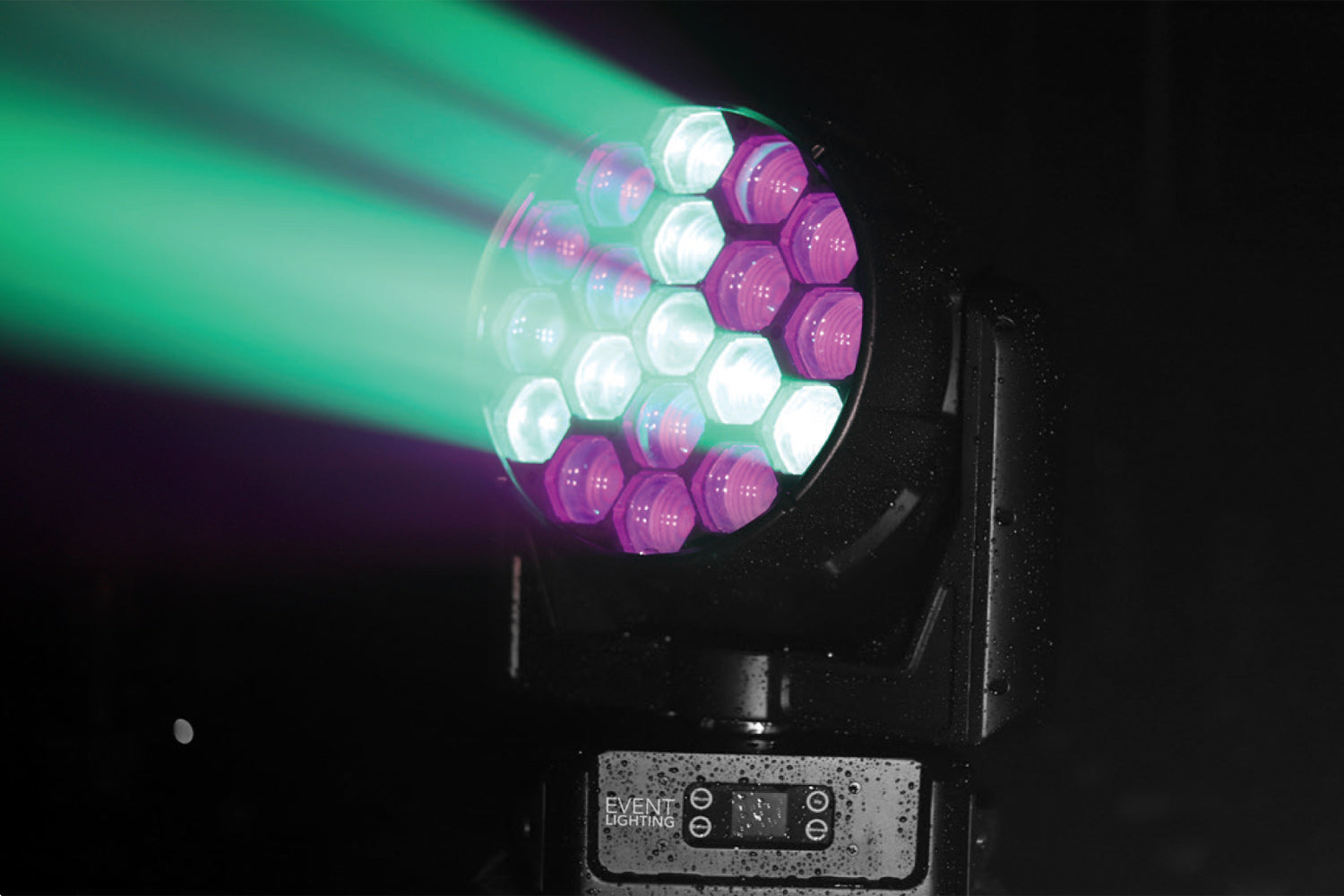

Built in a wether-defying housing, the DELUGEM19X60WFX features a powerful 19 x 60W RGBW LED source with 76 x 0.5W RGB Aura LEDs delivering exceptional brightness and rich colour mixing. Versatile colour capabilities are driven by the RGBW LEDs, providing seamless colour control across a wide spectrum. Dynamic effects include motorised zoom with an expansive range of 4.5° to 61°, individual pixel control for stunning visual mapping, and a dedicated Aura LED effect. Crucially, the fixture features a rotating front lens that creates a captivating split beam effect for dynamic, unique aerials and washes. Control options include 5-pin DMX, RDM, ArtNet, and sACN as well as RJ45 connection capabilities.

Specifications:

Photometrics

• Light Source:
  — 19 x 60W RGBW LEDs
  — 76 x 0.5W RGB LEDS
• Beam Angle: 4.5° - 55°

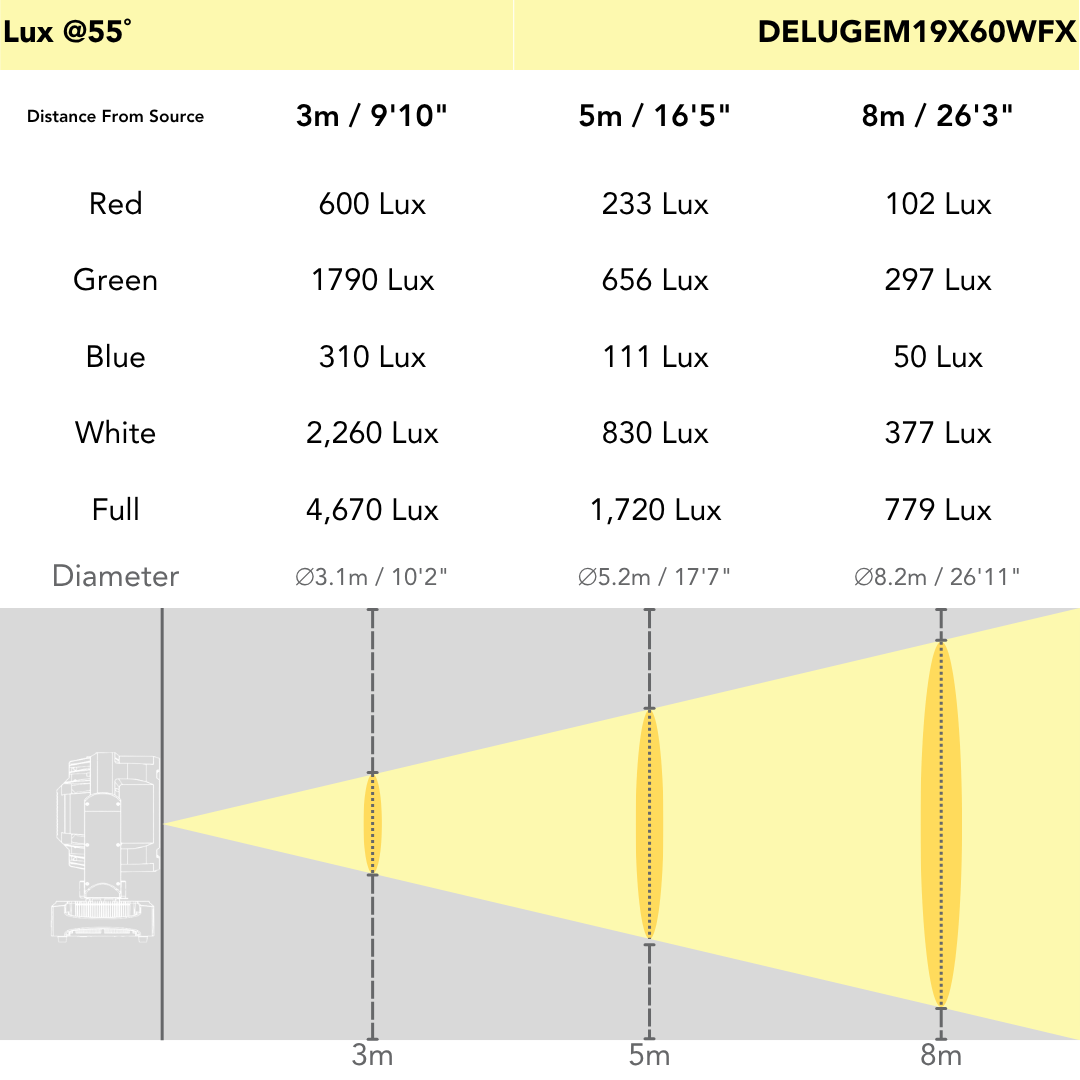

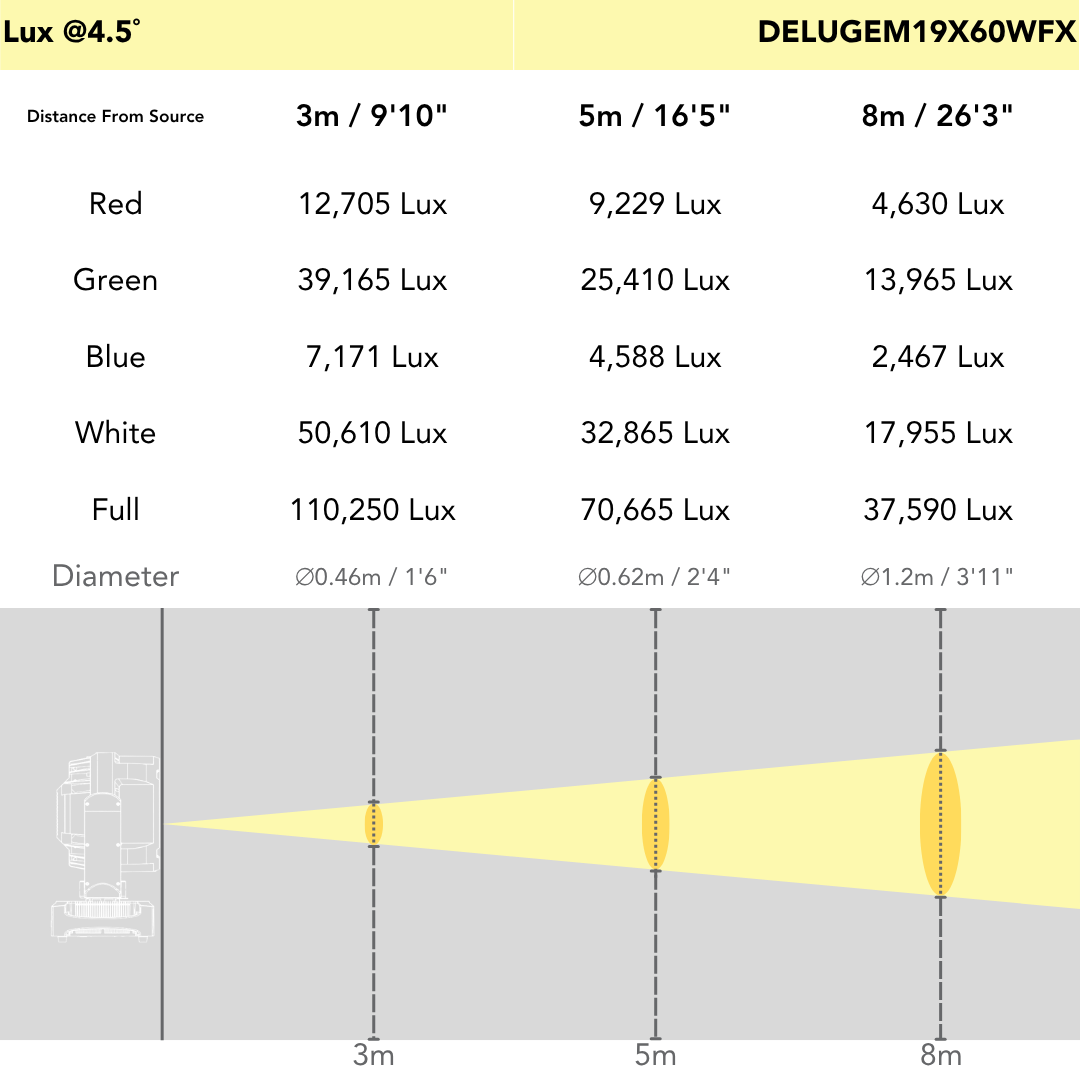

• Output  @3m: 110,250 lumen @ 4.5°; 4,970 lumen @ 55°
• LED Lifespan: 50,000 hours

Effects

• Dimming: 0-100%, 16 bit
• Pixel Control: Yes
• Aura LEDs Effects (RGB LEDs)
• Strobe: Yes
• Zoom: Motorised, 4.5° - 61°

Movement

• Pan: 540°

• Tilt: 205°

Power

• Input Voltage: 100-240V AC, 50/60 Hz
• Power consumption Max.: 1,500W
• Connection: IP65 True1 in/out

Control

• Operation Modes: DMX, auto, sound active, master/slave
• Control Protocol: DMX, RDM, ArtNet, sACN
• DMX Channels: 28 / 98 / 251 / 321

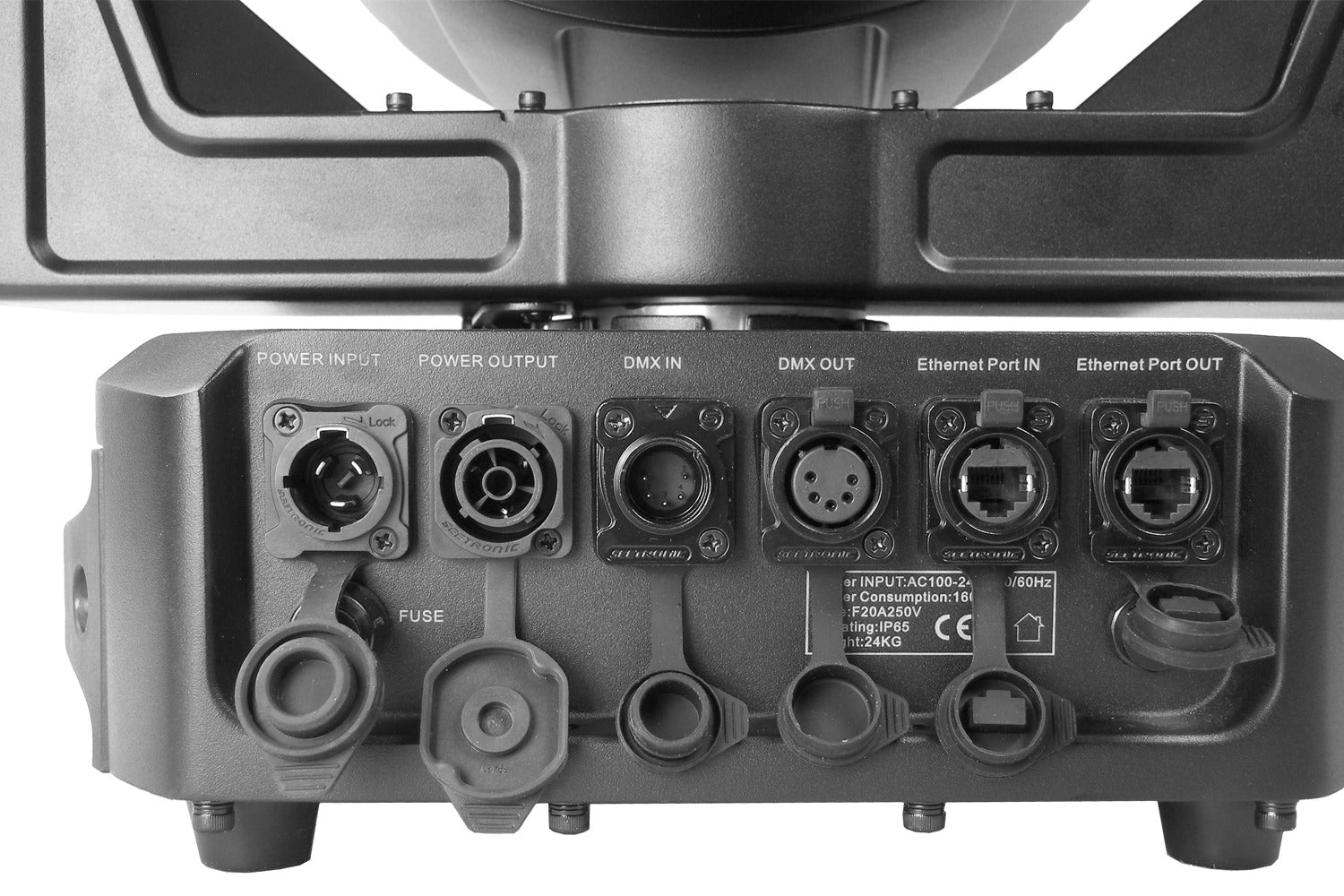

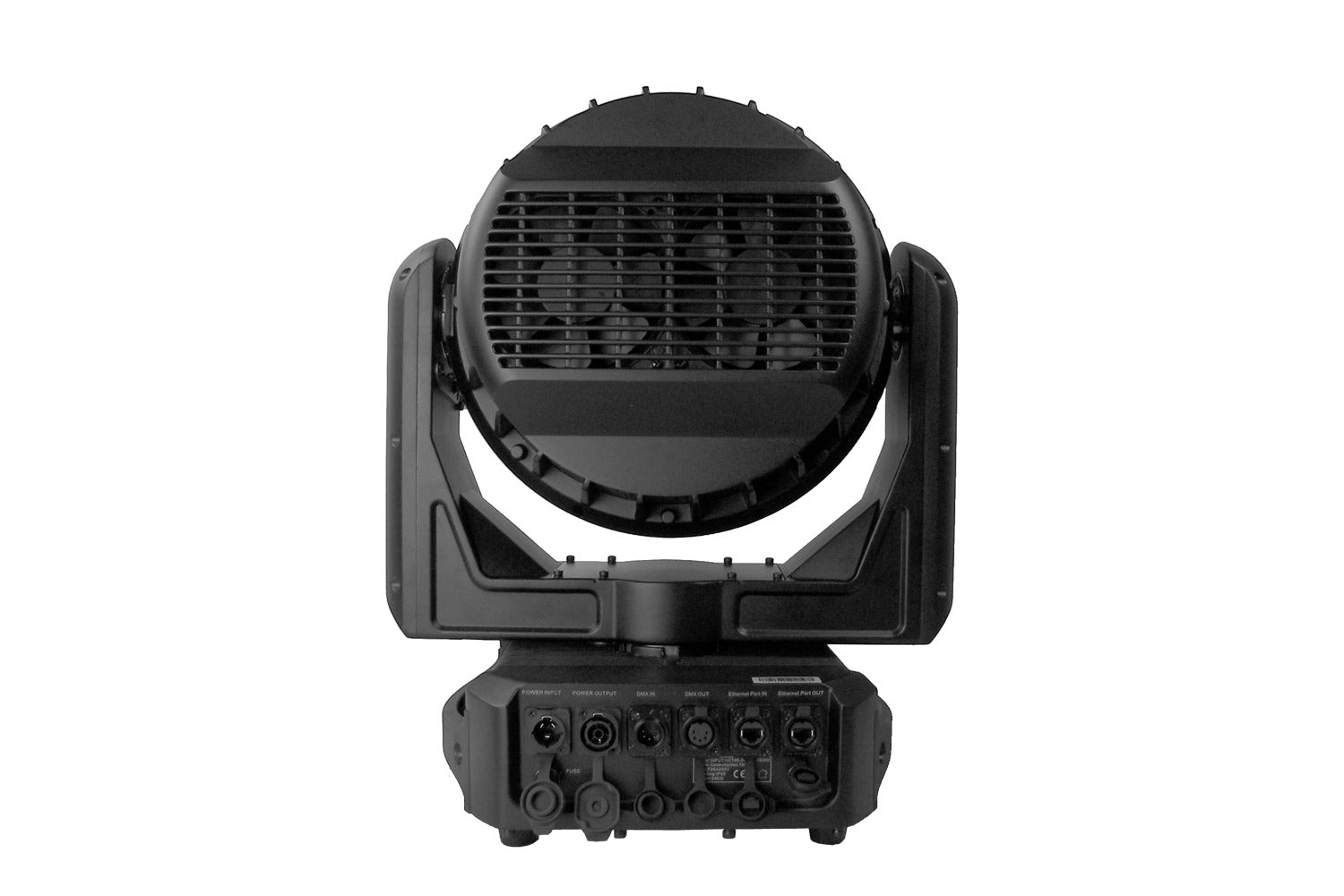

• Control Interface: 5-pin DMX in/out, RJ45 in / out

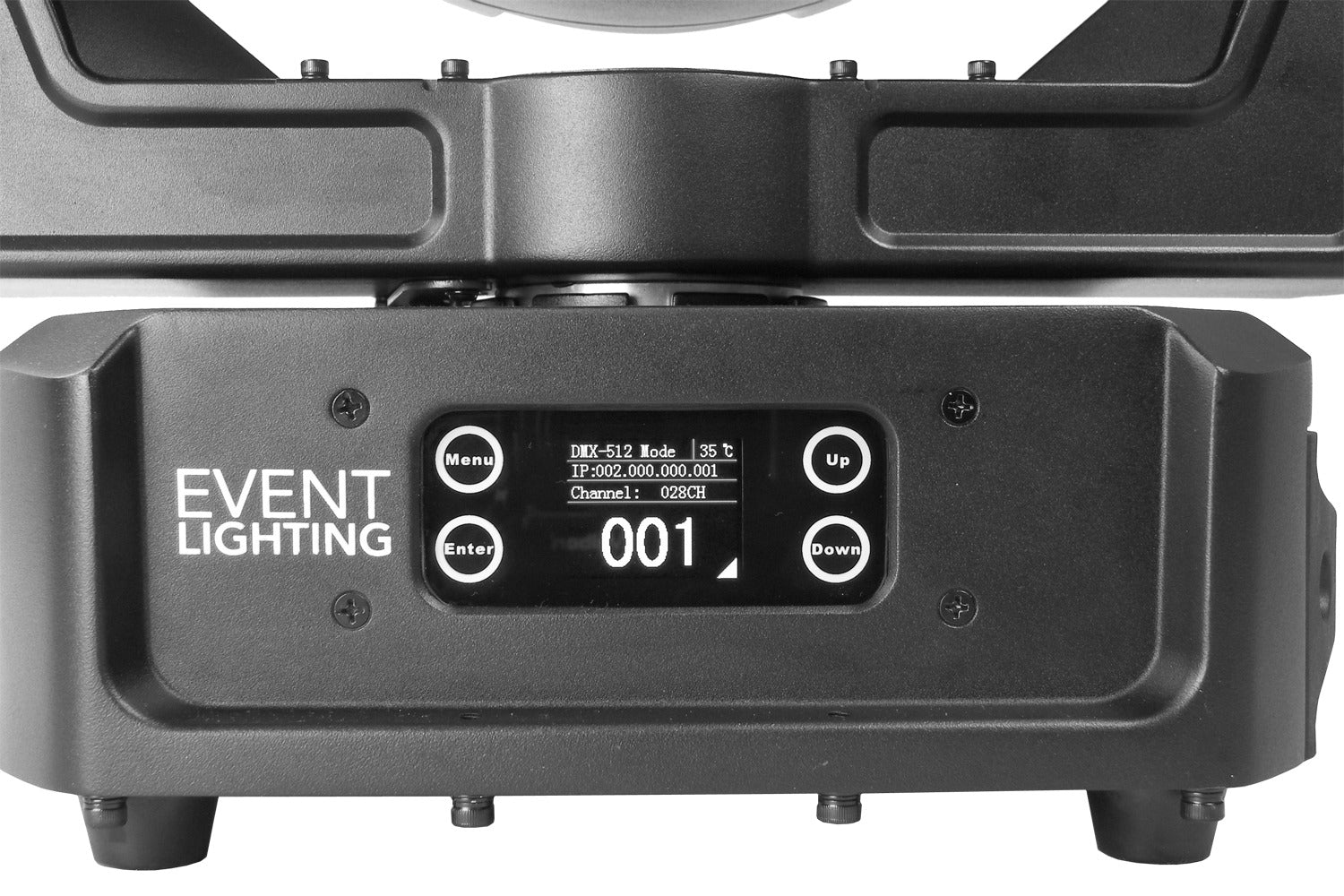

• Display: Full colour 180° reversible LCD control panel
• Software upgrade via RJ45 cable

Housing

• Housing Materials: ABS and steel, matte black finish
• IP Rate: IP65

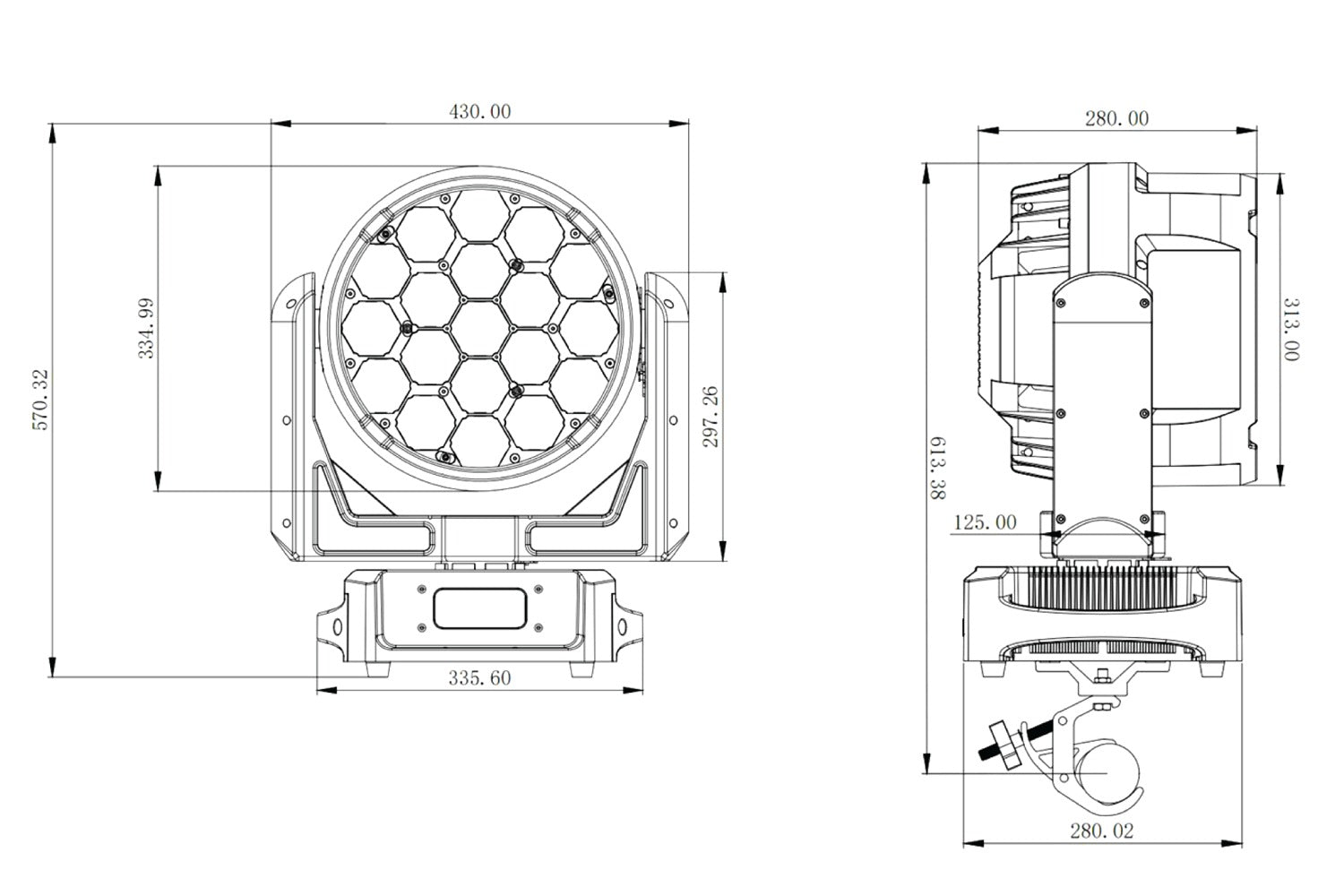

• Size: 430 x 280 x 514 mm / 16.9" x 11.0" x 20.2"
• Net Weight: 23 kg / 50.7 lbs

Download DMX Chart

Download the User Manual

Download Product Datasheet

Warranty: 3 years
