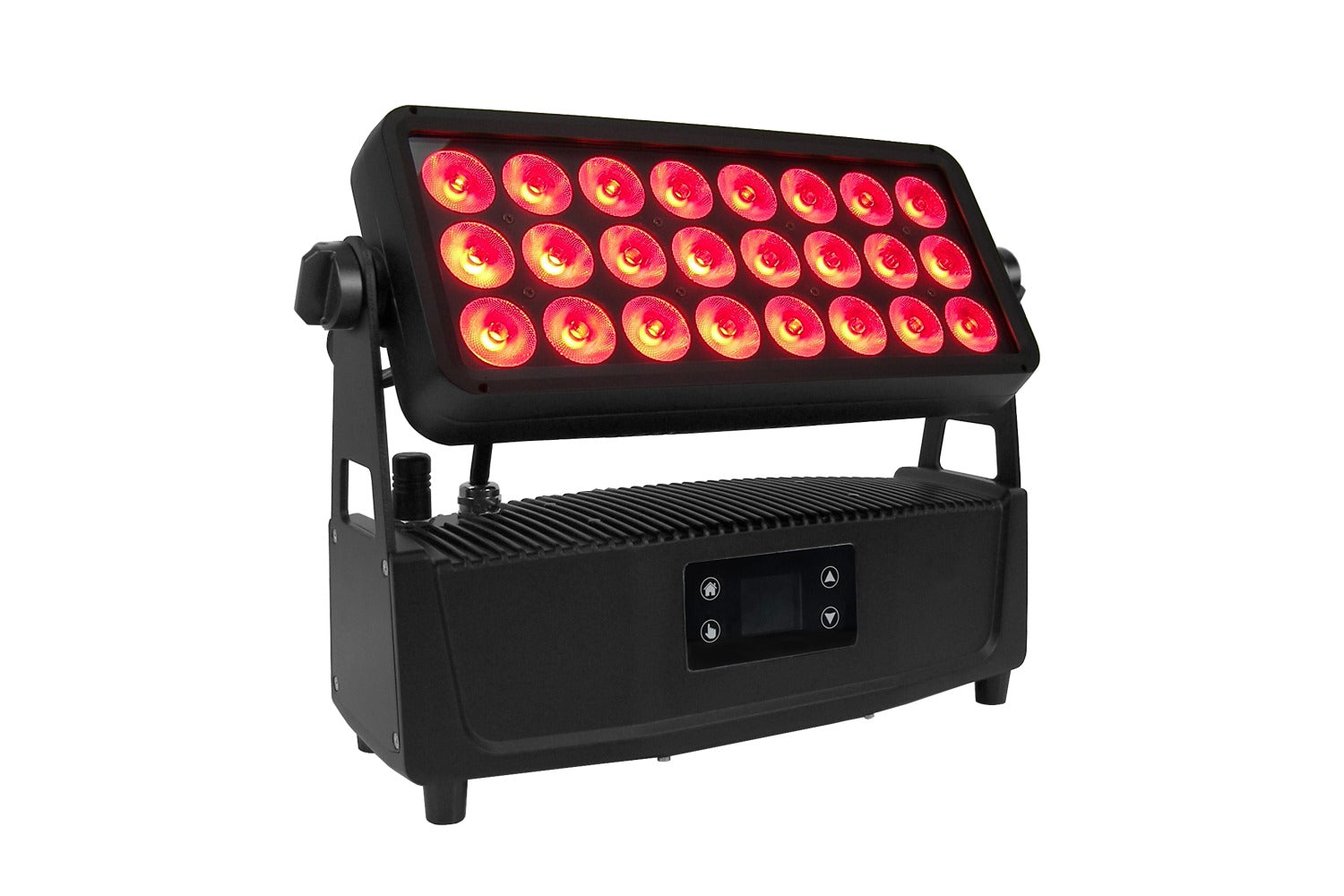

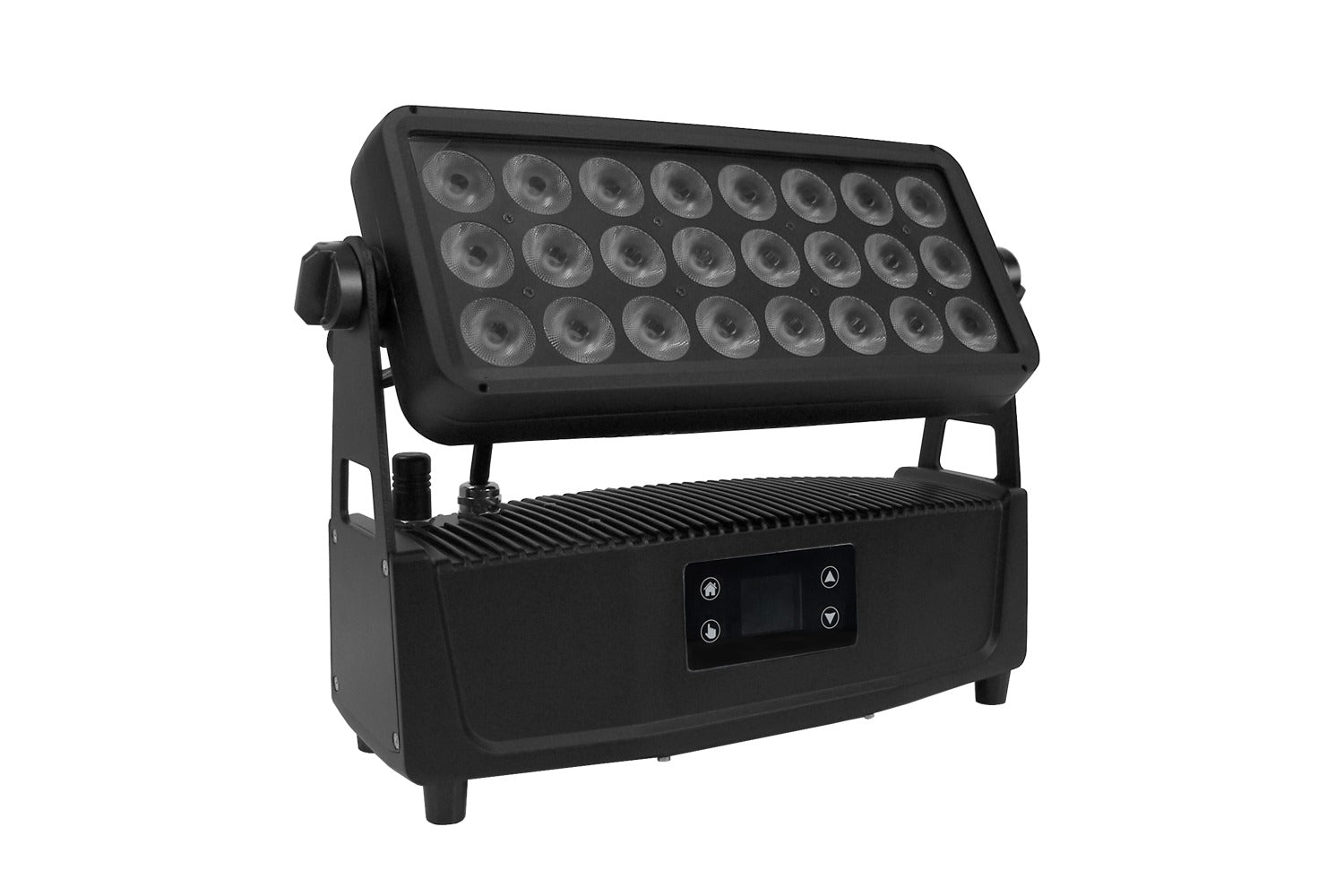

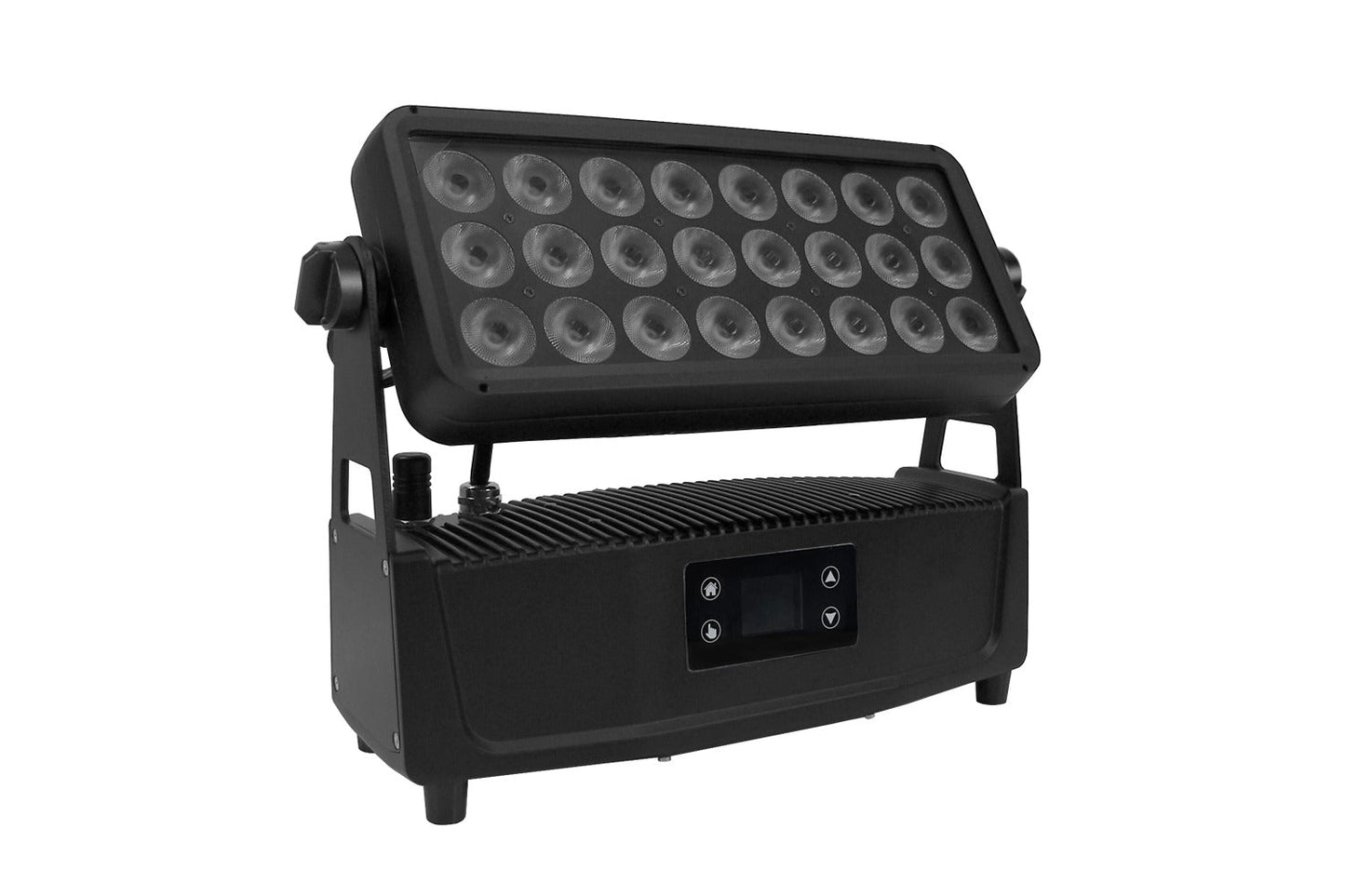

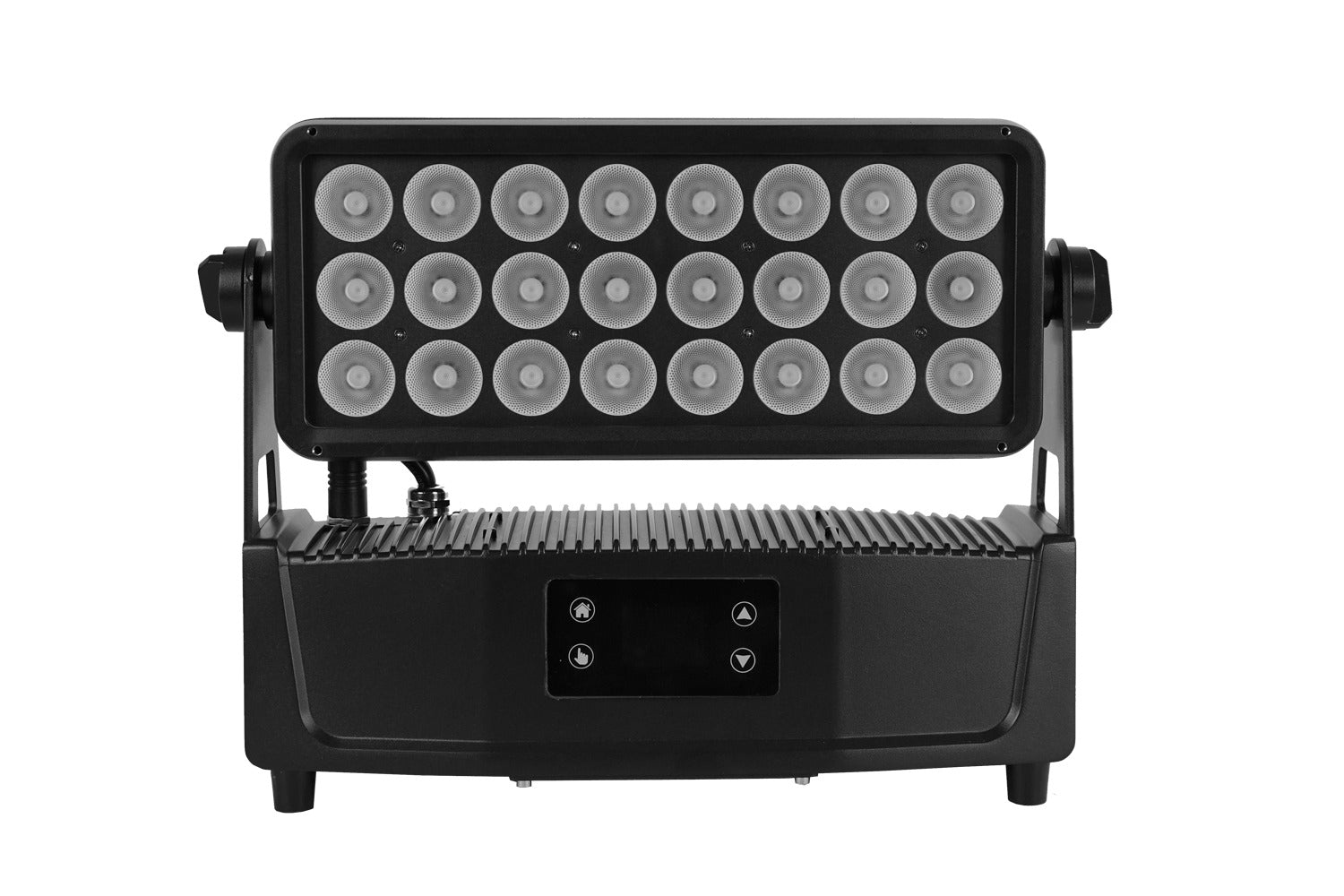

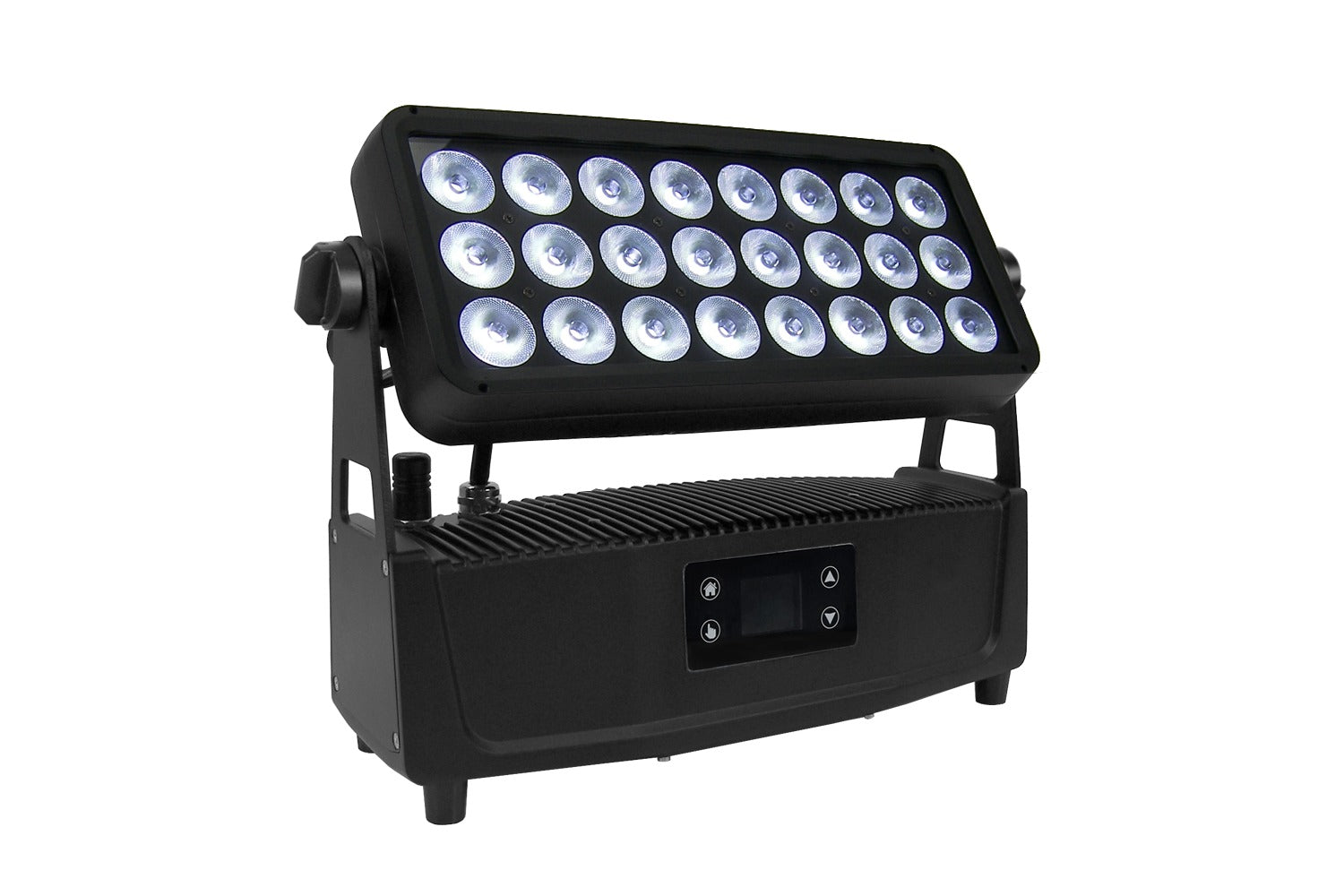

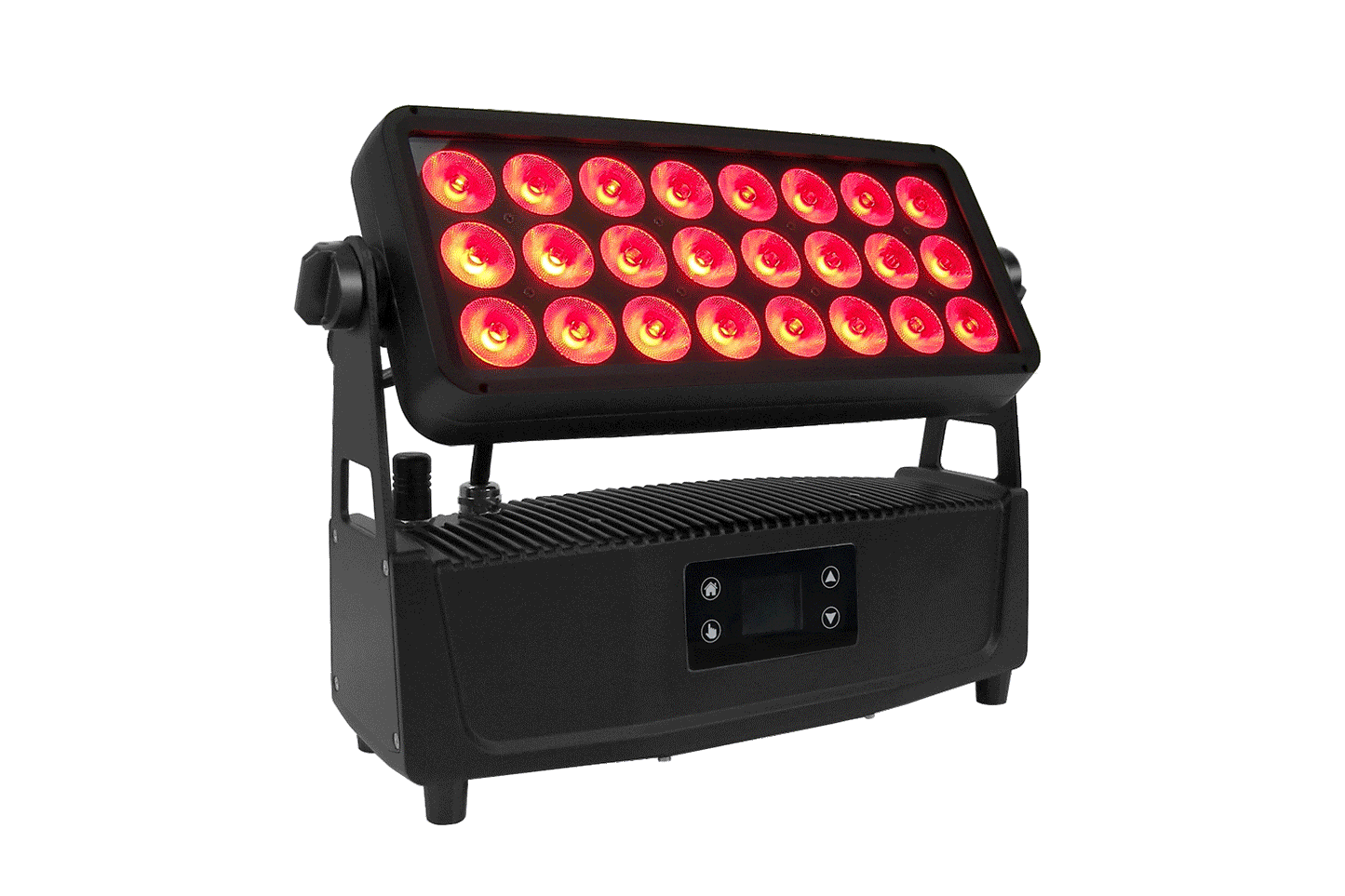

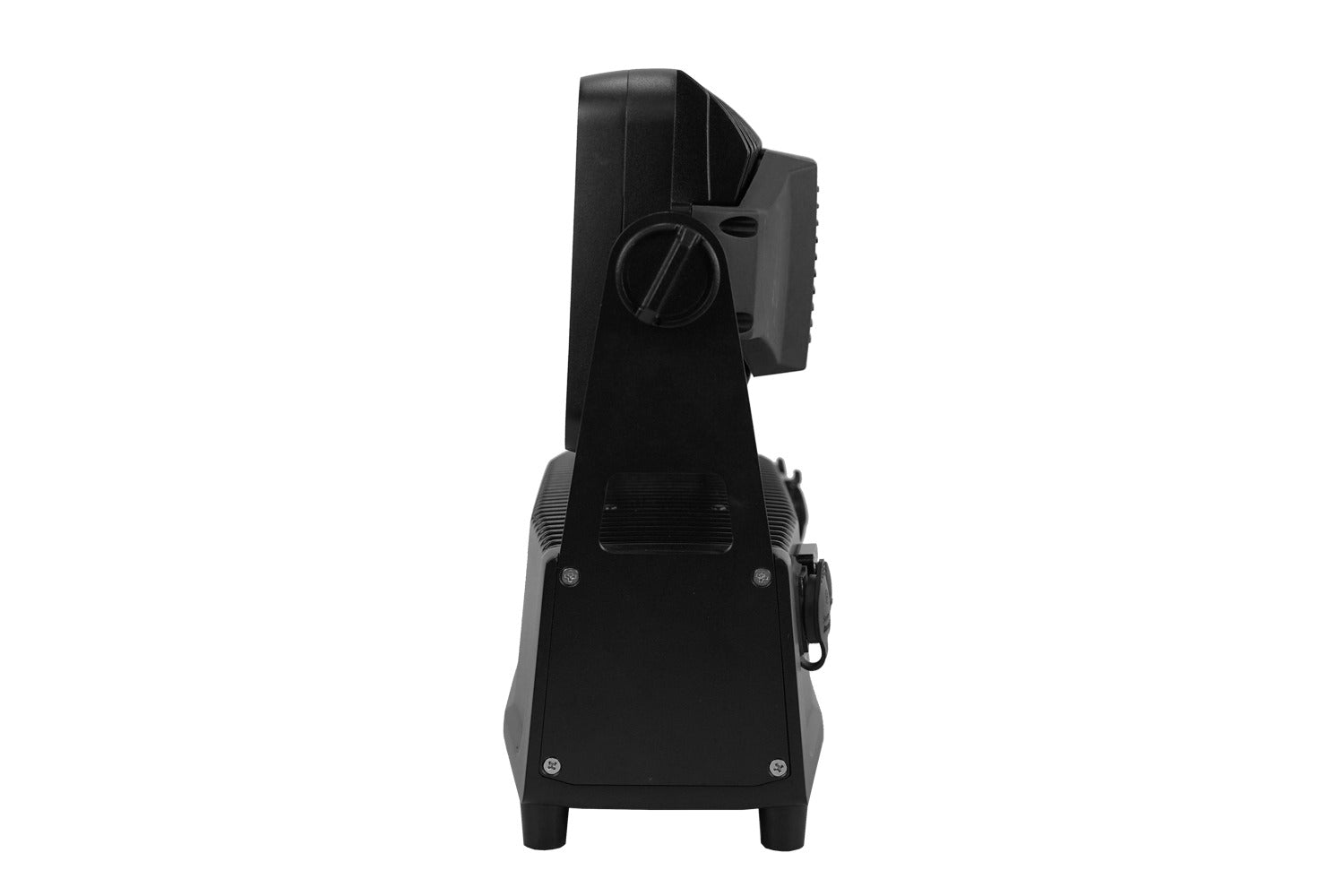

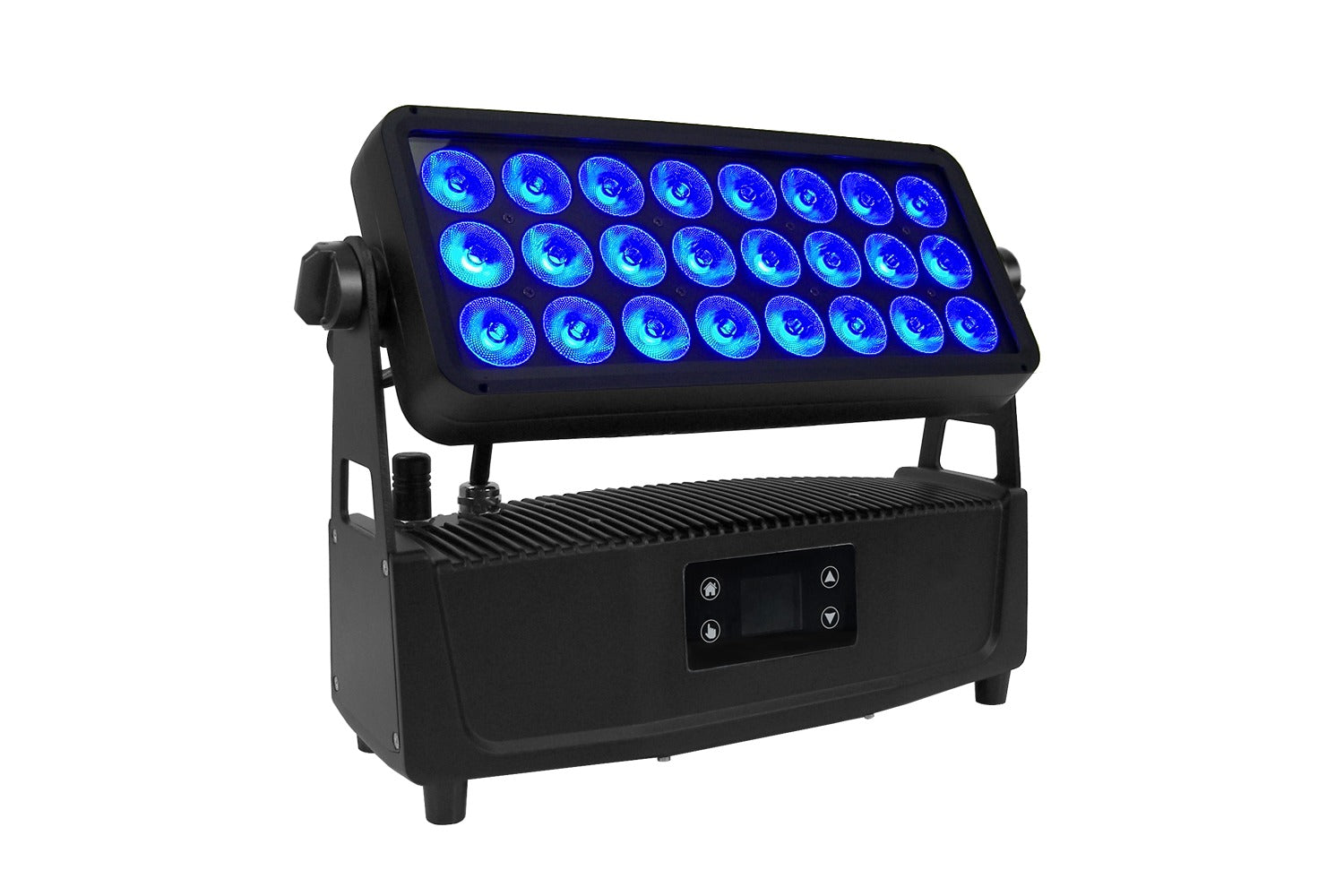

DELUGE24X20Q - Outdoor 24 x 20W RGBW Brick Style Wash

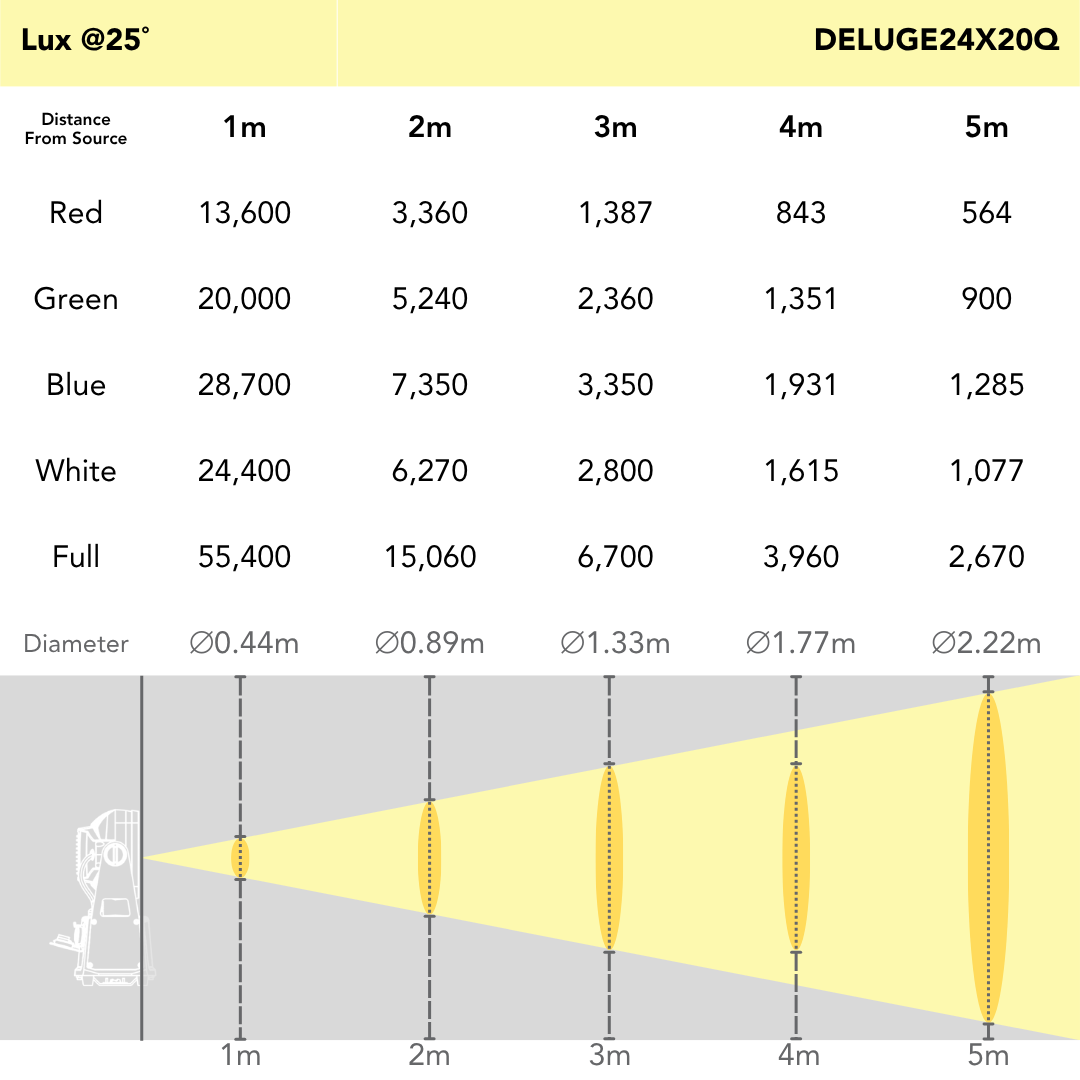

Photometrics

• Light Source: 24 x 20W RGBW LEDs

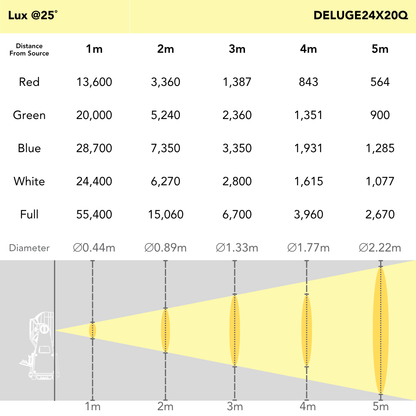

• Beam Angle: 25°
• PWM: 20,000Hz
• LED Lifespan: 50,000 hours

Effects

• Dimming: 0-100%
• Strobe: 1-20Hz

Power

• Input Voltage: 100-240V AC, 50/60Hz
• Power Consumption: 360W

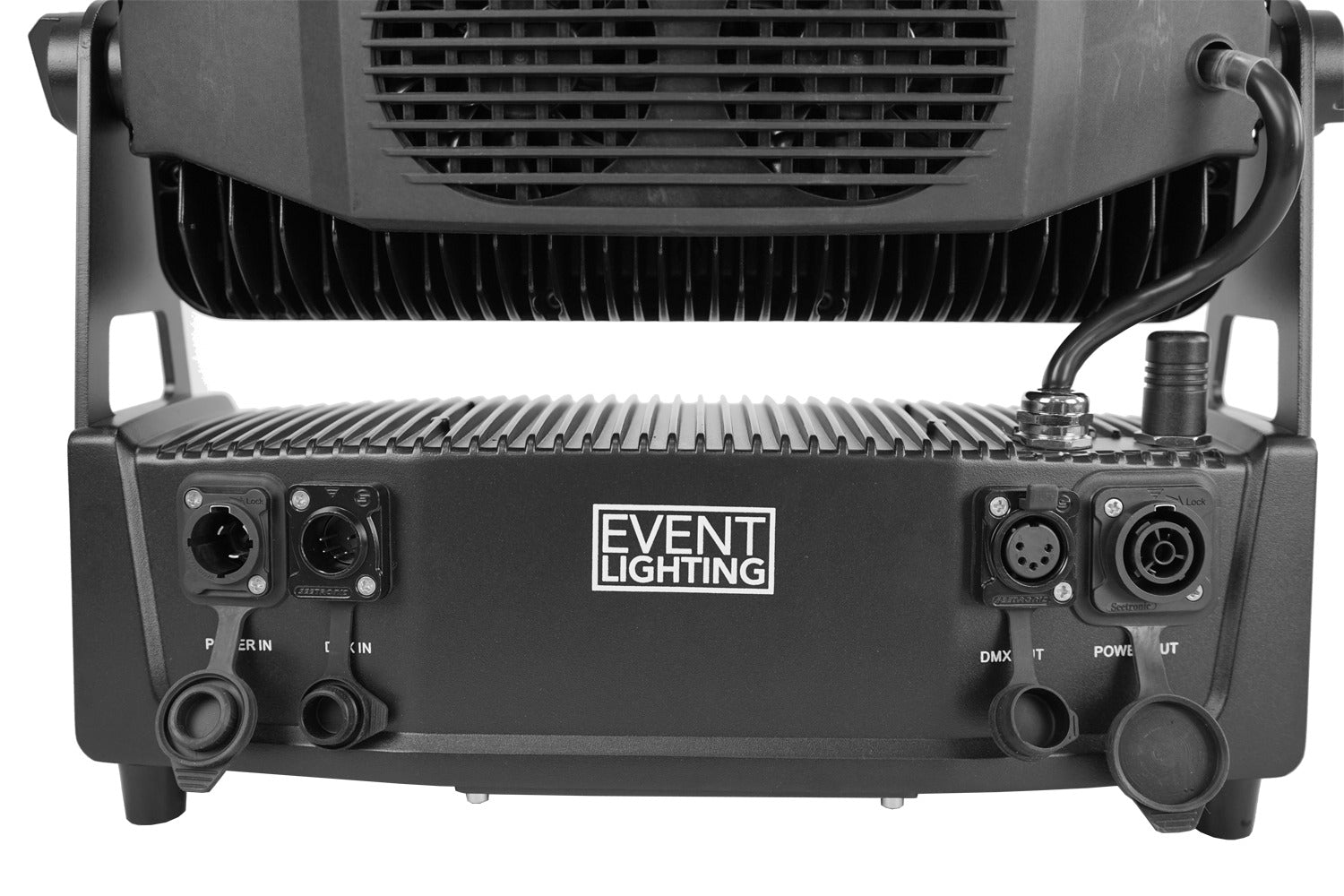

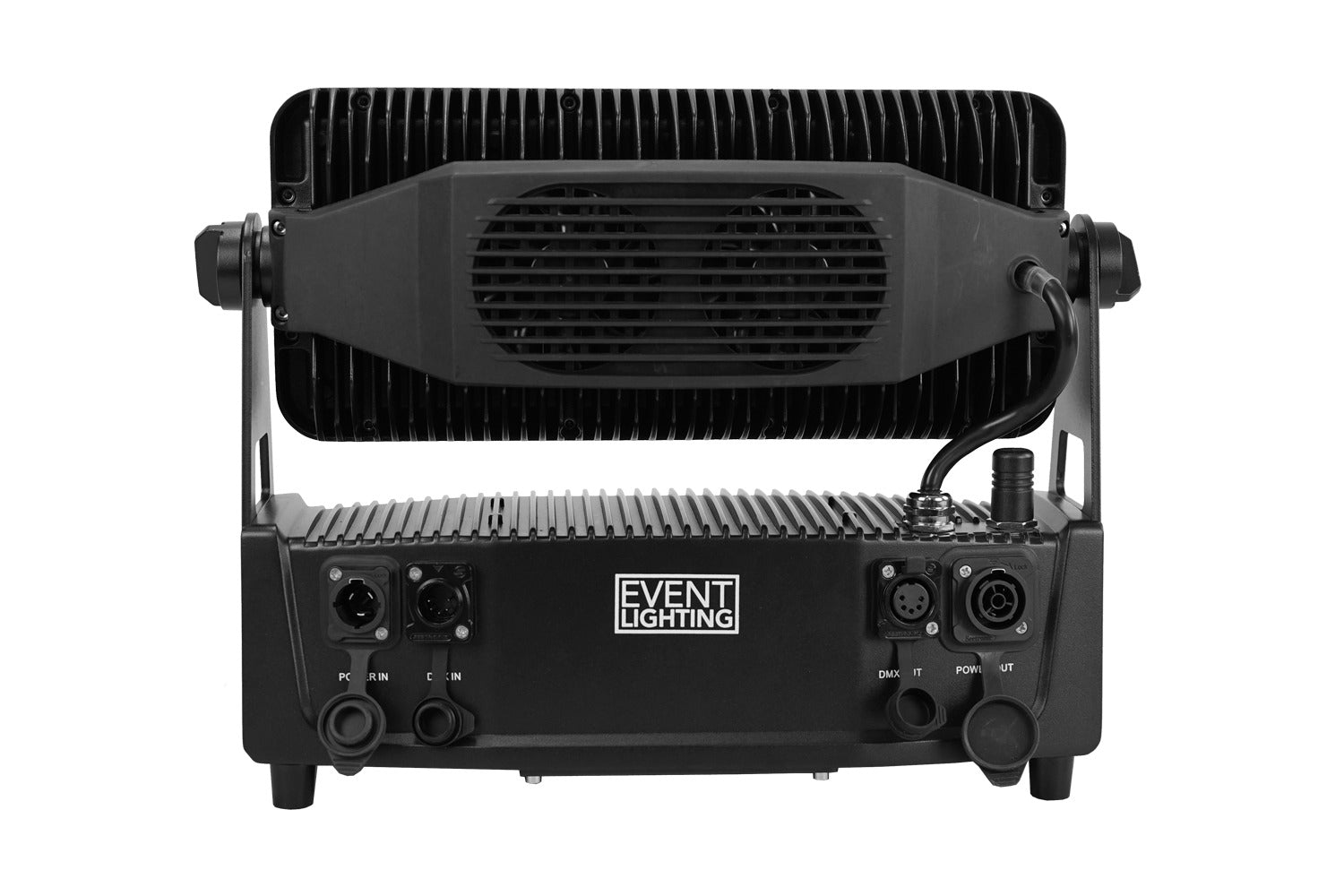

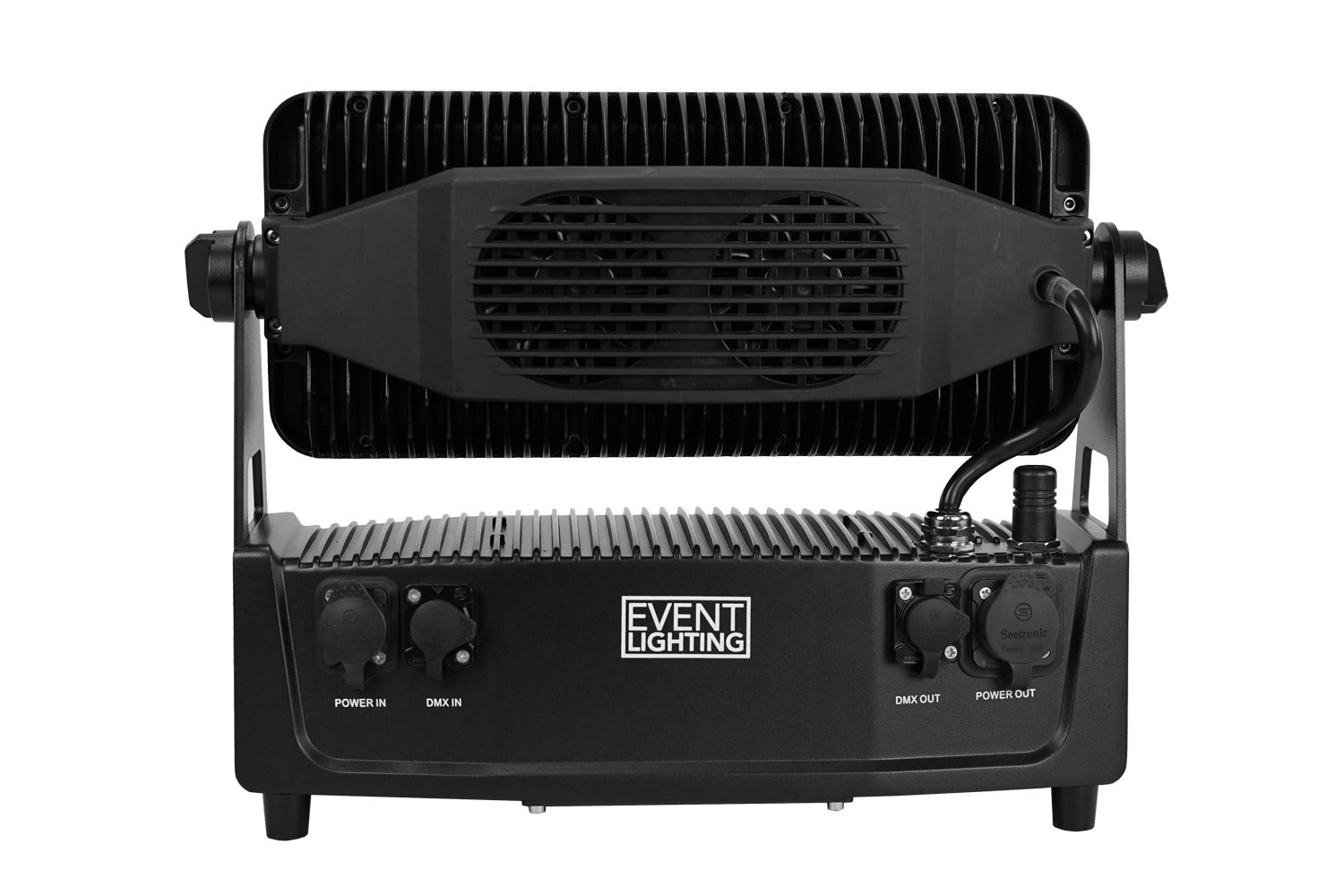

• Connection: Seetronic True1 outdoor in/out

Control

• Operation Modes: DMX, Wireless DMX, auto
• DMX Channels: 4 / 9
• Control Interface: Outdoor 5-pin XLR in/out
• Built-in Programming: 4 auto modes

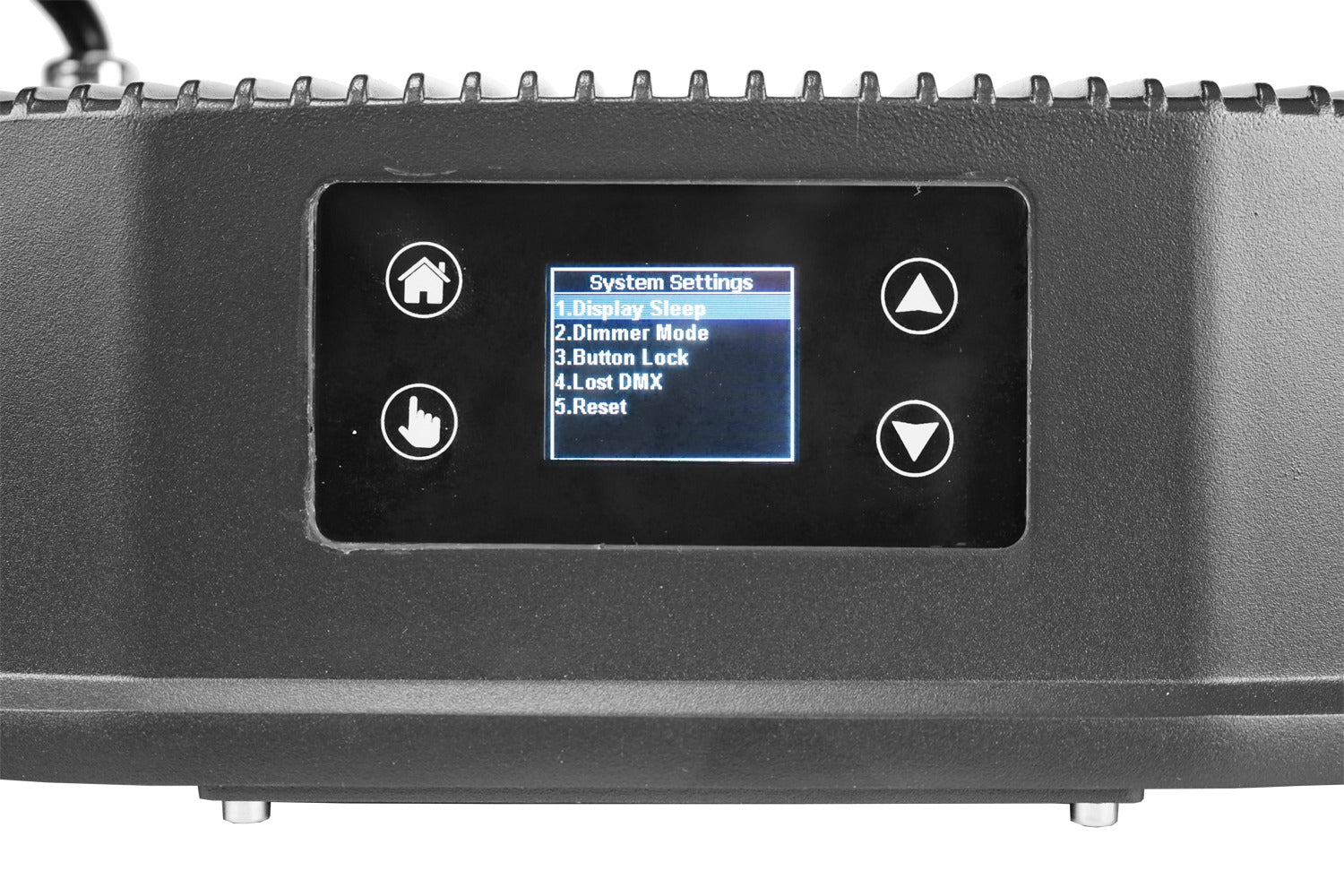

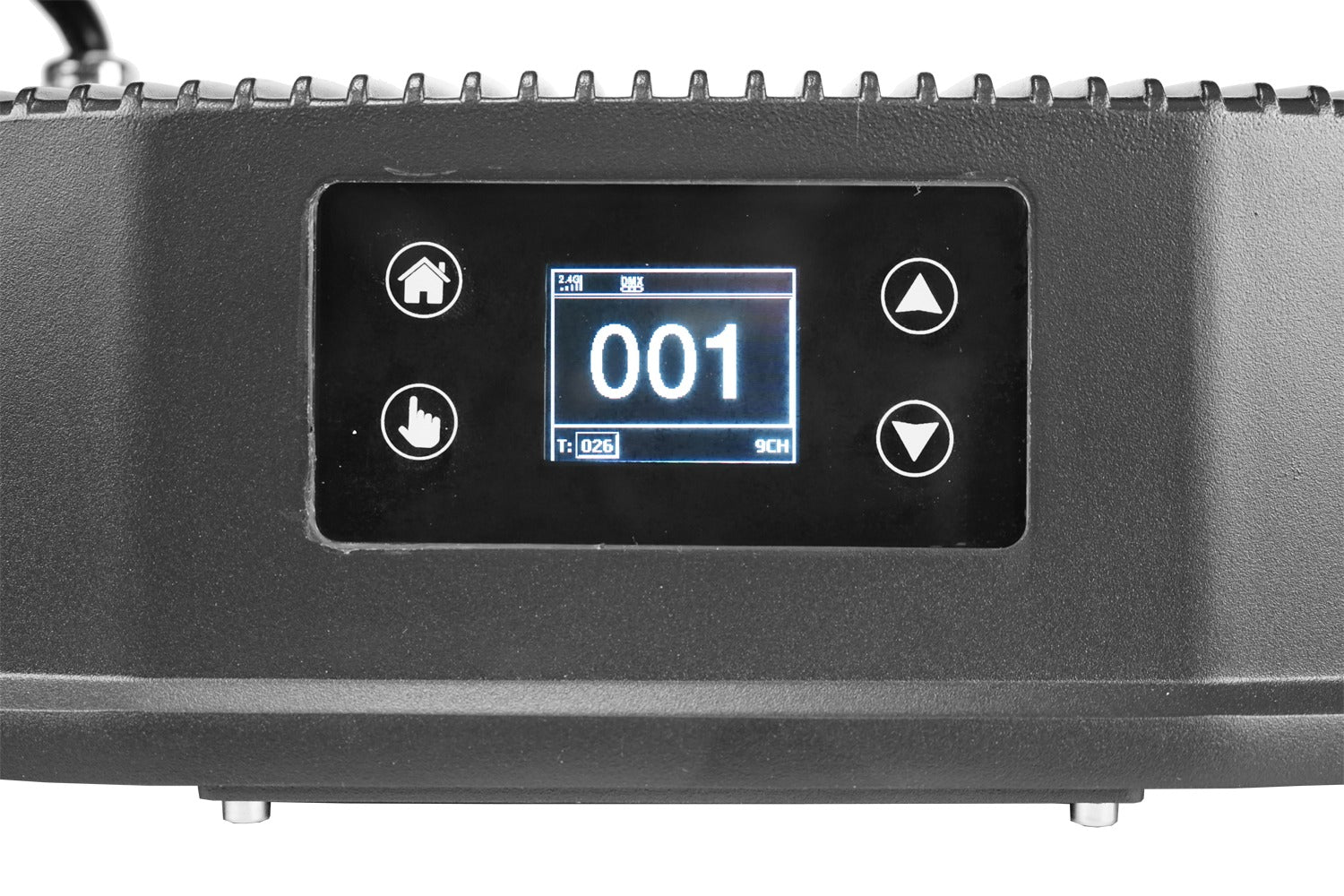

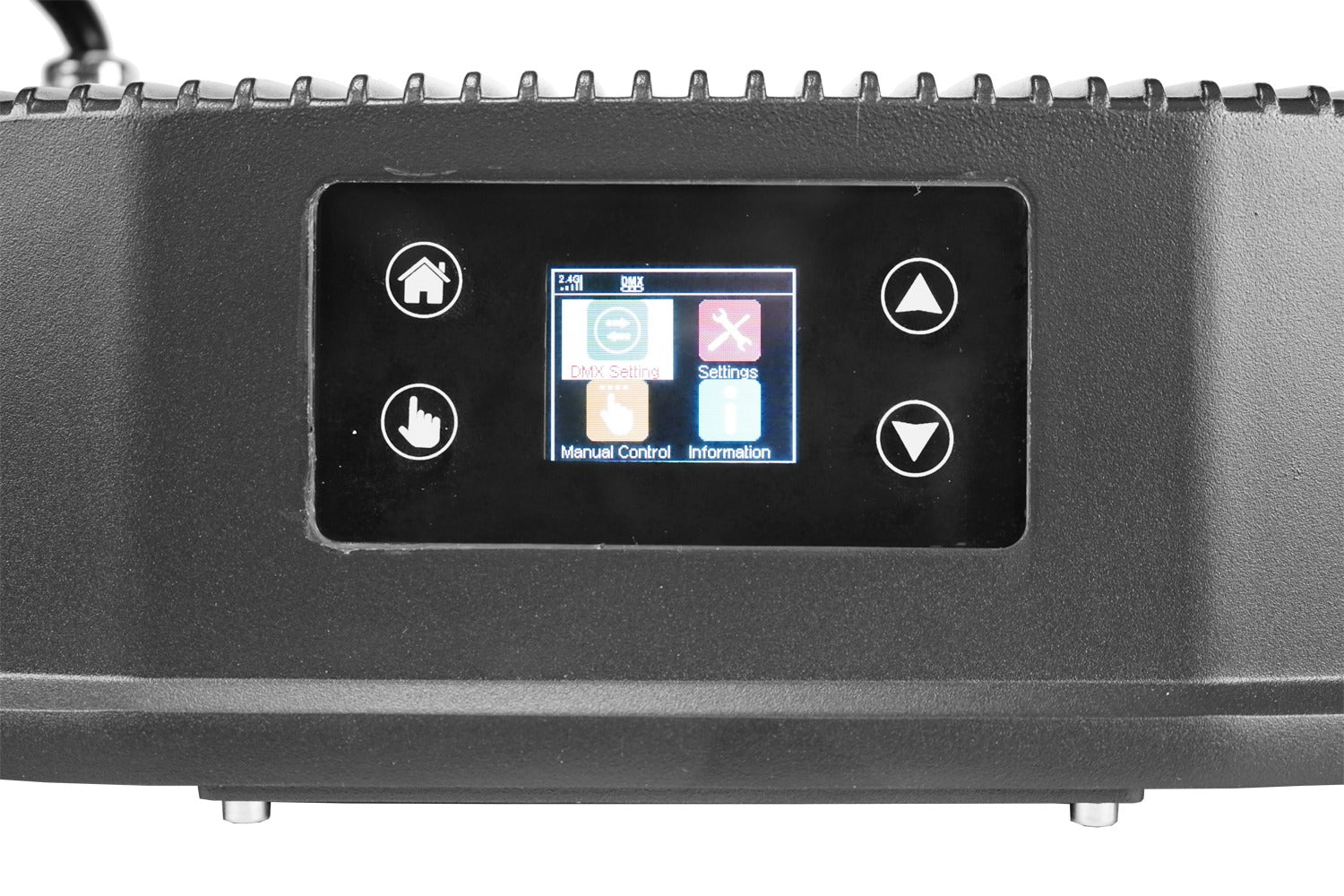

• Display: 4-button LCD control panel

Housing

• Materials: Die-cast aluminium, matte black finish

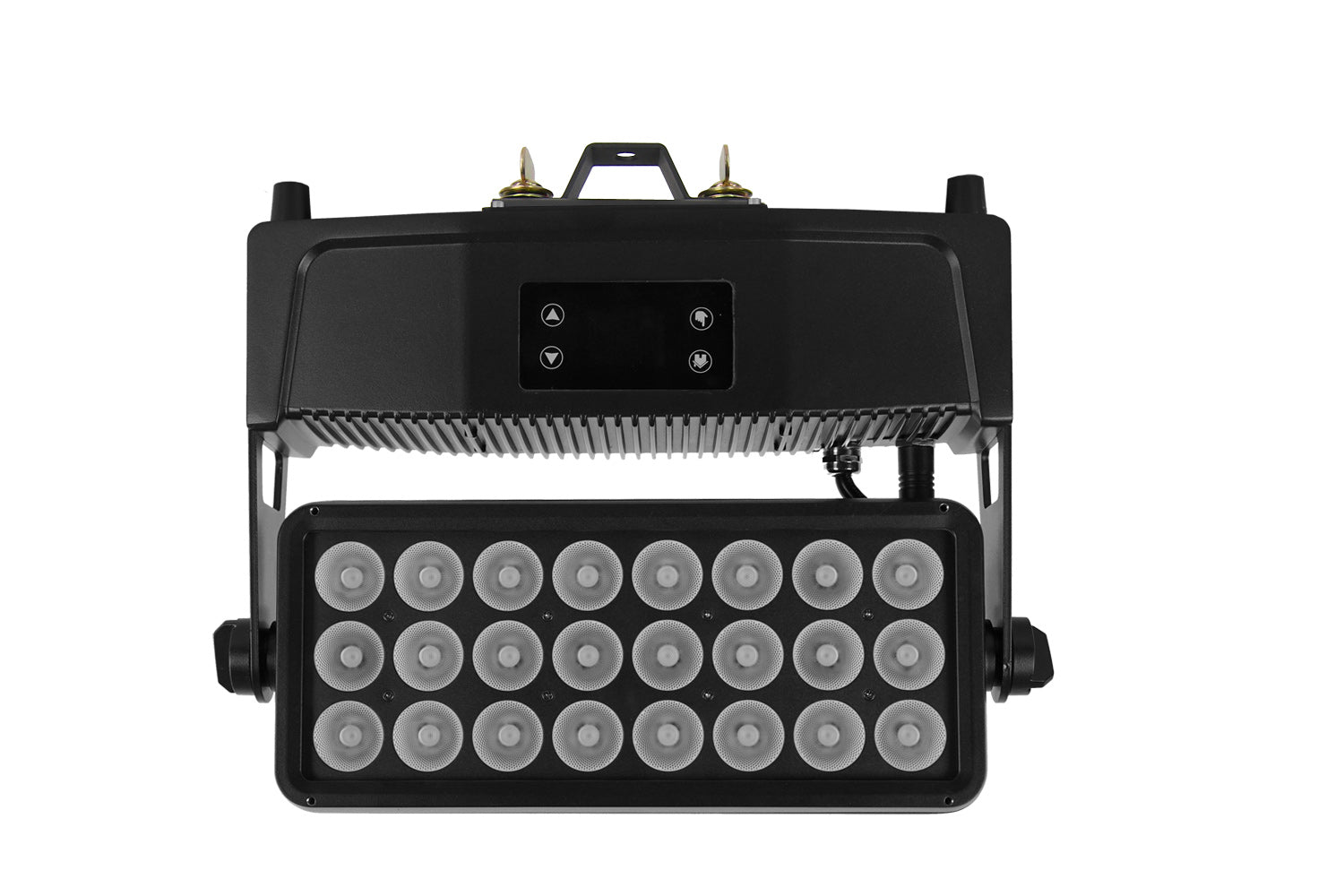

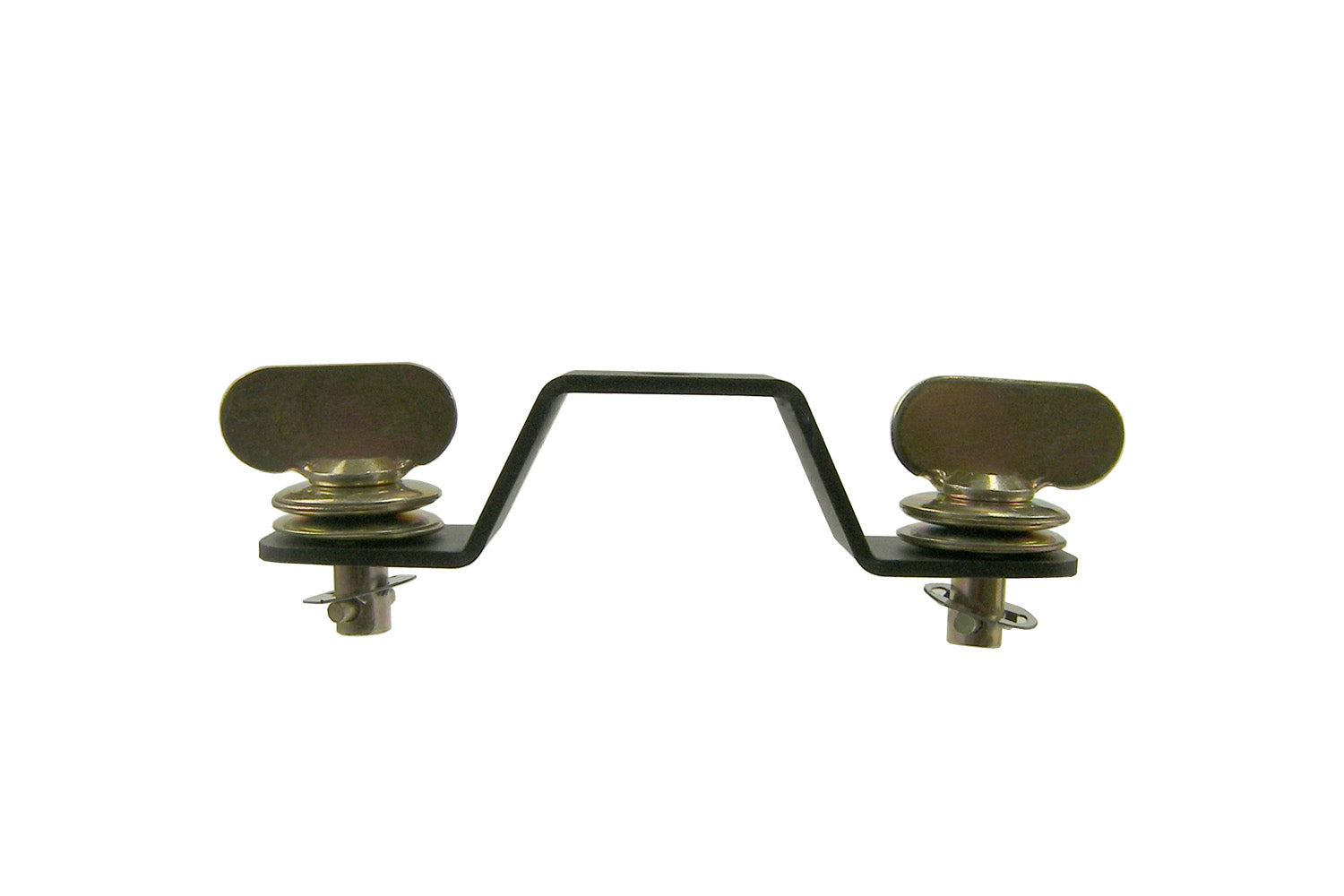

• Omega bracket included
• Cooling: 2 x Fan
• IP Rating: IP65

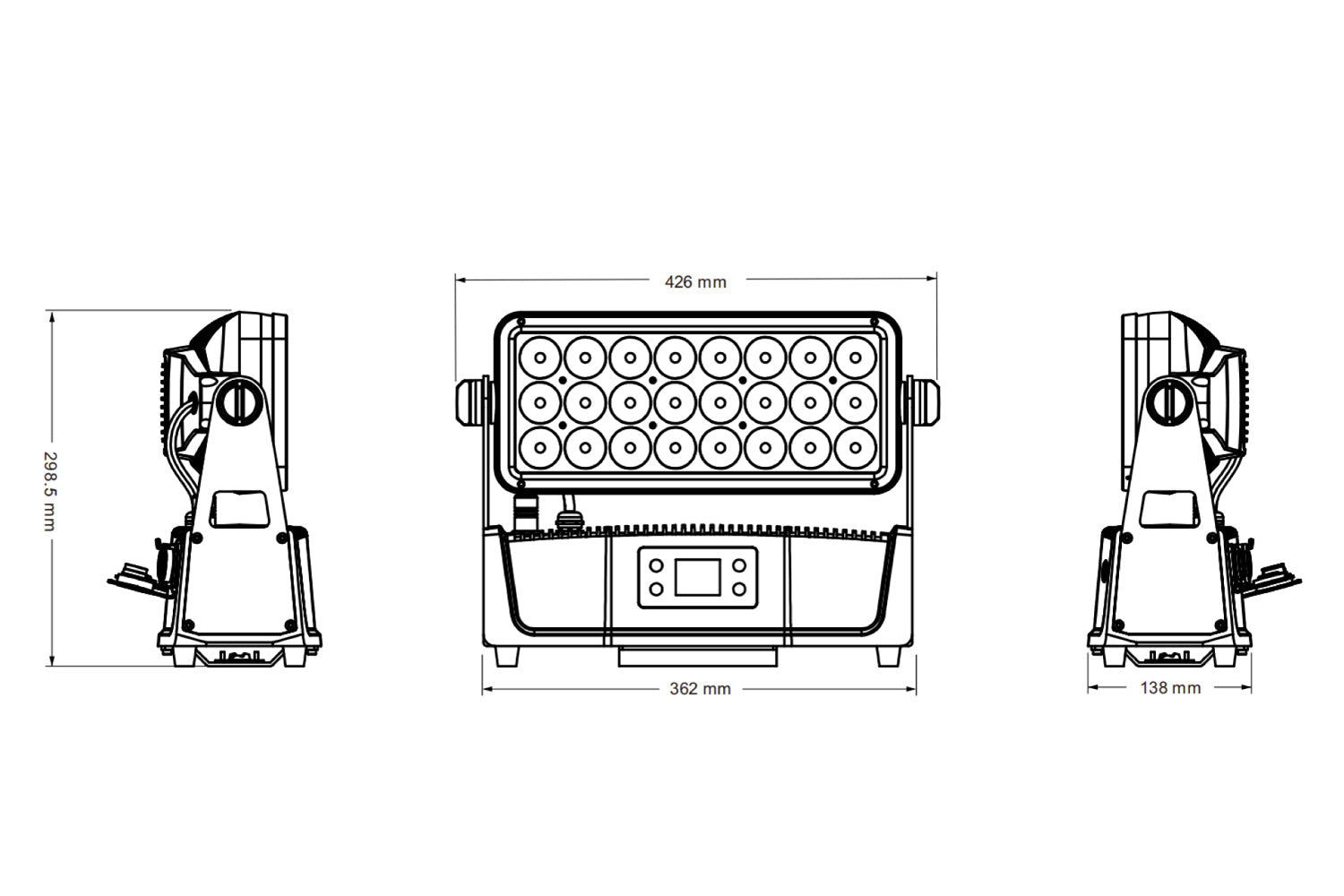

• Dimensions: 426 x 138 x 299mm / 16.8" x 5.4" x 11.8"
• Net Weight: 9 kg / 19.8 lbs

Optional Accessories

• Barn door DEL24BD
• Filter frame DEL24DIF40, DEL24DIF60X25
• Roadcase for 4 units DEL24CASE4
• Alternative Lenses for different Output*: LENS10DELPK, LENS15DELPK

* Alternative lenses may be requested upon order for no additional fee. For customers with existing products, the lenses may be changed incurring a service fee.
