Wharfedale Pro

Wharfedale Pro DELTA-AXF12 Active Speaker

Regular price

DELTA-AXF

MAKING THE DIF-FIR-ENCE

Active plywood loudspeakers – with internal FIR DSP

  • Internal FIR signal processing
  • Proven ‘DELTA Active’ reliability
  • Practical ‘DELTA Active’ design
  • Retro-fittable electronics
  • Compatible with DELTA active subwoofers
  • Increased Continuous Power.  Now 800 Watts

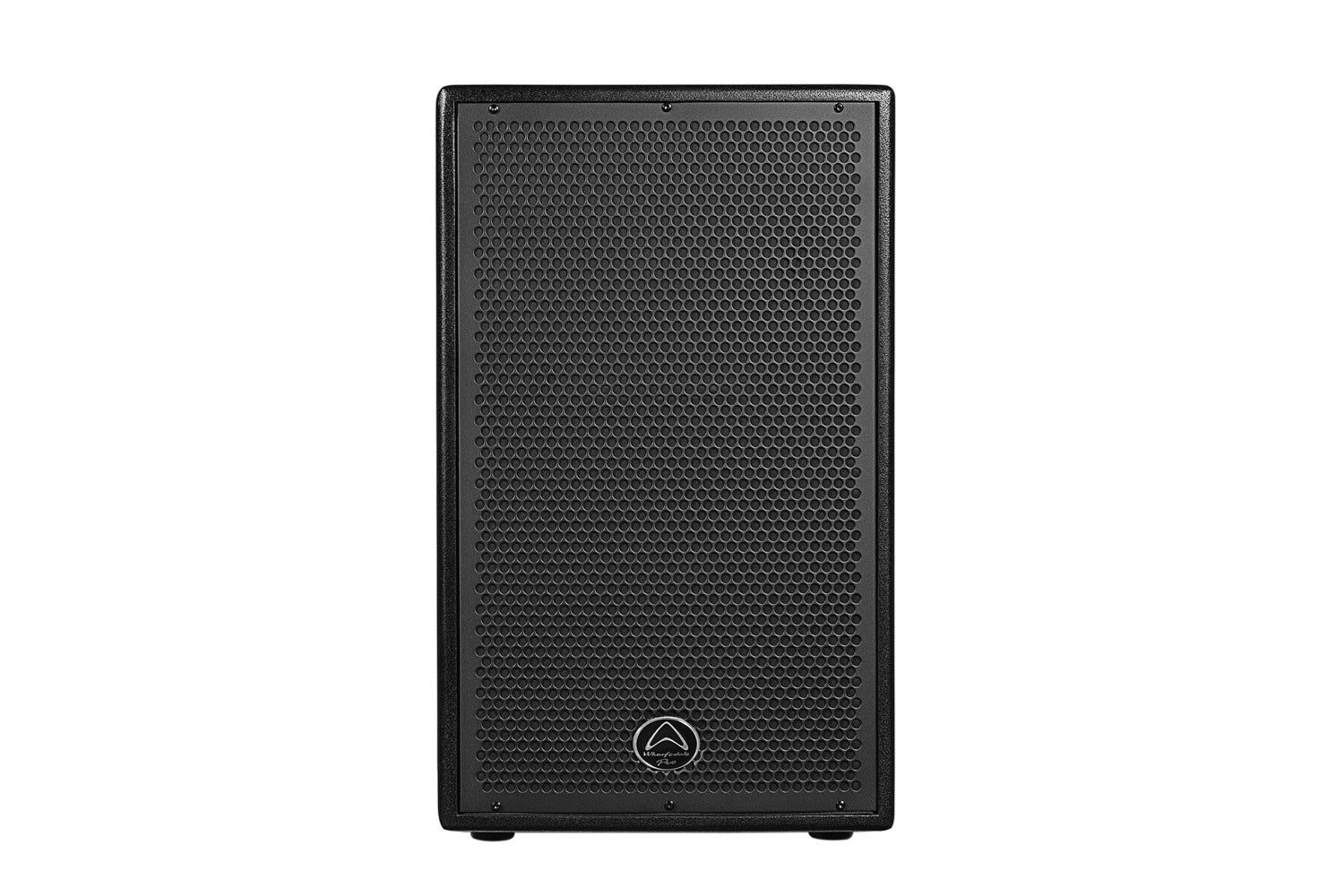

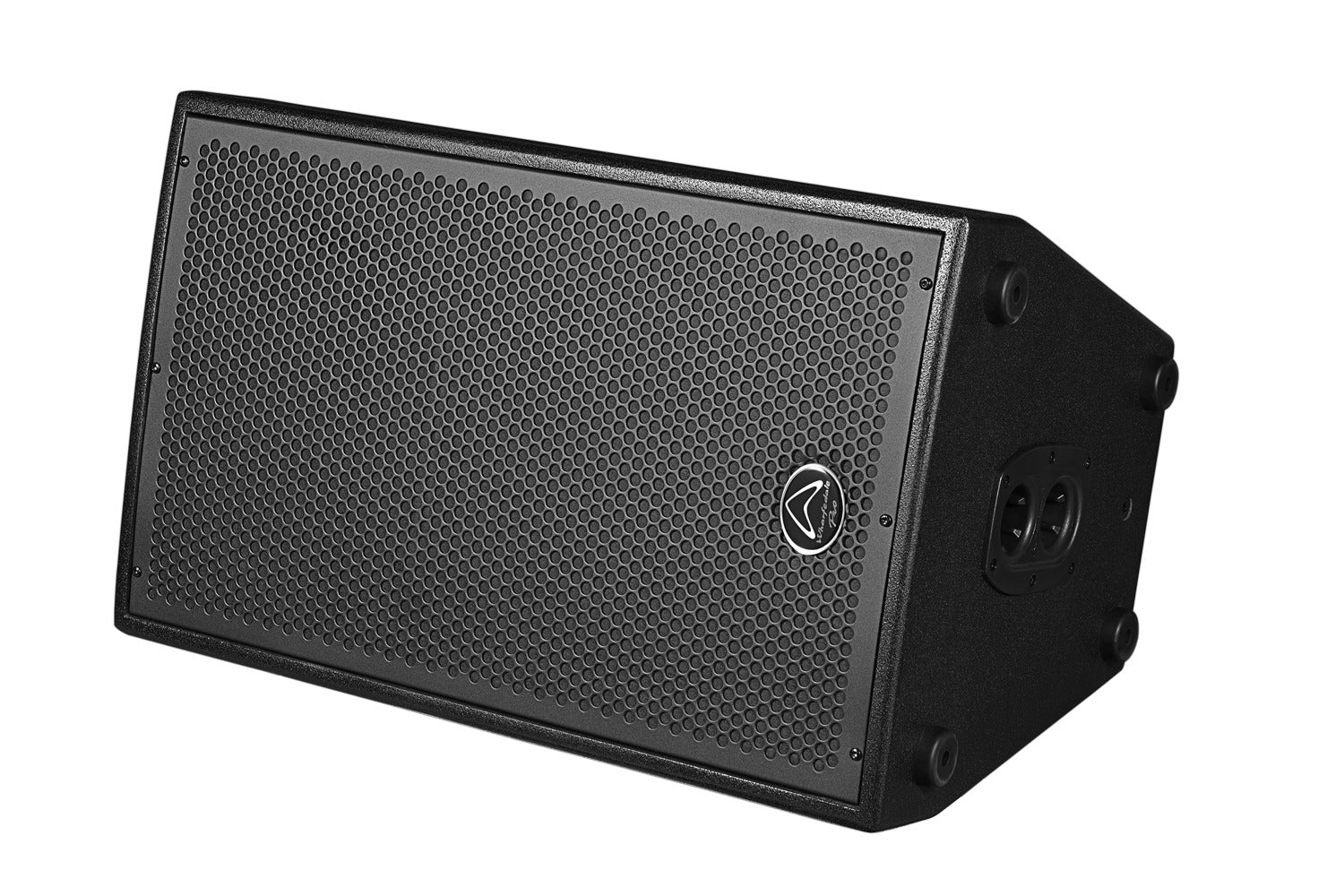

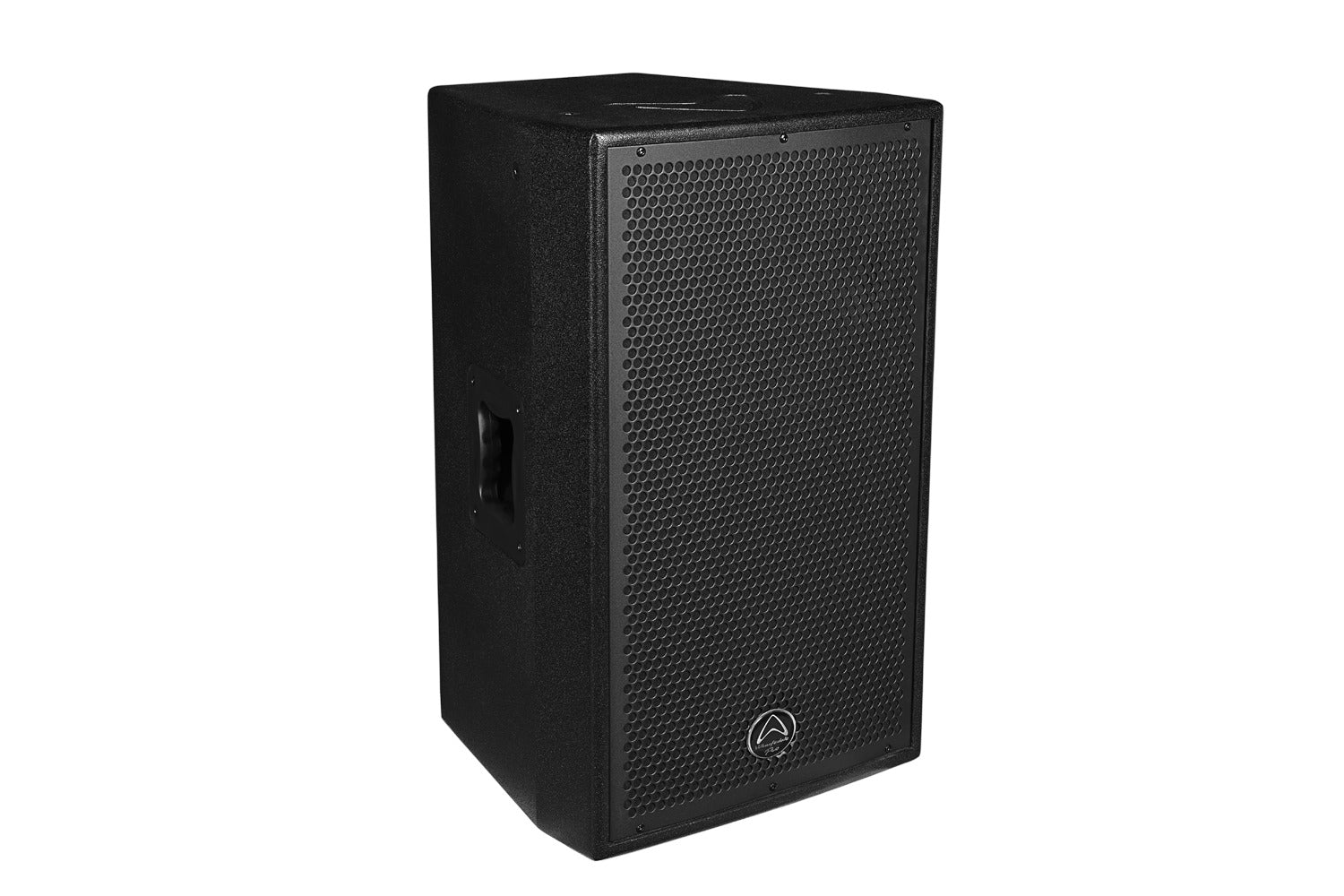

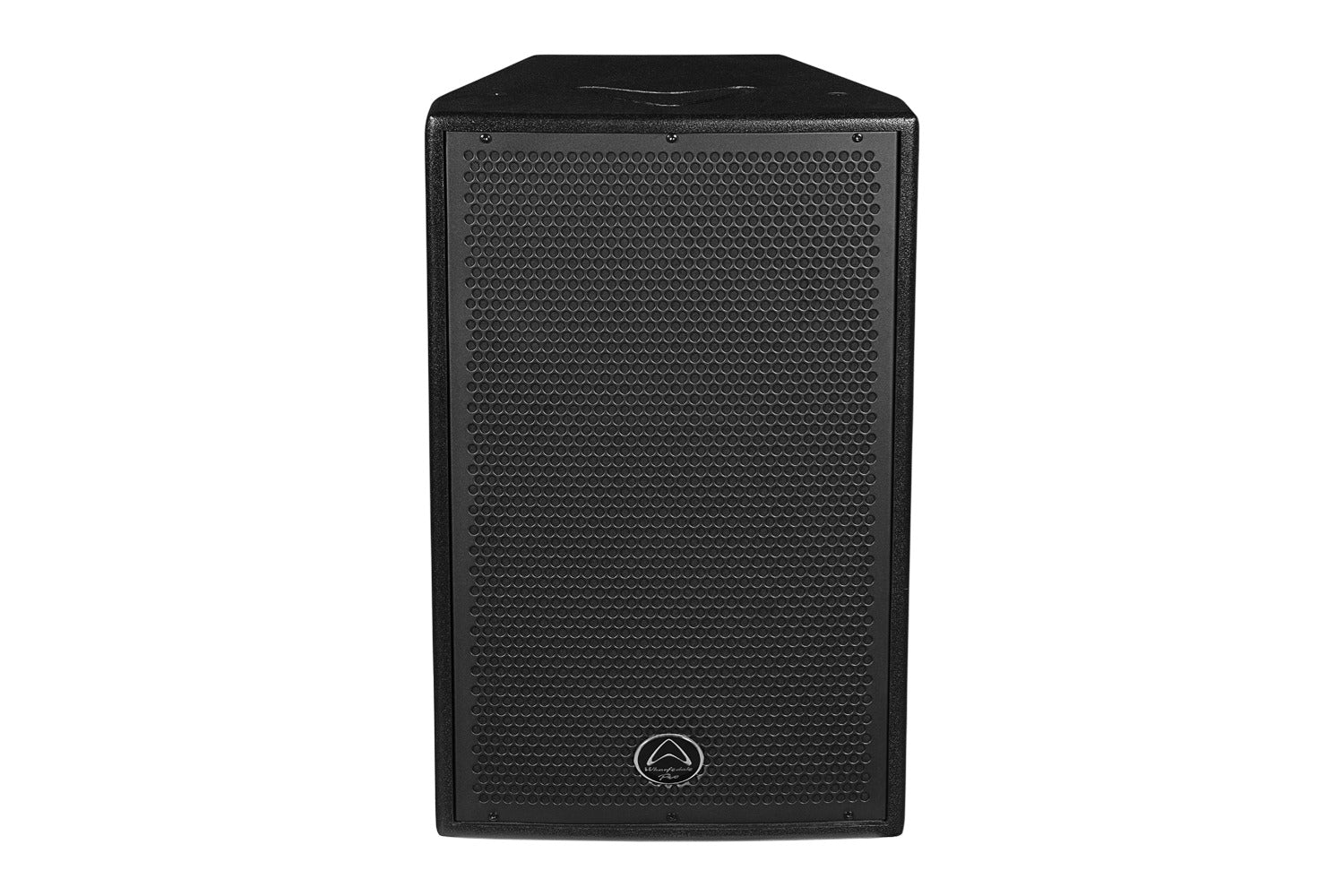

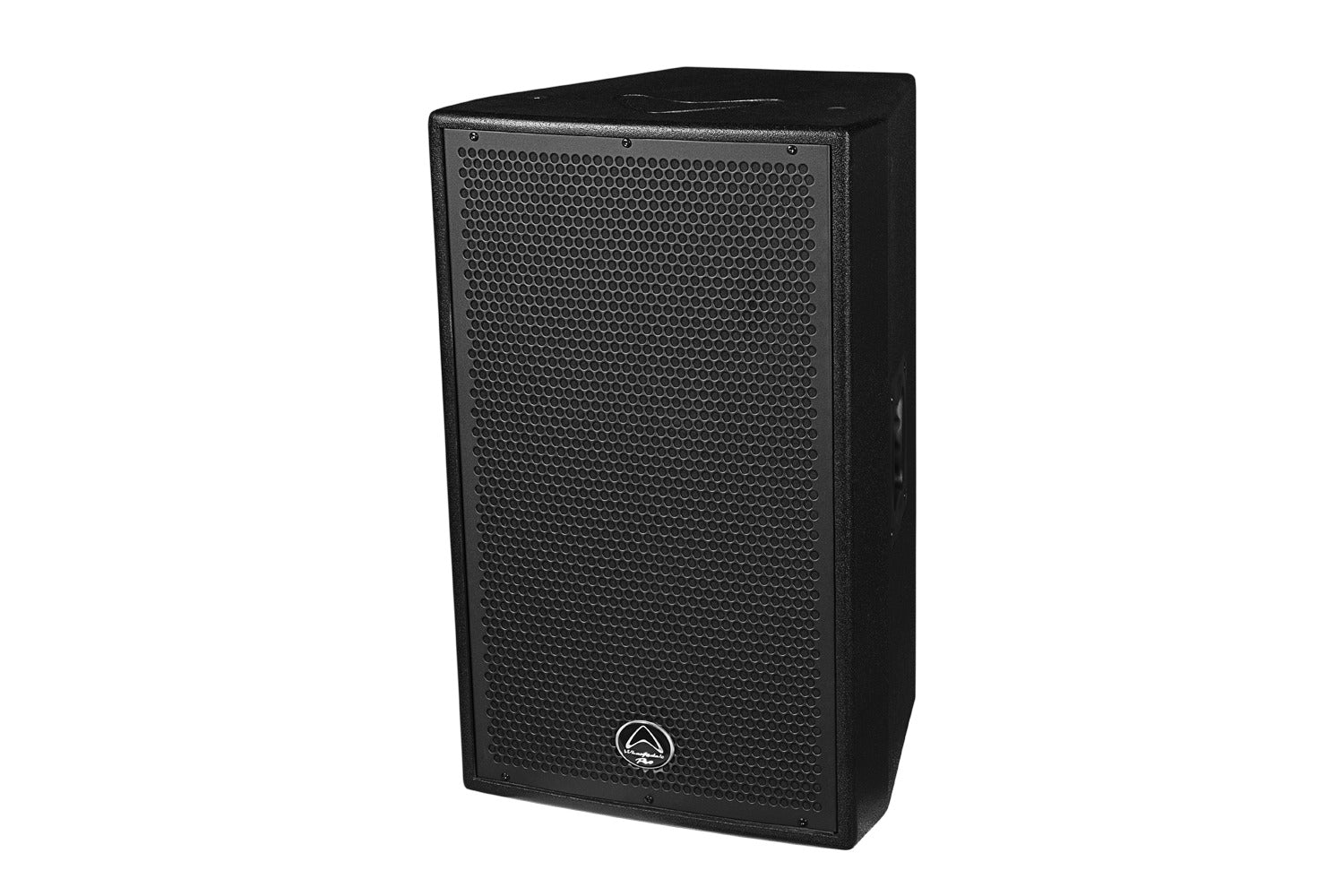

DELTA-AXF12

  • 12″ two-way bi-amplified active loudspeaker
  • 800 watts Continuous power
  • 1600 watts Peak power
  • 90° x 45° dispersion
  • 2″ HF Compression driver
  • 3″ LF voice coil
  • Advanced Internal FIR DSP
  • 130.5 dB Max SPL @ 1 meter





The graph shows phase response.

Frequency is on the X axis and time (expressed in degrees) is on the Y axis.

BIRCH PLYWOOD

Delta-AXF models use premium Baltic birch plywood construction.

Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character.

Delta-AXF is also covered in our most durable and hard wearing Rhino Rock paint finish. This ensures that a Delta-AXF will always look as good as the day you unboxed it.

ROUTED LOGO

Delta-AXF features a routed Wharfedale Pro logo.

It is also a logo to be proud of. A logo that lets your audience know that the sound of your even will be of the highest possible quality.

NEED A SUB ?

Delta-AXF12 and Delta-AXF15 are perfectly matched with the Delta-AX15B and Delta-AX18B subwoofers.

FULL RANGE

Delta-AXF12 and Delta-AXF15 use 2 x Class D amplifiers.  These are specifically tuned and selected to be the perfect match for the HF and LF drivers inside.

With multiple analogue inputs, Delta-AXF full range models are ready to connect to whatever signal source you have.



SPECIFICATIONS

Model Name DELTA-AXF12
System Type Active 12” 2-way Bi-Amplified
Frequency Response (+/-3 dB) 60 Hz – 20 KHz
Frequency Range (-10 dB) 55 Hz – 20 KHz
Calculated Maximum SPL @1m 130.5 dB
Low Frequency Transducer – Size ( mm / inches) 332 mm / 12″
Coil Size ( mm / inches) 75 mm / 3″
Impedance 4 Ω
High Frequency Transducer – Type Compression Driver
Coil Size ( mm / inches) 51.2 mm / 2″
Exit Size ( mm / inches) 35.6 mm / 1.4″
Diaphragm Material Titanium
Impedance 8 Ω
Nominal Coverage (H x V) 90° x 45°
Amplifiers
Amplifier Design Class D
Power Rating: 1600 W Peak (1400 W LF +
200 W HF), 800 W Continuous
(700 W LF + 100 W HF)
Power On Protection Power Switch On/Off Mute
Thermal Protection Amplifier Shut Down. Auto Reset
Low Line Voltage Shut Down 80% Nominal Line Voltage
Driver Protection Independent LF and HF Limiters
DC and Short Protection Yes
Clip Limiter Turns on Approx 600 W Output
Limiter Indicator Red LED
Power Indicator Green LED

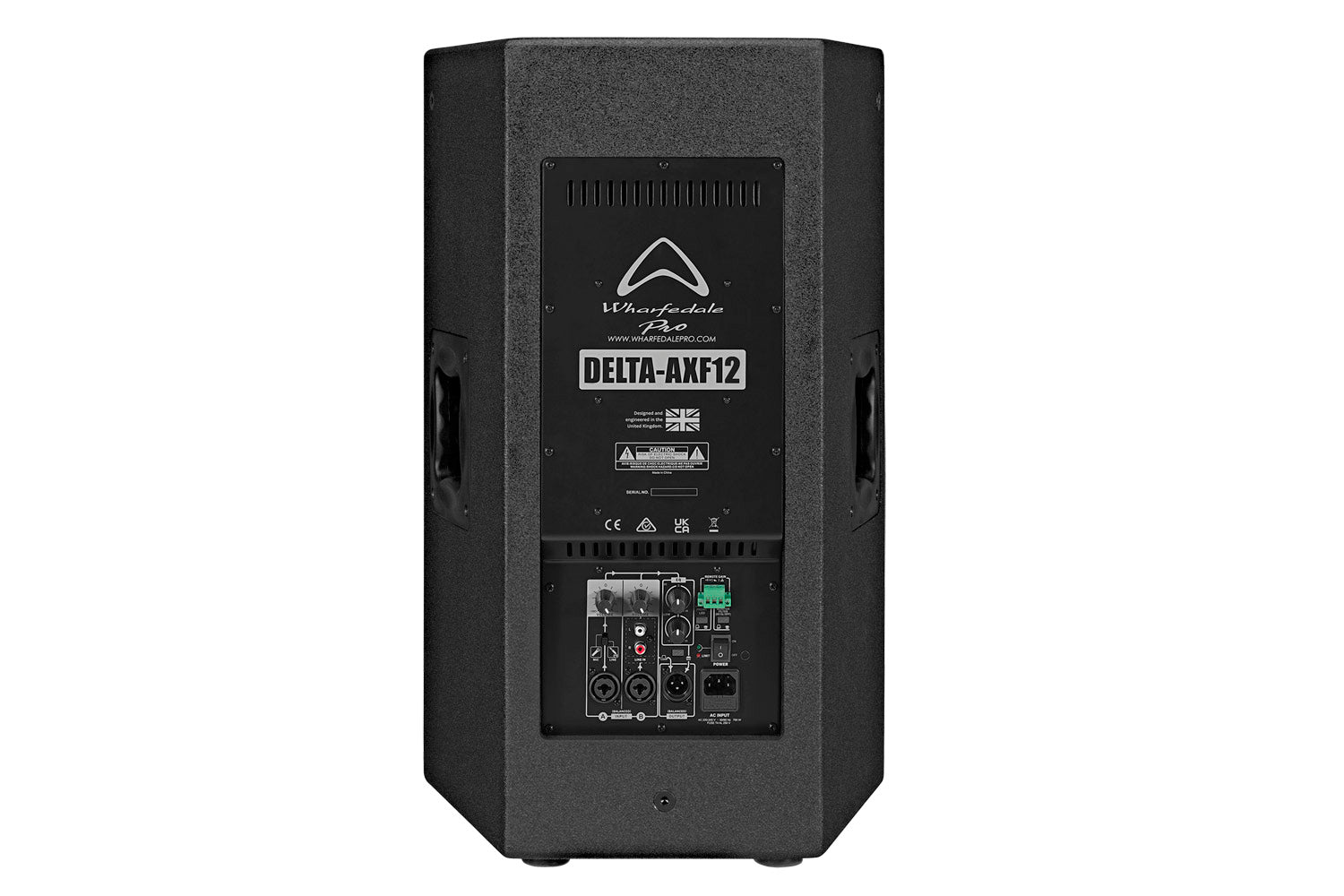

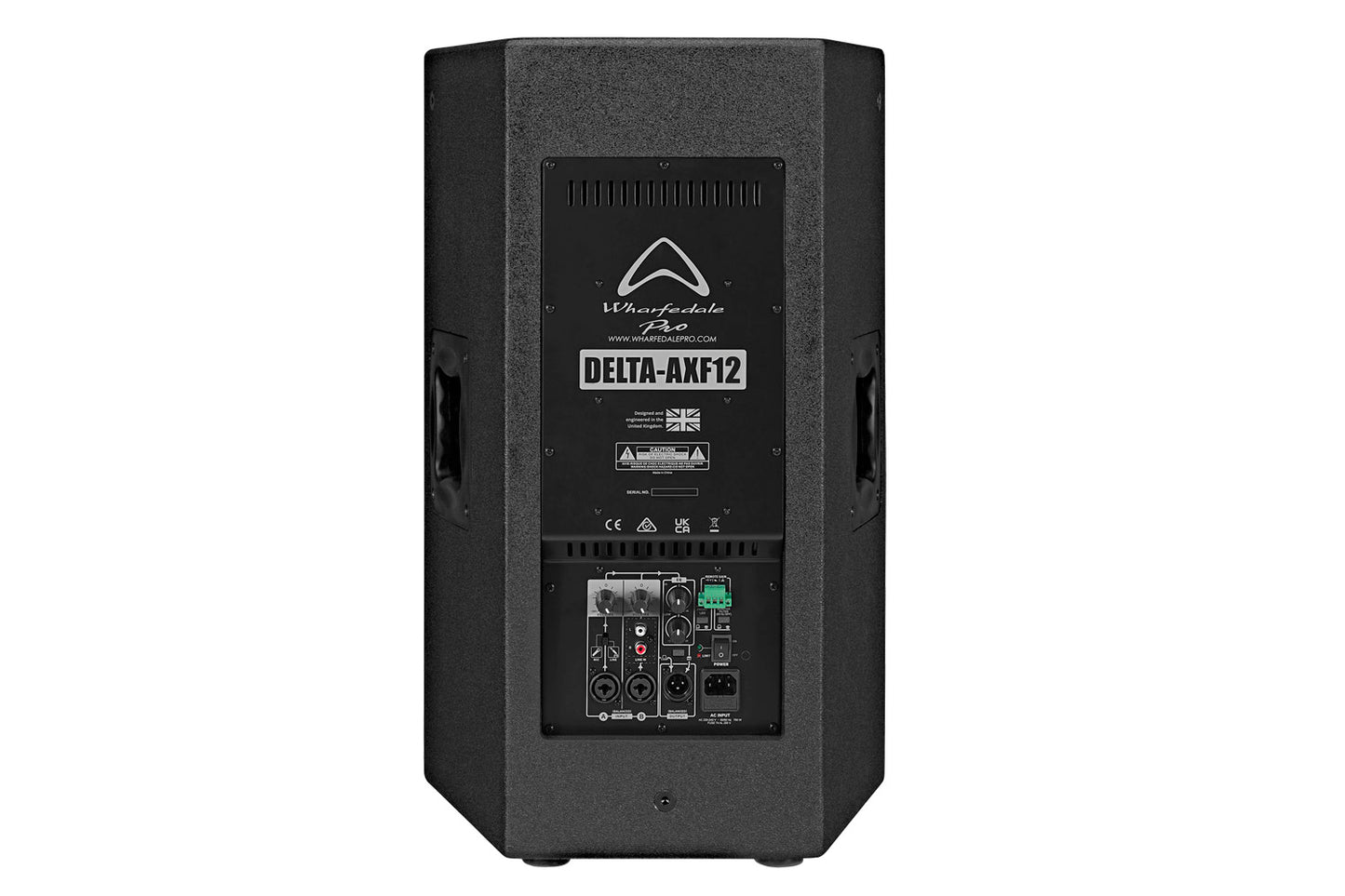

Connectors
Input A – type Switchable Balanced Mic or Line Level Input
Input Sensitivity Mic:-40 dBu Line:0 dBu
Maximum Input Level 22 dBu
Input Connector XLR 1/4〞Combo jack / 2 x RCA
Input Impedance Balanced:20 KΩ Unbalanced:10 KΩ
Line Output Connector Switchable LOOP/MIX Balanced pin XLR Connector
Impedance Balanced Balanced: 200 Ω Unbalanced:100 Ω
Loop Gain Mic:69 dB, Line:29 dB
AC Power details – Power Supply High Efficiency Switching Mode Power Supply
AC Power Options AC100-120 V~/220-240 V~,50/60 Hz
Hardware – Rigging M10 x 6
Pole Mount Dual Angle (0⁰ or 10⁰) 35 mm Pole Socket
Enclosure Material and finish 15 mm Plywood
Colour Options Black Rhino Paint
Grille Material & Finish 1.5 Steel
Unpacked dimensions – Height 640 mm / 25.2″
Width (Front) 390 mm / 15.35″
Width (Back) 241.2 mm / 9.5″
Depth 373 mm / 14.69″
Packed Dimensions – Height 745 mm / 29.3”
Width (Front) 566 mm / 22.3”
Width (Back) 328 mm / 12.9”
Depth 464 mm / 18.3”
Net Weight ( kg / lbs) 26.5 kg / 58.3 lbs
Gross Weight ( kg / lbs) 30.0 kg / 66.0 lbs



Download quick start guide
