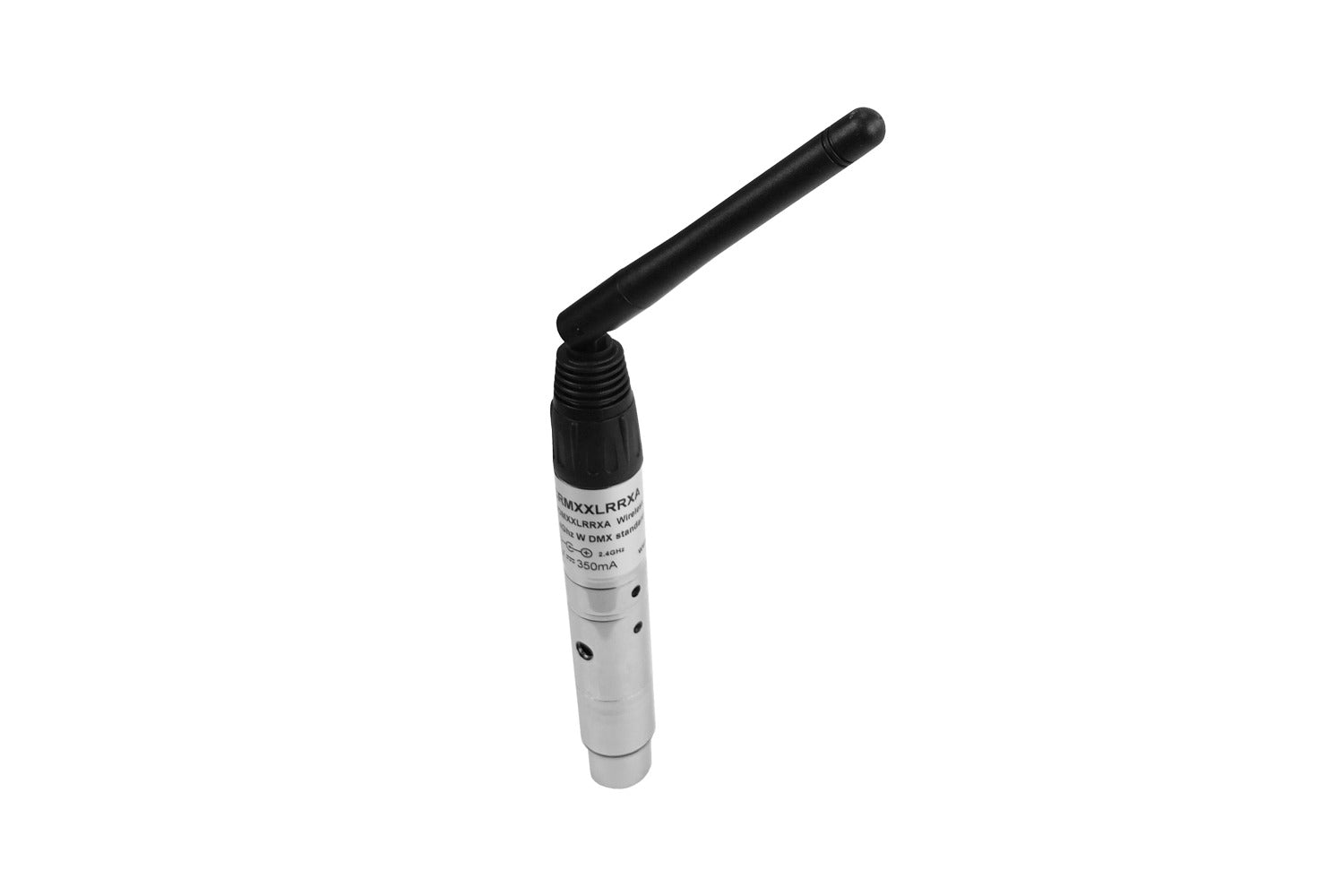

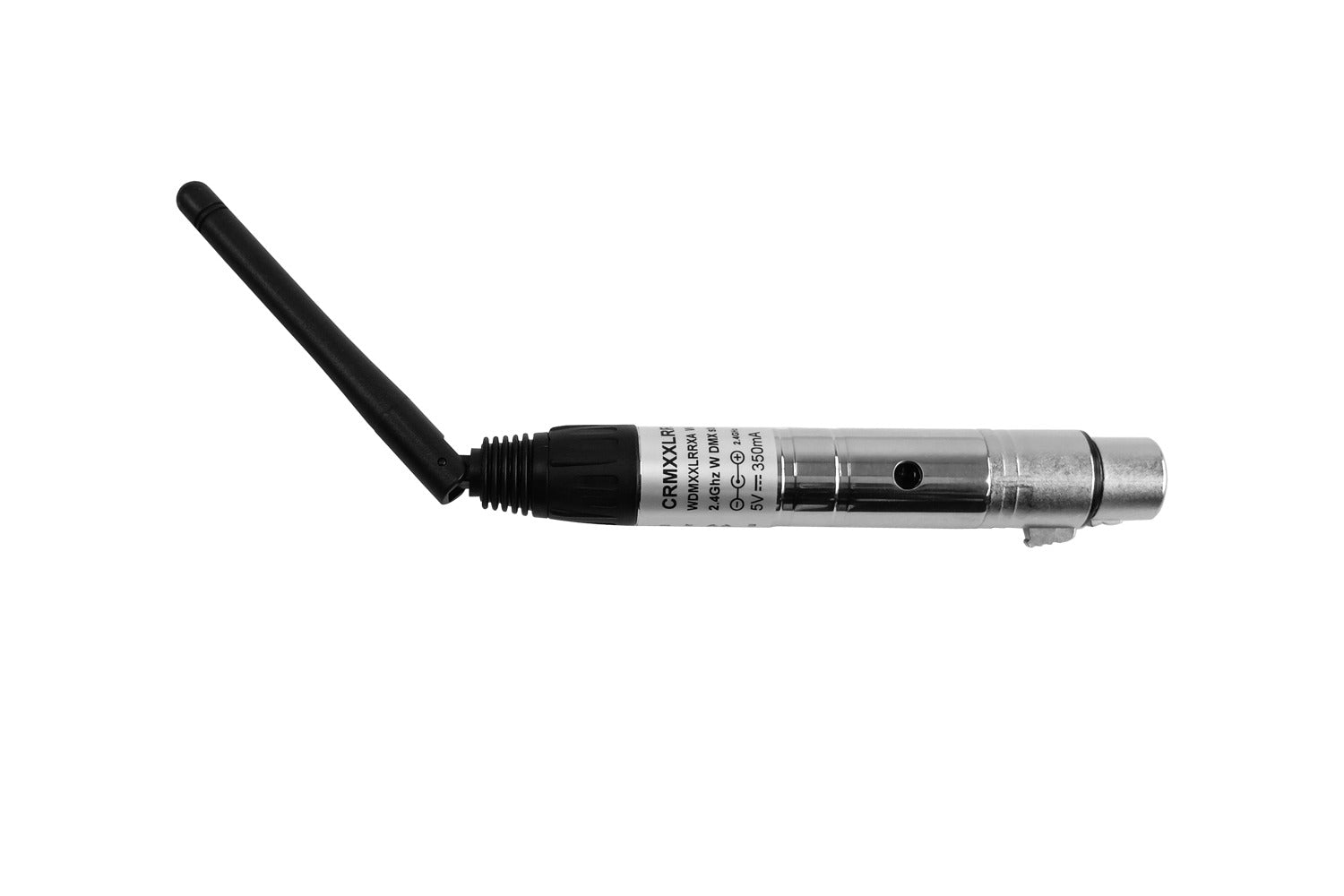

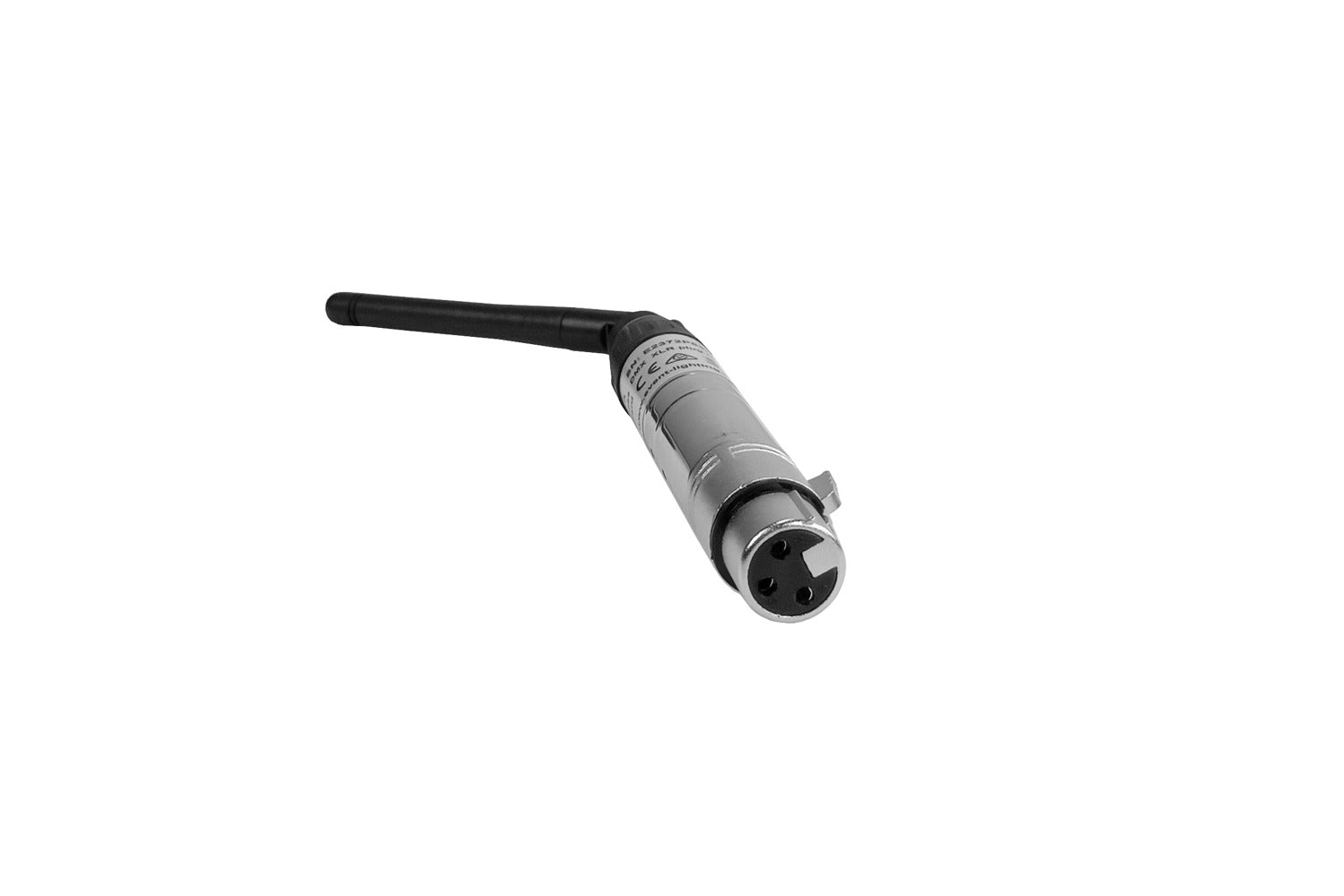

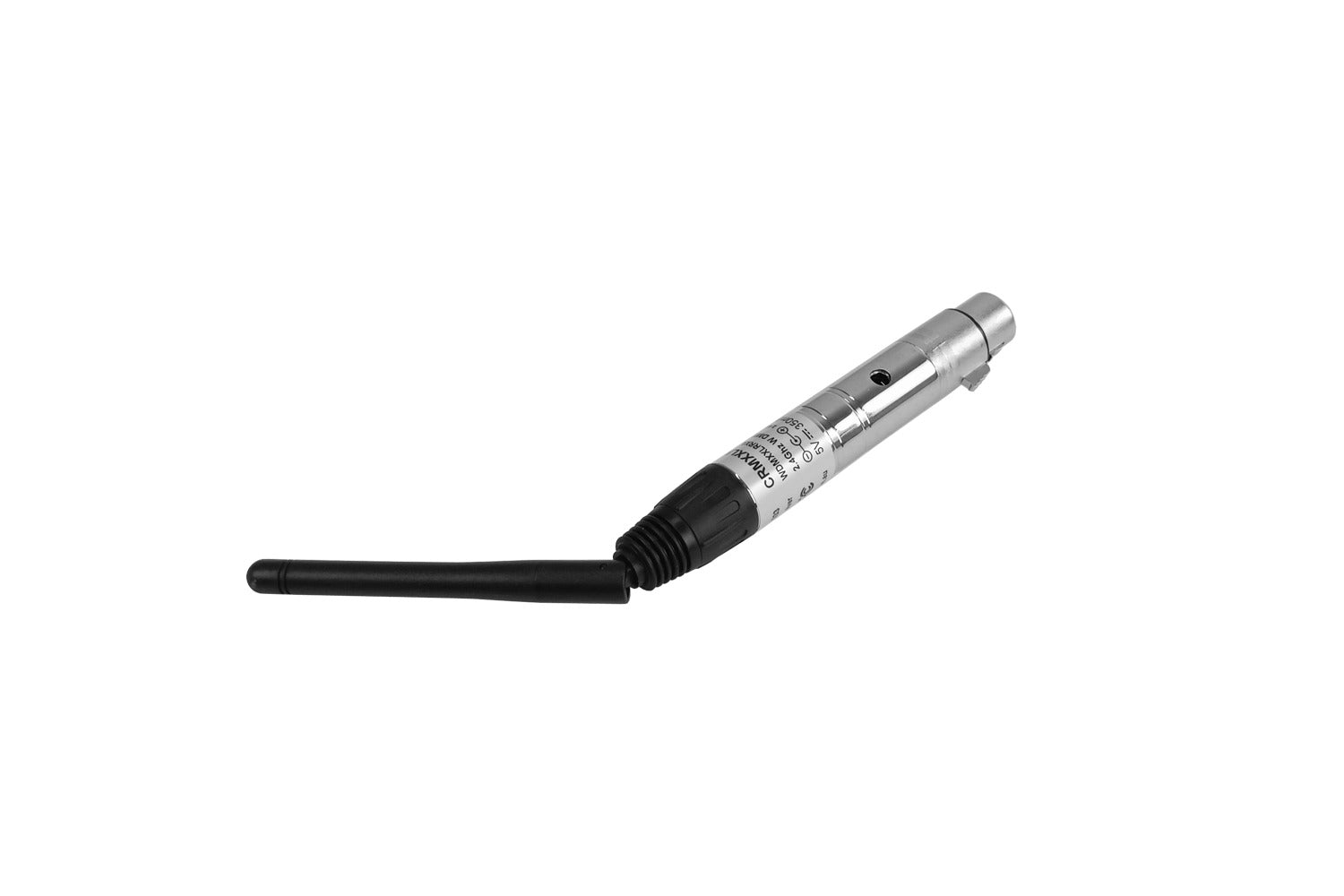

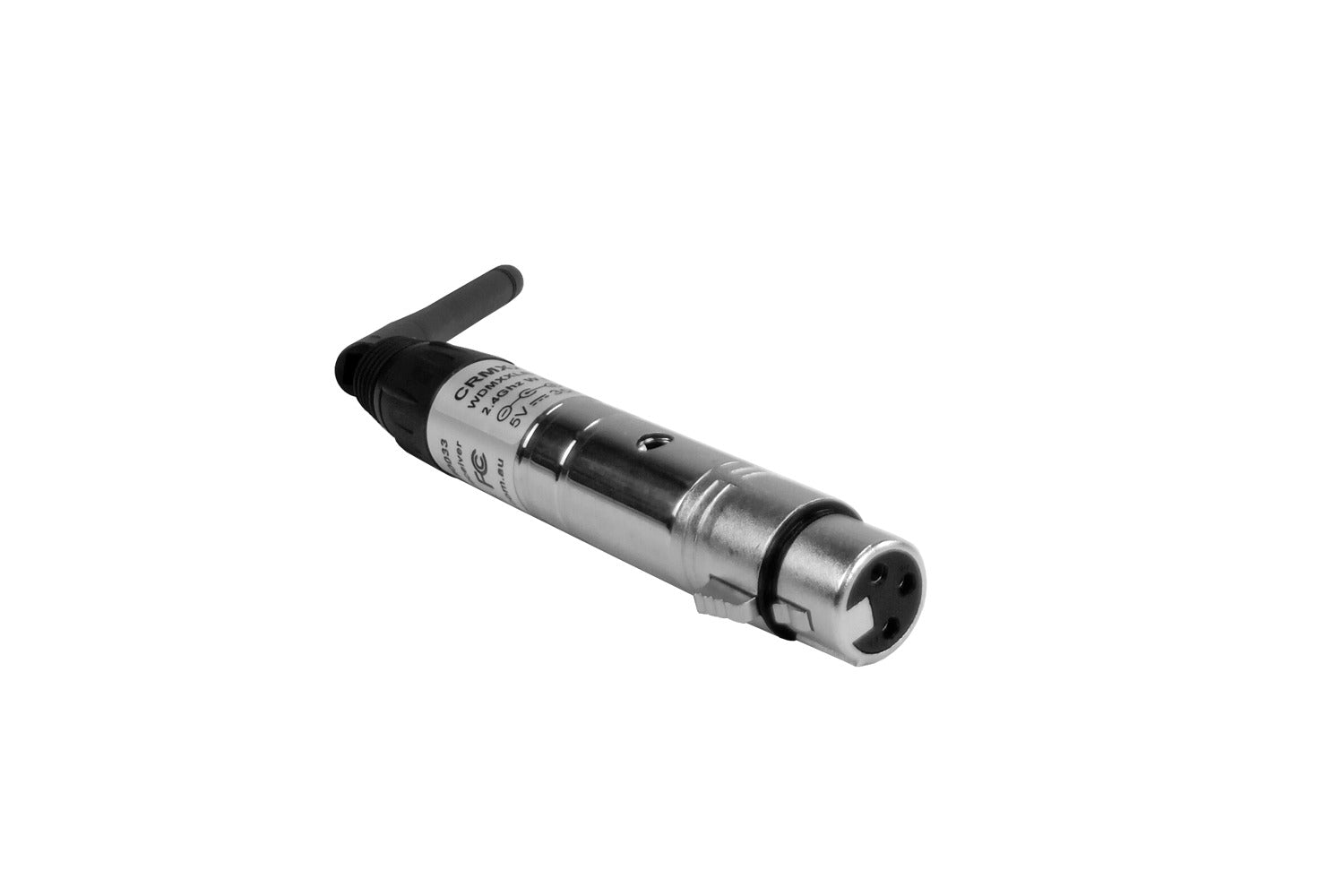

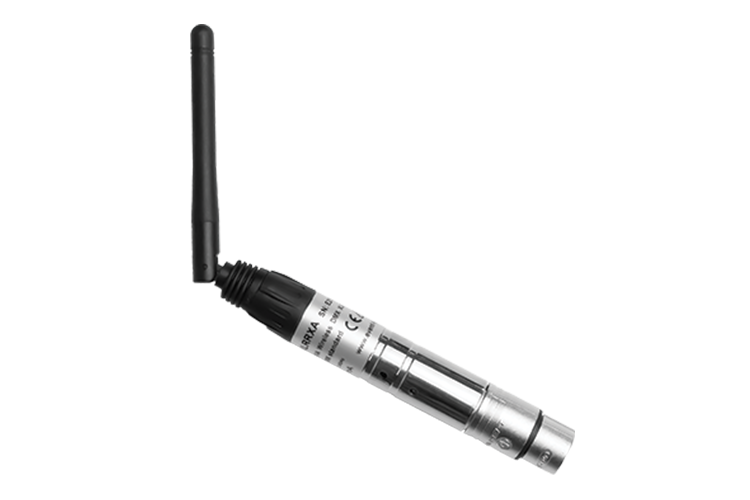

CRMXXLRRXA - Wireless DMX 3-pin XLR plug receiver 2.4Ghz CRMX protocol

Wireless DMX is the ideal solution for fast setups, temporary installations, touring and production duties or places where you are physically unable to run DMX cables. CRMXXLRRXA operates as a receiver to communicate CRMX signals.

Specifications：

• Maximum Transmission power: 22dBm
• Receiver Sensitivity: -102dBm

• Band: 2.402Ghz – 2.480Ghz, ISM, 79 channels
• Spread Spectrum: FHSS, 1100 hops/s
• Modulation GFSK
• ARM processor: 32-bit
• 3-pin Female XLR
• Channel Groups: 6 in ELDMX mode
• Protocols: CRMX, ELDMX, WDMX, GZ
• Automatic Reboot Trigger: Built-in WDT (watchdog timer)

Dimensions

• Size:125x18x18mm
• Weight: 110 g

Environmental Limits

• Operating Temperature: -40 ~ 85 °C
• Storage Temperature: -65 ~ 150 °C
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements

• Power supply: 5VDC

Warranty: 3 years
