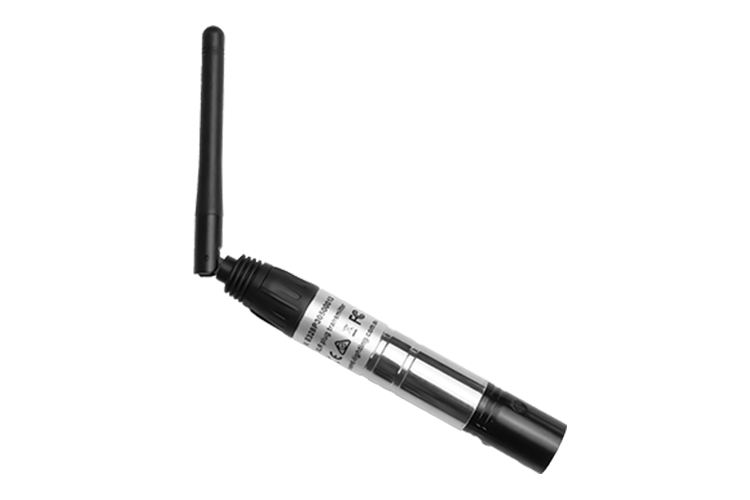

CRMX5XLRTX- CRMX 5-pin XLR plug transmitter 2.4Ghz CRMX & DMX protocol

CRMX is the ideal solution for fast setups, temporary installations, touring and production duties or places where you are physically unable to run DMX cables. CRMX5XLRTX operates as a transmitter to communicate Wireless DMX signals.

Specifications：

• Maximum Transmission power: 22dBm
• Receiver Sensitivity: -110dBm

• Band: 2.402Ghz – 2.480Ghz, ISM, 79 channels
• Spread Spectrum: FHSS, 1100 hops/s
• Modulation GFSK
• ARM processor: 32-bit
• 5-pin Male XLR
• Channel Groups: 6 in ELDMX mode
• Protocols: ELDMX, CRDMX, GZ
• Automatic Reboot Trigger: Built-in WDT (watchdog timer)

Dimensions

• Size:85x18x18mm
• Weight: 110 g

Environmental Limits

• Operating Temperature: -40 ~ 85 °C
• Storage Temperature: -65 ~ 150 °C
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements

• Power supply: 5VDC

Warranty: 3 years
