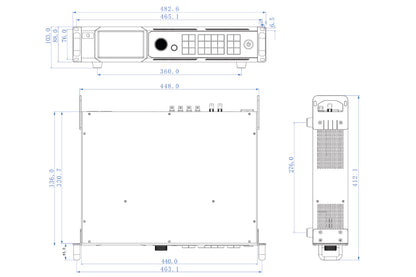

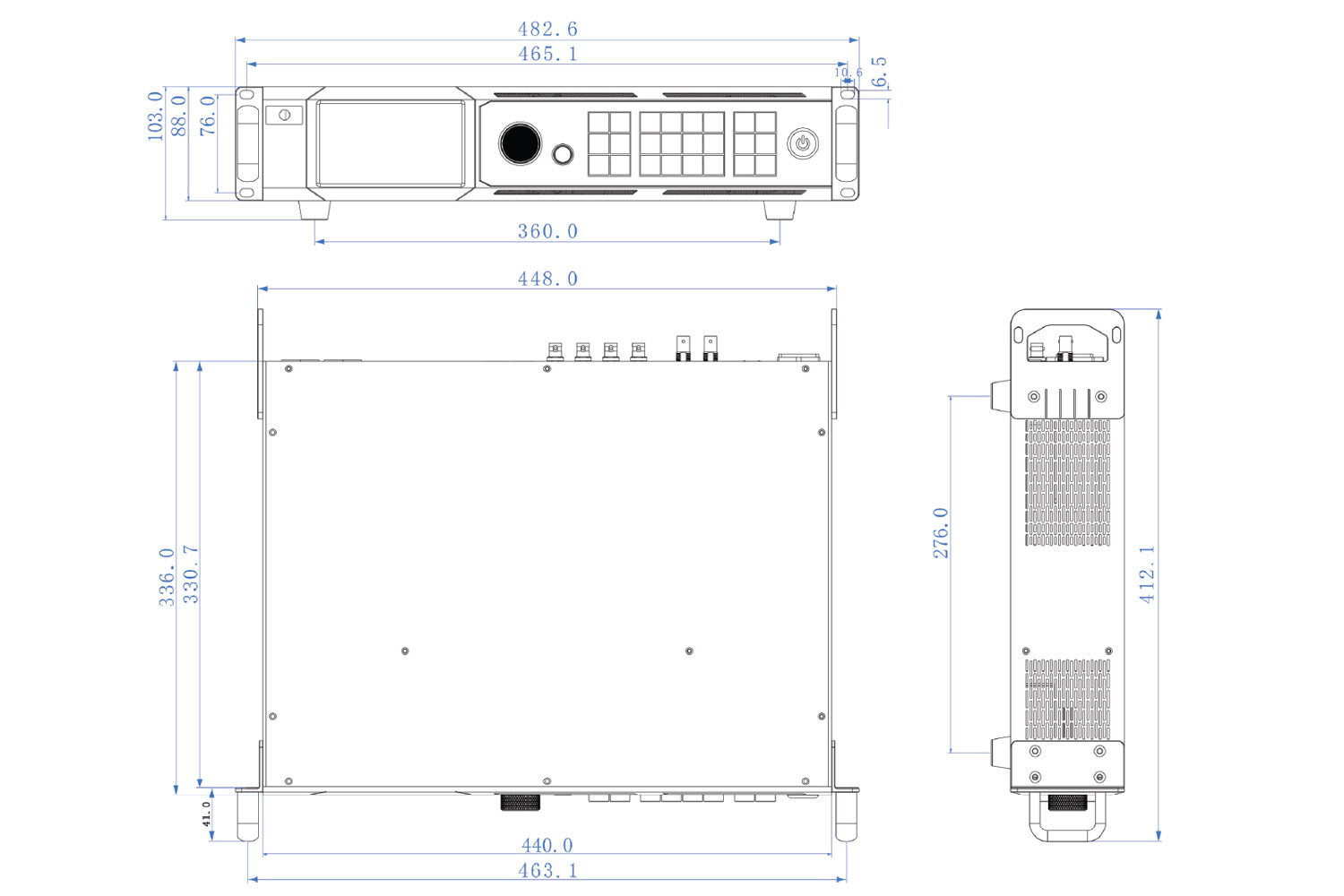

Colorlight CL-VX20 4K LED Video Processor

The CL-VX20 boasts robust video processing capabilities, supporting a load capacity of up to 13.1 million pixels, with a maximum width of 16,384 pixels and a maximum height of 8,192 pixels. The device offers 3 work modes— Video Processor, Fiber Optic Transceiver, and Bypass—making it ideal for stage rentals, commercial events, and exhibitions.

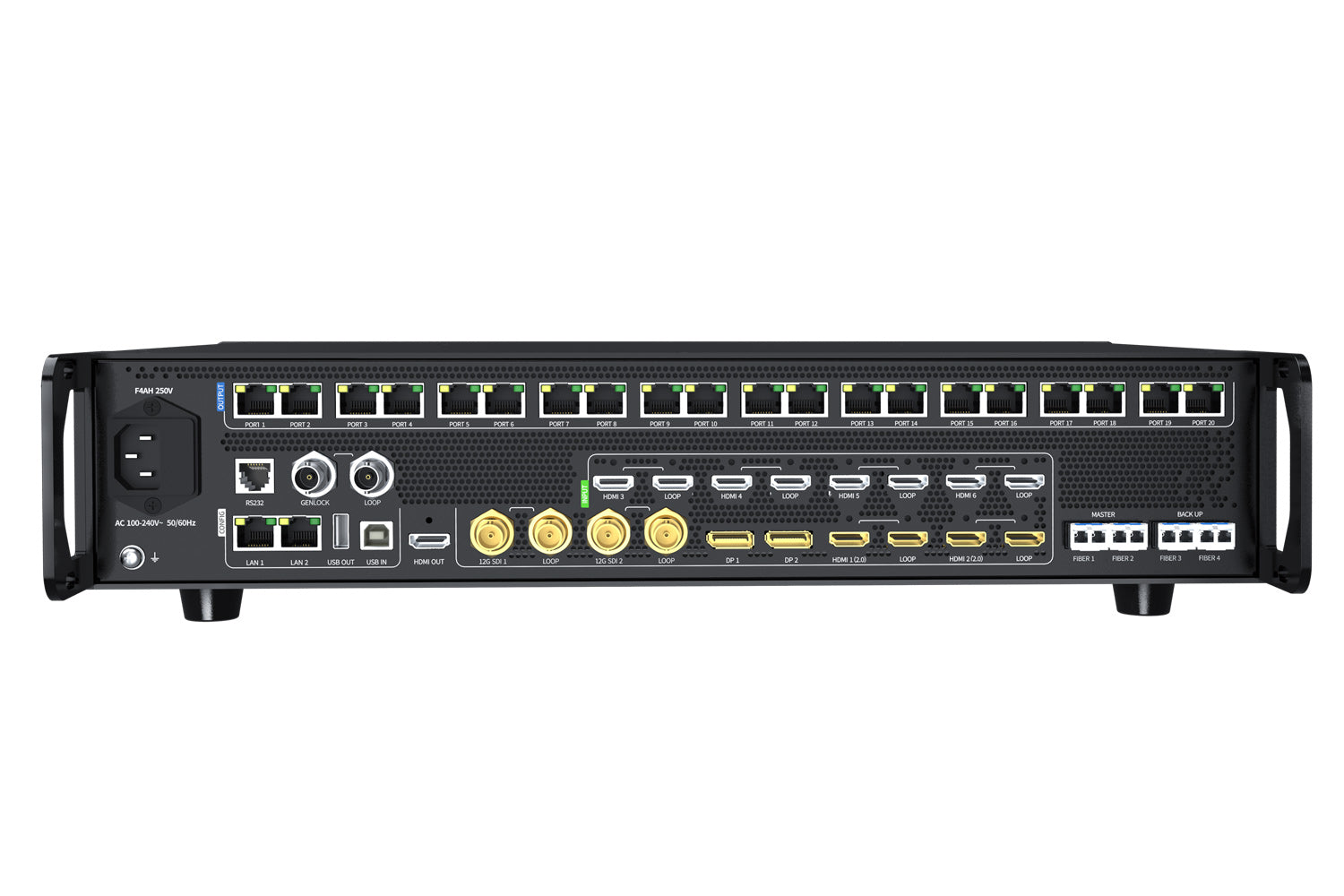

The CL-VX20 features multiple inputs (HDMI 2.0, DP 1.2, 12G-SDI, HDMI 1.4) and outputs (1G Ethernet, 10G fiber), offering exceptional image processing that supports 8/10/12-bit video input and 8/10-bit output. It also supports HDR technology, image cropping, high-fidelity video scaling, BKG, OSD, and logos. The device ensures reliable, intuitive operation and maintenance management by integrating HD Multiviewer, input hot backup, processor redundancy, data backup, fiber port redundancy, Ethernet port redundancy, dual canvas views, and multiple ports. All these make it a perfect fit for medium-to-high-end rentals, large-scale events, and fine-pitch LED screens.

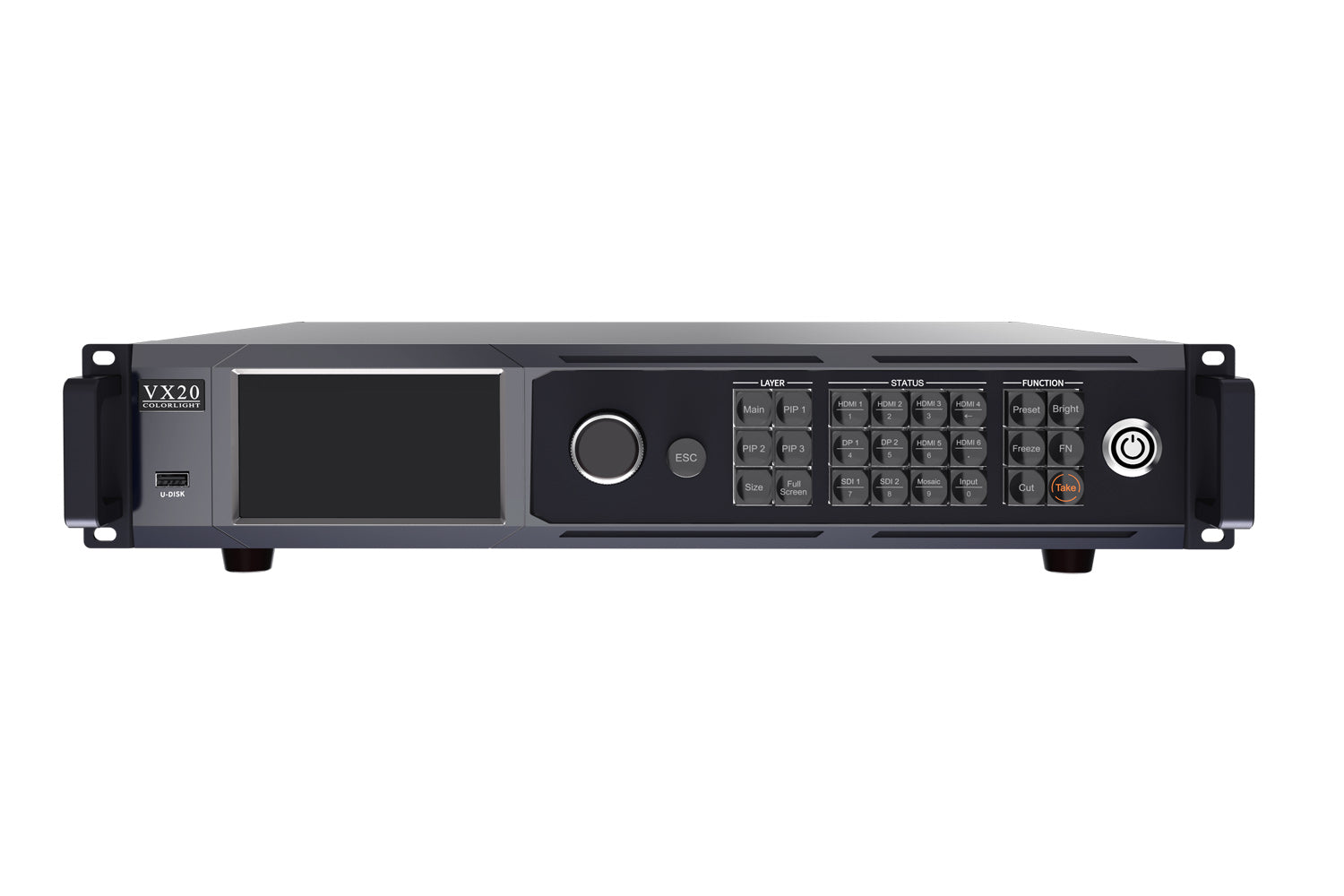

The CL-VX20 can be controlled via the front panel touch screen, iSet, and web app. The web-based control is compatible with Windows, macOS, and Linux, without extra software installation.



Features

Various Inputs

• 2×12G-SDI + 2×LOOP
• 2×DP 1.2
• 2×HDMI 2.0 + 2×LOOP
• 4×HDMI 1.4 + 4×LOOP (* 2×HDMI 1.4 or 4×HDMI 1.3 simultaneously)

Large Load Capacity

• Supports up to 13.1 million pixels
  • Max. width: 16,384
  • Max. height: 8,192
• 20× Gigabit Ethernet outputs or 4× 10G fiber outputs
  • FIBER 1/2 (Primary outputs) → Correspond to Ethernet ports 1-10 and 11-20 respectively.
    • FIBER takes priority over Ethernet when both are used.
  • FIBER 3/4 (Backup outputs) → Backup or copy FIBER1/2.
• 1×HDMI 2.0 output → For monitor preview & monitoring.

Superior Image Quality

• 4096×2160@60Hz
• HDR10/HLG supported (SMPTE ST 2086/2084 compliant)
• Color depth:
  • Input: 8/10/12-bit
  • Output: 8/10-bit
• Max. frame rate: 240Hz

Versatility

1. Video Processor – Performs image processing with 3 video inputs → Output to receiving card (1-frame delay).
2. Fiber Optic Transceiver – Acts as a transceiver with 20 Ethernet ports (FIBER 1/2 as input).
3. Bypass – Sends video directly (0-frame delay).

Robust Video Processing

• Dual Canvas Views:
  • PVW&PGM:
    • PVW (Preview): Canvas for editing.
    • PGM (Program): Output monitoring.
    • Edits in PVW can be displayed via Take/Cut button.
  • PGM Only: Layer changes apply instantly.
  • Both modes support 13.1 million pixels.
• Multi-Layer Display:
  • Supports 3×4K layers
  • Features: Image splicing, PiP, scaling, cropping
  • Adjustable: Hue, color temp, saturation, black level, contrast
  • EDID library: Predefined custom EDID files.
  • Color formats: RGB, YCbCr444, YCbCr422.
  • Layer control: Transparency, priority, scaling
  • Fade in/out & Precise color management

Diversified Display

• Image Library:
  • Upload PNG/JPG (1GB max storage).
  • Available for BKG/Logo layer.
• BKG (UHD/Solid Color):
  • 4 presets | Max res: 16,384×8,192 (pixel-perfect).
• OSD:
  • 4 presets | Max res: 512×512 (2.07M pixels).
  • Scrolling text (custom speed/direction/font).
  • Adjustable transparency.
• Logo:
  • 10 presets | Supports PNG (max 512×512).
  • Transparency control.
• Test Patterns: 15 built-in options.

4K Monitoring

• 1×HDMI 2.0 → Outputs 2K/4K (depends on monitor).
• Software-based preview via LAN.
• HD Front Panel: Preview without external devices.
• 5 Monitoring Modes:
  • Simultaneous input/output monitoring.
  • Independent preview of PVW, PGM, inputs, or presets.
• Audio Preview:
  • Auto: Topmost valid audio layer.
  • Manual: Custom audio source selection.

Intuitive Interaction

• Cross-platform web app for screen config, seam correction, and management.
• iSet compatibility (professional features).
• Seamless switching between PVW&PGM and PGM Only.
• Screen Parameter Library: Saves 200+ config files.
• 1000 Presets with custom tags/colors.
• Preset loop functionality.

Redundancy

• Ethernet port loop backup.
• Built-in fiber redundancy (FIBER 3/4 for 1/2).
• Processor redundancy: Auto-failover to backup device.
• Device data backup: Stores 5 sets.
• Video input hot backup: Seamless signal switch.
• Screen status monitoring:
  • Tracks signal status, hardware, temp, humidity, fan, voltage, power.

* Optional receiving cards required
