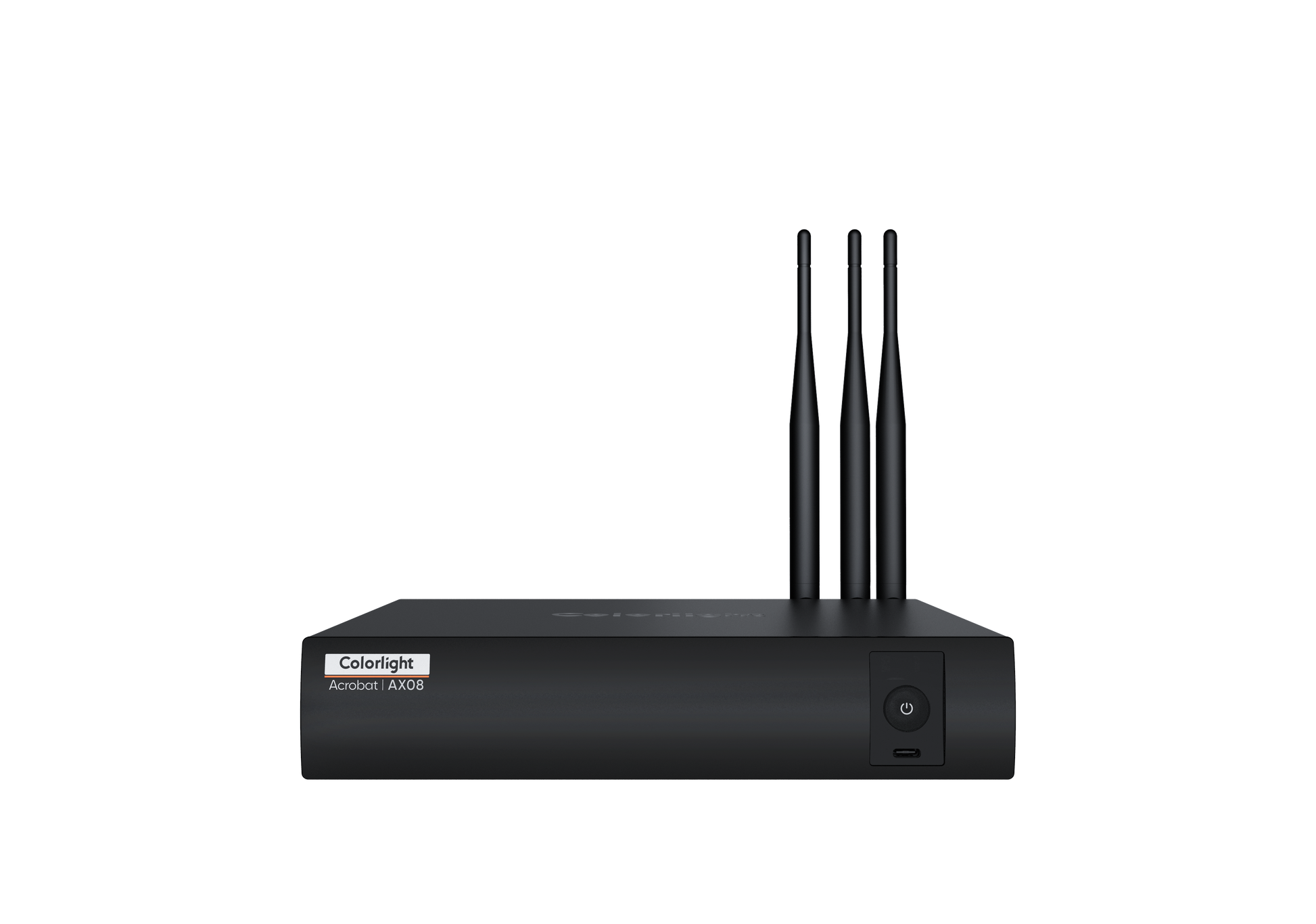

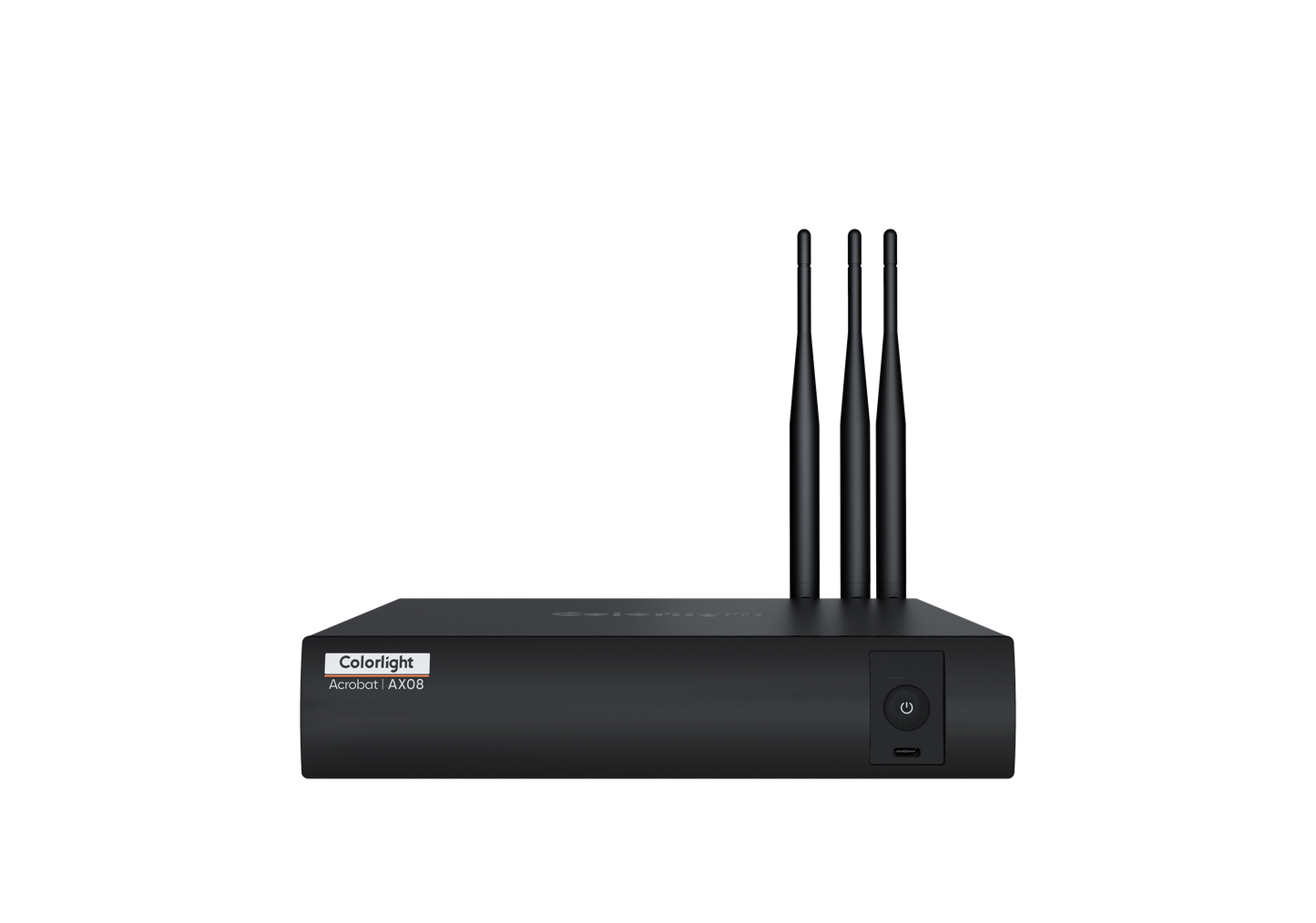

CL-AX08 - AI Media Station
CL-AX08 - AI Media Station
Flagship chip
Brings an unparalleled visual experience.
High Performance GPU
Ultimate visual effects.
8 Network Ports
The load capacity can either be 8192px in the width or 4320px in the height,
enabling point-to-point loading easily without complex technical operations.
Interactive Display
Annotate, share, save and record content from the screen.
Wireless Screen Mirroring
Supports wireless screen mirroring on multiple platforms.
USB-C
Synchronous display and touch interaction.
LEDOS
The industry's first LED screen-dedicated operating system,
comprehensively upgrading the user experience.
Photo-based screen Mapping
Significant improvement in efficiency.
AI SR
Al SR uses neural networks to upgrade low quality videos to
ultra-high definition quality.
AI MEMC
This effectively reduces motion blur and jitter, ensuring clearer,
smoother video playback and delivering a more immersive viewing experience.
Support for installing Third-Party APPs
Install applications through an external device such as a usb flash drive.
Fully supports all common meeting softwares such as Zoom, Microsoft teams and more.
Device Specifications
| CPU | 8nm, 8 Core CPU |
|
Memory |
8 GB |
|
Disk Space |
128 GB |
| Loading Capacity | 5.2 Million Pixels Up to 7,680 pixels in width Up to 4,320 pixels in height |
|
Wi-Fi |
Wi-Fi6(AP), Wi-Fi6(Station) |
|
Bluetooth |
Bluetooth 5.2 |

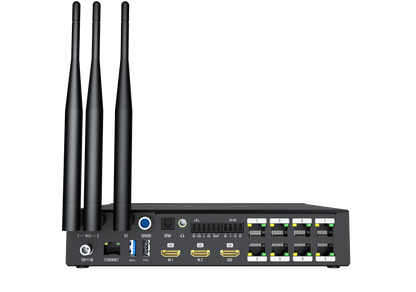

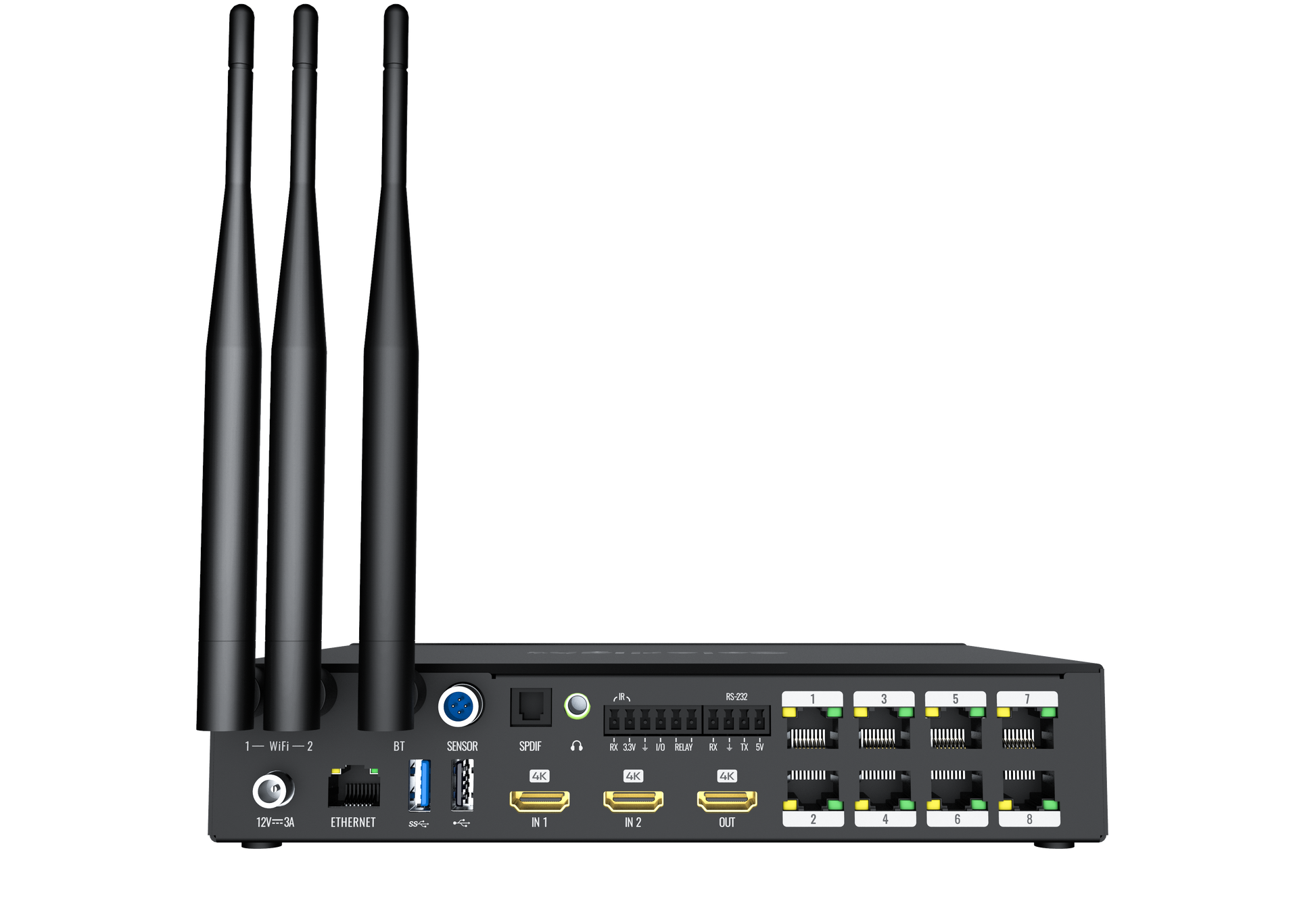

| Input Port | 1 x HDMI 1.4 1 x HDMI 2.0 1 x USB 3.0 1 x USB 2.0 1 x USB-C |
|
Output Port |
8 x RJ45 1 x HDMI 2.0 1 x 3.5mm Audio 1 x S/PDIF |
|
Control Port |
RJ45 RS232 Sensor Port USB-A USB-C IR IN I/O |
|
USB-C |
Mouse and Keyboard Device debugging USB Flash Drive 4K Feedback Touch Control |
| Input Power | DC 12V 3A |

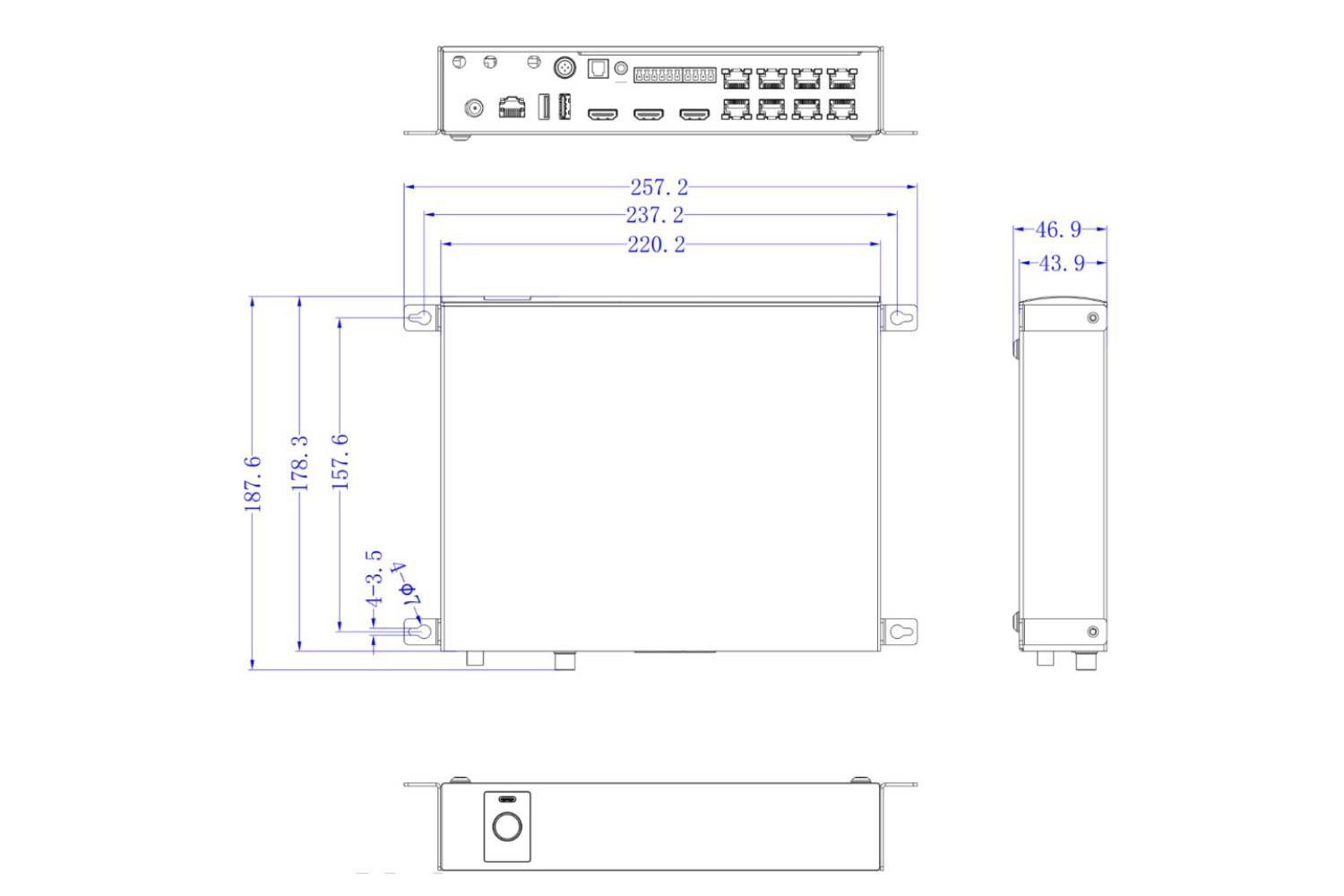

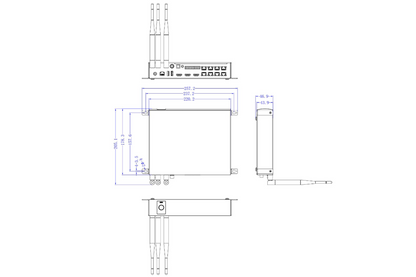

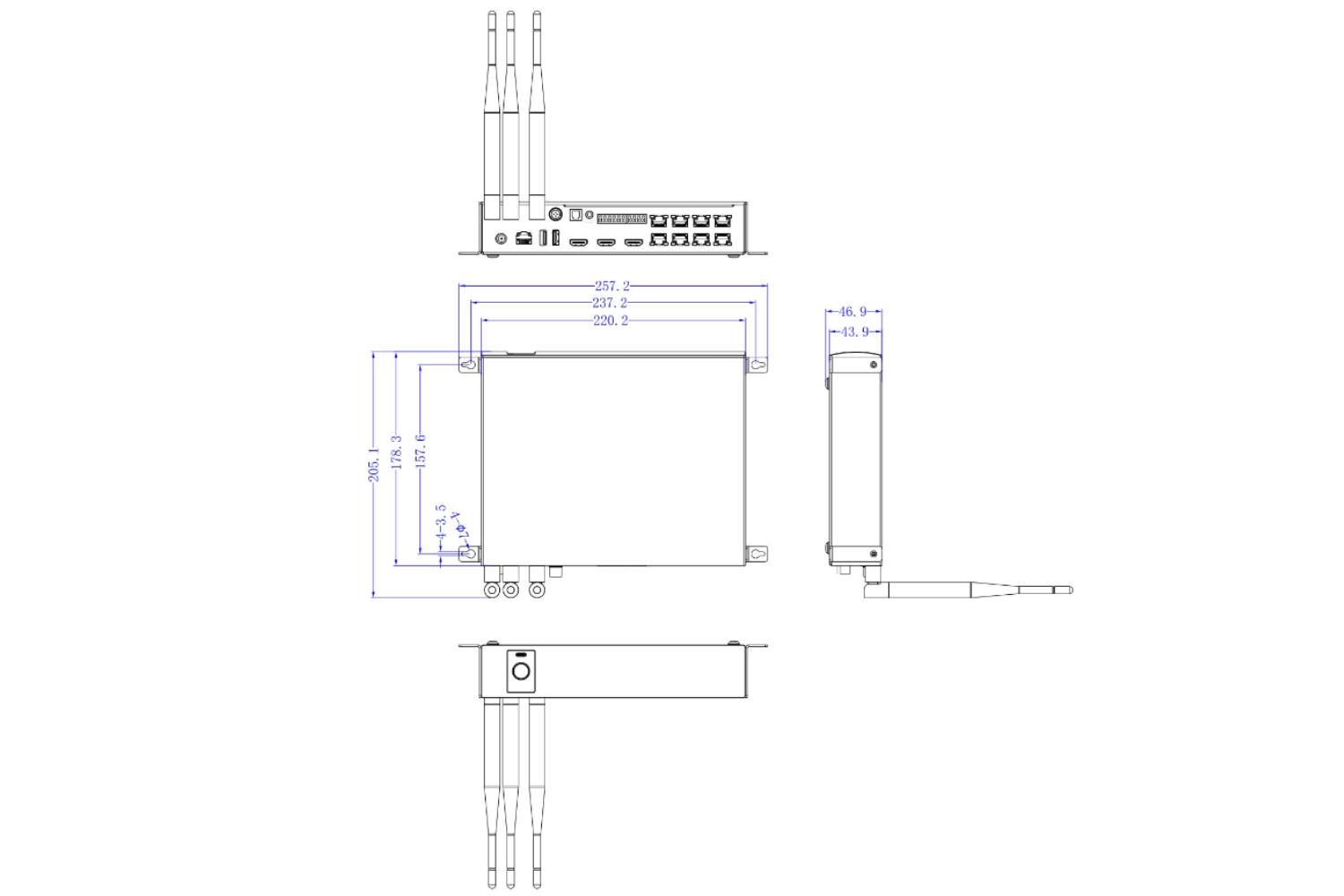

| Dimensions (L x W x H) | 220mm x 188mm x 47mm |
Software Capabilities & Specifications
| Colorlight Cloud | Yes |
|
LEDMaster |
Yes |
|
Operating System |
Colorlight LEDOS + Android 13 |
| Video decoding | 8K@60fps |
|
Photo-based Screen Mapping |
Yes |
|
Custom Resolution |
Yes |
| Smart Playback Control | Remote Control Mobile App USB Flash Drive Computer |
|
HDMI and internal Media Fusion playback |
Yes |
|
HDMI screen rotation |
Yes |
|
Wireless Screen Casting |
Yes |
| Windows wireless display | Yes |
| AI MEMC | Yes |
| AI SR | Yes |
| Pre-installed WPS Office | Yes |
| File System | exFAT/FAT32/NTFS |
| Eye protection mode | Yes |
