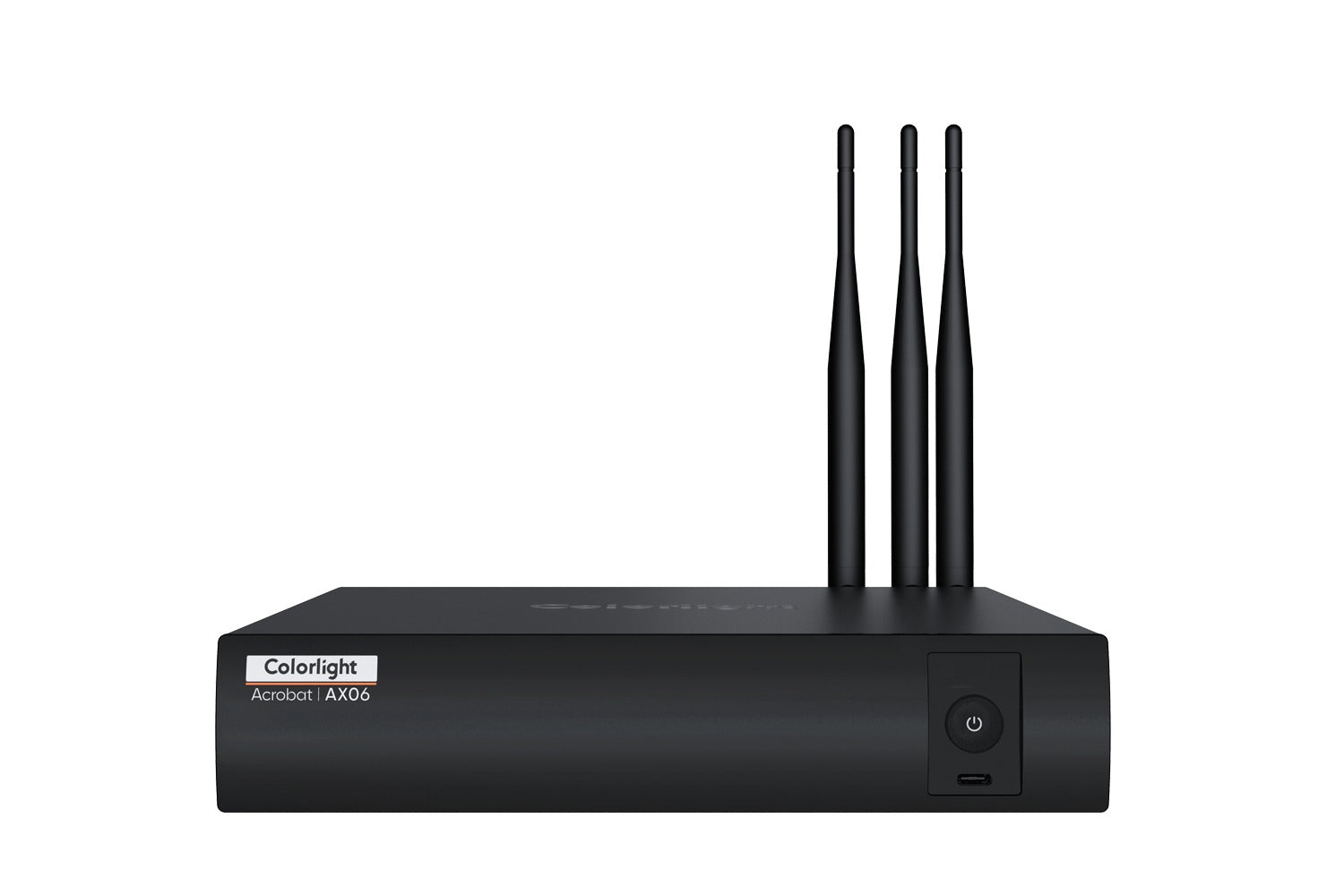

CL-AX06 - AI Media Station
CL-AX06 - AI Media Station
The CL-AX06 is AI Media Station. Equipped with 6 Gigabit Ethernet ports, it handles a maximum load of 3.9 million pixels. It supports multi-layer displays and Dual 4K decoding, along with LAN/WiFi network access for cloud networking management.
Additionally, it supports document presentation, video playback, multi-terminal wireless screen casting, infrared touch frames, electronic whiteboards, cameras, microphones, and meeting systems.
Running on the Android 13 system, the CL-AX06 integrates various Android applications and provides synchronous/asynchronous sending functions. Featuring robust interactivity and smart control, it can be mounted on a wall or placed on a desktop without requiring modifications to the screen structure. It is ideal for LED displays in multifunctional classrooms, conference rooms, exhibition halls, lecture halls, and banquet halls, ensuring optimal display performance.
Specifications
| CPU | 8nm, 8 Core CPU |
|
Memory |
4 GB |
|
Disk Space |
64 GB |
| Loading Capacity | 3.9 Million Pixels Up to 7,680 pixels in width Up to 4,320 pixels in height |
|
Wi-Fi |
Wi-Fi6(AP), Wi-Fi6(Station) |
|
Bluetooth |
Bluetooth 5.2 |

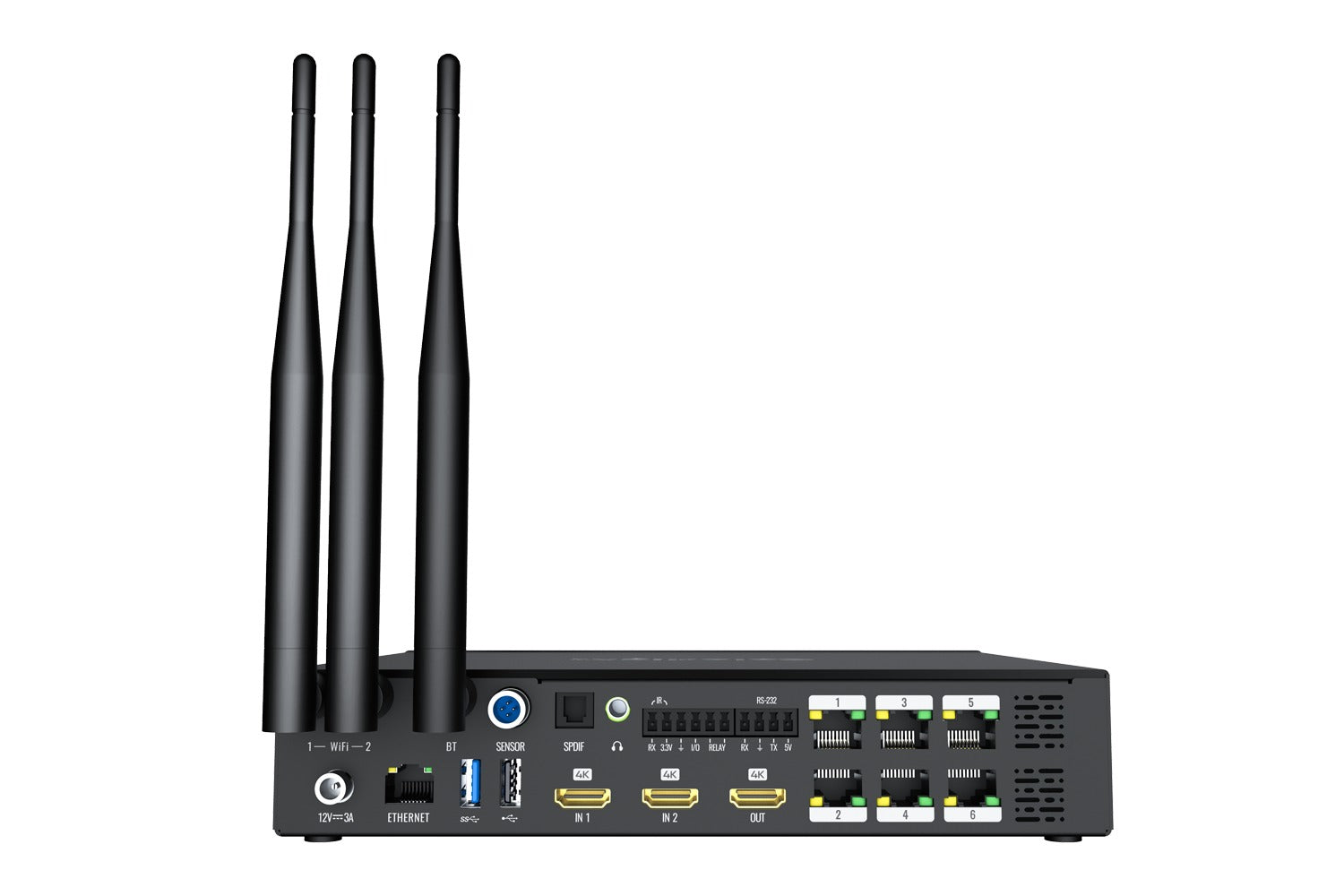

| Input Port | 2 x HDMI 1.4 1 x USB 3.0 1 x USB 2.0 1 x USB-C |
|
Output Port |
6 x RJ45 1 x HDMI 2.0 1 x 3.5mm Audio 1 x S/PDIF |
|
Control Port |
RJ45 RS232 Sensor Port USB-A USB-C IR IN I/O |
|
USB-C |
Mouse and Keyboard Device debugging USB Flash Drive |
| Input Power | DC 12V 3A |

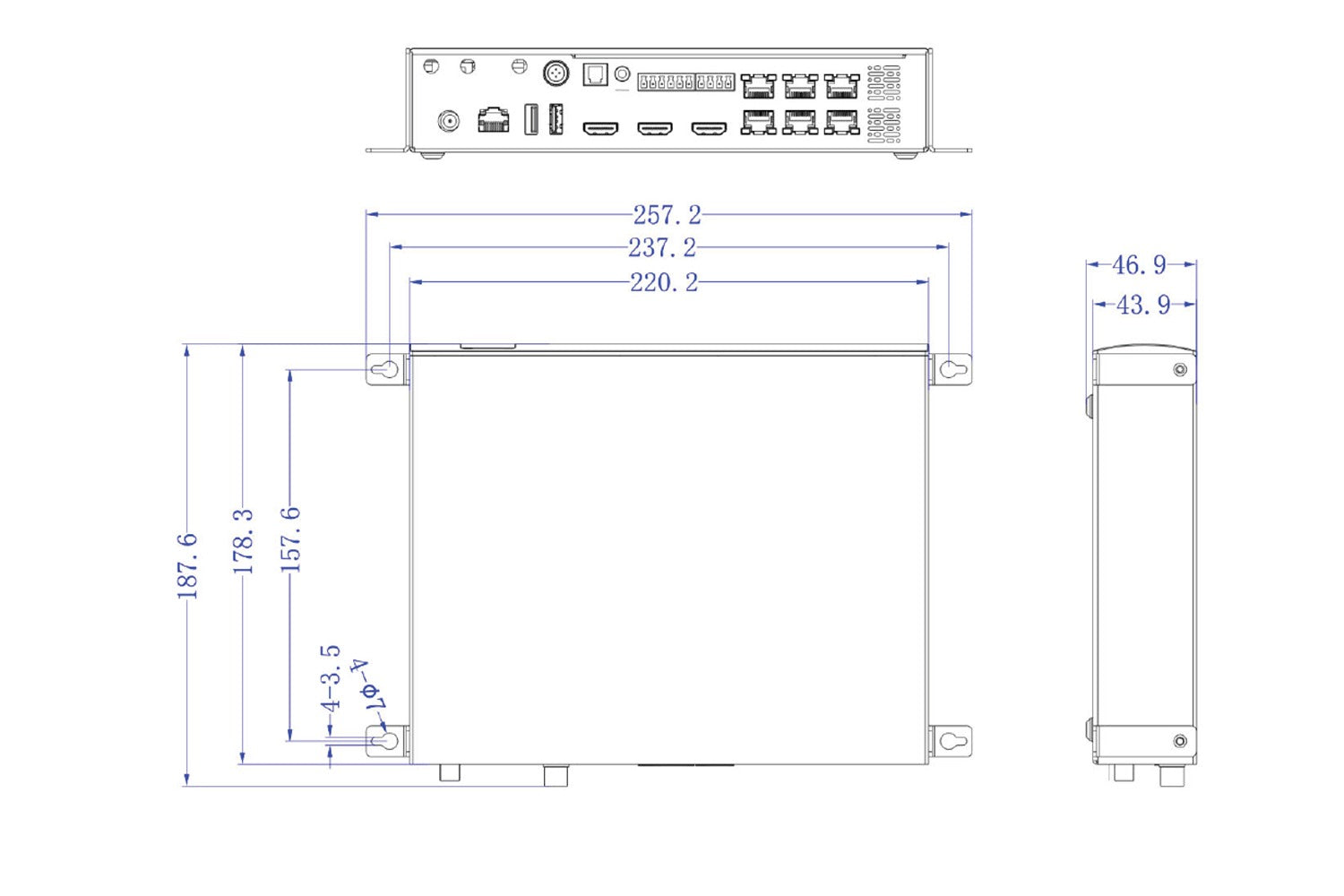

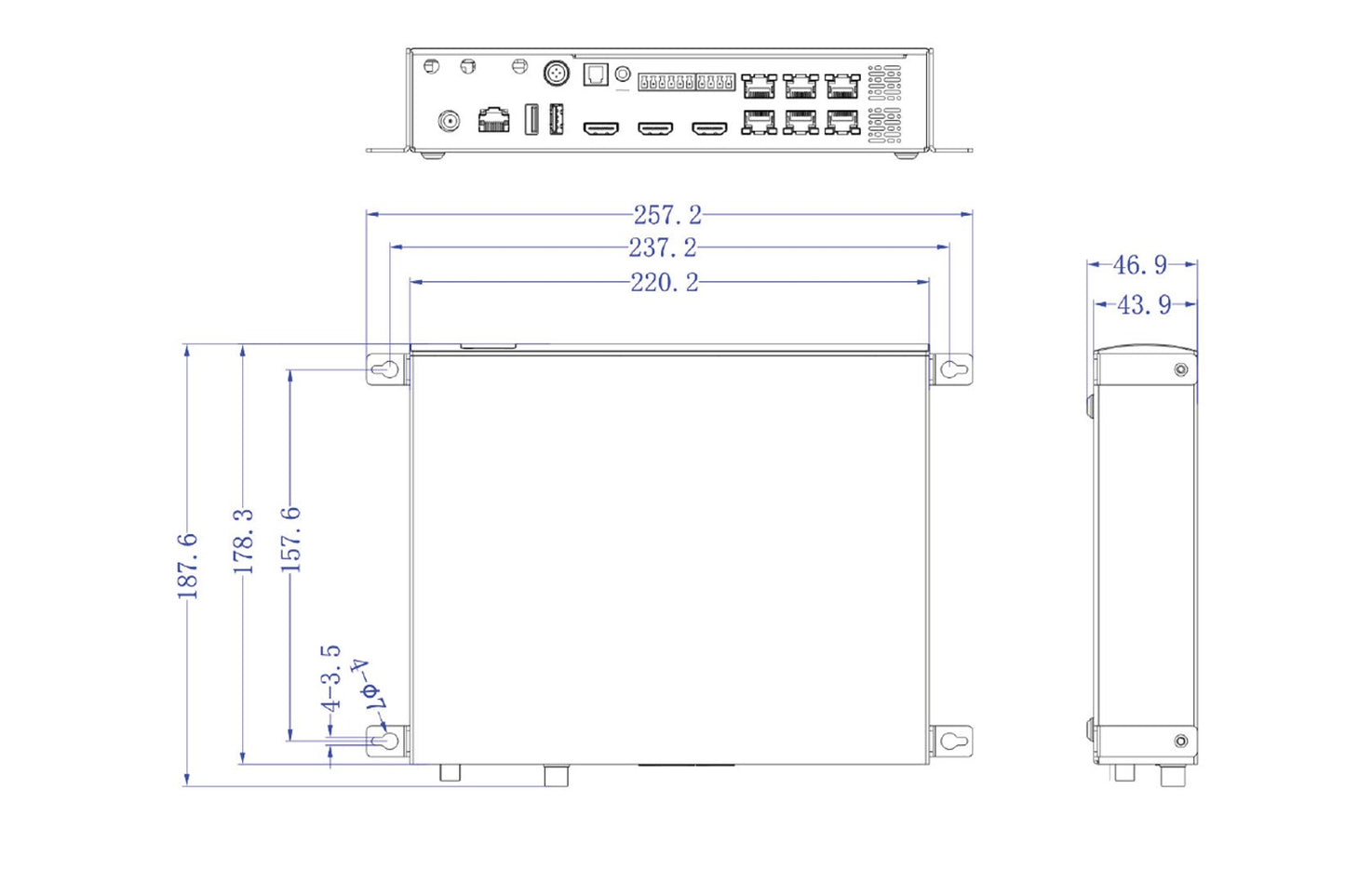

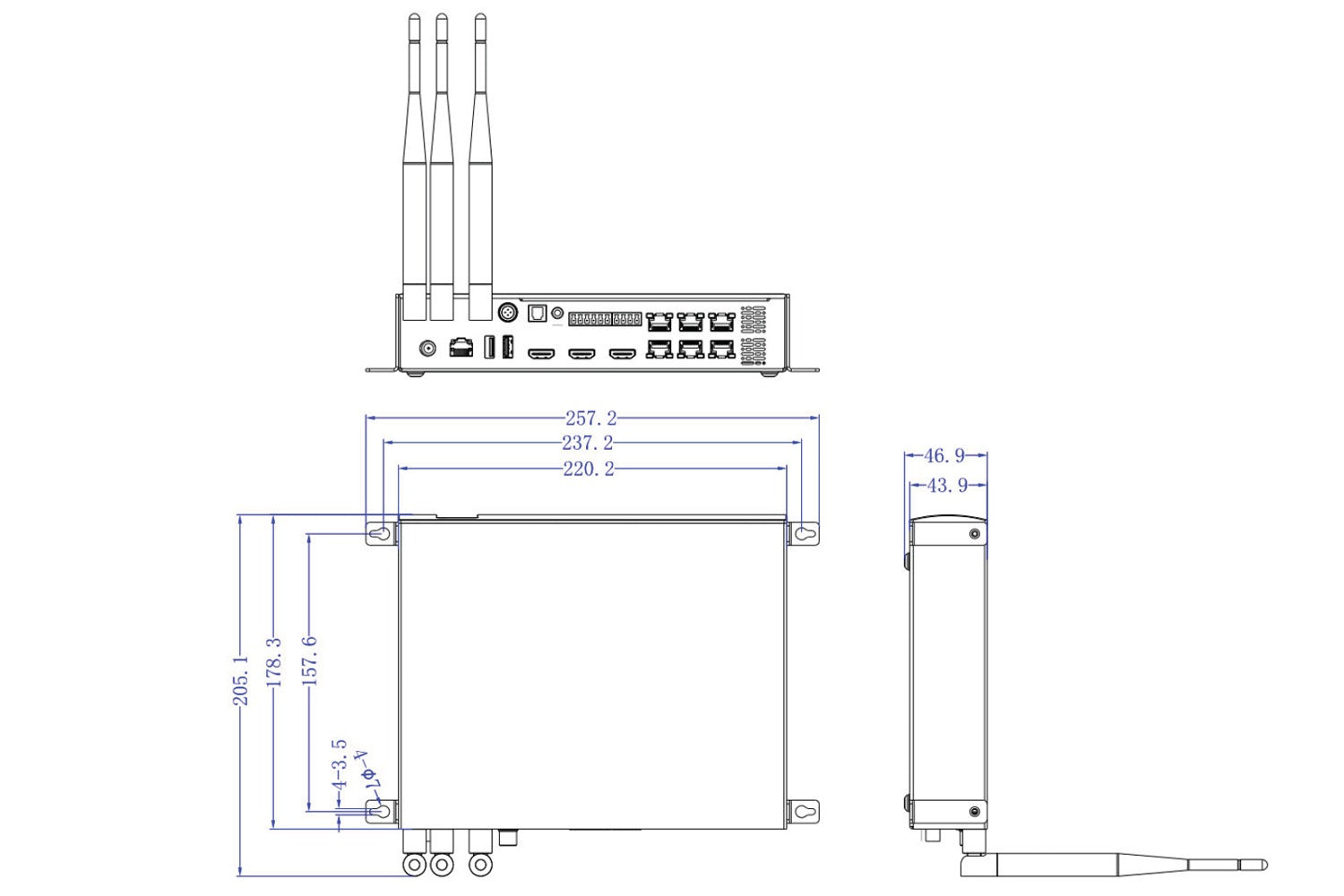

| Dimensions (L x W x H) | 220mm x 188mm x 47mm |
Software Capabilities & Specifications
| Colorlight Cloud | Yes |
|
LEDMaster |
Yes |
|
Operating System |
Colorlight LEDOS + Android 13 |
| Video decoding | 4K@60fps |
|
Photo-based Screen Mapping |
Yes |
|
Custom Resolution |
Yes |
| Smart Playback Control | Remote Control Mobile App USB Flash Drive Computer |
|
HDMI and internal Media Fusion playback |
Yes |
|
HDMI screen rotation |
No |
|
Wireless Screen Casting |
Yes |
| Windows wireless display | Yes |
| AI MEMC | No |
| AI SR | No |
| Pre-installed WPS Office | No |
| File System | exFAT/FAT32/NTFS |
| Eye protection mode | Yes |
