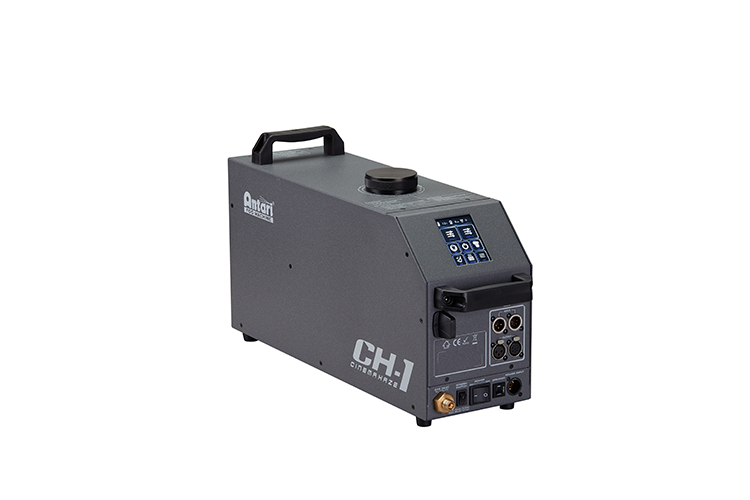

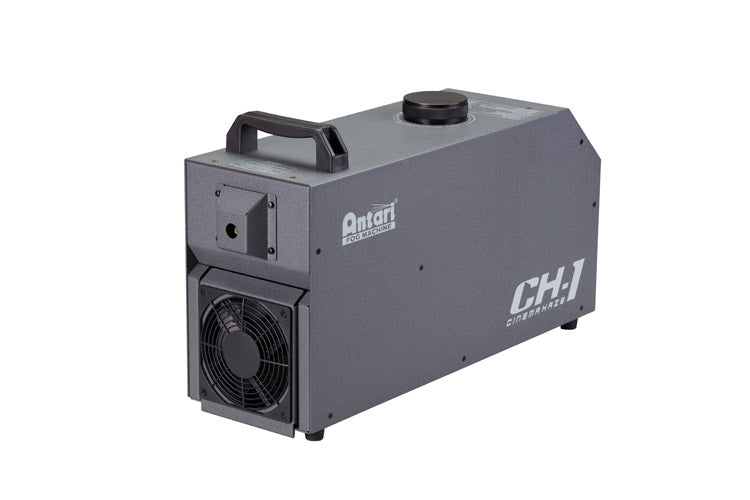

Antari CO2 fazer front view
Antari CO2 fazer internal view

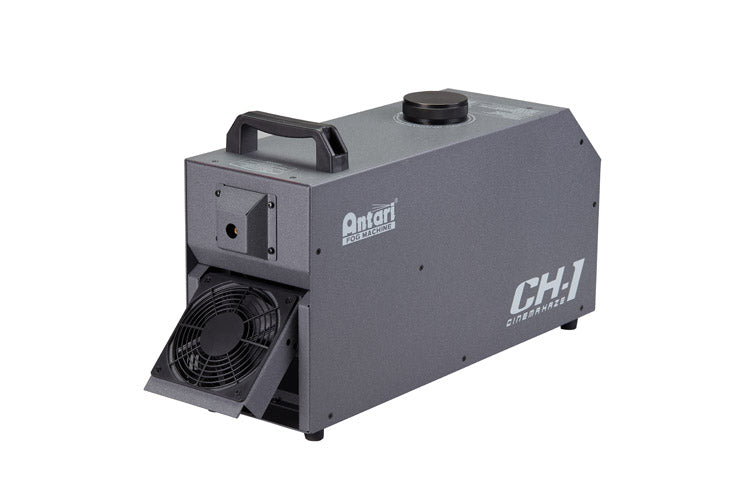

Antari CO2 fazer fan view

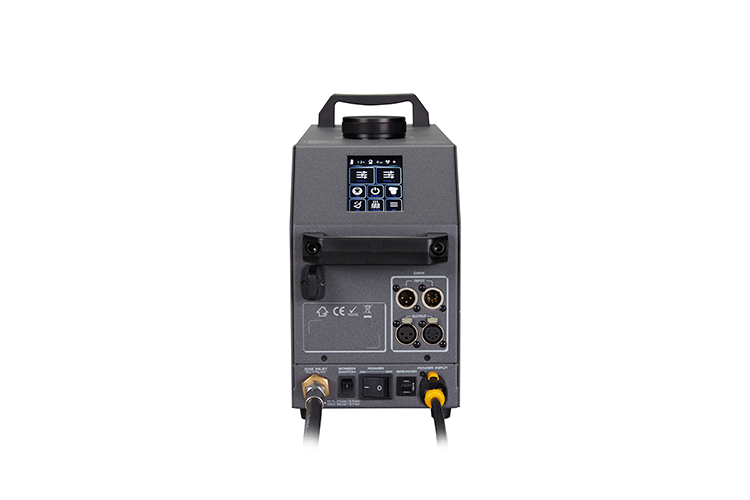

Antari CO2 fazer back view
Antari CO2 fazer connectors
Antari CO2 fazer front connectors view

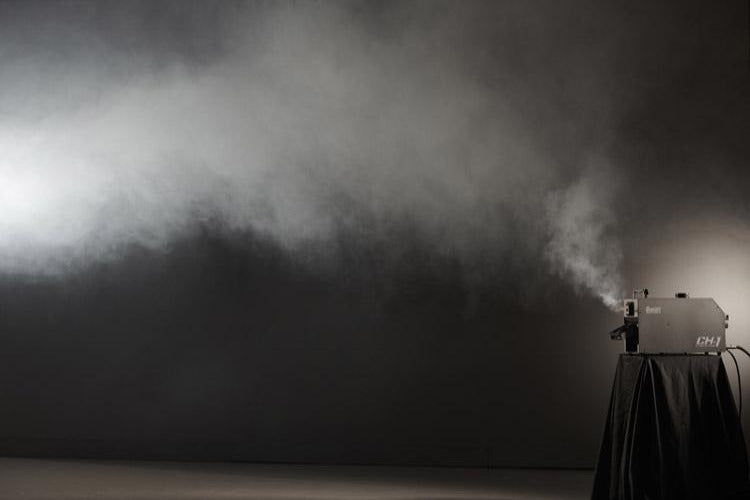

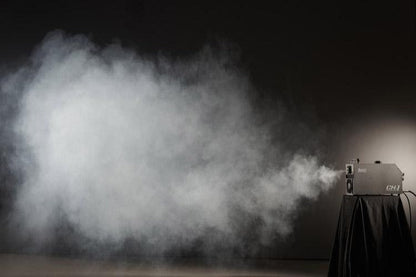

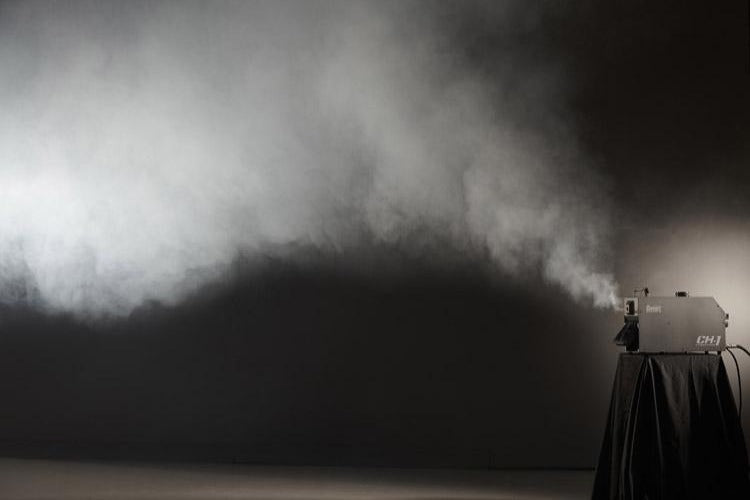

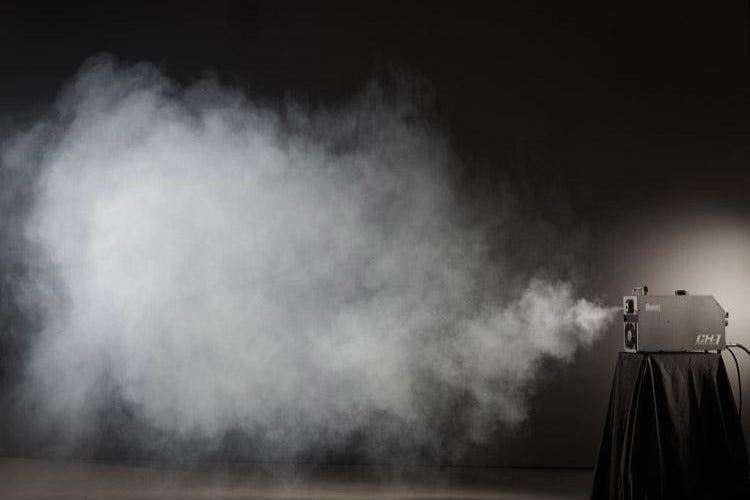

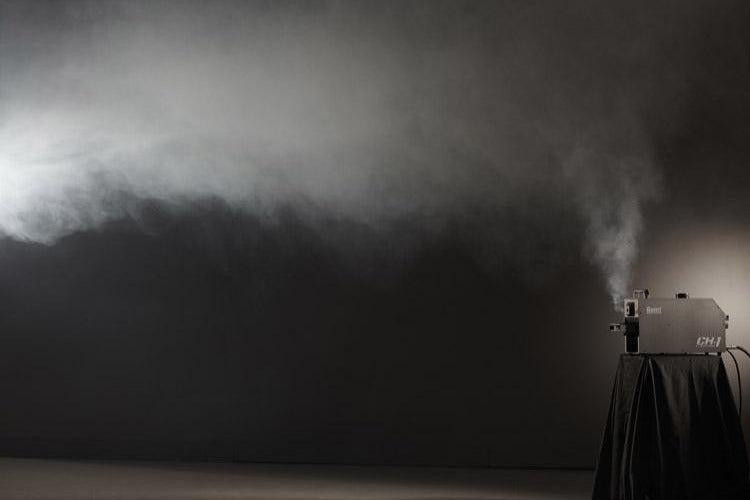

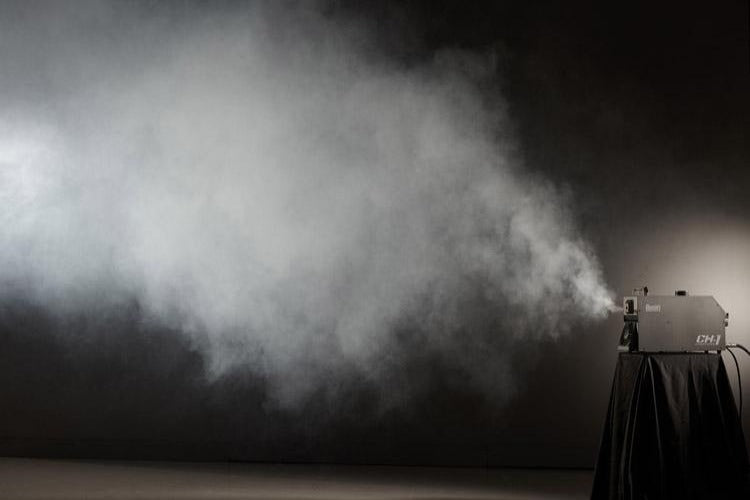

Antari CO2 fazer effect 1
Antari CO2 fazer effect 2
Antari CO2 fazer effect 3
Antari CO2 fazer effect 4
Antari CO2 fazer effect 5
Antari

CH1 - Cinema CO2 Faze Machine

Regular price $6,890.00
Antari has recently announced their first faze effect machine which runs with CO2 and fog fluid. The technology allows for a quiet operating level while running at an efficient 2ml/min @ 40 psi for fluid and 0.36kg/hr @ 40 psi for CO2.

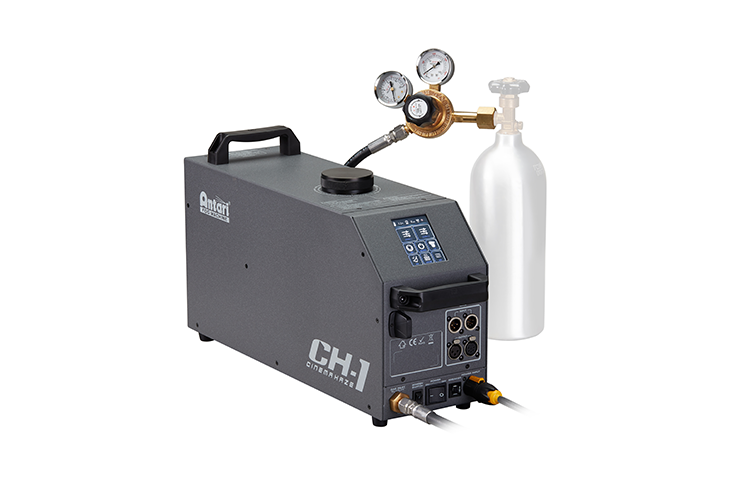

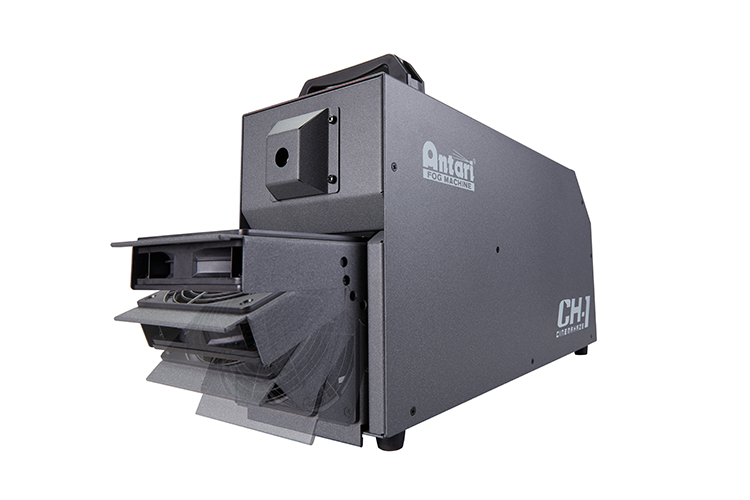

The unit includes a pressure gauge and air hose with a multi angle fan with 4 optional positions. With on board manual or timer control via the TFT LCD touch screen as well as DMX control this unit also has the option of wireless DMX control.
Specifications
  • Input Voltage: 100-120V or 220-240V AC, 50/60Hz
  • Rated Power: 700-1250W
  • Warm up time: 8 minutes (approx)
  • Fluid Consumption: 2ml/min @40psi / 2.76 bar
  • Compatible Fluid: CHL-2 Haze Fluid
  • Gas Type: CO2, N2
  • Gas Pressure Range: 50-60psi / 3.4 - 4.1 bar
  • Gas Consumption: 0.36 kg/hr @ 40 psi, 0.18kg/hr @ 20 psi
  • Ambient temperature range: 0 - 40C
  • Control: Manual, Timer, DMX, Wireless DMX (Optional)
  • DMX Channels: 1/3/5
  • Connection: Neutrik PowerCON TRUE1 (Power), Neutrik XLR 5-pin in/out (Signal), 9/16 18 R.H (Gas inlet)
  • Optional accessories: WDMXPCBR Wireless DMX, WDMXR Wireless DMX Antenna

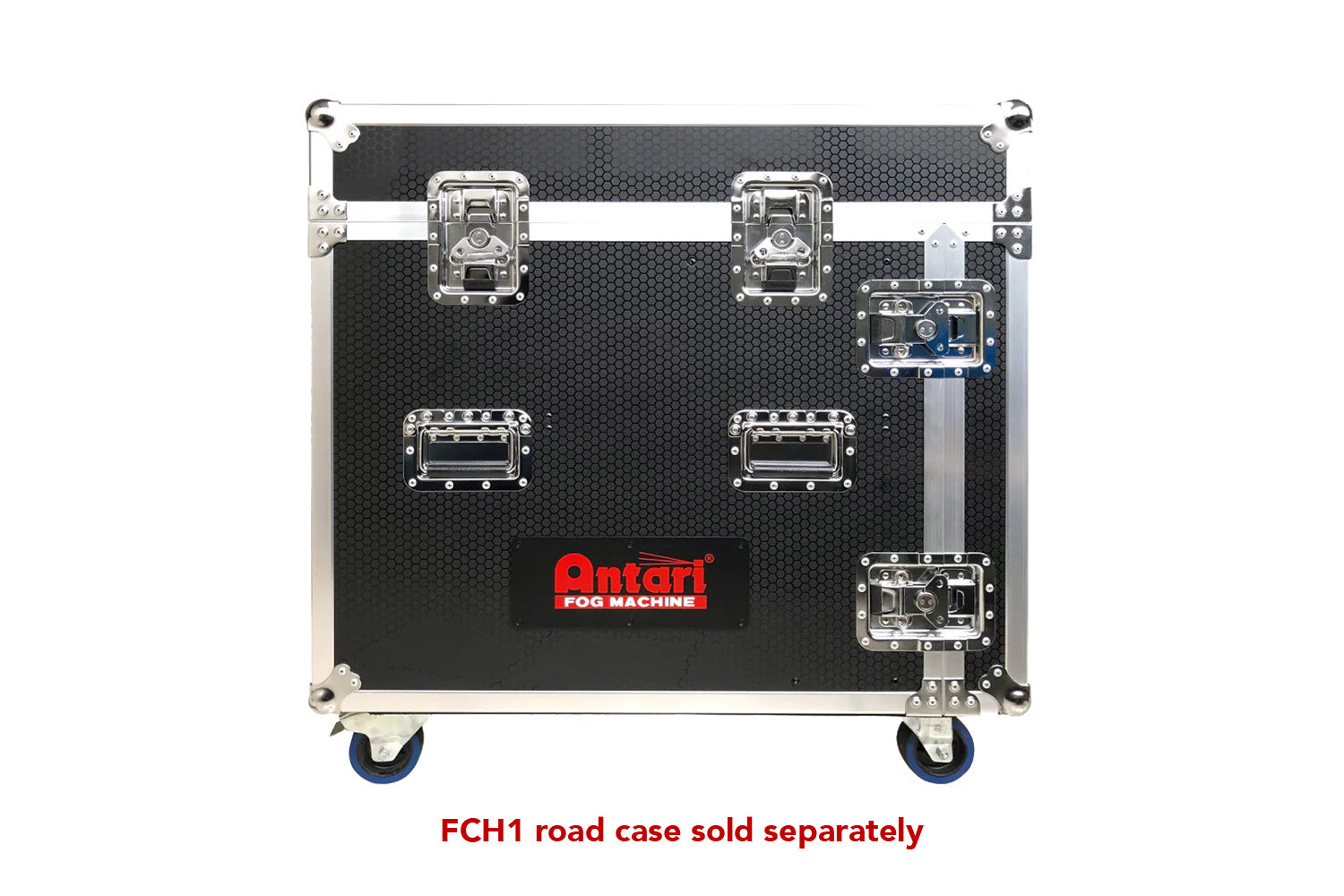

  • Optional road case: FCH1 Flight Case for CH-1
  • Liquid Used: Antari CHL2 Liquid
  • Dimension (L*W*H): 578*164*310 mm
  • Weight: 17 kg

 Click here to download the User Manual

For more information, please visit the manufacturer's website
