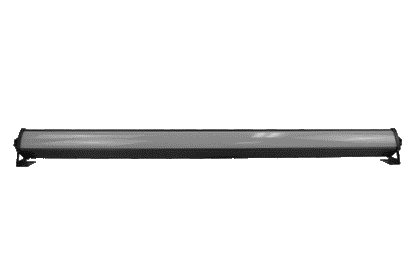

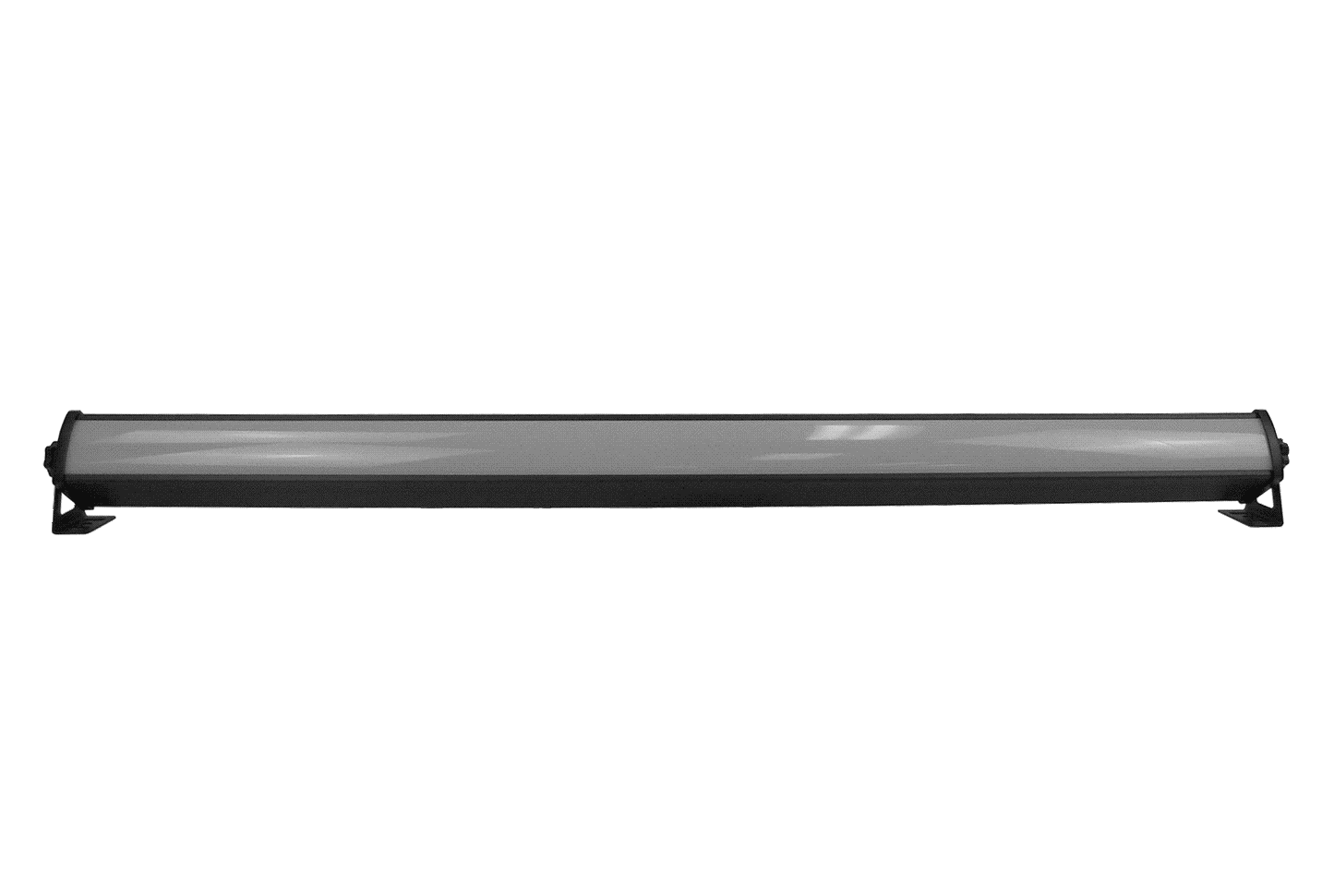

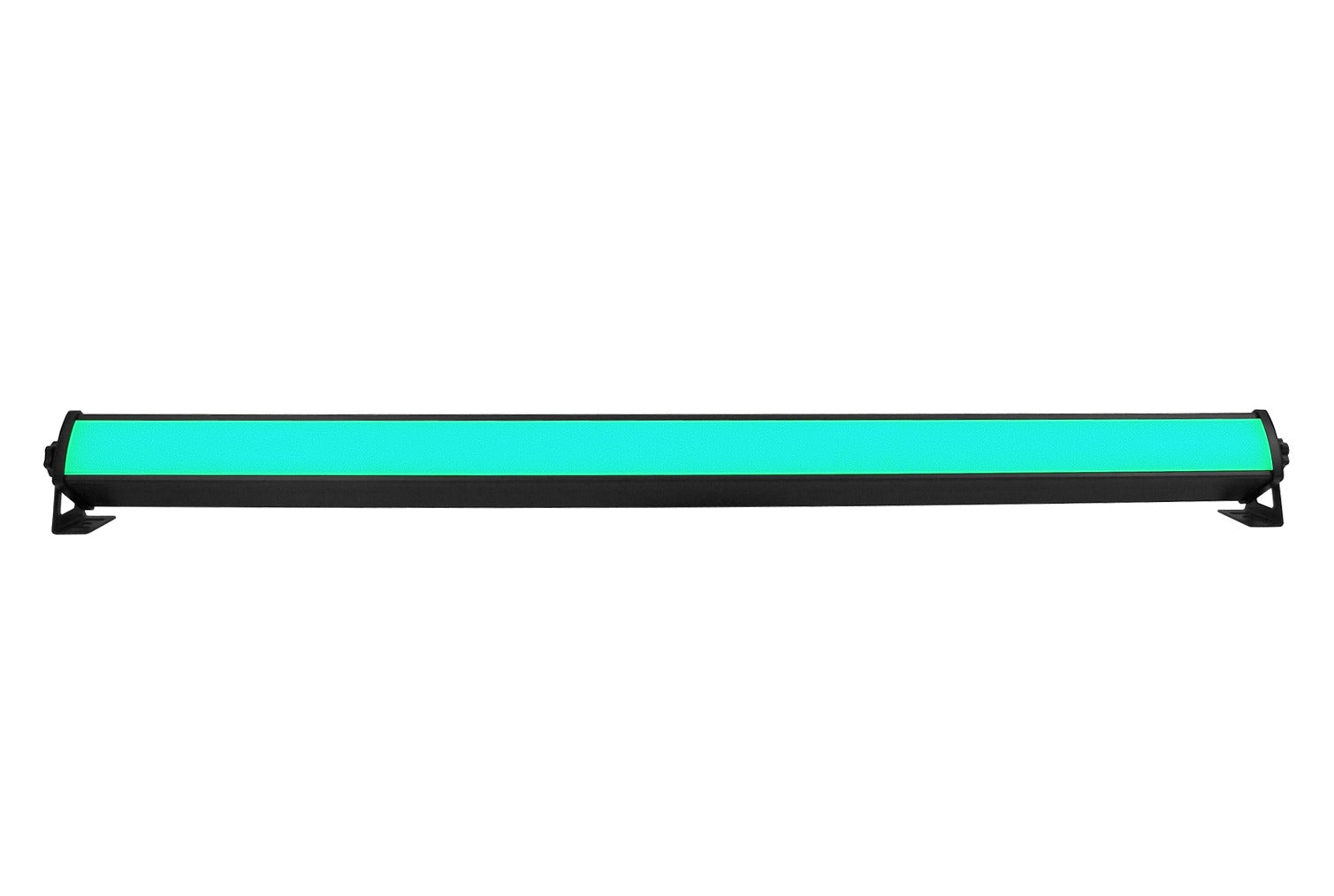

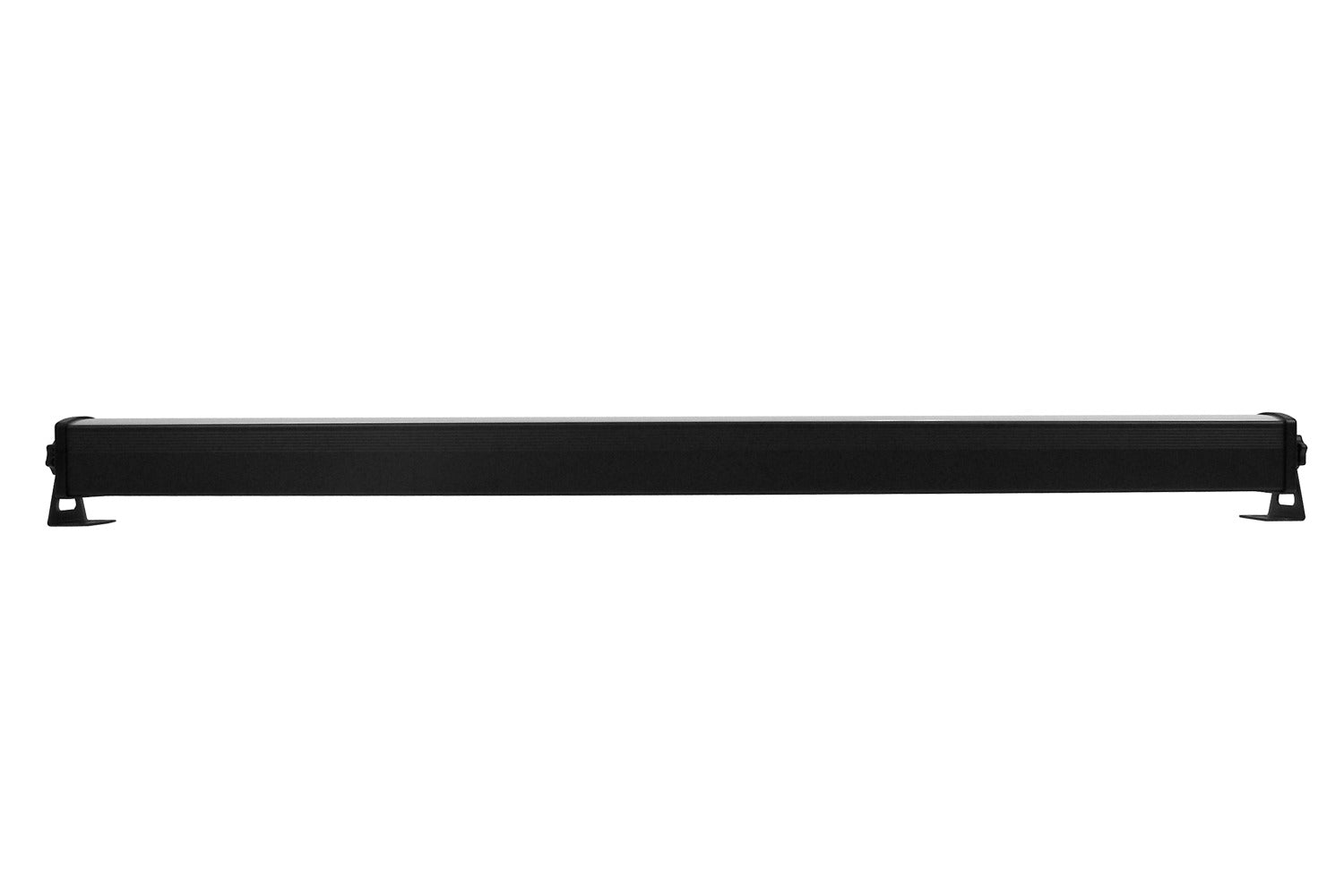

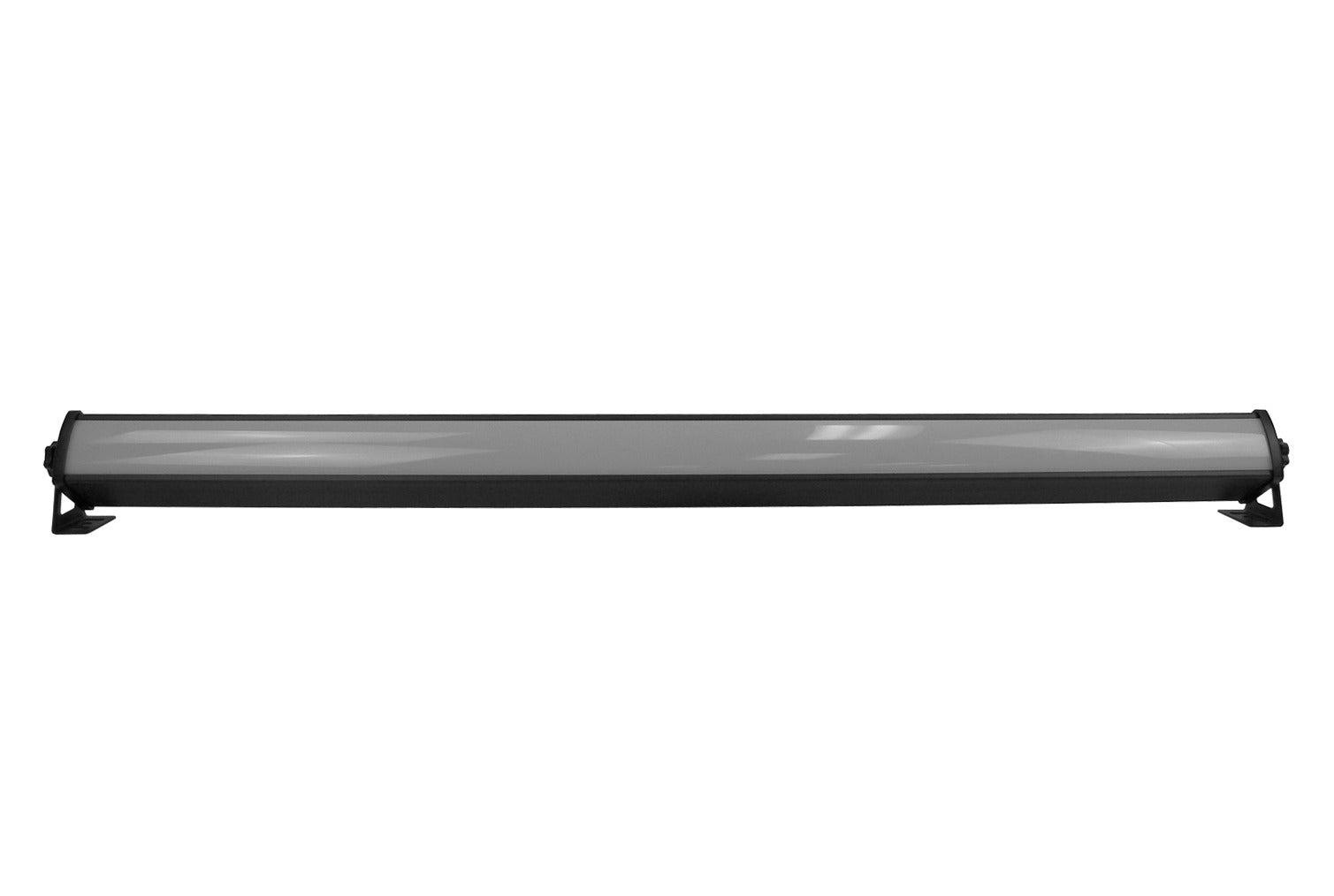

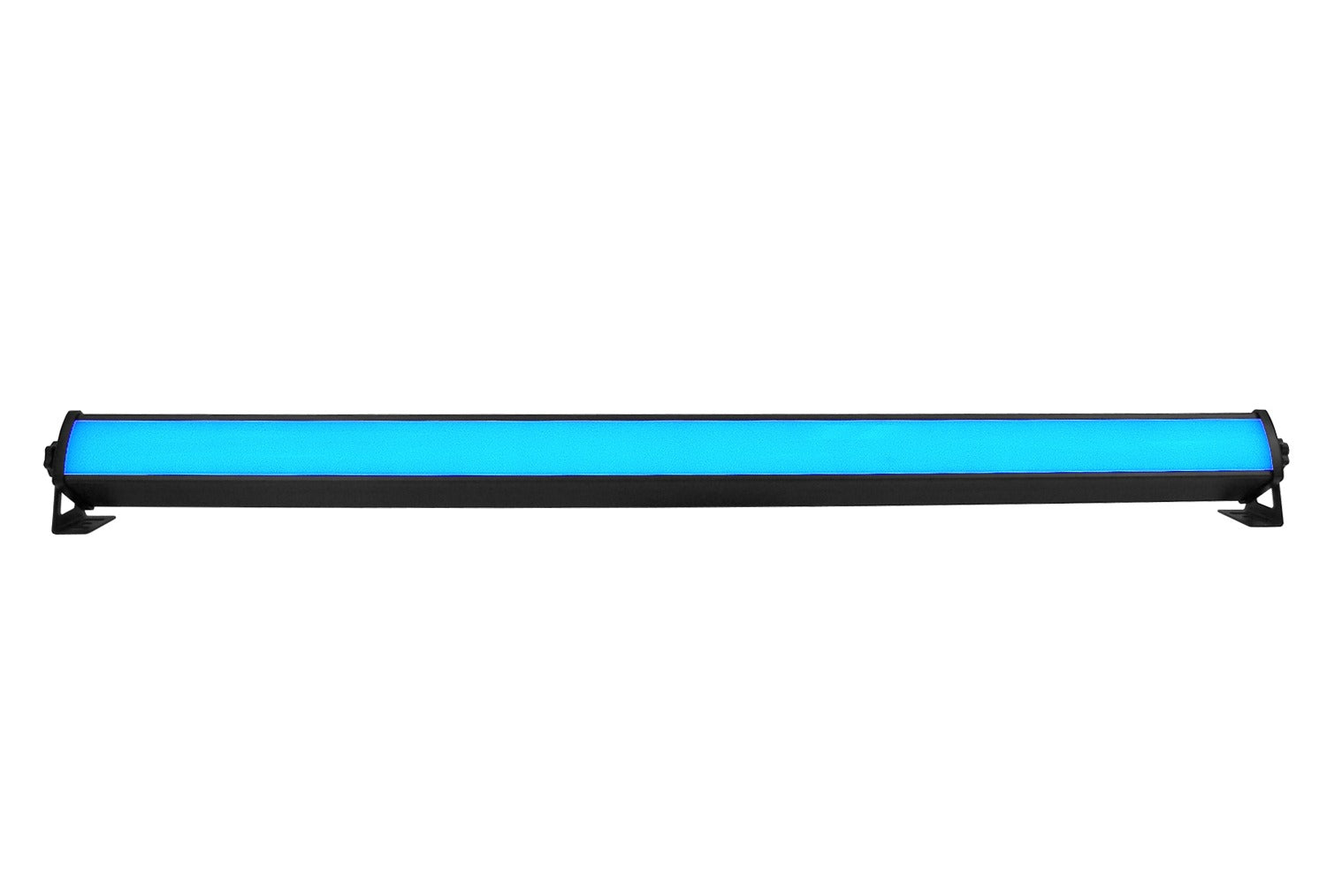

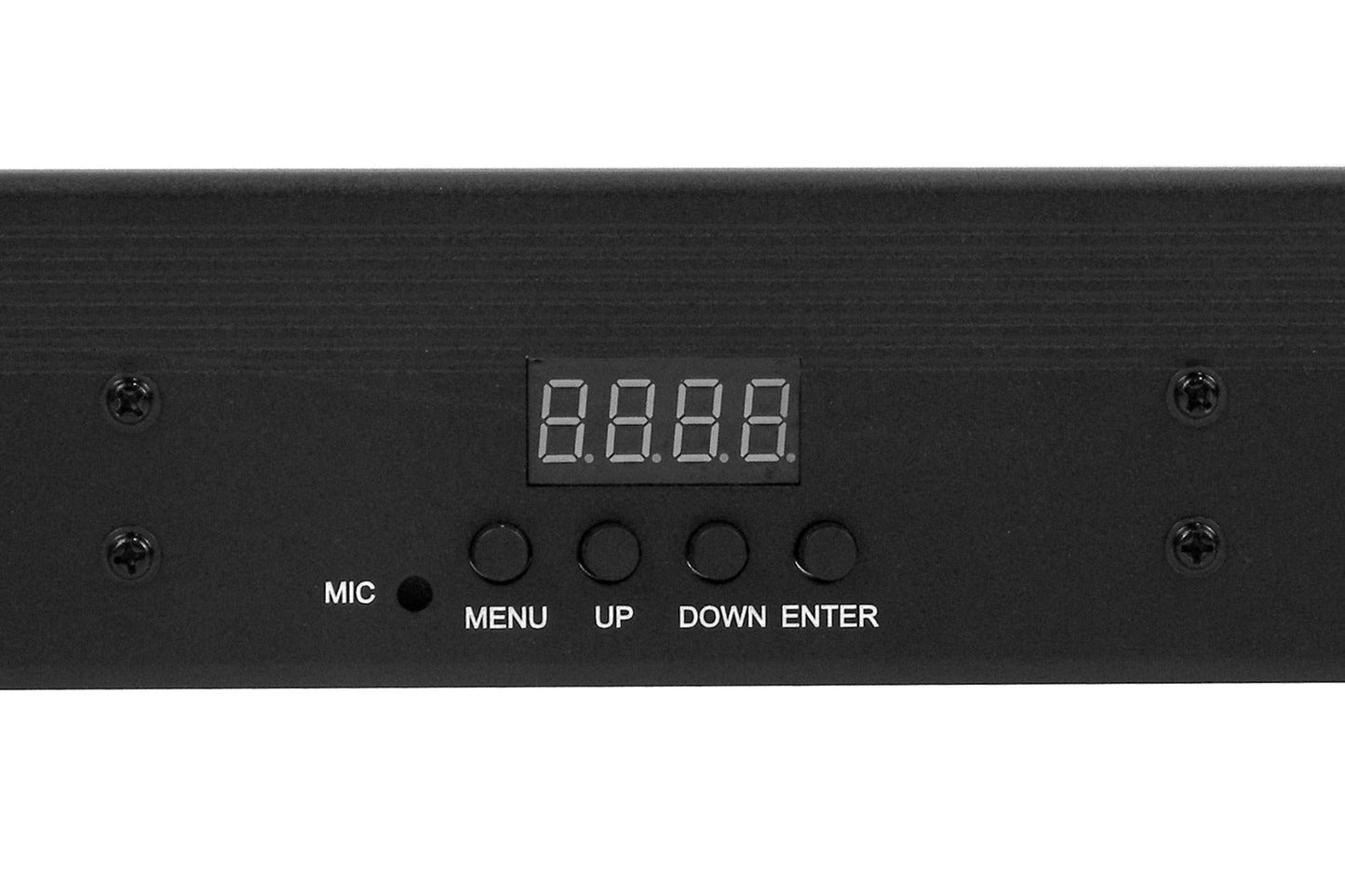

BAR224FXL - 224 RGB LED Bar with 16 Segment Control

224 RGB LED Bar with 16 Segment Control

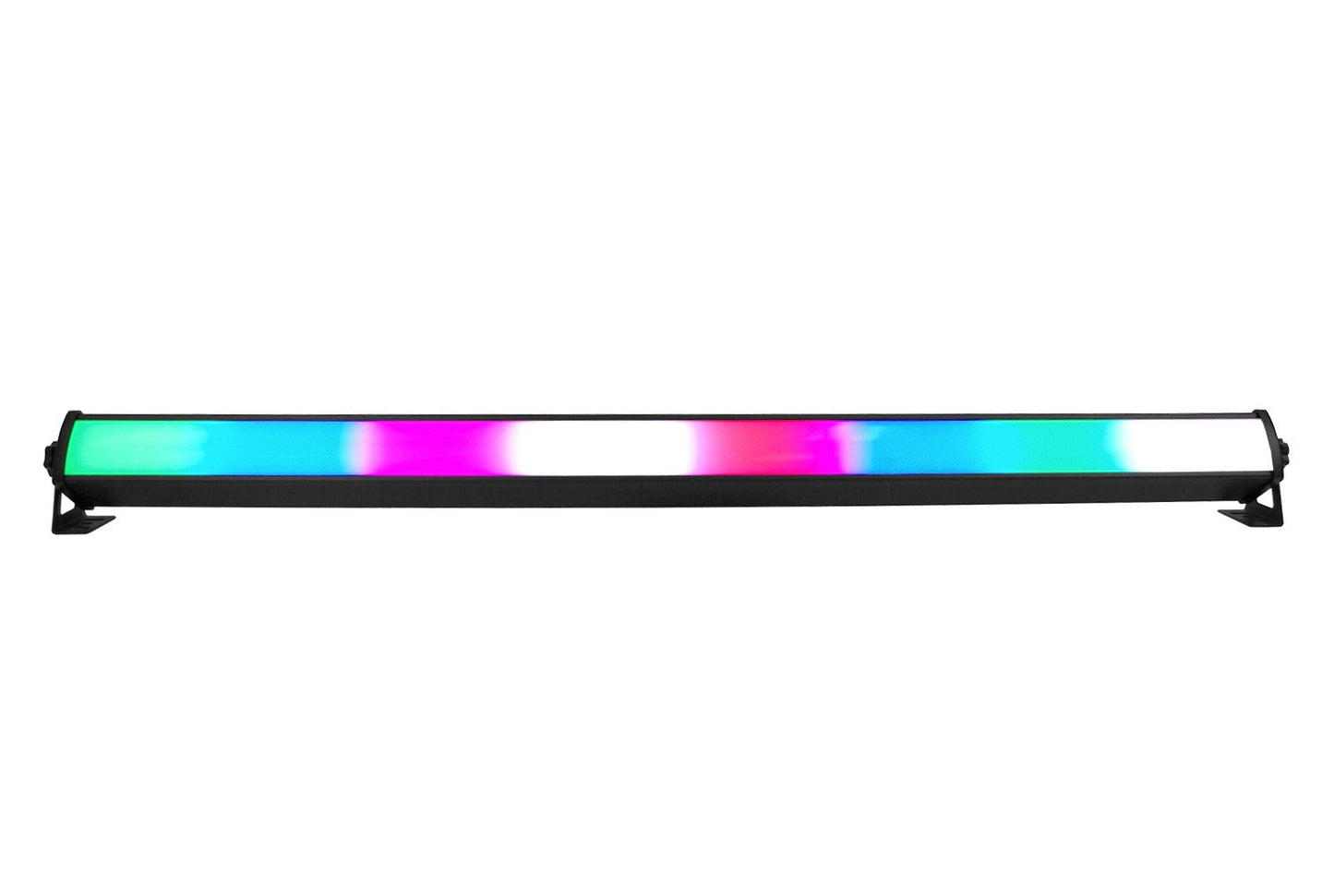

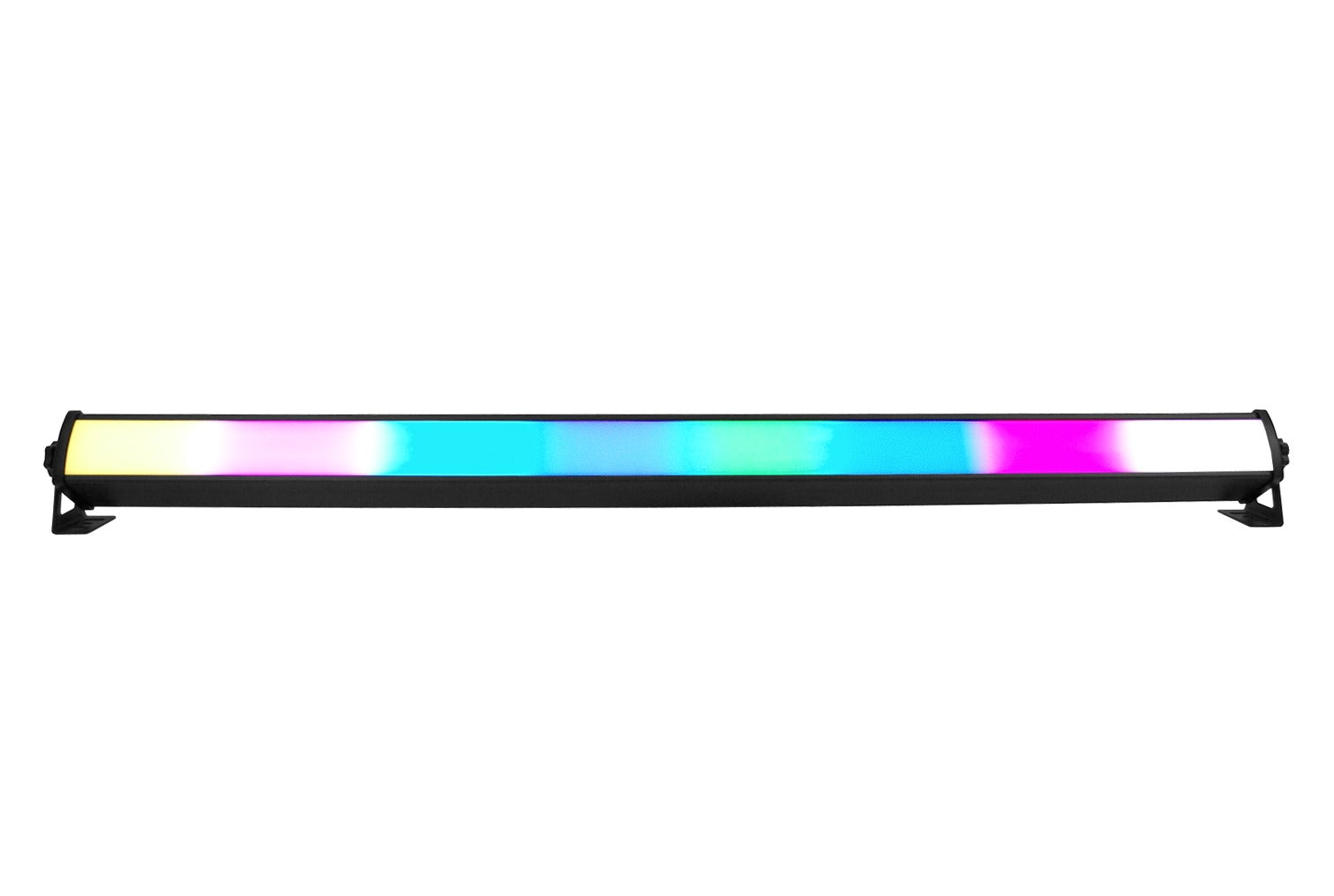

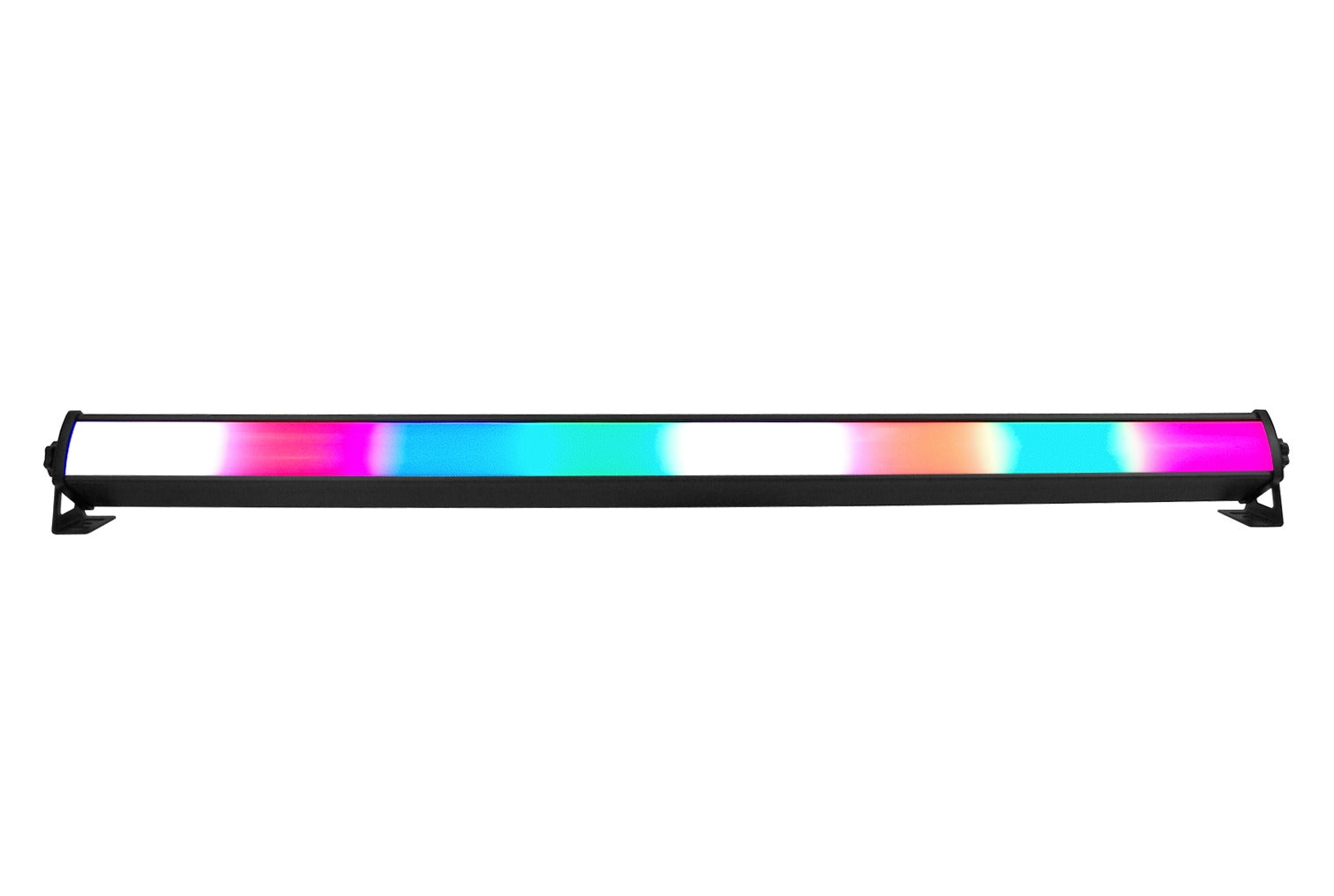

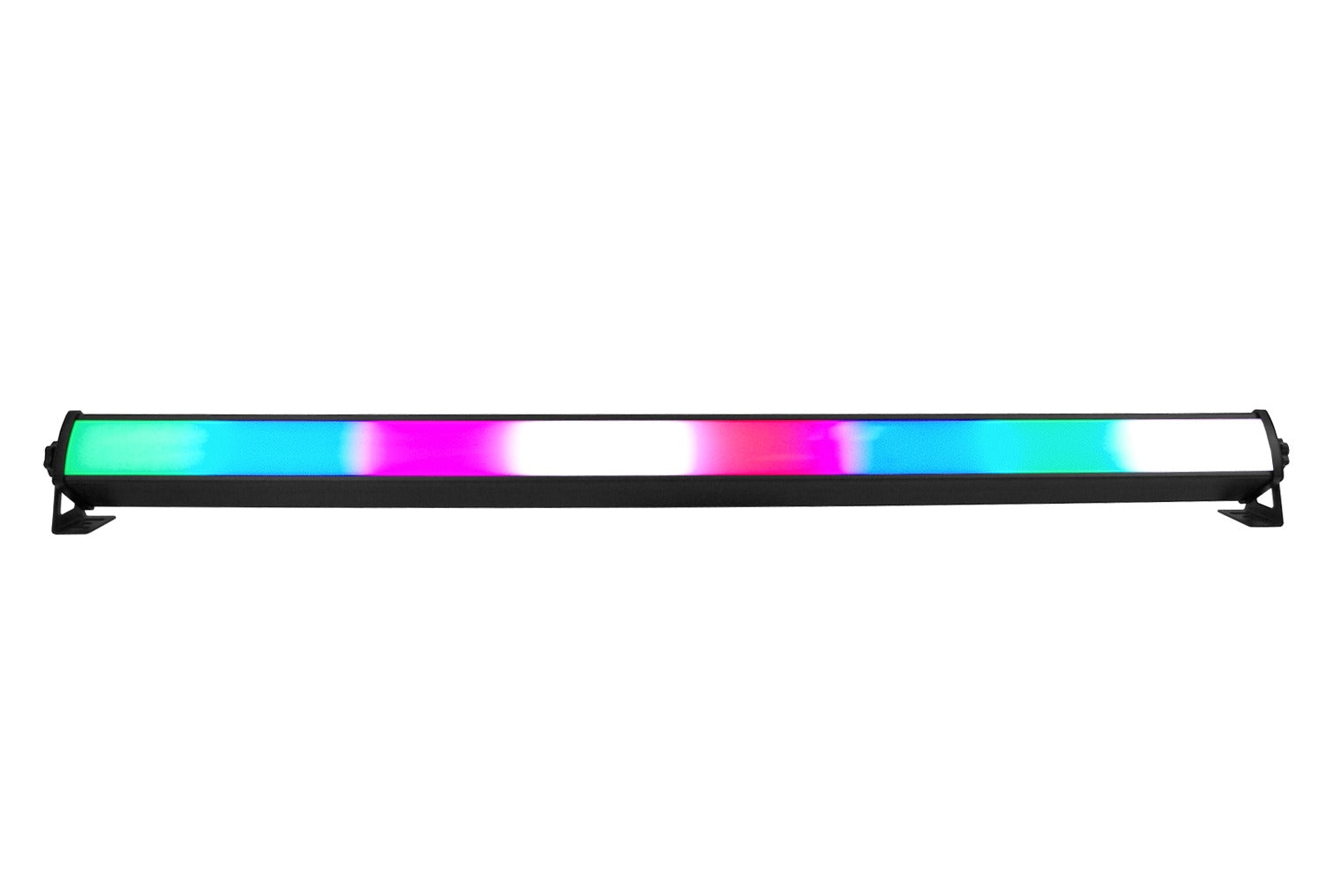

The BAR224FXL uses 224 x SMD RGB 3-in-1 LEDs to produce a powerful party effect. With onboard modes and DMX control, you can utilise the 16-segment control to create visual effects.

• Light Source: 224 x SMD 5050 RGB LEDs
• Beam Angle: 90°
• PWM: 10,000 Hz

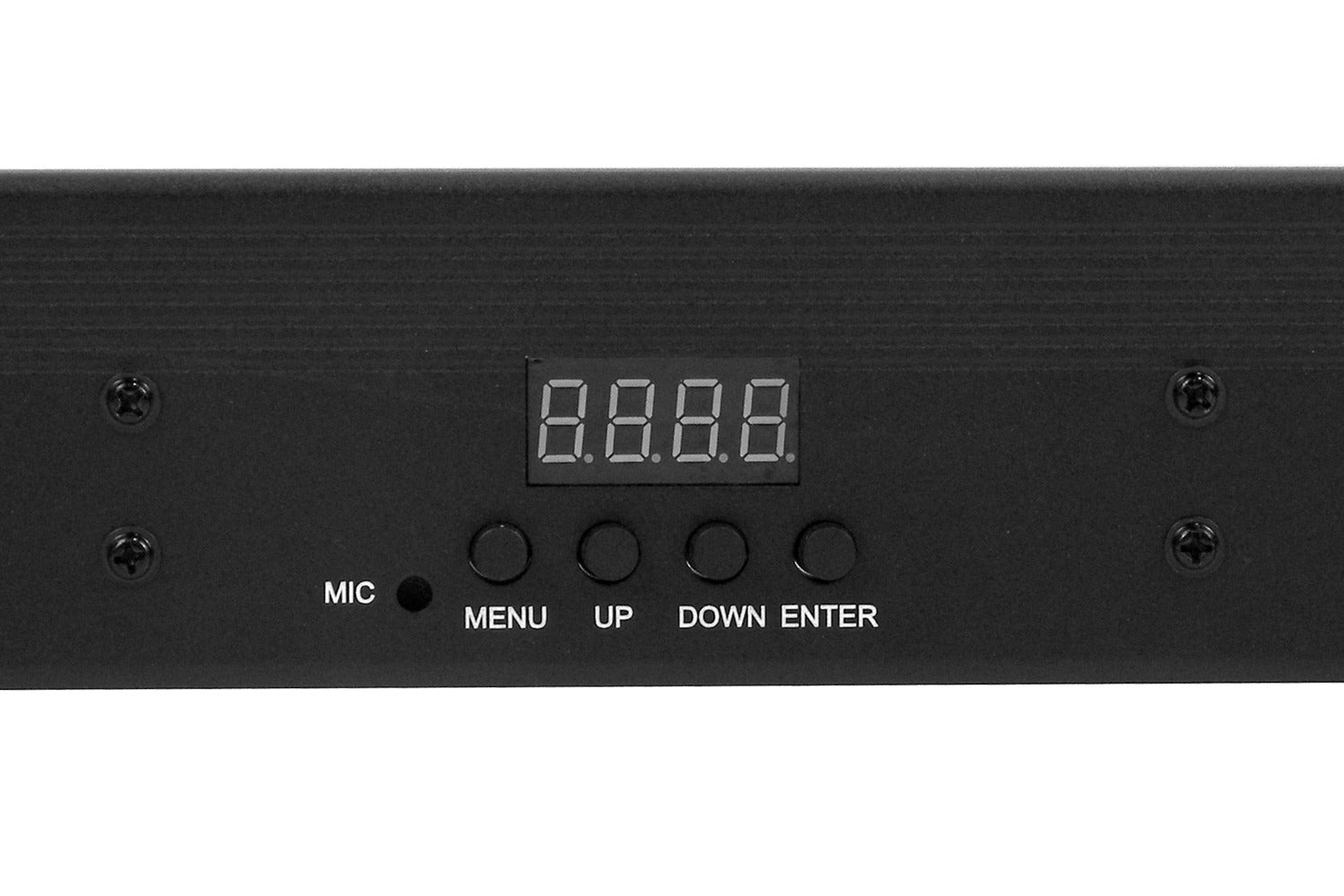

• Operation Modes: DMX, auto, manual, sound active, master/slave

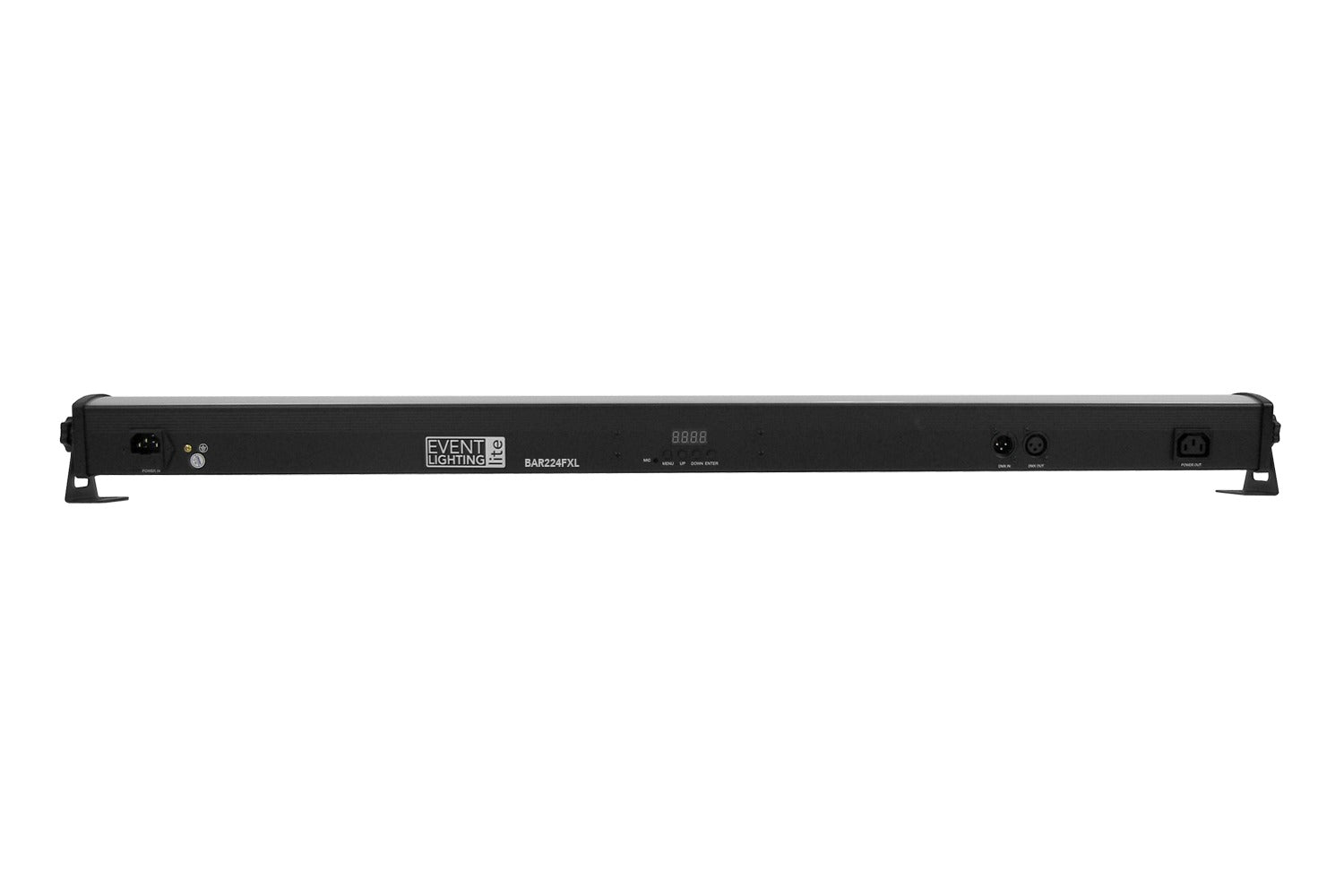

• Control Interface: 3-pin XLR in/out
• DMX Channels: 3 / 5 / 8 / 24 / 48 / 53
• Input Voltage: 110-240V AC, 50/60 Hz
• Power Consumption: 150W
• Dimensions: 1100 x 60 x 60mm
• Weight: 3.5 kg

Optional Accessories (sold separately):

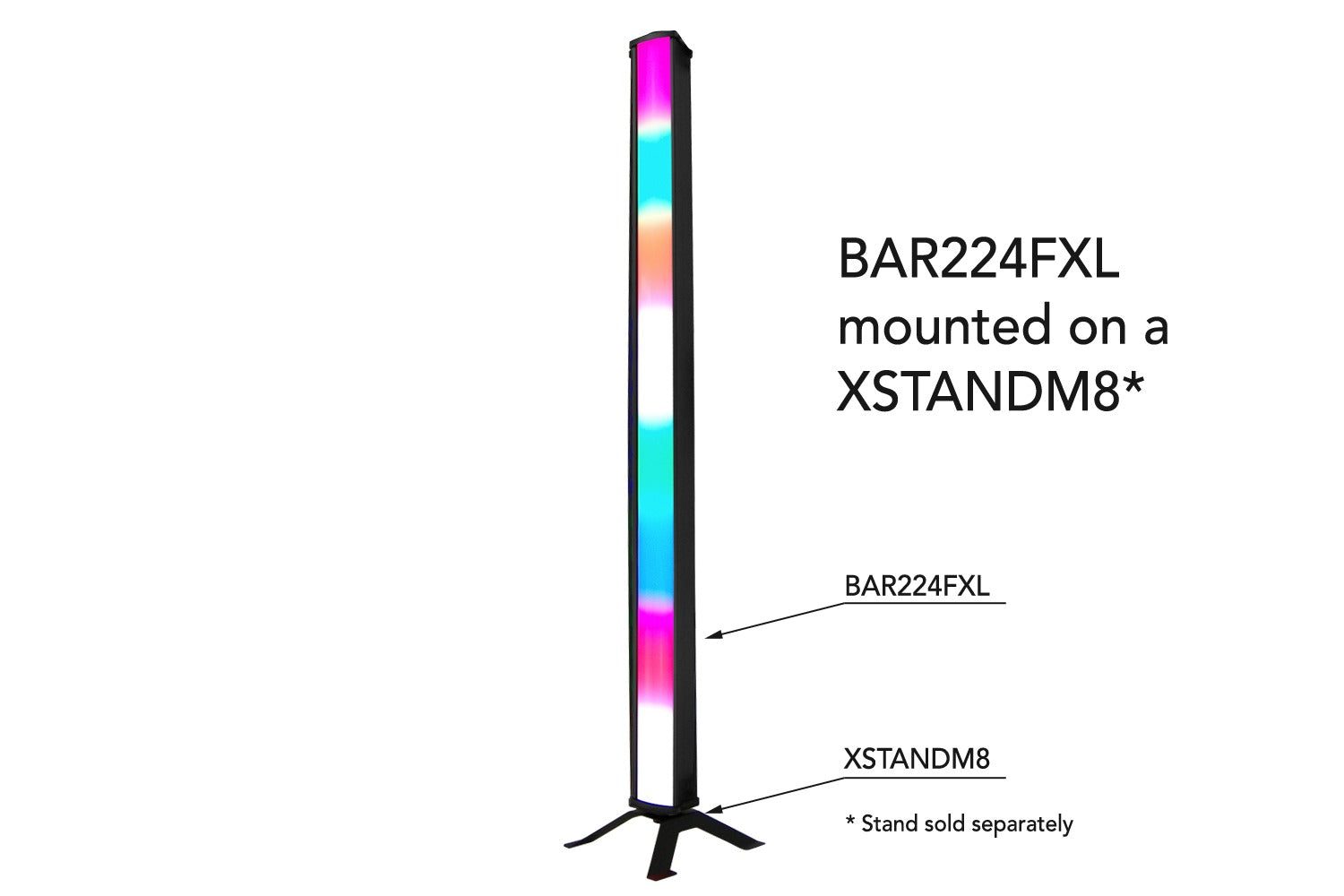

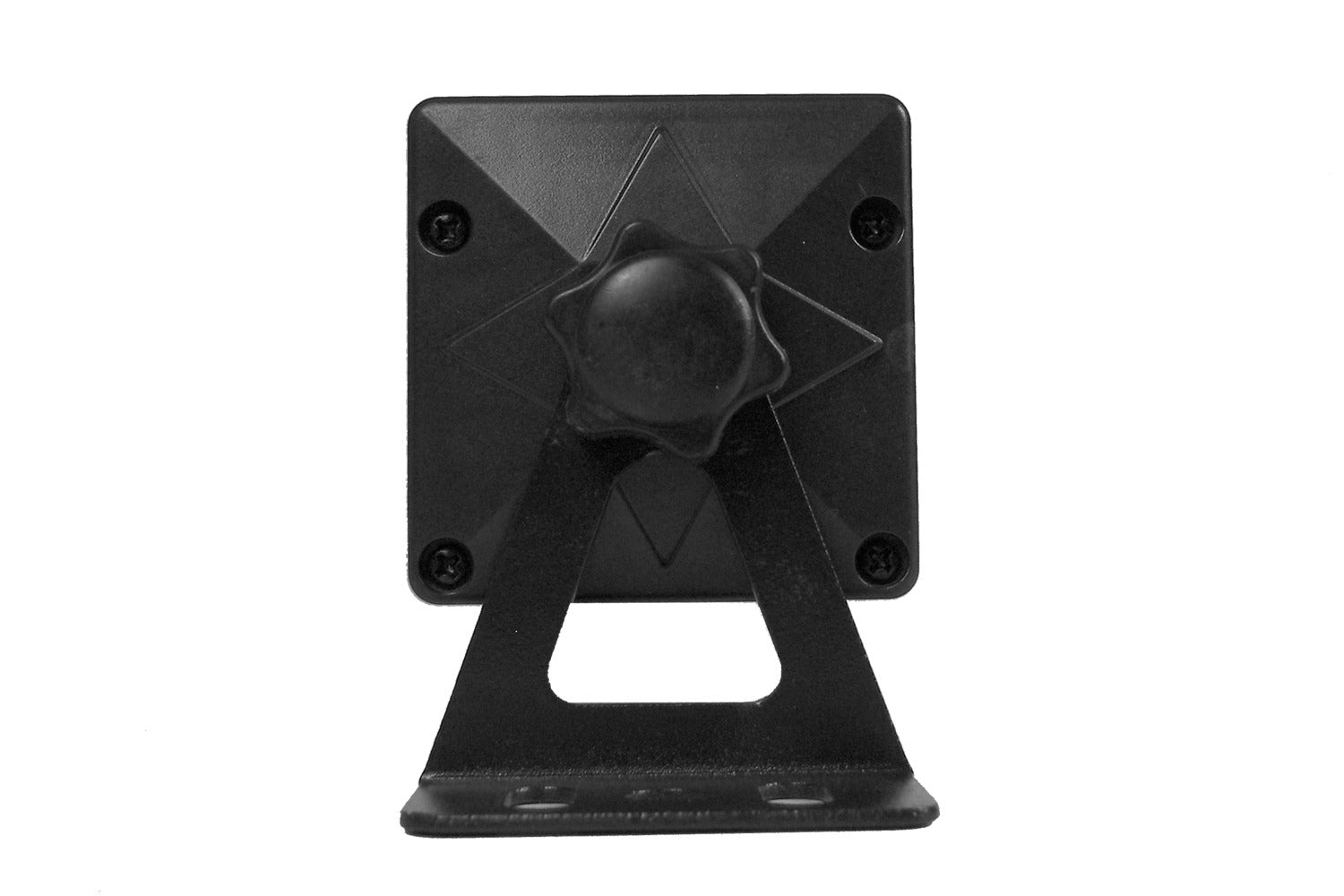

• XSTANDM8 (for vertical mounting)


Download Product Datasheet

Download the User Manual

Warranty: 2 years
