AEROLINEDUET-B - Wharfedale Pro AEROLINE Duet Beltpack
AEROLINEDUET-B - Wharfedale Pro AEROLINE Duet Beltpack

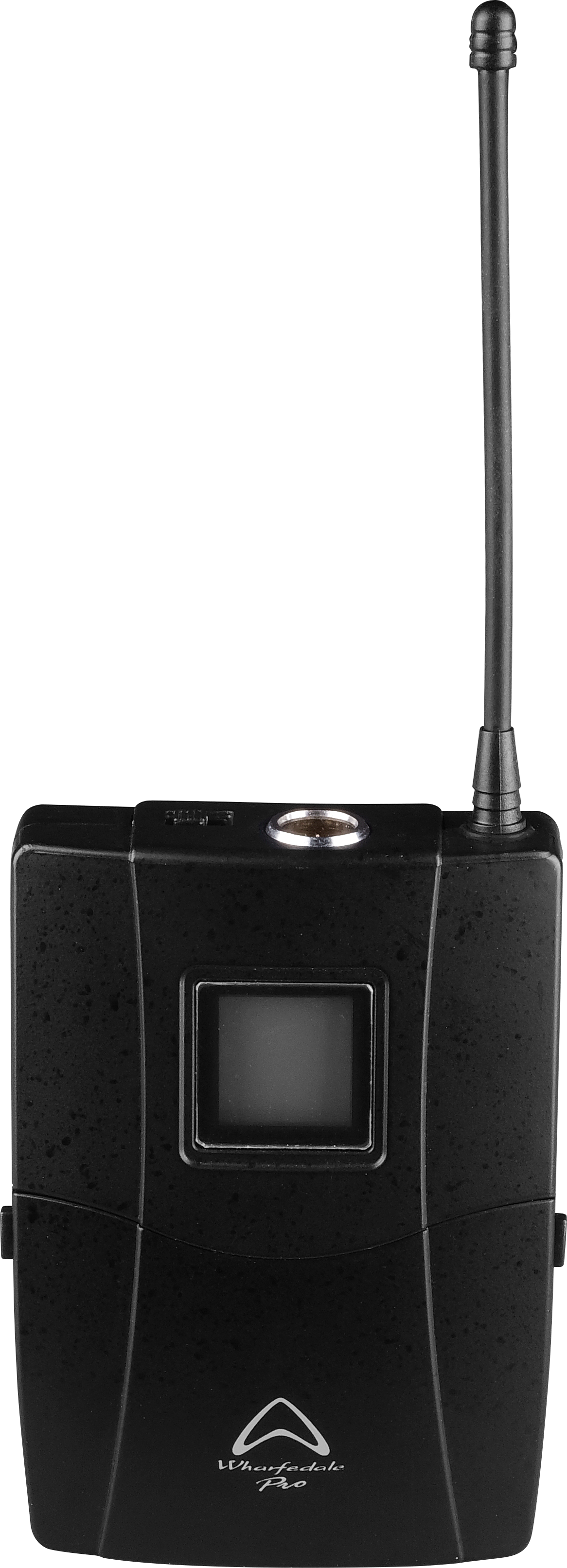

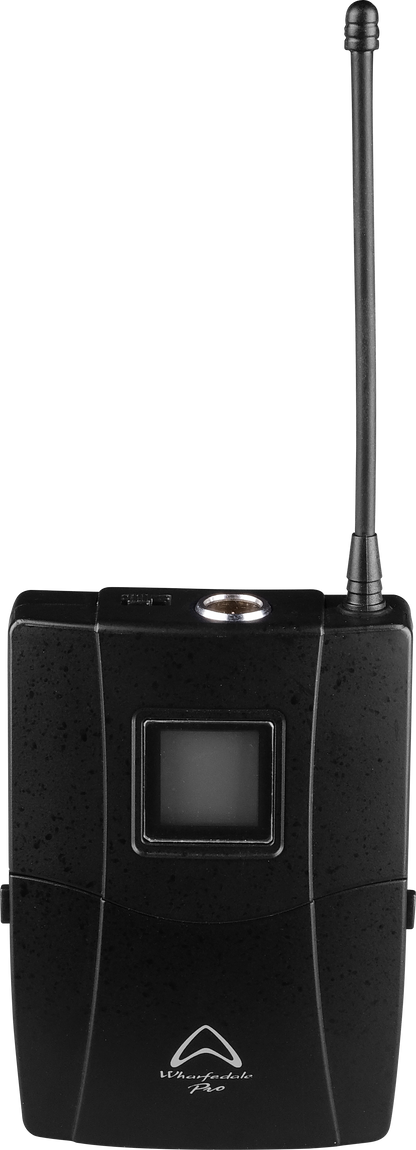

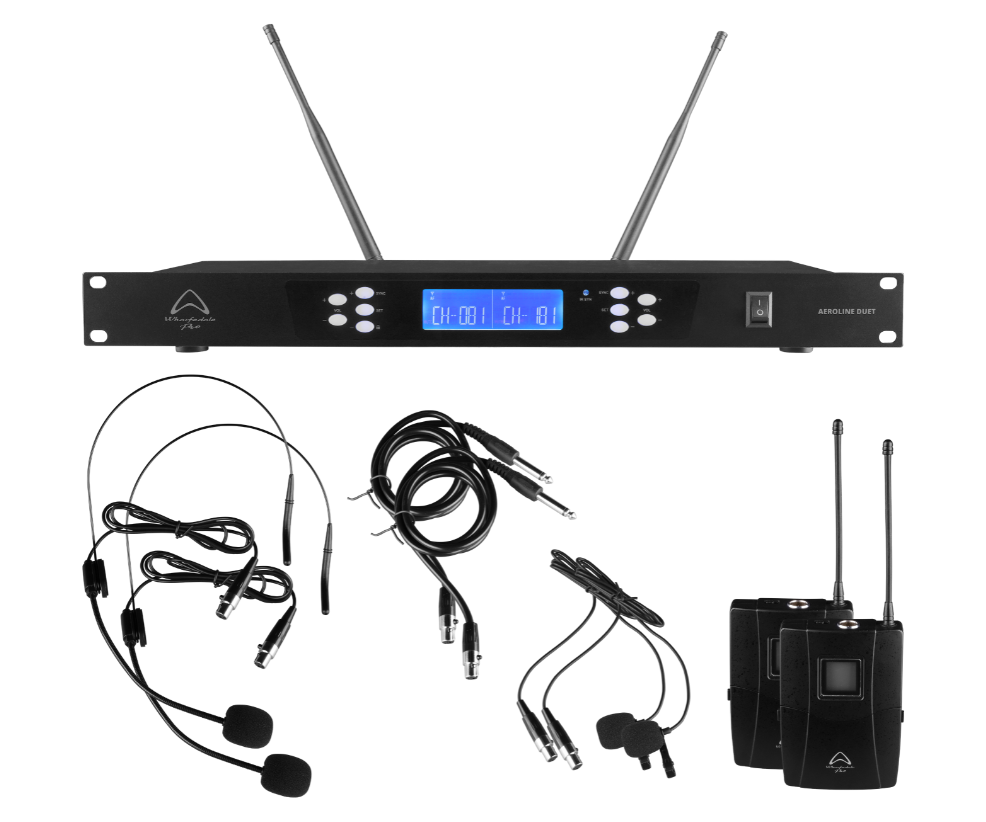

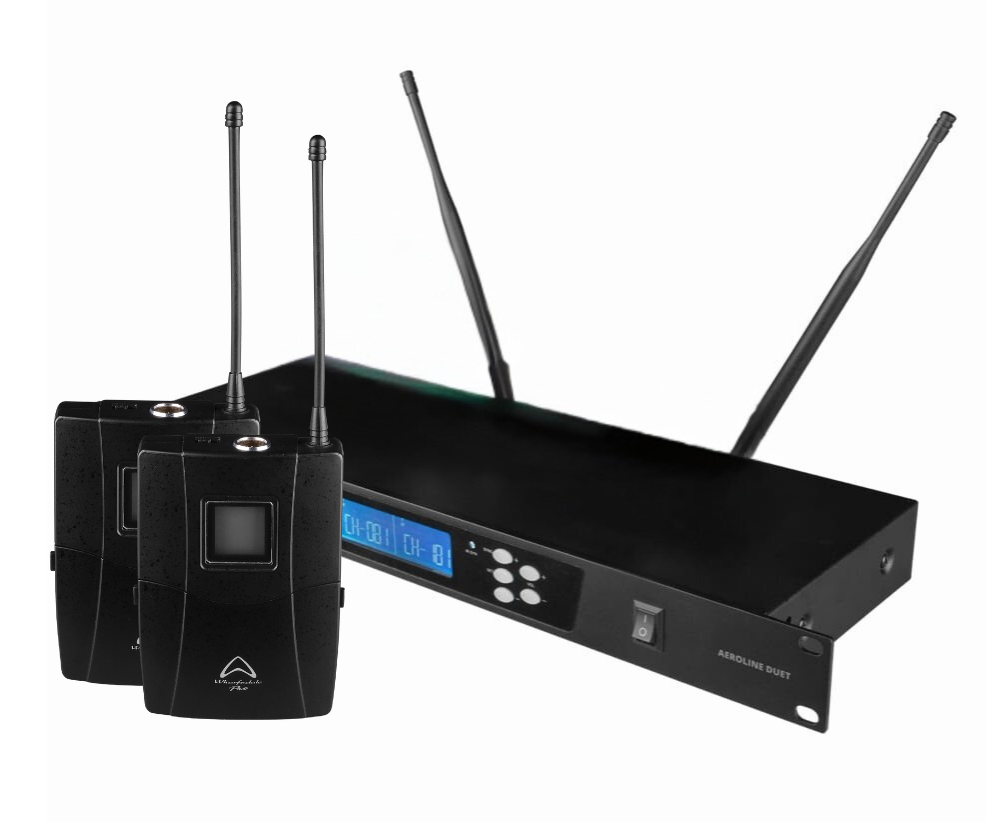

AEROLINEDUET-B Comes with the receiver and 2 x Beltpack Transmitters.
Aeroline Duet is a dual-channel wireless microphone system engineered for clear, dependable performance across live events, worship spaces, education, fitness instruction and corporate environments.

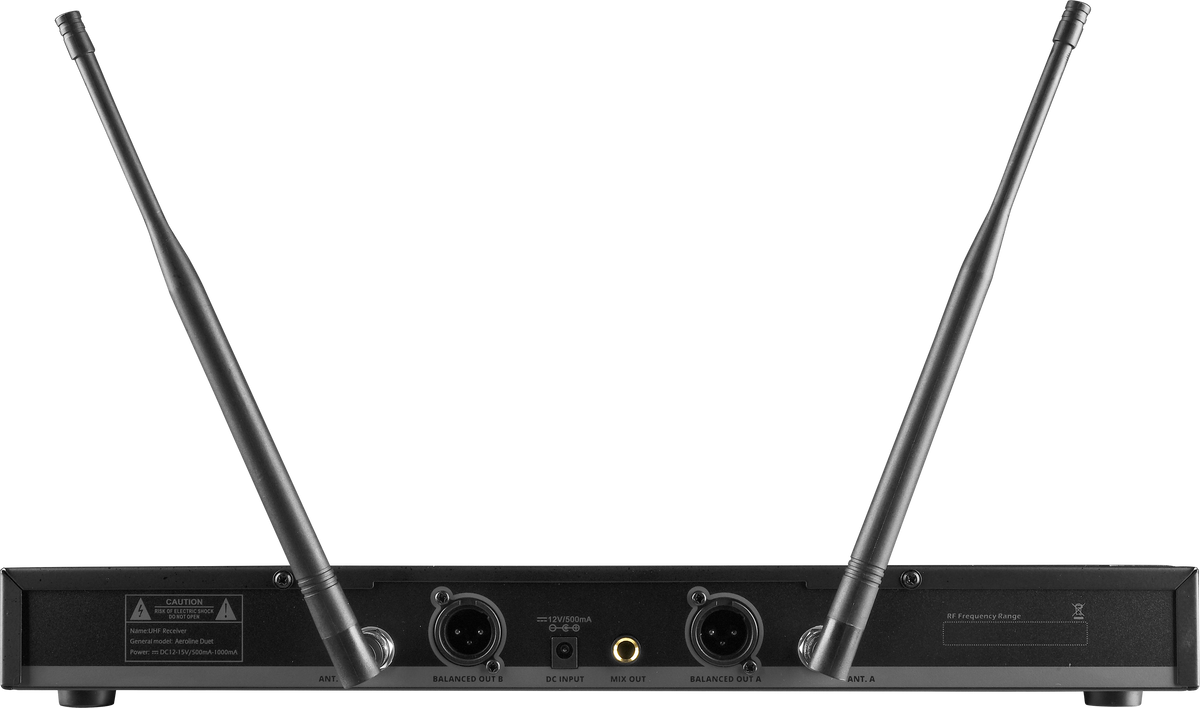

Offering up to 100 metres of wireless range and fast infrared syncing, Aeroline Duet ensures quick setup and stable transmission, even in multi-mic environments. The rackmountable receiver includes balanced XLR outputs and an unbalanced mixed output, while its LCD display provides real-time monitoring of RF strength, battery status and mute functions.

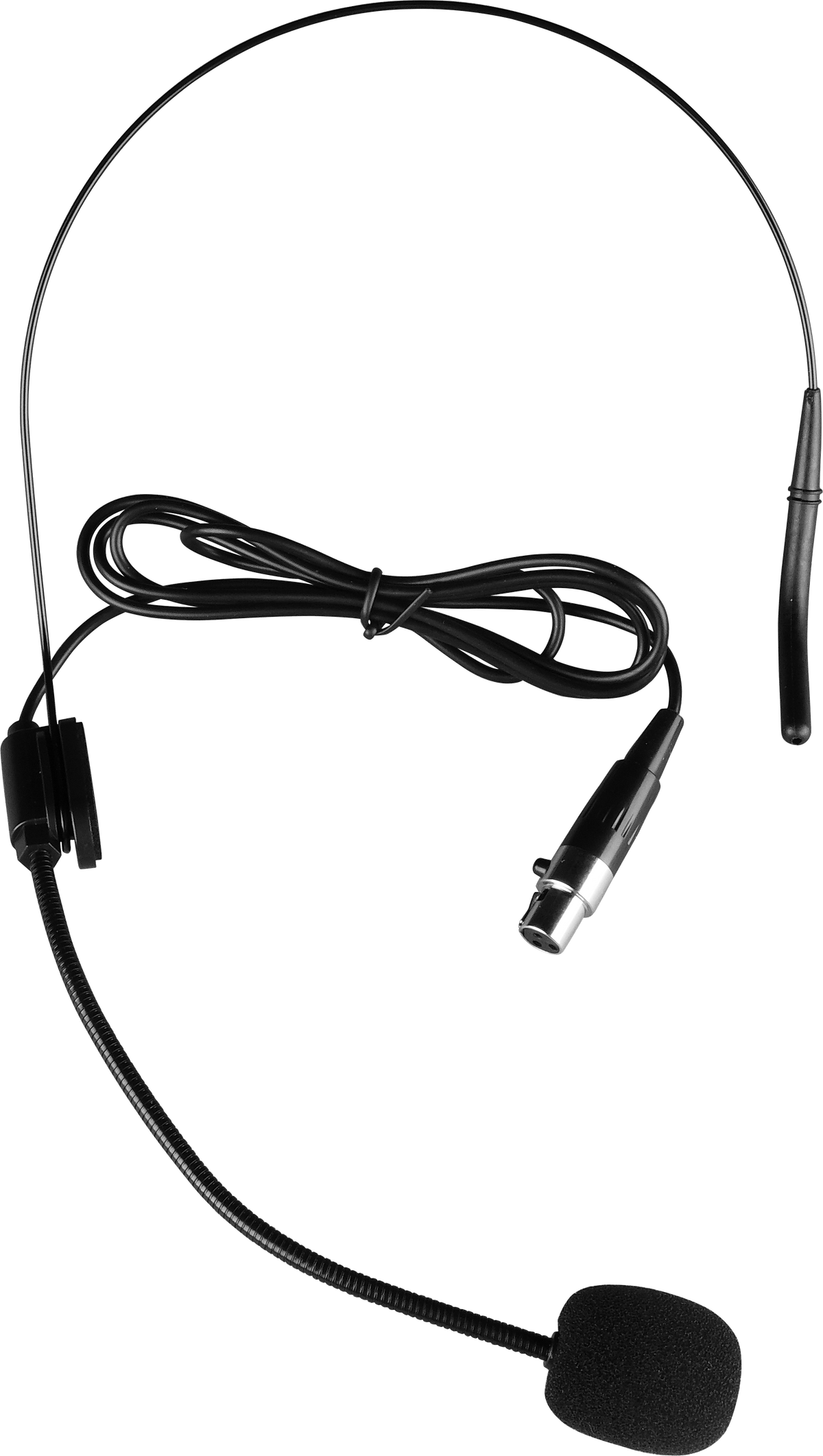

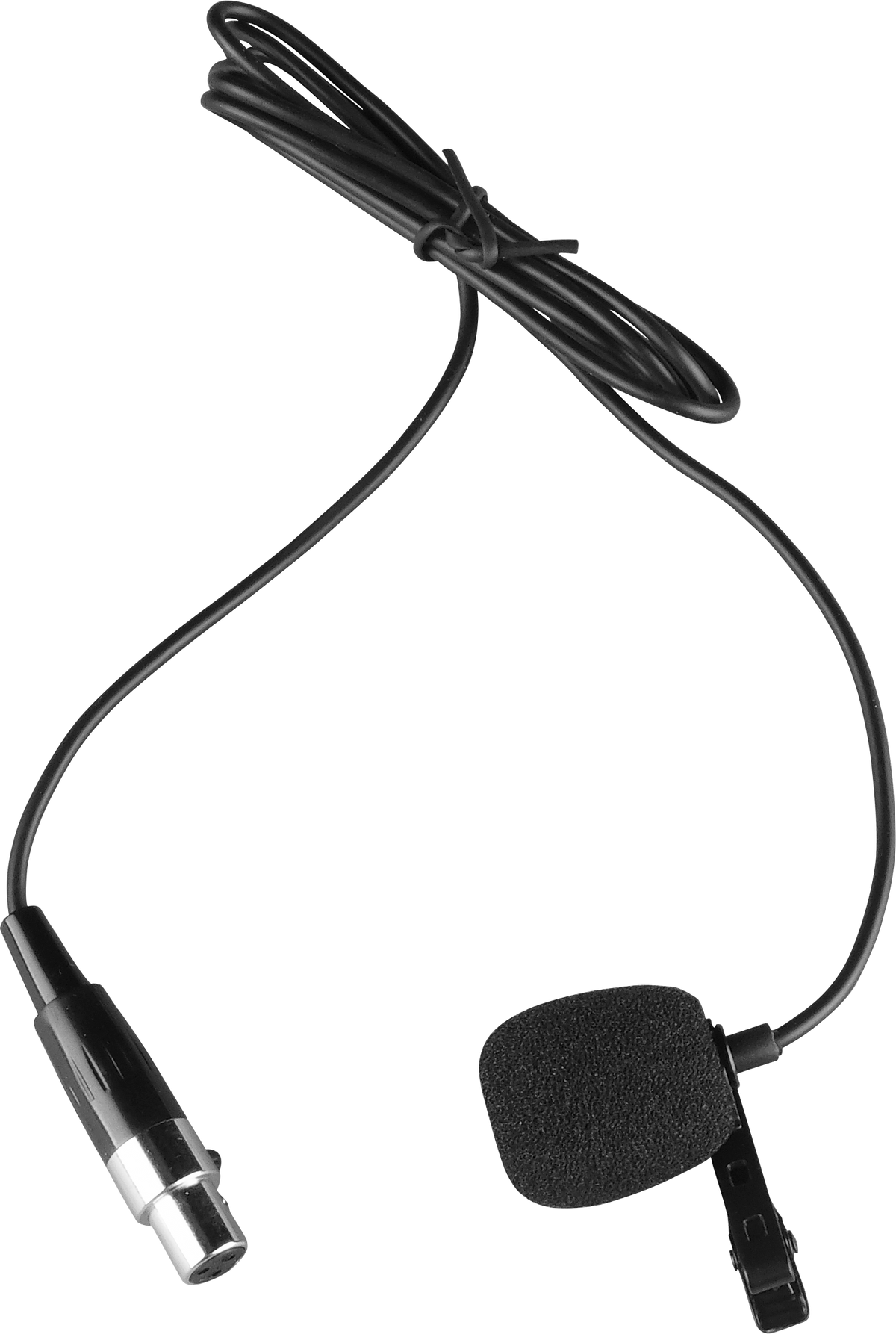

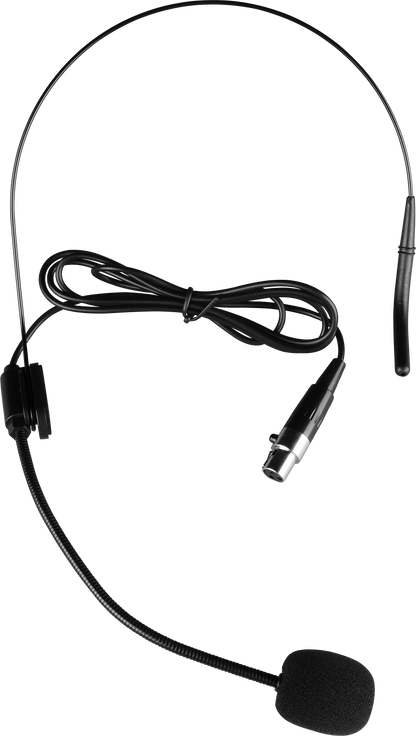

Two system configurations are available. Aeroline Duet H includes two robust handheld transmitters for vocal performance and spoken word. Aeroline Duet B features two beltpacks supplied with headset microphones, lapel microphones and instrument cables for greater flexibility across presentation or performance scenarios.
Operating in 600–624 MHz bands (2 Channels x 100 Frequencies)* and backed by a three-year warranty, Aeroline Duet delivers reliability, clarity and versatility in a professional wireless format.
*Microphones have a variable frequency and can operate on one of 100 frequencies per unit allowing you to put multiple AEROLINEDUET units in one space.
| Specification | Value |
|---|---|
| Wired/Wireless | Wireless |
| Transducer Type | Dynamic |
| Polar Pattern | Super Cardioid |
| Sensitivity | -98 dBm |
| Sensitivity Adjustable Range | <-55 dB ±3 dB (0 dB = 1 V/Pa at 1 KHz) |
| Maximum SPL | >110 dB |
| On/Off Switch | Yes |
| Switch Colour | Grey |
| Pop Shield Colour | Black |
| Body Colour | Black |
| Cable / Connector | N/A |
| Polarity | N/A |
| Supplied Cable | 2 x Instrument Cables |
| Working Frequency | 600-624 MHz Model : 2 Channels x 100 frequencies |
| Channels | 2 |
| Operating Distance | 100 metres (open area without interference or obstructions) |
| RF Output | 24 MHz |
| RF Bandwidth | 24 MHz |
| RF Frequency Precision | ±20 PPM |
| Microphone SNR | >90 dB (circuit section, 240 mV input at max output) |
| T.H.D | <1% at 1 KHz (circuit section, 240 mV input at max output) |
| Output Power | 10 mW |
| Display | LCD |
| Transmission Power | 10 mW |
| Audio Outputs | Balanced XLR / Mixed Output |
| Current Consumption | <130 mA |
| Battery | 2 x AA 1.5 V batteries or AA NiMH rechargeable batteries – not included |
| Battery Life | Approx. 8 hours (depending on battery quality) |
| Power Supply | DC 12 V / 500-1000 mA |
| Included Accessory | User Manual |
