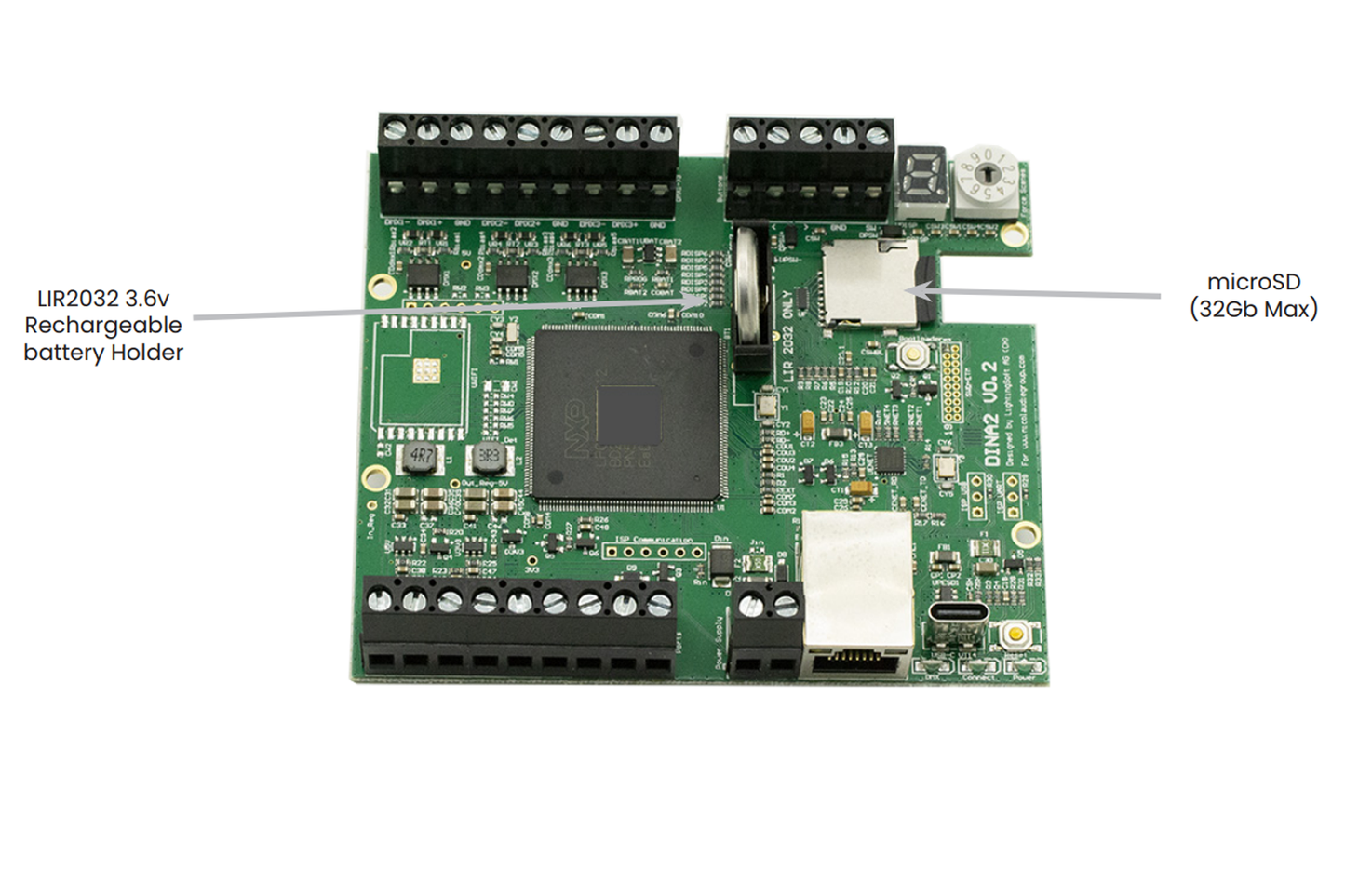

DINA-DR2 DIN Rail Mounted Lighting Controller
Regular price
The DINA-DR2 is built on the latest generation of lighting controllers from Nicolaudie Architectural and combines all our recent innovations. Designed for DIN rail mounting, the DINA-DR2 is the perfect solution for mid-range lighting installations. Delivered with 1024 DMX channels (512 for DINA-DR2 LITE), the controller can be upgraded to 1536 by adding a 3rd DMX universe. The lighting levels, color and effects can be programmed from a PC, Mac, Android, iPad or iPhone using software from our website.
Key Features
- DMX Stand Alone controller
- Up to 3 x DMX512 universes (1536 channels)
- RDM compatible
- USB & Ethernet connectivity for programming/control
- Stand Alone mode with 99 scenes
- Play scenes in 5 areas / zones
- microSD slot
- 8+3 dry contact trigger ports
- Test scenes rotary switch
- Windows/Mac software to set dynamic colors/effects
- iPhone/iPad/Android remote and programming apps
- SUT Technology allows the device to be used with other Nicolaudie Group software via an online upgrade
- LS cloud compatibility (optional with DINA-DR2 LITE)
Optional Accessories
POWER 12V AC/DC power supply
| Technical Data | |
|---|---|
| Input Power | 12v DC (8-15V range) |
| Output Protocol | DMX512 (x3) |
| Programmability | PC, Mac, Android, iOS |
| Connections | USB-C |
| Ethernet | |
| Screw terminals for : | |
| - 3 DMX / RDM Universes | |
| - 8+3 Contact ports | |
| - 12v power-in | |
| Battery holder (CR2032) | |
| microSD slot | |
| Memory | SD Card |
| Environment | IP20 / to 0 to +50°C |
| Buttons | Rotary switch |
| Dim / Weight | 160 x 91 x 62 mm 317g |
| OS Requirements | Mac OS X 10.8-10.14 |
| Windows 7/8/10 | |
| Standards | CE, ETL, Low voltage, EMC, and RoHS |
