Wharfedale Pro

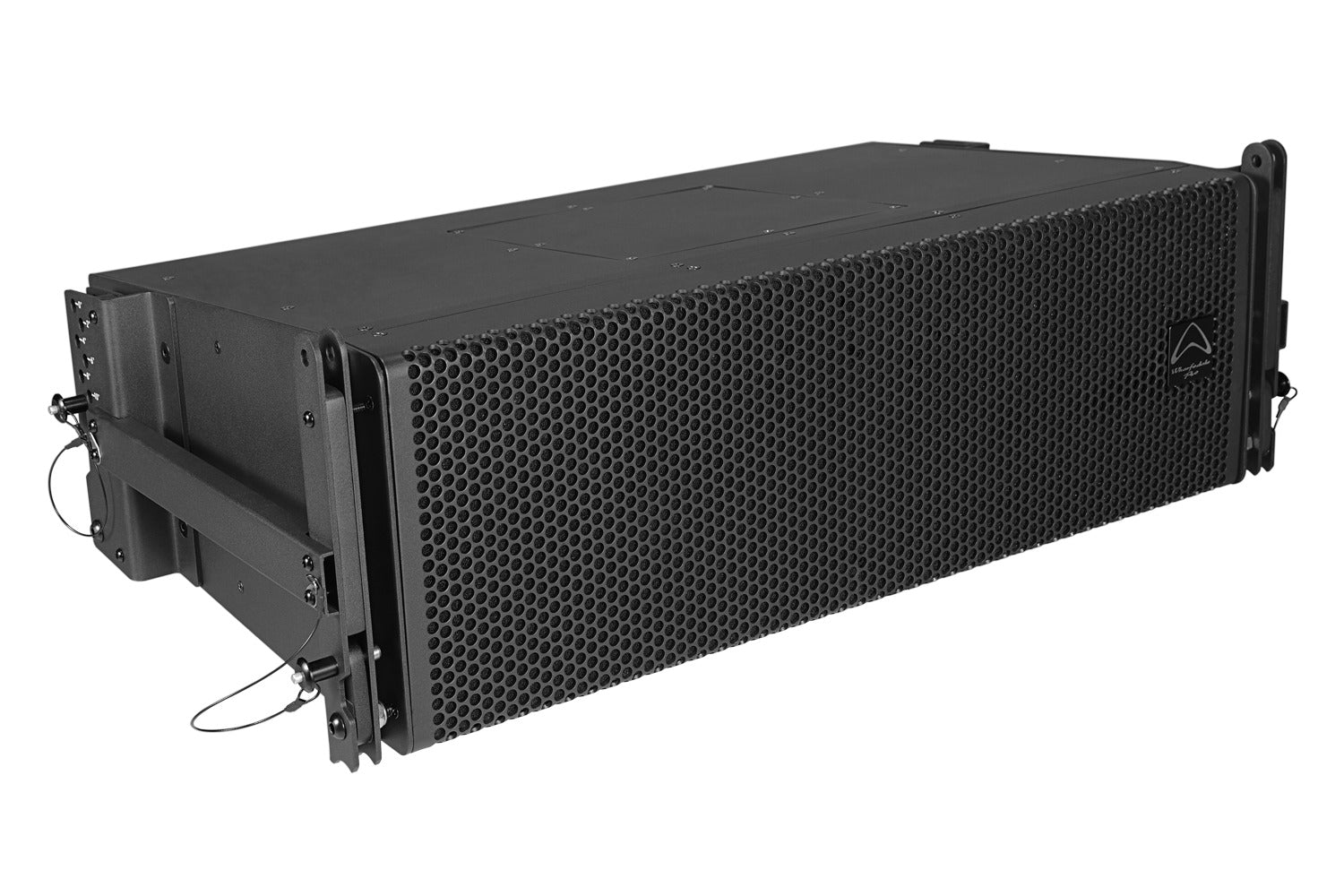

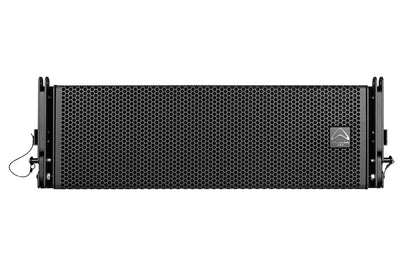

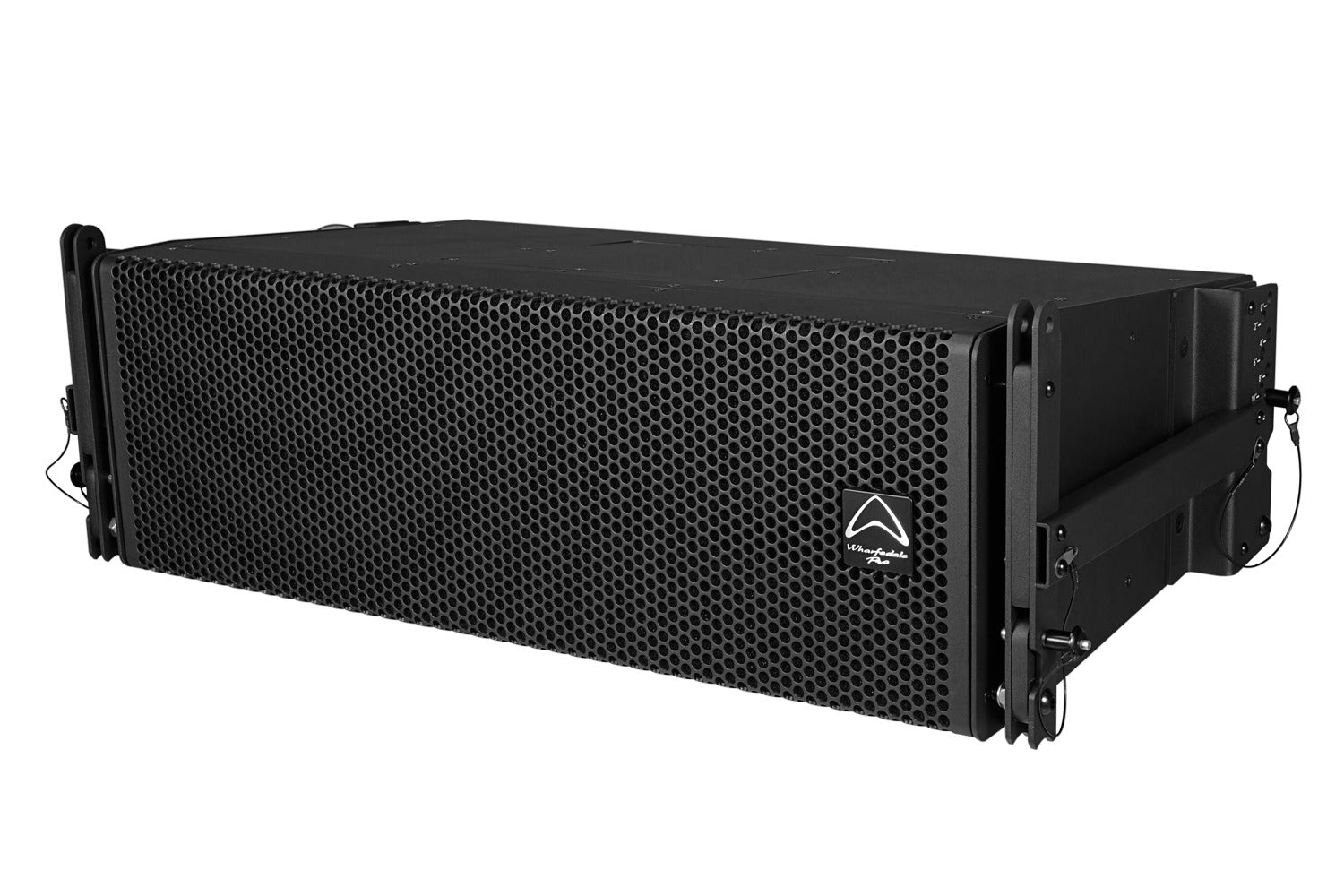

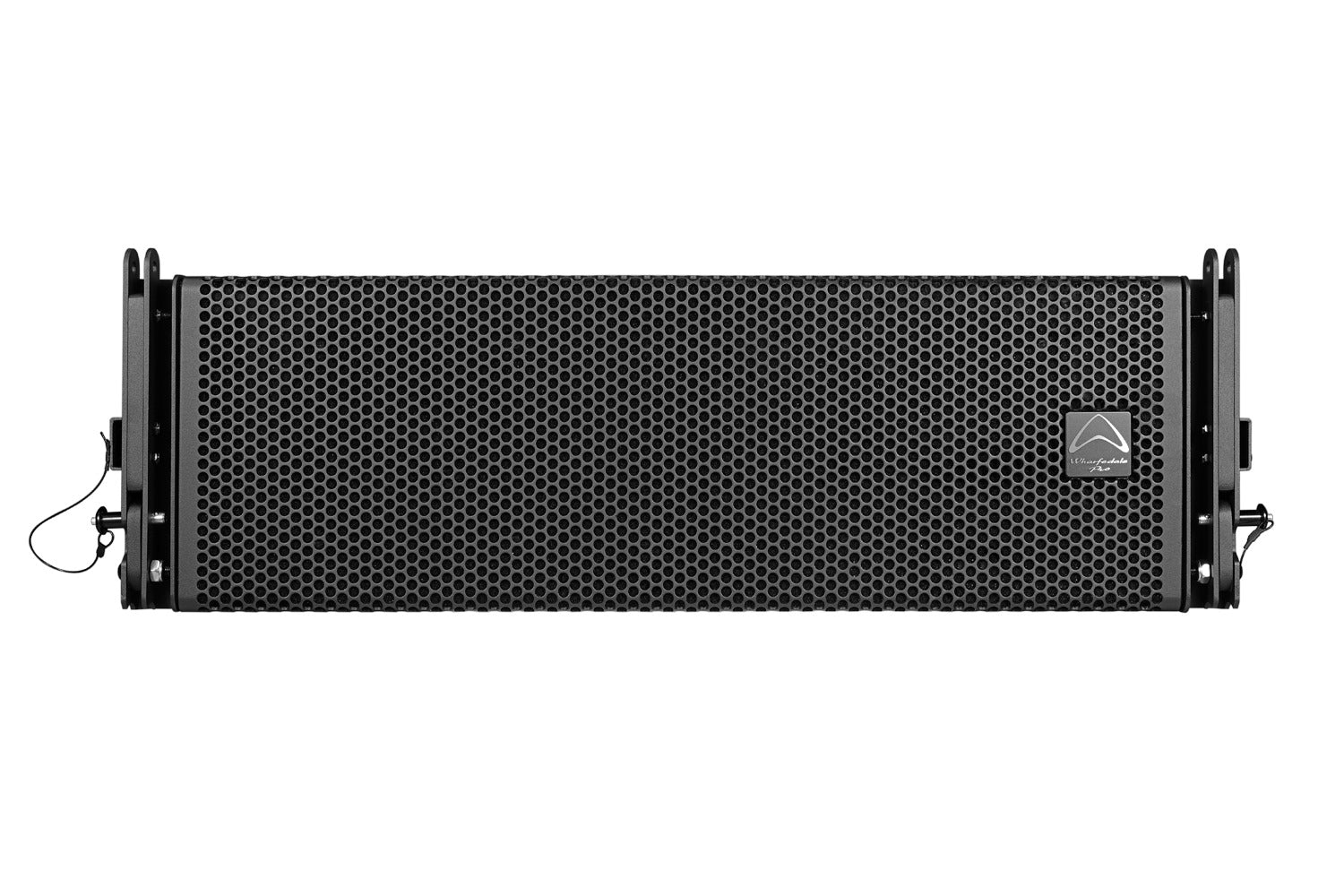

Wharfedale Pro WLA-28XF - IPX6 waterproof line array element

Wharfedale Pro WLA-28XF - IPX6 waterproof line array element

Regular price $1,699.00
Regular price Sale price $1,699.00
Sale Contact Us for Availability

IPX6 LINE ARRAY SYSTEM

  • IPX6 Waterproof Line array
  • Wax wrapped components
  • Anti-corrosion stainless steel hardware
  • Waterproof input connectors
  • Plywood construction in aluminium cabinets
  • 2 x 8″ element – WLA-28XF
  • 2 x 15″ flying subwoofer element – WLA-28SUBXF
  • 2 x 18″ subwoofer – WLA-218BXF



WLA-28XF

  • Dual 8” line array element
  • Stainless aluminium hardware
  • Wax wrapped components
  • 100 H x 10 V dispersion
  • Dual WY-24K4Z waterproof input connectors
  • Two WY-24K4Z cable connectors included
  • 133 dB Max SPL @ 1 m



DUAL 8"

Safely protected from the rain, are the all-important drivers.

Dual 8.0″ Wharfedale Pro LF drivers with 2.0″ voice coils deliver a smooth and powerful sound as expected from a WLA series array.

The HF compression driver uses a neo magnet and a 3.0″ voice coil to produce detailed HF without harshness, even at high volumes.

DUAL 15"

The WLA-28SUBXF features 2 x 15″ custom Wharfedale Pro drivers with 4.0″ voice coils.

Designed for flying or ground stacking, this sub delivers a Max SPL @ 1 meter of 145 dB

EASE

WLA-28XF system is supported inside EASE Focus.

Download the .glls here….

OPTIONAL FLY FRAME

Arrays can be assembled using only WLA-28XF line array elements or with the WLA-28SUBXF Subwoofers at the top of the array.

The WLA-XF Common Fly frame supports up to 12 x WLA-28XF elements and a WLA-28SUBXF.

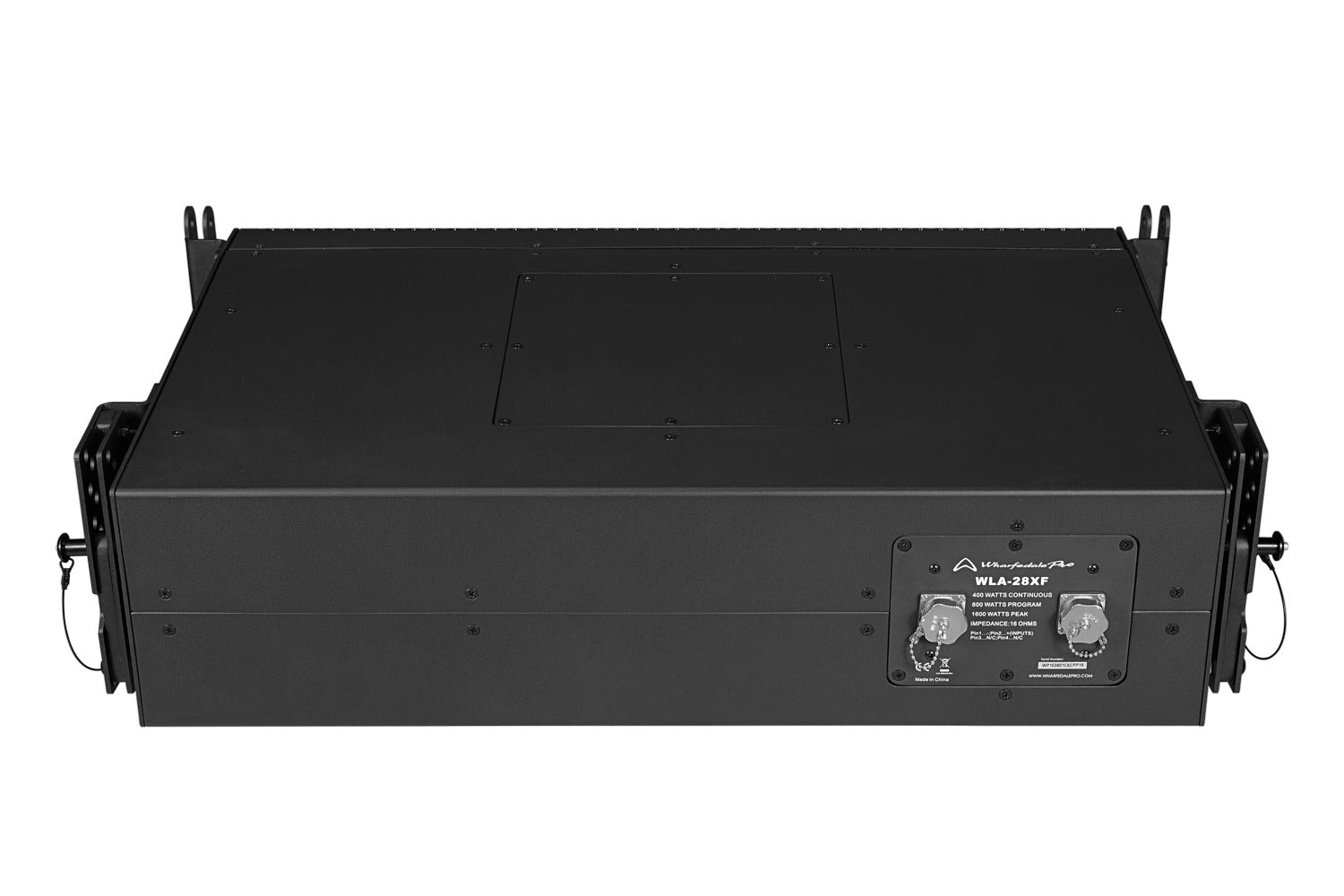

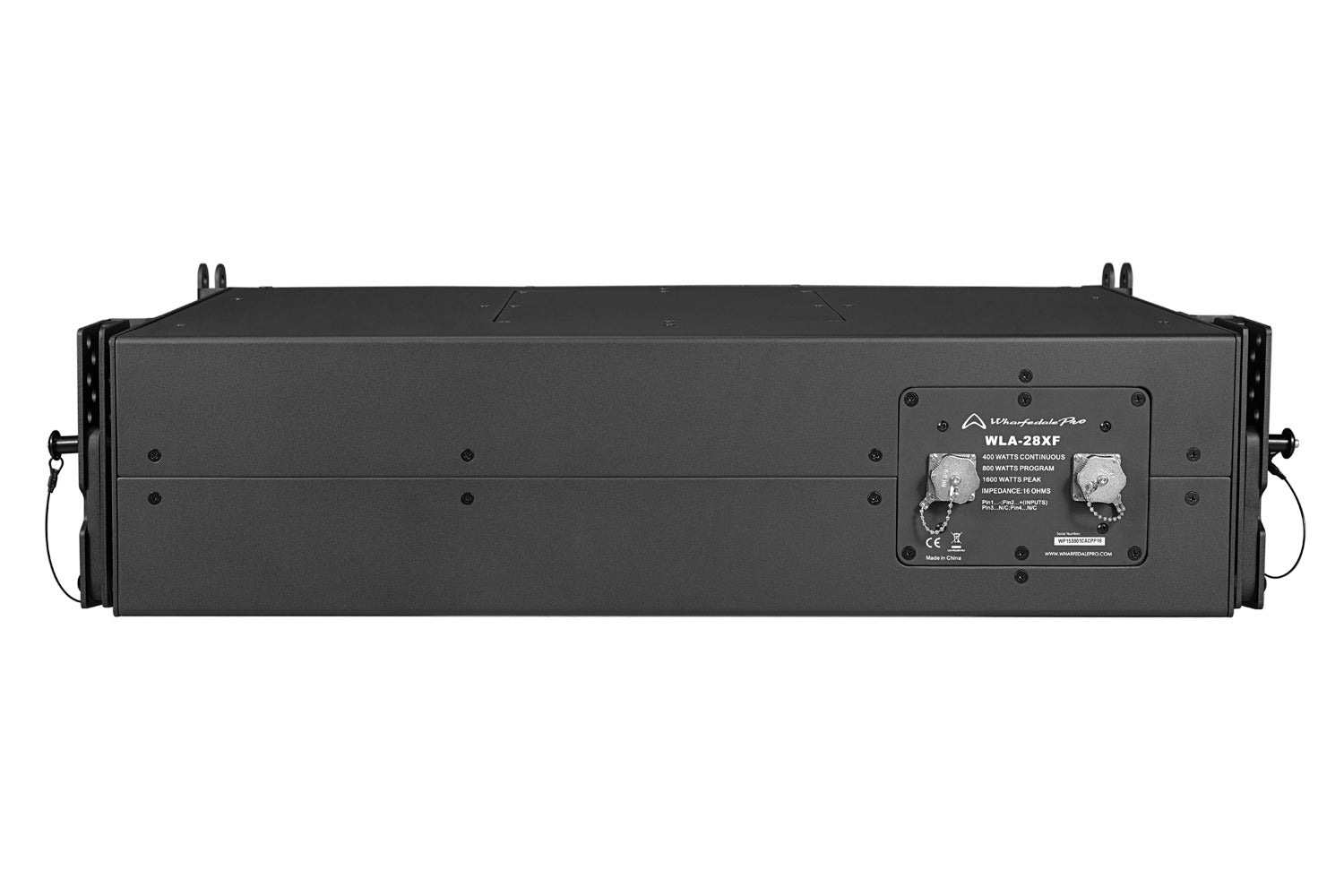

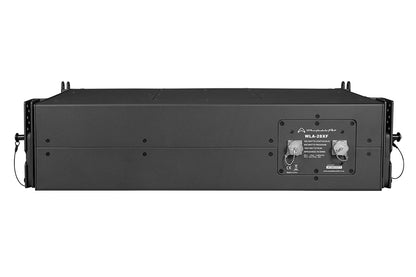

CONNECTORS

All models of the WLA-28XF system use certified input connectors.

Inside the carton box there are also the cable connectors needed for easy system setup.

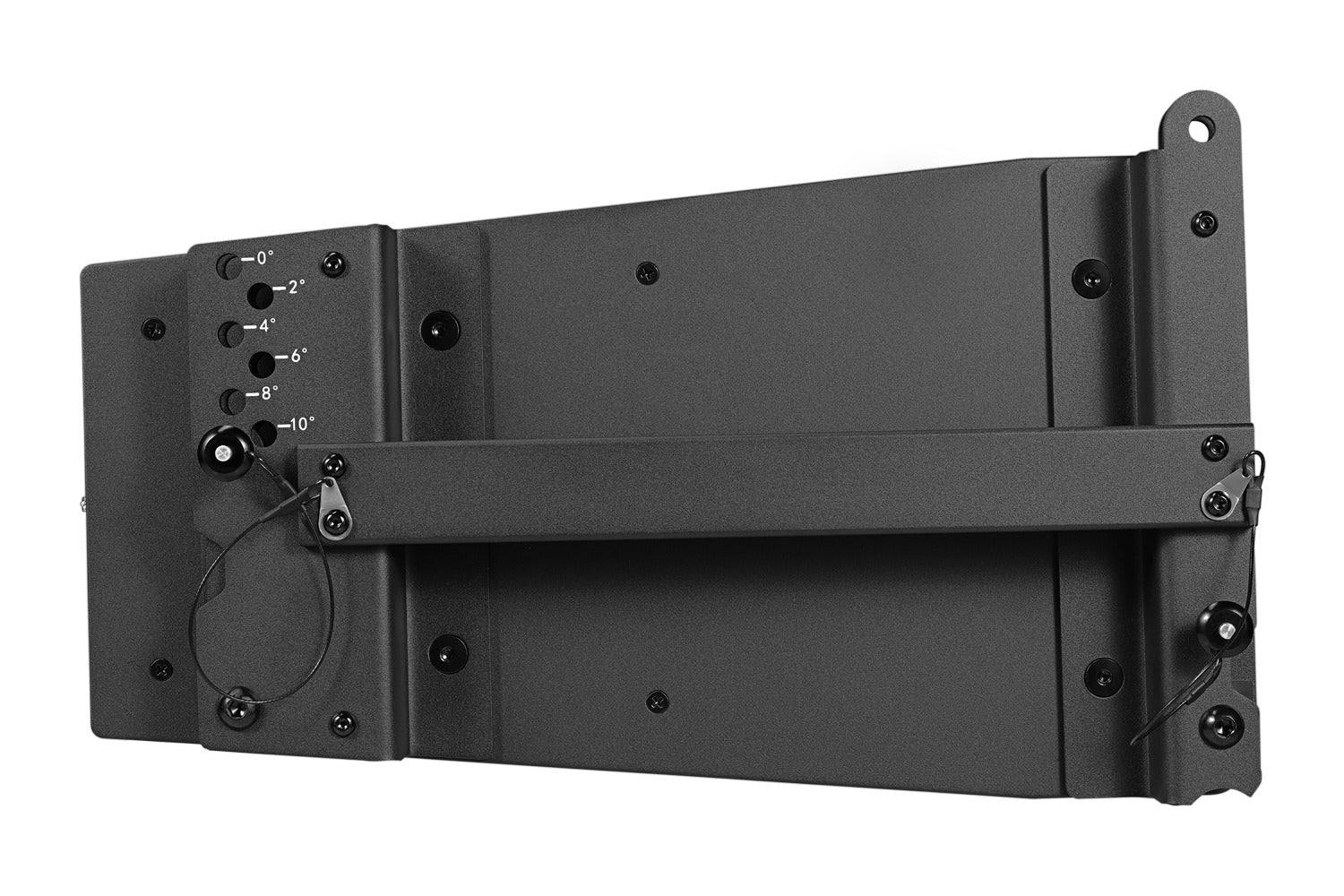

OPTIMISED RIGGING HARDWARE

WLA-28XF rigging doubles up as an optimised ground stacking system, using the WLA-28SUBXF subwoofer as a base.

Arrays of WLA-28XF line array elements can be aimed downwards by as much as 10° to cover audience areas close to a stage, as well as upward by as much as 10° in order to better cover distant balcony seating areas.

IPX6

With the same reliability and high performance characteristics as the original ‘non-F’ models, these WLA-28X ‘F’ models are IPX6 Certified.

This certification states that there should be no harmful effects when “Water is projected in powerful jets (12.5mm nozzle) against the enclosure from any direction”

With rust-proof aluminium grilles, components wrapped in wax and anti-corrosion stainless and aluminium screws and hardware, the F models are made for the rain and long-term environmental exposure.

In addition, to reduce any risk of standing water, and to help rental companies with storage, the front grille has been flattened.

AMPS & DSP

A Versadrive DSP (such as SC-48 FIR) or a DP-F / DP-N series amplifier with internal FIR filtering is highly recommended to get the most from the system.  Phase, EQ and filtering should be applied and this way, the physics of the system can be truly optimised – delivering that sub-bass, power and clarity that this system can deliver.



SPECIFICATIONS

Model Name WLA-28XF
System Type Passive
Configuration two-way
Frequency Response (+/- 3dB) 65-20 KHz
Frequency Range (- 10 dB) 60-20 KHz
(Passive)Sensitivity 2.83v/1m 101 dB
(Passive)Calculated Maximum SPL @1m 133 dB
System Rated Impedance 16 Ω
Low Frequency Transducer
Size (mm / inches) 203.2 mm / 8”
Voice Coil Size (mm / inches) 51.6 mm / 2.0”
LF Magnet Material ferrite
LF Frame Material aluminium
Rated Impedance 8 Ω x 2
LF Power re:AES2-2012 200 W x 2
High Frequency Transducer
HF Driver Type: Compression Driver
Coil Size (mm / inches) 75mm / 3”
Exit Size (mm / inches) 1.4″
HF Magnet Material NdFeB
Diaphragm Material Titanium
Rated Impedance 16 Ω
HF Power re:AES2-2012 90 W
Waveguide Type square
Nominal Coverage (H x V) 100 H x 10 V
System Continuous Power (w) 400 W
System Programme Power (w) 800 W
System Peak Power (w) 1600 W
Crossover frequency 1.7 KHz
Hardware 2 x WY-24K4Z  (waterproof)
Rigging 4 points for rigging
pole mount No
handles Yes
cabinet type Trapezoid
Enclosure Material and finish 15 mm,18 mm plywood/3.0 mm Aluminium
Colour Options Waterproof black paint
Grille Material & Finish 3.0 mm Black Aluminium
Dimensions – Unpacked (mm / inches):
Height front 279 mm / 10.98″
Height  Rear 191.2 mm / 7.53″
Width 845 mm / 33.3″
Depth 467 mm / 18.39″
Dimensions – Packed (mm / inches):
Height 360 mm / 16.7″
Width Front 944 mm / 37.2″
Width Rear 944 mm / 37.2″
Depth 540 mm / 21.3″
Weight
Net Weight (kg / lbs) 40 kg / 88.0 lbs
Gross Weight (kg / lbs) 43.5 kg / 97.5 lbs

Quick Start Guide Download
