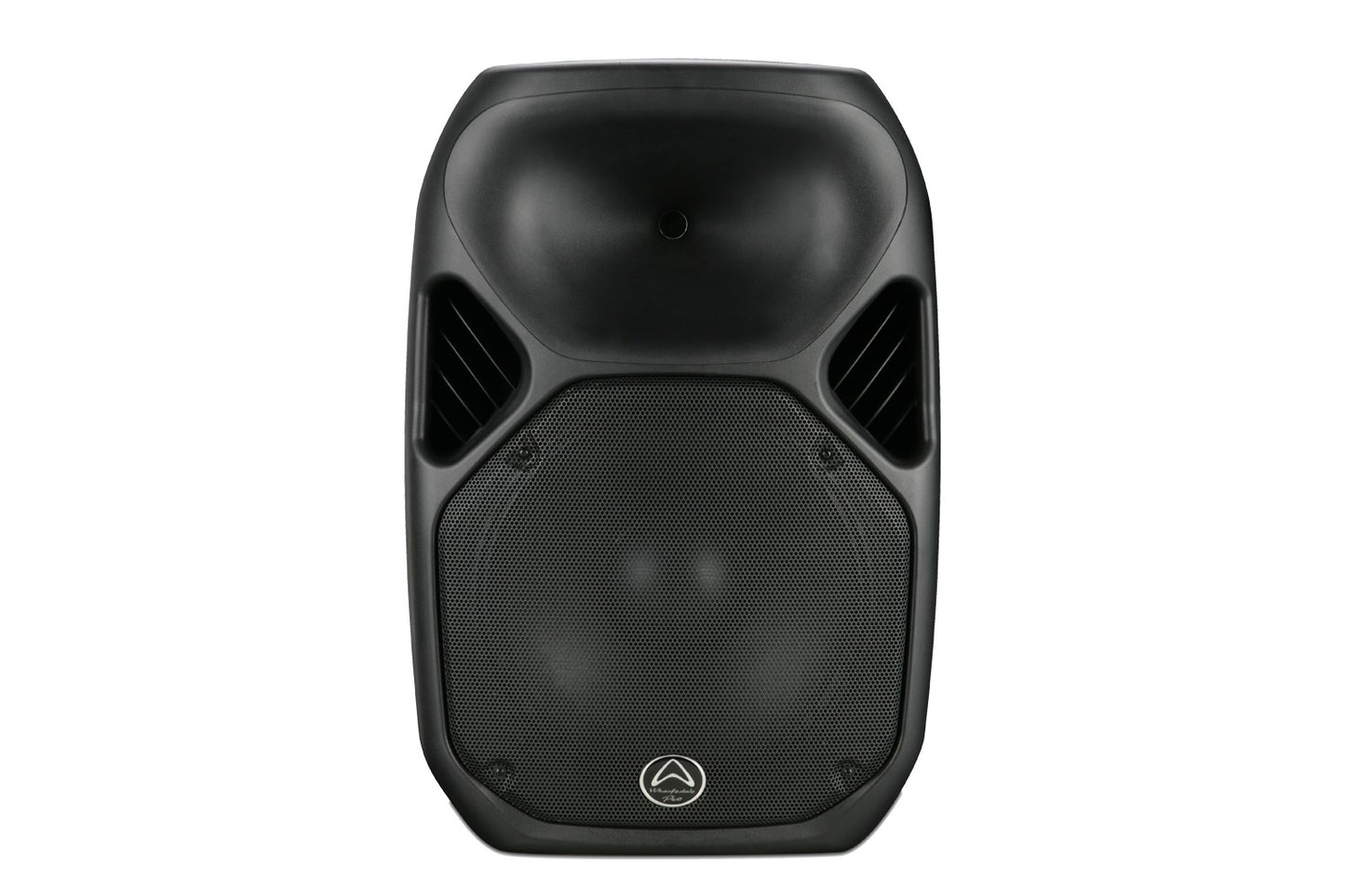

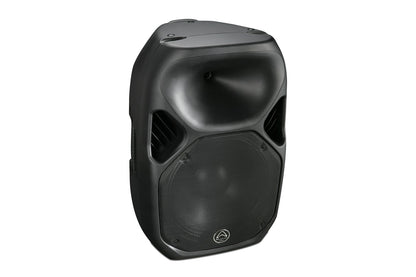

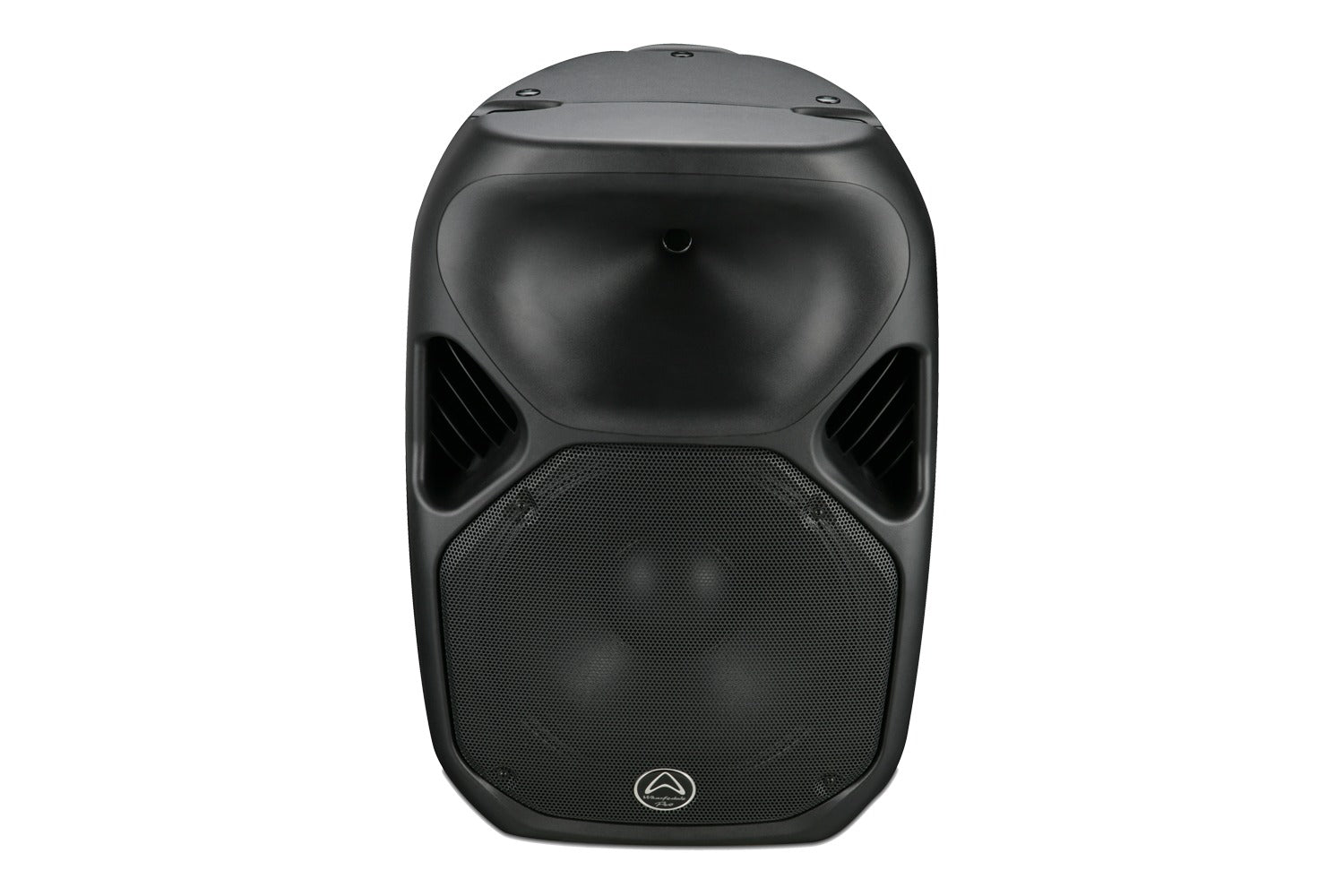

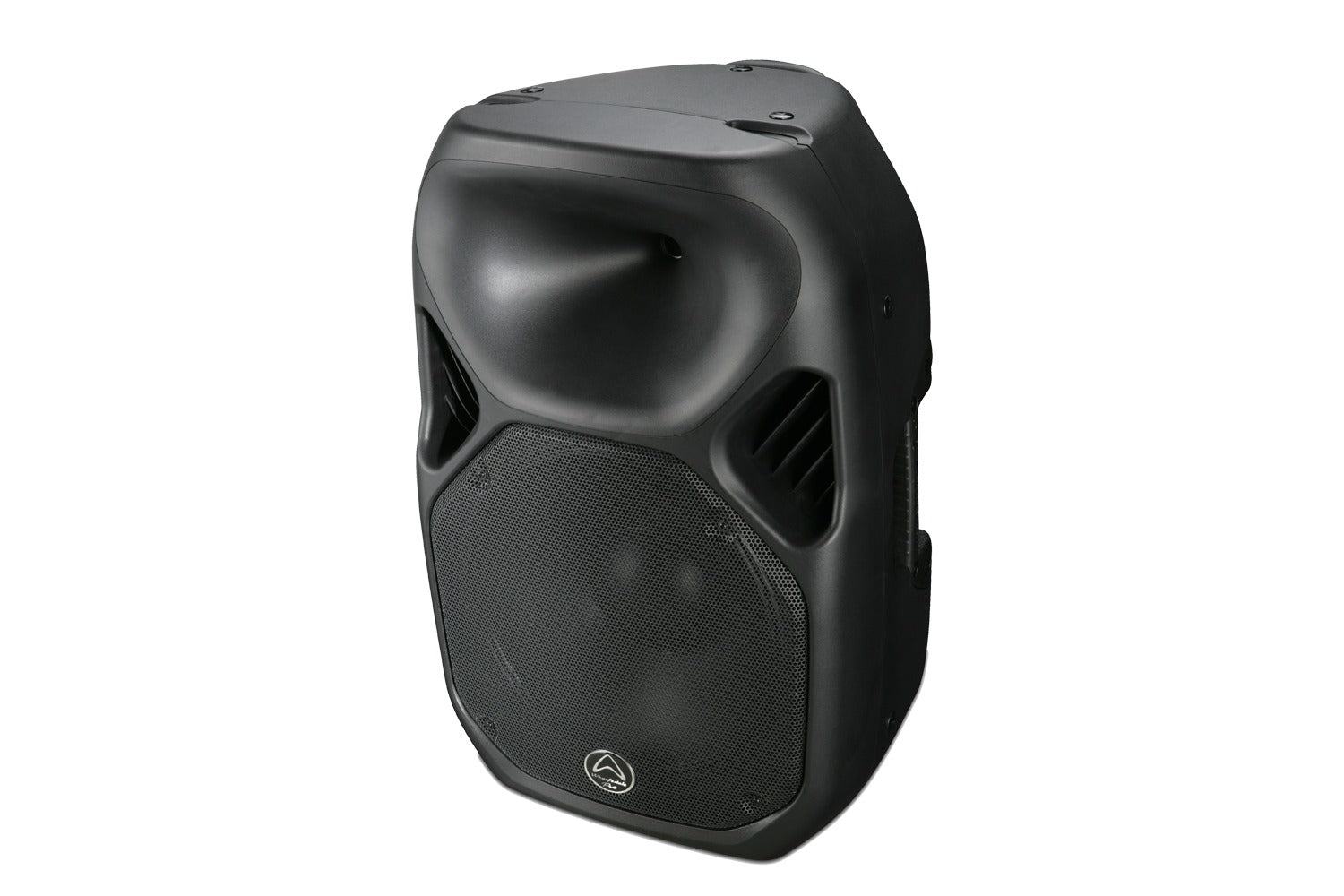

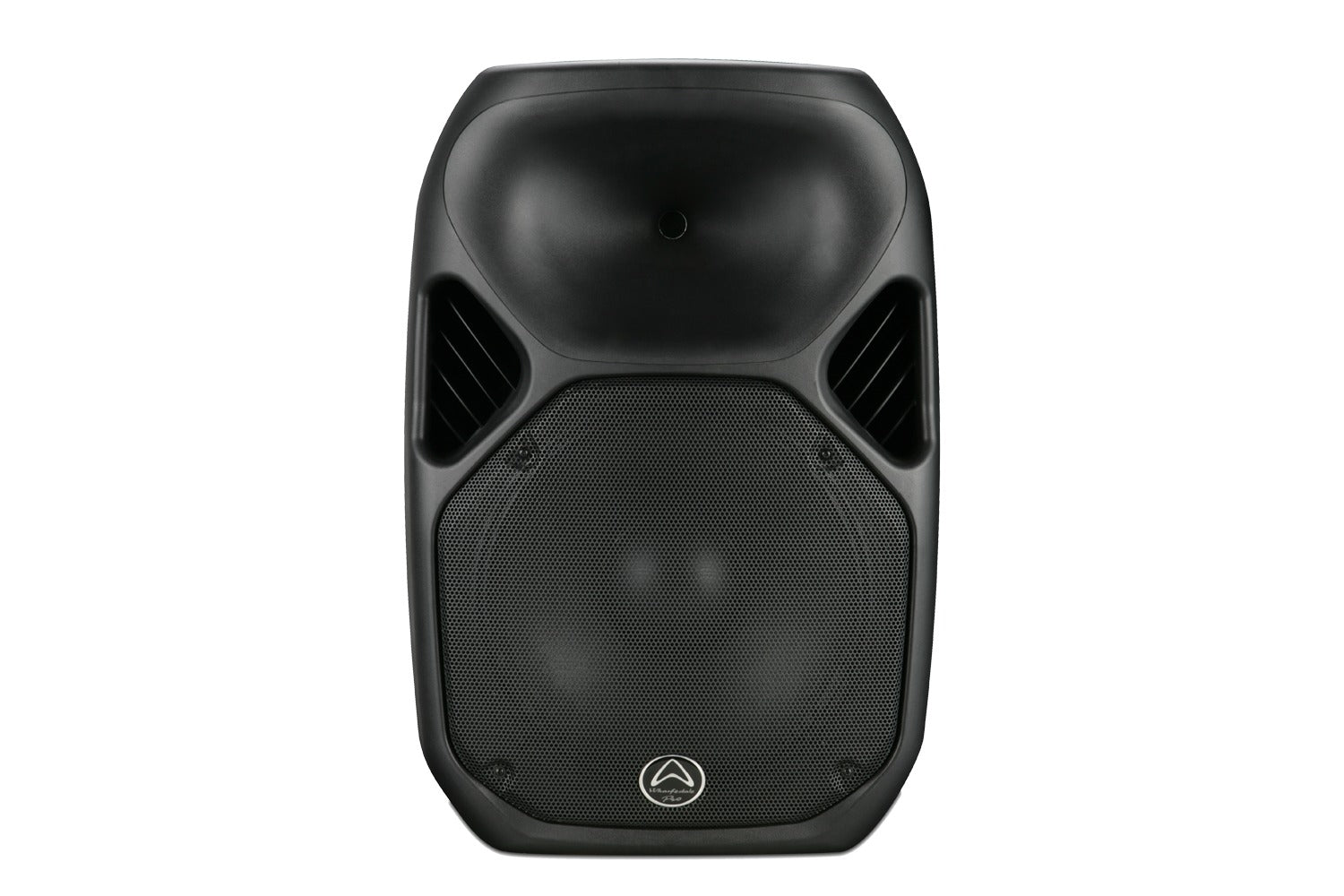

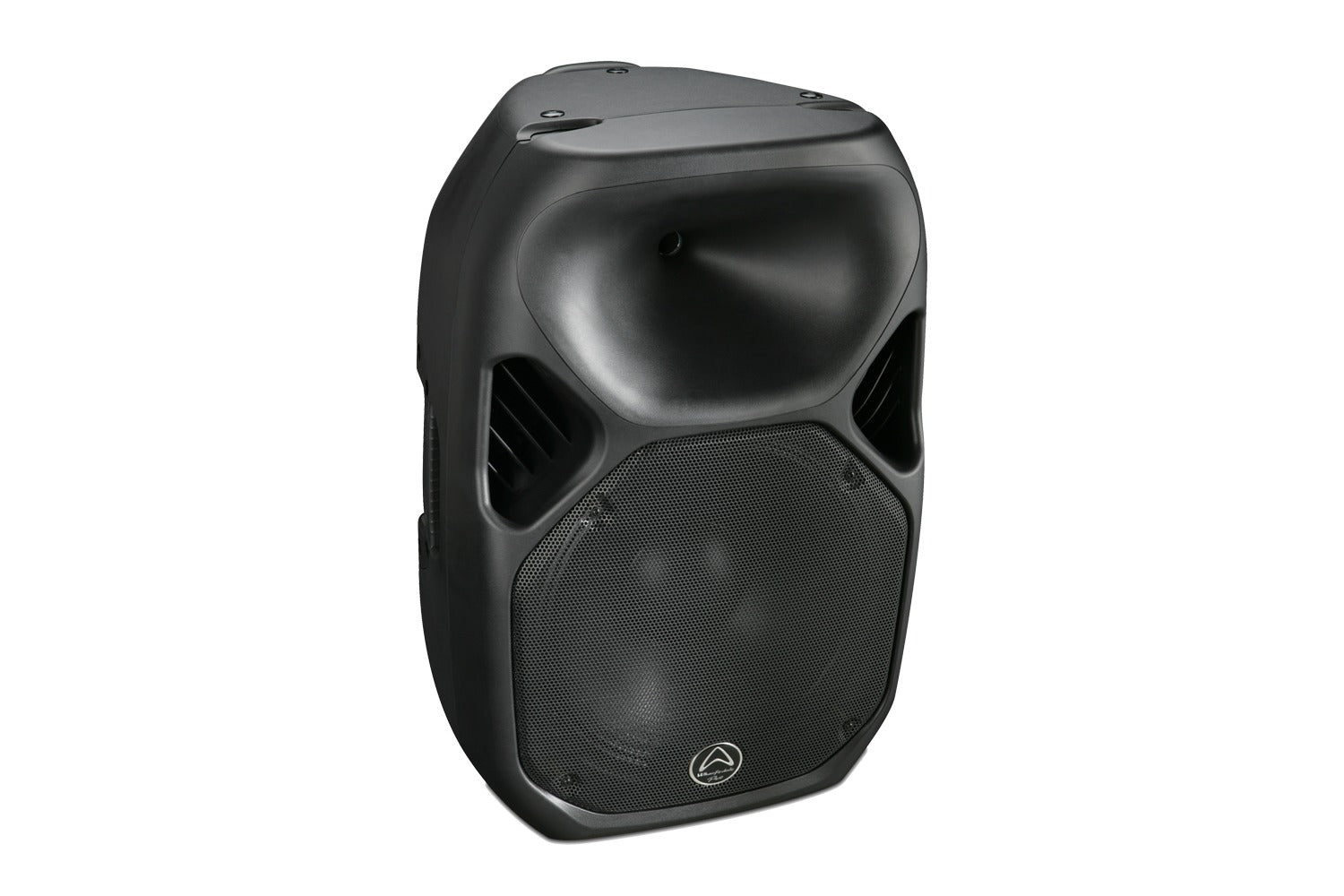

Wharfedale Pro TITAN-15Z Passive Speaker

Regular price

TITAN PASSIVES

VERSATILE LEGENDS

  • IP54 Certified
  • Installation, DJs, bands and performance
  • Wharfedale Pro drivers
  • Portable and powerful
  • M8 rigging points
  • Optional wall brackets
  • Optional tour bags
  • Versatile !

TITAN-15Z

  • 700 watts
  • 15″ passive
  • 2.0″ HF compression driver
  • 4.0″ LF voice coil
  • 700 watts AES (RMS)
  • 1400 watts Programme
  • 2800 watts Peak
  • 133 dB Max SPL @ 1 meter

LETS LOOK INSIDE

Titan loudspeakers pride themselves on custom Wharfedale Pro drivers. The IRIS-X HF compression driver used in Titan-X12, Titan-12Z and Titan-X15 feature a 1.75″ voice coil and is unique at this price point.

IRIS-X

The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance.  Titan AX loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity.  The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.

A hot transducer wastes energy, risks damage and distorts.  IRIS X reduces this through improved heat dissipation and improved efficiency.

In real-world terms, IRIS X transducers deliver higher SPL with less distortion.  They lead the market with specifications and are designed and built entirely within Wharfedale Pro.

Increased Radius Increased Sensitivity

IP54 CERTIFIED

IP54 certification assures that the product has

  • Limited protection against dust ingress.
  • Protection against splash water from any direction.

WHAT GOES ON TOUR...

Protect a Titan in an optional padded tourbag.

Wharfedale Pro Titan Tourbags add exceptional protection for Active or Passive Titans, and to keep the same ergonomics and convenience the bag has been conveniently designed with removable front covers, rear panels, side panels and speaker pole sections so you can move and install your speaker without ever having to take the tourbags off.

The front cover removes to show a unique mesh material, which adds additional protection and leaves the sound unfettered.

EASY INSTALL

All Titan loudspeakers are versatile.  For on stage, or for an installation, there are fixtures and fittings to suit.

WPB-1 and WPB-2 are compatible with TITAN-15Z.


Model Name Titan-15Z
System Type Passive
Configuration 15″ 2-way
Frequency Response (+/-3 dB) 45 Hz-20 KHz
Frequency Range (-10 dB) 40 Hz-20 KHz
Sensitivity (2.83 v / 1 m) 99 dB
Calculated Maximum SPL @1 m 133.5 dB
System Rated Impedance 8 Ω
Low Frequency Transducer
Size 381 mm / 15″
Voice Coil Size  100 mm / 4.0″
Rated Impedance 8 Ω
LF Power (re:AES2-2012) 700 w
High Frequency Transducer
HF Driver Type Compression Driver
Voice Coil Size 50 mm / 2.0”
Exit Size 25 mm / 1″
Diaphragm Material Titanium
Rated Impedance 8 Ω
HF Power (re:AES2-2012) 50 w
Nominal Coverage (H x V) Hybrid Symmetry Horn 100°x80°
Power
System Power AES (RMS) 700 w
System Programme Power  1400 w
System Peak Power  2800 w
Crossover frequency 2.1 KHz

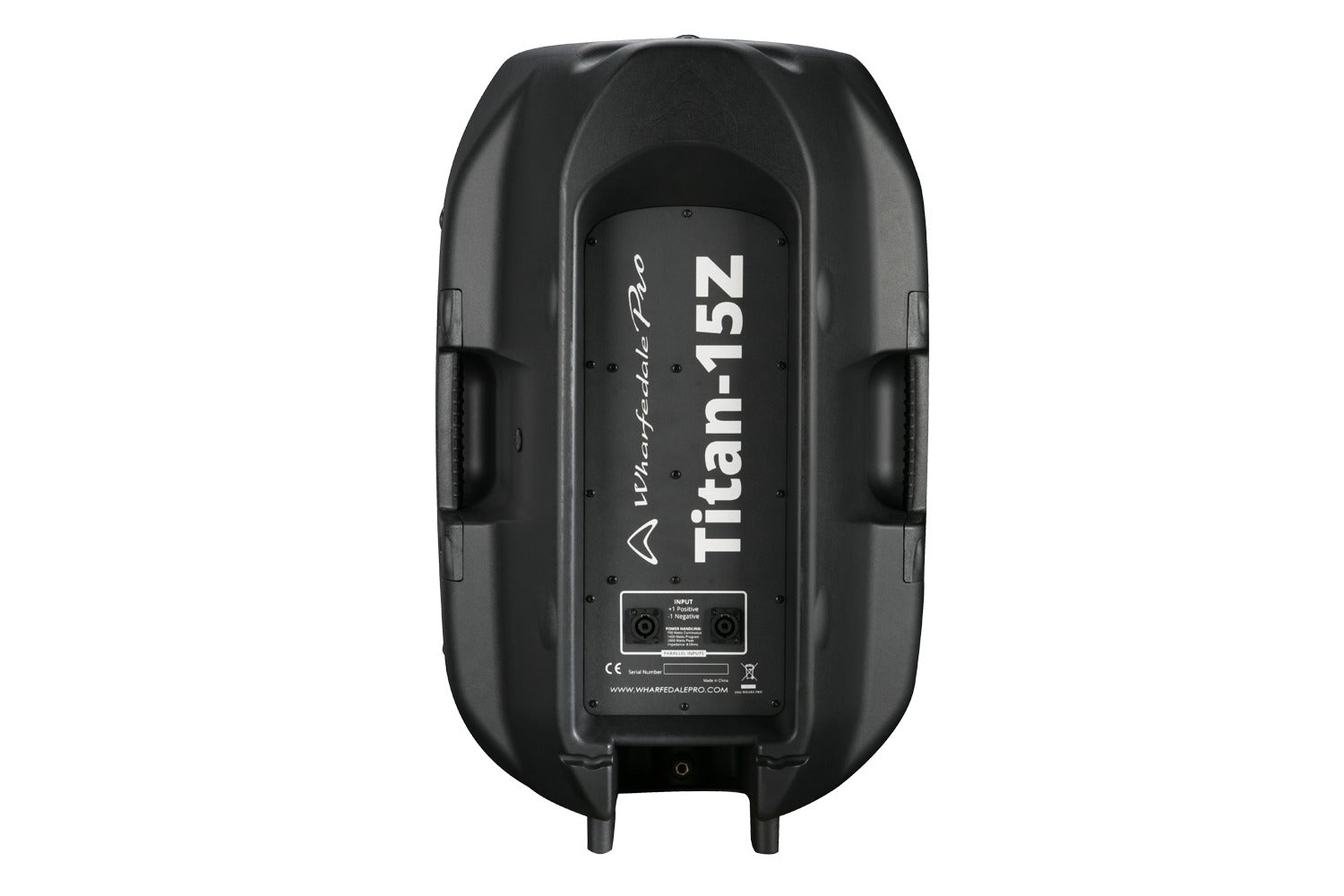

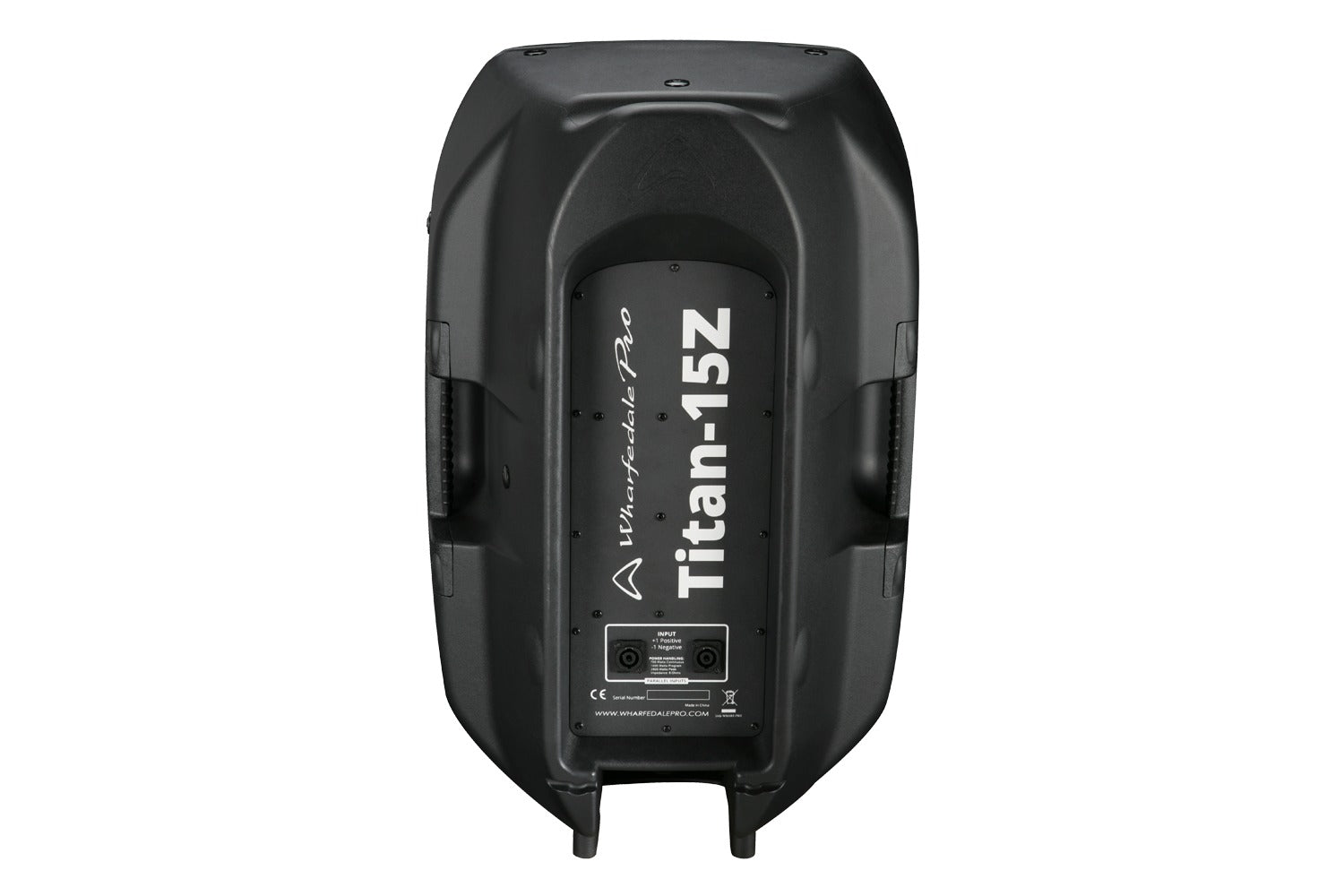

Input Connector 2 x NL4 (speakON compatible)
Hardware
Pole Mount 35 mm with lock screw
Handles 2 on sides
Mounting points M8 * 10
Enclosure
Enclosure Material Trapezoidal / Polypropylene
Finish Black / white
Grille Material & Finish 1.2 steel
Dimensions – Unpacked
Height 728.5 mm / 28.7”
Width Front 480.6 mm / 18.9”
Width Rear 480.6 mm / 18.9”
Depth 395.6 mm / 15.6”
Dimensions – Packed
Height 830 mm / 32.7″
Width Front 514 mm / 20.2″
Width Rear 514 mm / 20.2″
Depth 489 mm / 19.3″
Weight
Net Weight (kg / lbs) 25.8 kg / 56.8 lbs
Gross Weight (kg / lbs) 30.6 kg / 67.3 lbs



Download User Manual
