LAMPRO
LST Series
LST Series
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
/
per
Stabilize Your DOOH in All Weather
Features
-
Die-casting Cabinet & Aluminum Module
- 91mm thinner
- Weight of single cabinet≤25kg
Standard: Die-casting cabinet & aluminum module
-
Excellent Display Performance
- Max 10000nit high brightness
- 40000:1 ultra-high contrast ratio
-
Front and Rear Installation/Maintenance and IP Protection
- Front and rear installation/maintenance
- IP65 / IP65 front / rear protection
Specifications:
| Model |
LST4.44
|
LST6
|
LST8
|
LST10
|
|---|---|---|---|---|
| Pixel Configuration |
SMD1921
|
SMD2727
|
SMD2727
|
SMD2727
|
| Pixel Pitch (mm) |
4.44
|
6.67
|
8
|
10
|
| Pixel matrix per panel |
216x216
|
144x144
|
120x120
|
96x96
|
| Pixel density (pixels/sq.m.) |
50625
|
22500
|
15625
|
10000
|

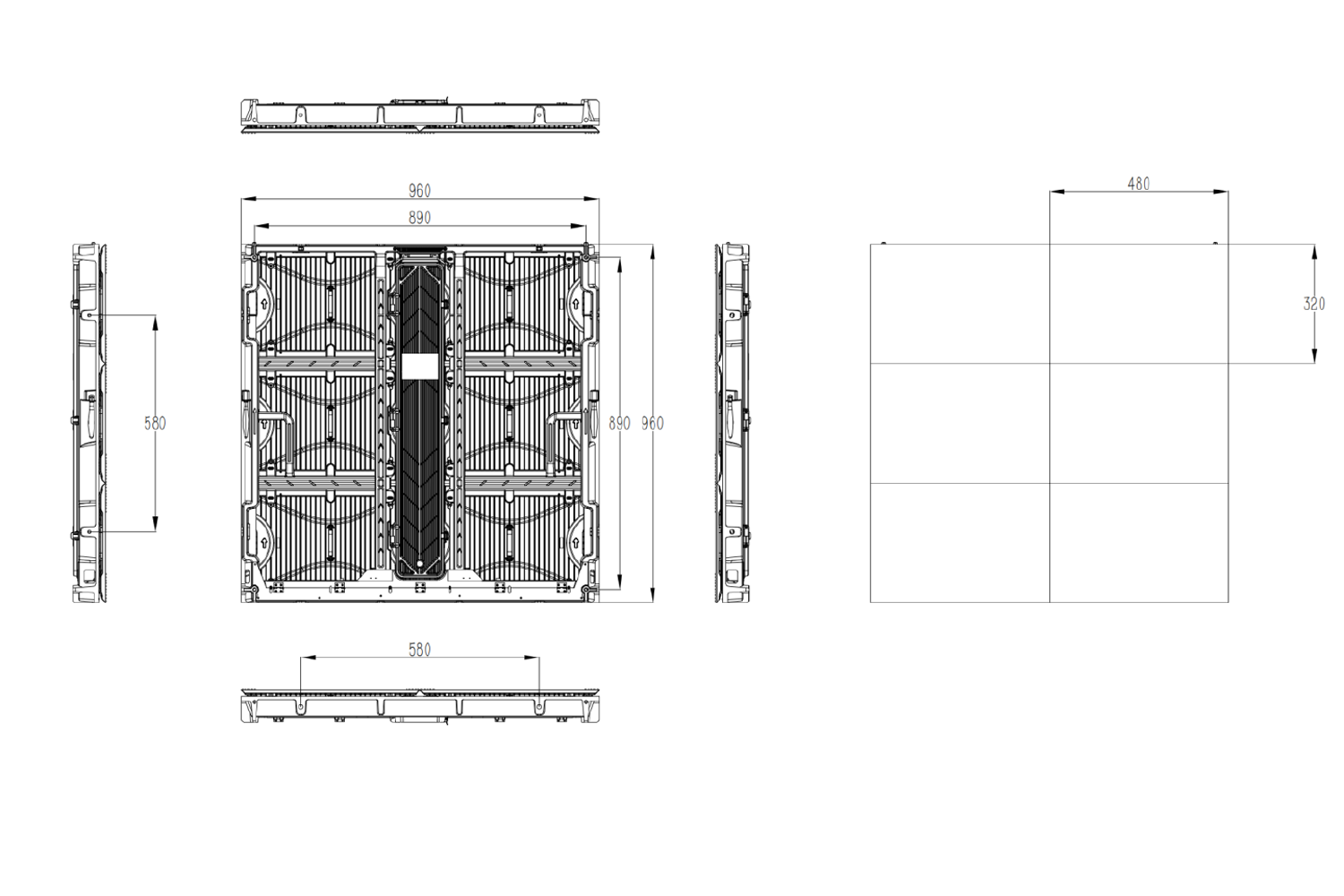

| Cabinet Dimensions (WxHxD)/(mm) |
960x960x91
|
|||
| Module Dimensions (WxH)/(mm) |
480X320
|
|||
| Cabinet / module material |
Die-casting cabinet & aluminum module
|
|||
| Cabinet weight (kg/panel) |
25
|
|||
| Color Grayscale (Bit) |
14bit
|
|||
| Gray Scale per Color (level) |
16384
|
|||
| Refresh Rate (Hz) |
3840
|
|||
| Signal Transmission Distance (m) |
CAT5 cable:＜100m; Single mode fiber:＜10km
|
|||
| Brightness (nits) |
5500-7500
|
6000-10000
|
6000-10000
|
6000-10000
|
| Optimal Horizontal Viewing Angle (°) |
140
|
160
|
160
|
160
|
| Optimal Vertical Viewing Angle (°) |
Up 60
/ Down 60 |
Up 50
/ Down 60 |
Up 50
/ Down 60 |
Up 50
/ Down 60 |
| Contrast ratio |
5100-7100:1
|
5500-10000:1
|
5500-10000:1
|
8400-40000:1
|
| AC Input Voltage (V) |
AC:100V~240V
|
|||
| AC Input Power Maximum Value (W/㎡) |
640-700
|
640-750
|
600-710
|
600-710
|
| AC Input Power Typical Value (W/㎡) |
213-234
|
213-250
|
200-237
|
200-237
|
| Storage Temperature (℃) |
-40-60
|
|||
| Working Temperature (℃) |
-20-50
|
|||
| IP rating (Front/Rear) |
IP65 / IP65
|
|||
| Storage Humidity (RH) |
10%~90% non-condensing
|
|||
| Working Humidity (RH) |
10%~90% non-condensing
|
|||
| Lifetime Typical Value (hrs) |
100000
|
|||
| Cabinet installation |
fixed
|
|||
Warranty: 2 Years
