Colorlight CL-Z8TBS Board Set for Z8t
Colorlight CL-Z8TBS Board Set for Z8t
Regular price
$9,690.00
Regular price
Sale price
$9,690.00
Unit price
/
per

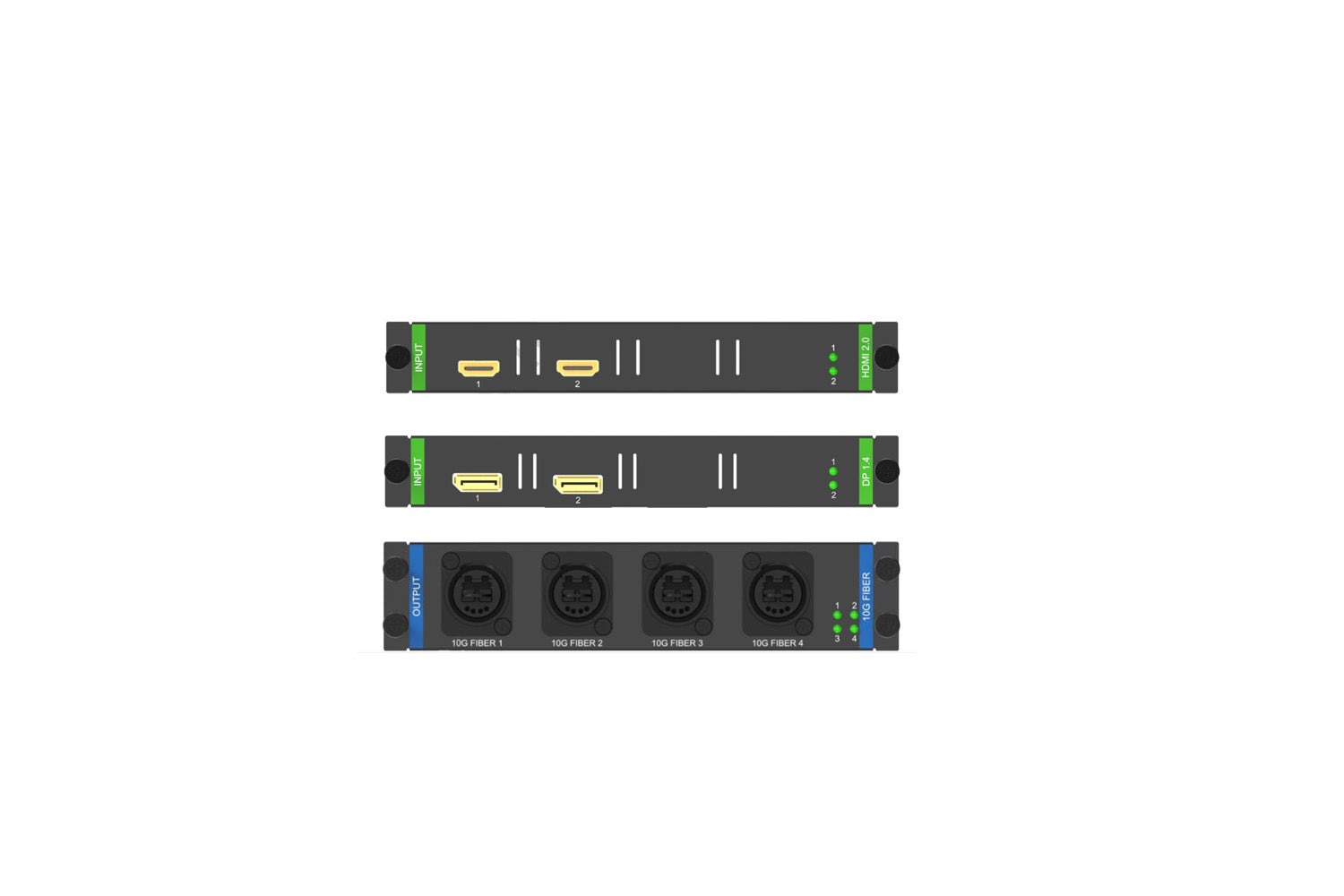

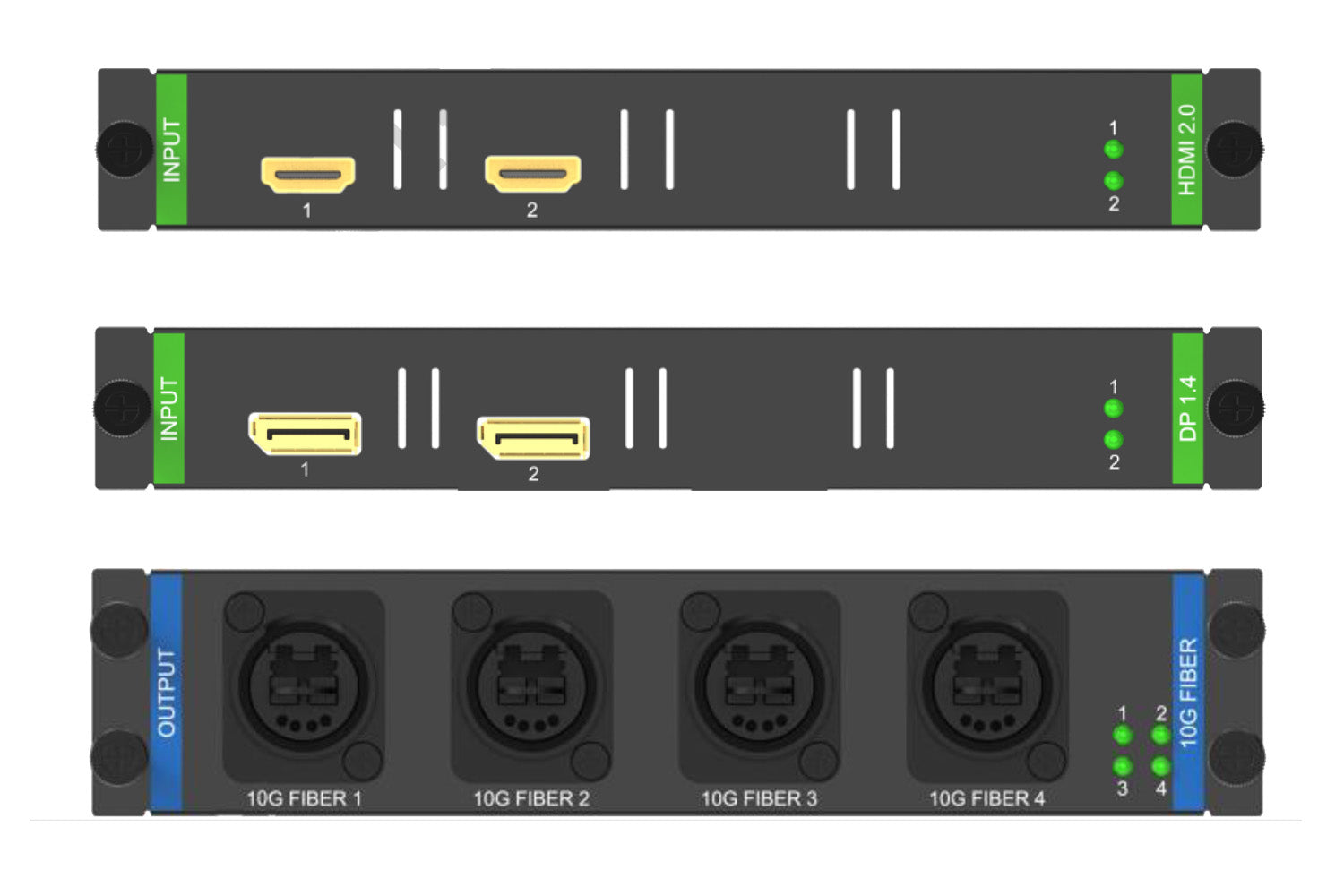

Board set for Z8T including Z8 DP, Z8 HDMI and Z8_2x10G 2 pcs
Features
2x DP Input card
- 2x DP1.2 port, up to 4096x2160@60Hz per port.
- Up to two 4K inputs at the same time, each signal supports independent color adjustment.
- Each input supports customized resolutions and EDID setting.
- Each input supports cropping and scaling.
- Maximum width per input: 8192 pixels (8192x1160@60Hz).
- Maximum height per input: 8192 pixels (1024x8192@60Hz).
2x HDMI Input card
- 2x HDMI 2.0 port, up to 4096x2160@60Hz per port.
- Up to two 4K inputs at the same time, each signal support independent color adjustment.
- Each input supports customized resolutions and EDID setting.
- Each input supports cropping and scaling.
- Maximum width per input: 8192 pixels (8192x1024@60Hz).
- Maximum height per input: 8192 pixels (1024x8192@60Hz).
- Indicator status: Always on (power supply is normal), Flash (Signal
input is normal).
2x 10G Fiber Primary + 2x 10G Fiber Backup Output card
- 2x Neutrik optical fiber ports, 2x Neutrik Backup optical fiber ports, using single-mode duplex LC fiber, transmission rate per port: 10Gb/s.
- Equipped with single-mode optical fiber module, allowing for cable runs up to 2 km.
- Each card supports a loading capacity of up to 12.60 million pixels, with a maximum width or height of 8192 pixels.
- Loading capacity of each output (8bit, 60Hz): up to 6.30 million pixels.
- Loading capacity of each output (10bit, 60Hz): up to 4.72 million pixels.
- Indicator status: Always on (power supply is normal), Flash (Signal input is normal).
- Recommend single-mode fiber cable with PC or UPC plug, 9/125µm diameter.
