WOLFMIXW1MK2 - Wolfmix W1 MK2 standalone performance DMX lighting controller

WOLFMIXW1MK2 - Wolfmix W1 MK2 standalone performance DMX lighting controller

Regular price $1,349.00
Regular price Sale price $1,349.00
Sale Contact Us for Availability

WOLFMIX W1 MK2 is an updated version of WOLFMIX W1 lighting controller

The new version contains the following changes:
- New encoder caps.
- USB-A socket, for connecting a memory stick or MIDI controller.

Wolfmix W1 is a standalone performance DMX lighting controller - designed for creating light shows on the fly without a computer.

A toolbox of FX modules, music sync, and up to 4 DMX universes - packed inside robust hardware with a powerful processor. Choose from 1000’s of light fixtures, or build your own directly inside the controller. Whether it’s for a live performance, disco, club or show - Wolfmix has you covered.

Powerful effects modules bring your show to life

Mix up to 16 colors into a Rainbow, Sparkle or Light Fever effect. Wolfmix will apply the effects to the light’s color channels including: RGB, Amber, White, UV, or CMY. For light's without color mixing, the effects can be applied to a fixed color wheel.


Create moving patterns on Scanners and Moving Heads. The Move FX module includes Pan, Tilt, Circle, and a sweeping Magic Carpet. Fan the light beams and move the center point of a pattern to play up to the sky or down below on the stage.


Chases, waves and heartbeat dimming effects can be created with the Beam FX module. Effects are applied to color channels, or for lights without color mixing- the dimmer or shutter channels. Create custom patterns with the Step Sequencer.




  • 4.3” Color TFT with tinted glass
  • Capacitive touch


  • Full body alloy
  • Incremental push with acceleration

Button pads

  • 37 Silicone buttons with matt oil finishing
  • LED color backlit


  • 220Mhz CPU with ARM core
  • 8MB RAM
  • 16MB Flash


  • Omnidirectional electret mic
  • 3.5mm Jack Line-In
  • Analog adaptive peak detector

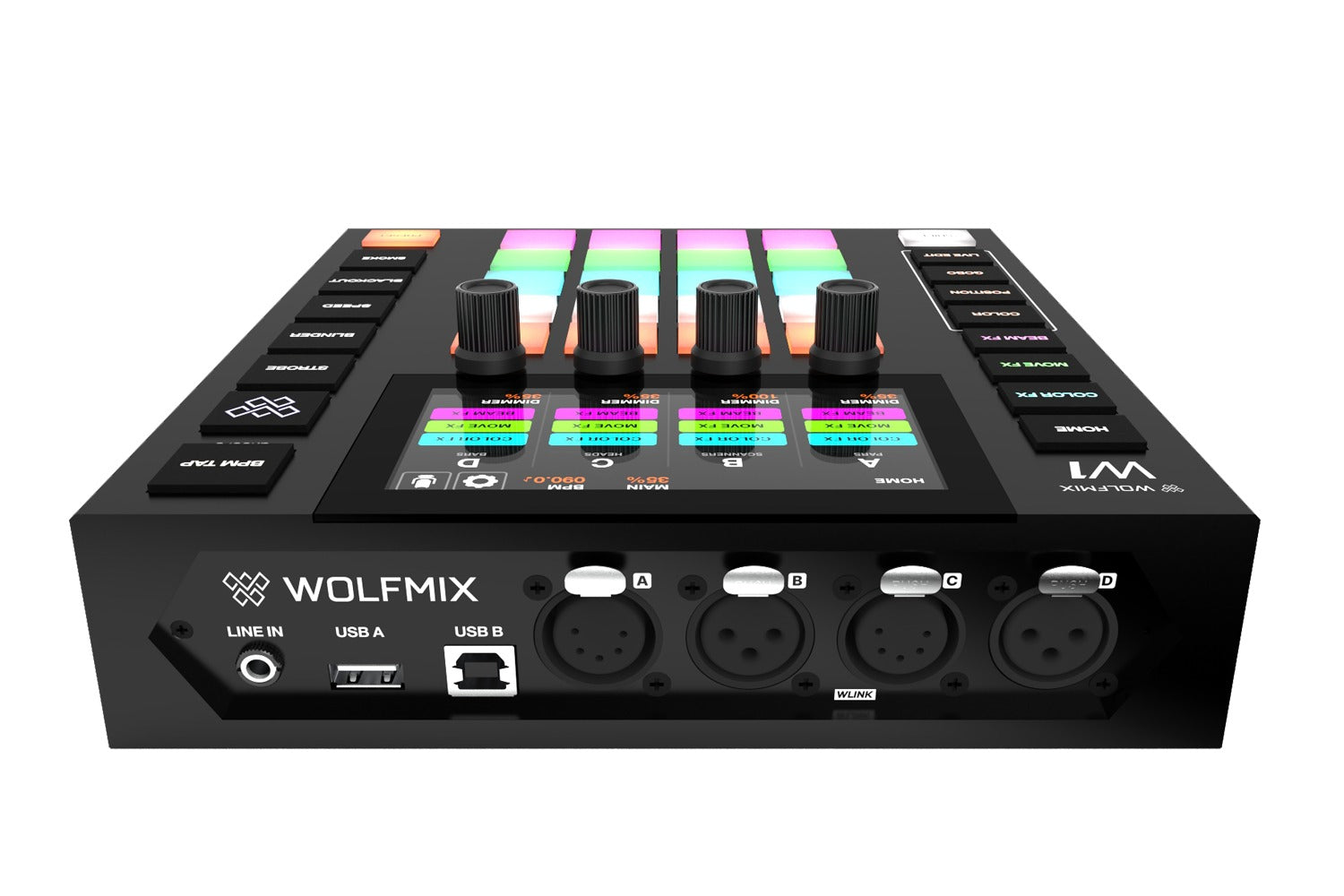

  • 2x 3pin DMX OUT XLR connectors
  • 1x 5pin DMX OUT XLR connector
  • 1x 5pin DMX IN/OUT XLR connector with WLINK


  • USB-A connector (MIDI / MSD)
  • USB-B connector- 900ma required (USB3 rating)
  • High-speed USB communication


  • ABS Plastic
  • Powder-coated steel base plate with 100mm VESA (M4 6mm max)
  • Powder-coated steel reinforced back plate

Size & weight

  • 195 x 220 x 62 mm / 7.68 x 8.66 x 2.44 in
  • 1070g / 2.36lb


Wolfmix W1 MK2 Datasheet

Wolfmix Mini Guide

Wolfmix W1 manual
