Wharfedale Pro TITAN AX12 Active Speaker
Wharfedale Pro TITAN AX12 Active Speaker
TITAN ACTIVES
THE LEGENDS
- IP54 Certified
- On stage, DJ, bands and performance
- Bi-amplified
- Wharfedale Pro drivers
- Portable and powerful
- DSP models – AX12 / AX15
- M8 rigging points
- Optional tour bags

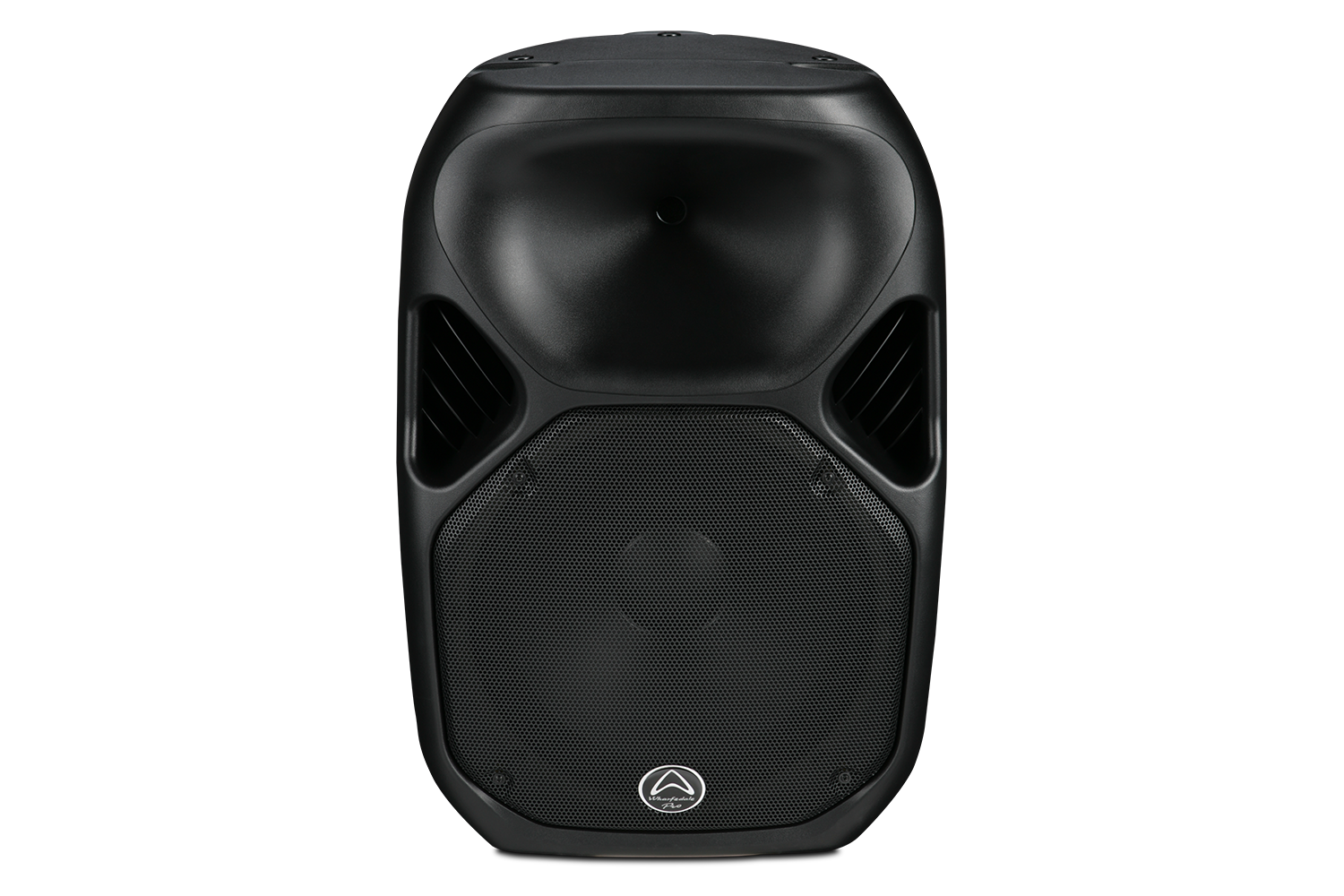

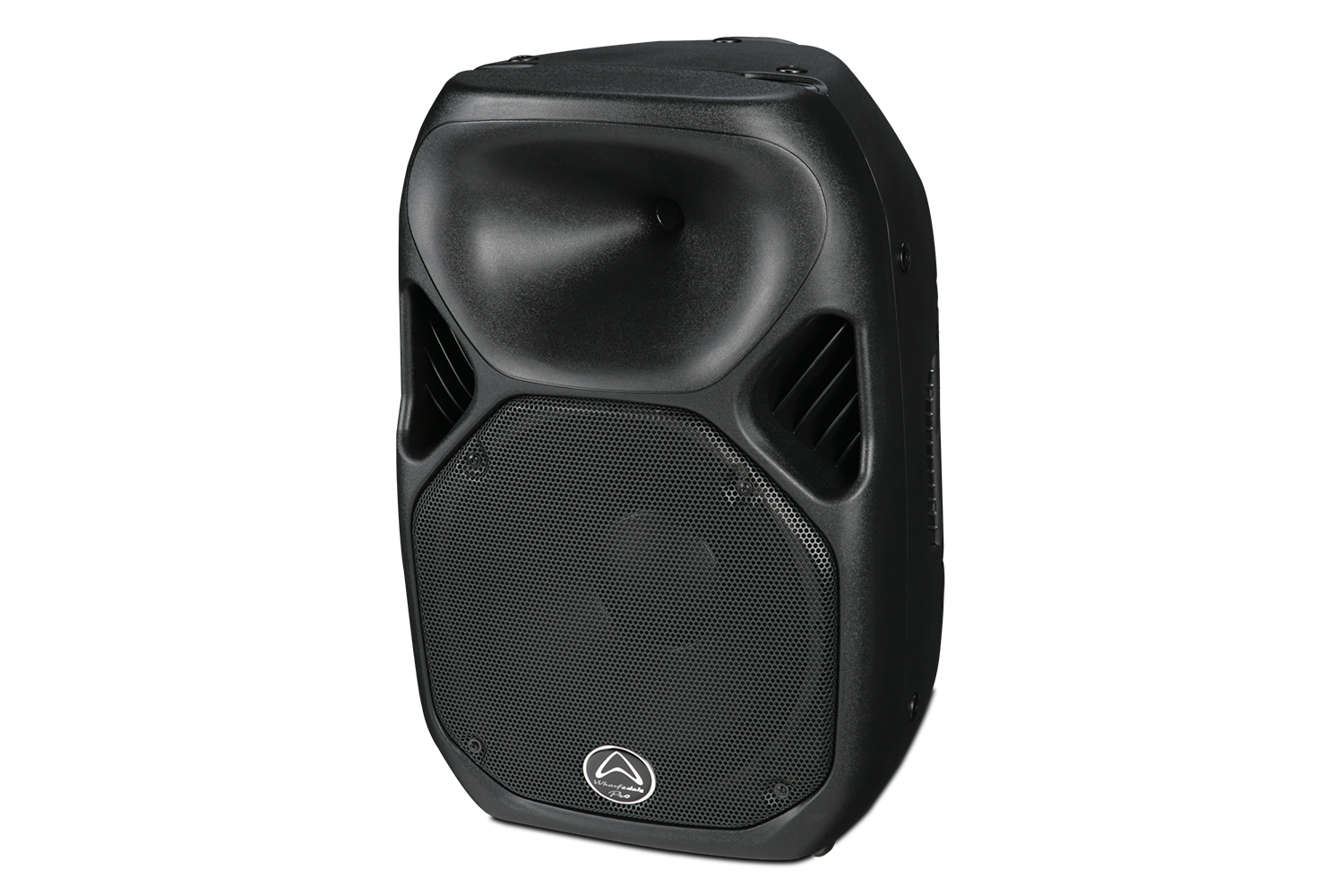

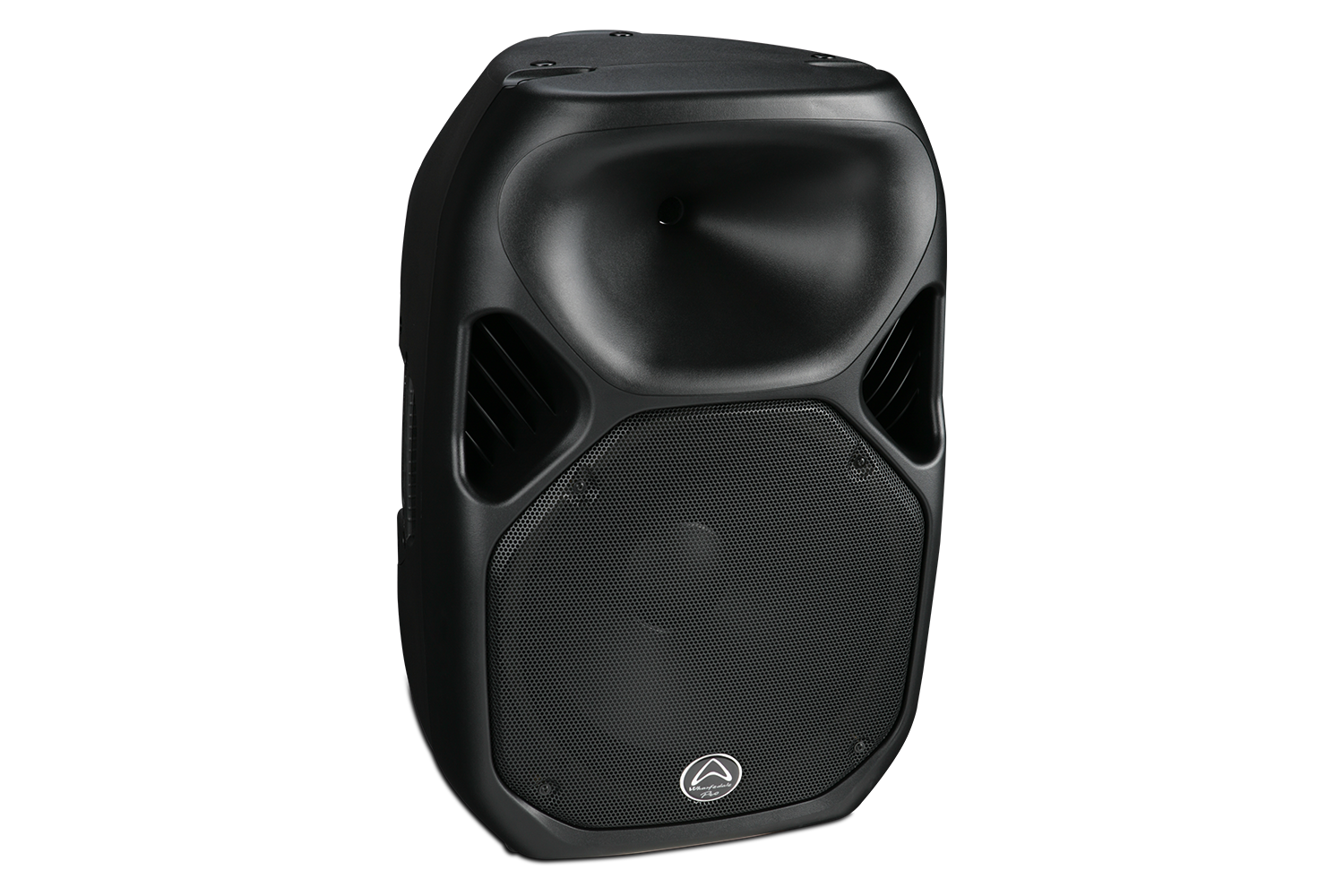

TITAN AX12
- 12″ Bi-amplified active loudspeaker
- 1.75″ HF compression driver
- 2.5″ LF voice coil
- 300 w Continuous
- 600 w Peak
- Internal 6-position DSP
LETS LOOK INSIDE
Titan loudspeakers pride themselves on custom Wharfedale Pro drivers. The IRIS-X HF compression driver used in Titan-AX12 and Titan-AX15 features a 1.75″ voice coil and is unique at this price point.
All Titan Active models are bi-amplified. The internal amplifiers have been tuned specifically for the HF and LF drivers that we have chosen. This makes for perfect power and frequency transfer, resulting in the sonic experience that you’d expect from a Wharfedale Pro active loudspeaker.
TITAN-AX MODELS WITH IRIS-X
The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance. Titan AX loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity. The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.
A hot transducer wastes energy, risks damage and distorts. IRIS X reduces this through improved heat dissipation and improved efficiency.
In real-world terms, IRIS X transducers deliver higher SPL with less distortion. They lead the market with specifications and are designed and built entirely within Wharfedale Pro.
Increased Radius Increased Sensitivity
WE ARE NOT FANS...OF FANS
ssssssh ! The two amplifiers inside all Titan Active models are extremely efficient.
So efficient that they can use convection cooling. This means that there are no fans!
Fans inside loudspeakers can add to operational noise, weight, price and can lead to reliability issues. Titan actives have no fans! Ssssssh! – Silent and reliable operation.
IP54 CERTIFIED
IP54 certification assures that the product has
- Limited protection against dust ingress.
- Protection against splash water from any direction.
All of this means that you can have full confidence installing a TITAN in extreme conditions.
WHAT GOES ON TOUR...
Protect a Titan in an optional padded tourbag.
Wharfedale Pro Titan Tourbags add exceptional protection for Active or Passive Titans, and to keep the same ergonomics and convenience the bag has been conveniently designed with removable front covers, rear panels, side panels and speaker pole sections so you can move and install your speaker without ever having to take the tourbags off.
The front cover removes to show a unique mesh material, which adds additional protection and leaves the sound unfettered.
EASY INSTALL
All Titan loudspeakers are versatile. For on stage, or for an installation, there are fixtures and fittings to suit.
WPB-1, WPB-2, WPB-6, WPB-T12 are suitable for TITAN AX12.
PERFECT PAIRINGS
A perfect partner for a Titan active is the 15″, 700 watts continuous, T-Sub-AX15B.
Used with a Tourus, a Titan or our flagship Typhon models, T-Sub-AX15B completes the system – bringing new levels of bass to the setup.
SPECIFICATIONS
| Model Name | Titan-AX12 |
| System Type | Active 12” 2-way Bi-Amplified |
| Frequency Response (+/-3 dB) | 55 Hz-20 KHz |
| Frequency Range (-10 dB) | 50 Hz-20 KHz |
| Calculated Maximum SPL @1 m | 128 dB |
| LF Transducer Size (mm / inches) | 305 mm / 12” |
| Coil Size (mm / inches) | 64.26 mm / 2.5″ |
| HF Transducer Type | Compression Driver |
| Coil Size (mm / inches) | 44 mm / 1.75″ |
| Exit Size (mm / inches) | 25 mm / 1” |
| Diaphragm Material | Titanium |
| Nominal Coverage (H x V) | Hybrid Symmetry Horn 100° x 80° |
| Amplifiers | |
| Low-Frequency Power Amplifier | |
| RMS/Peak Watts | 250/500 W (Class D) |
| High-Frequency Power Amplifier RMS/Peak Watts | 50/100 W (Class D) |
| Controls—EQ | |
| Low (±10 dB) 100 Hz Shelving | Note – EQ changed by DSP knob |
| DSP | 6 user presets |
| Hi Pass switch | 90 Hz |
| Amplifier Protection / Thermal protection | Yes |
| Low Line Voltage Shut Down | 60% Nominal line voltage |
| Driver Protection | Independent LF and HF limiters |
| DC Protection / Short Protection | Yes |
| Clip Limiter | Turns on ~250 W output |
| Limiter Indicator / Power Indicator | Red LED / Green LED |

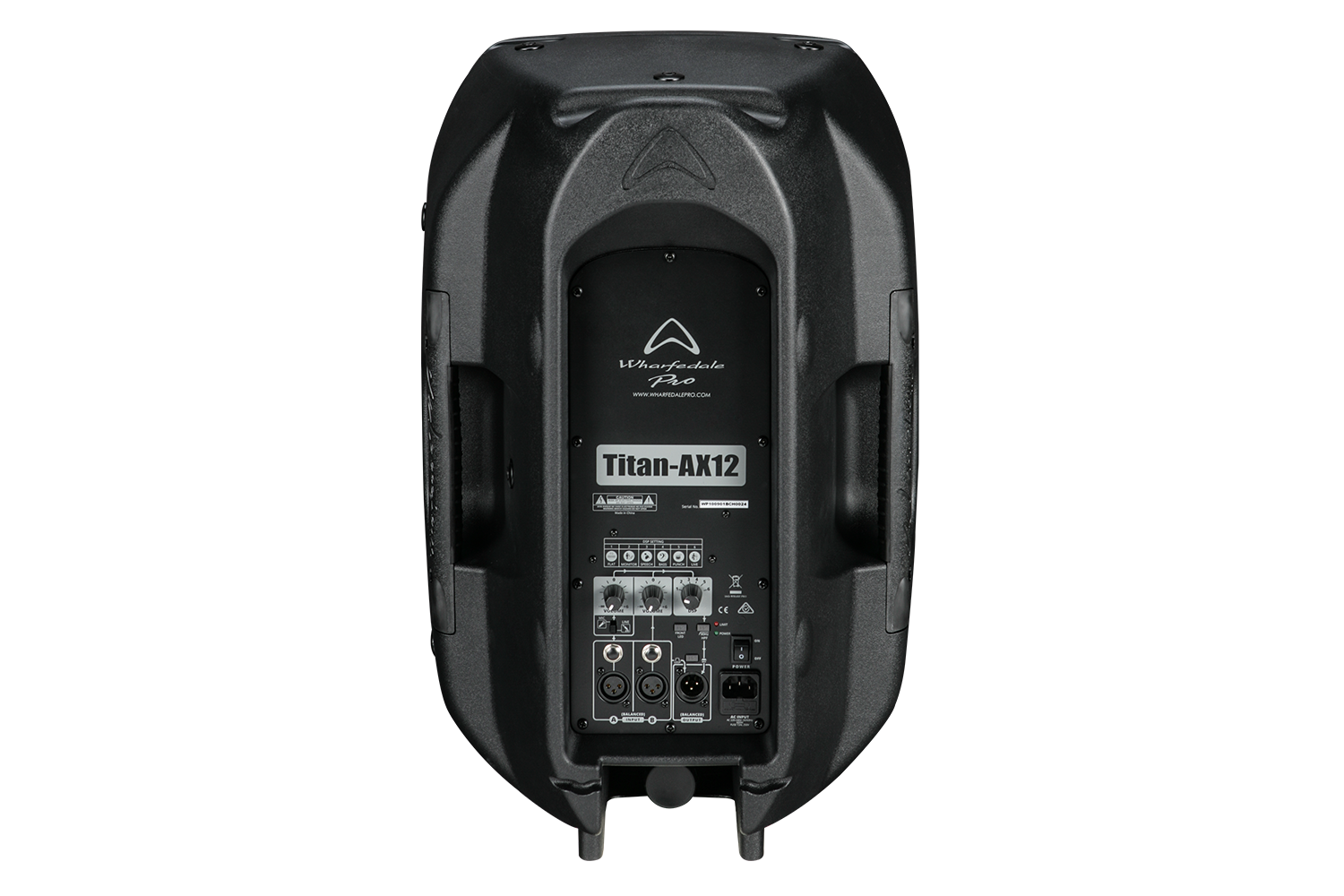

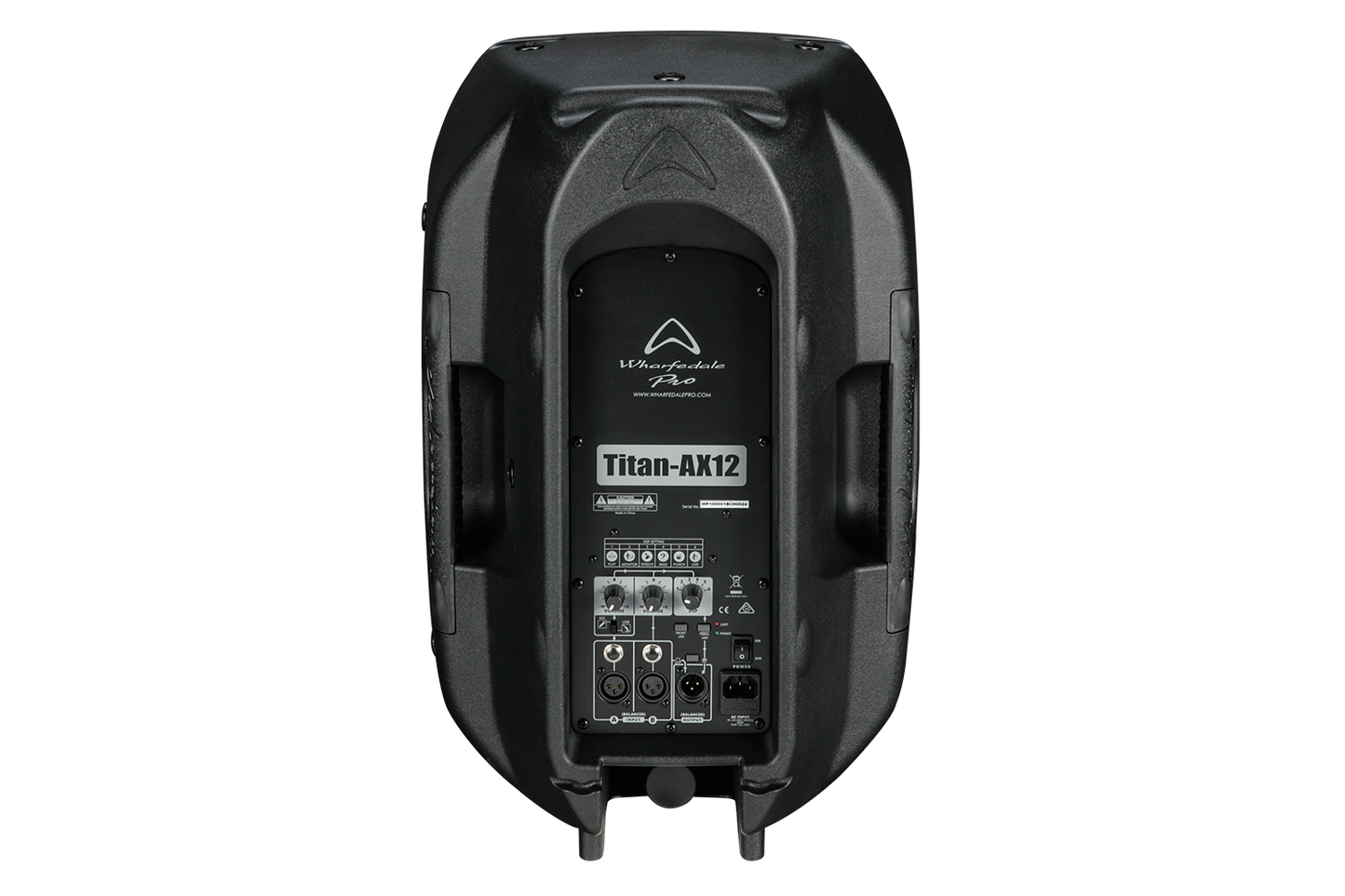

| Connectors | |
| Input – type | Switchable balanced mic/line level (Chan 1) |
| Input Connector | 2 * XLR & 2 * 1/4″ jack (Chan 1 Line/MIC) |
| Line Output Connector | Switchable LOOP/MIX Balanced Female XLR |
| AC Power Supply | SMPS |
| AC Power Options | AC100-120 V/220-240 V~ 50/60 Hz |
| Hardware | |
| Rigging / Bracket / Mounting Options | 10 M8 threaded inserts including 4 M8 threaded inserts on bottom in OmniMount 30.0-type footprint |
| 35 mm with lock screw | 35 mm receptacle with lock screw |
| 1 carry handle on side | 2 carry handles (one on each side) |
| Optional wall-mount bracket | Optional wall-mount bracket |
| LED Horn lighting (On/Off switch) | Yes |
| Enclosure Material and finish | Injection Moulded Polypropylene |
| Colour Options | Black / White |
| Grille Material & Finish | 1.2 mm steel |
| Dimensions – Unpacked – Height | 582.7 mm / 22.9″ |
| Width Front | 384.6 mm / 15.1″ |
| Depth | 318.6 mm / 12.5″ |
| Dimensions – packed – Height | 663 mm / 26.1″ |
| Width Front | 435 mm / 17.1″ |
| Depth | 408 mm / 16.1″ |
| Net Weight (kg / lbs) | 12.4 kg / 27.28 lbs |
| Gross Weight (kg / lbs) | 15.5 kg / 34.1 lbs |
