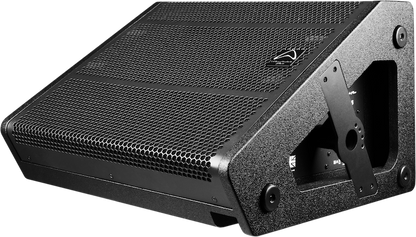

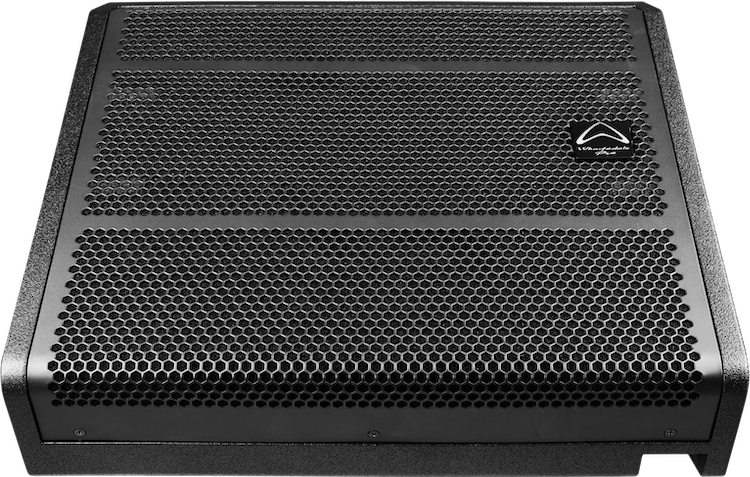

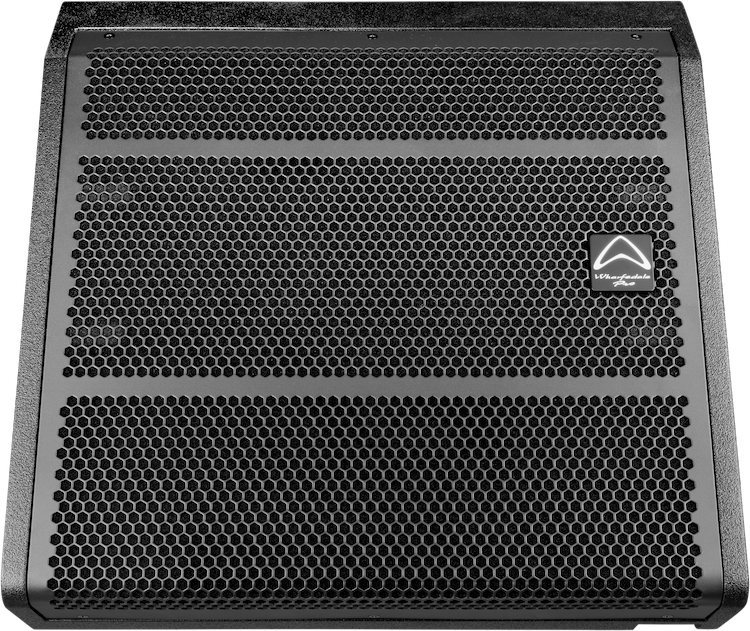

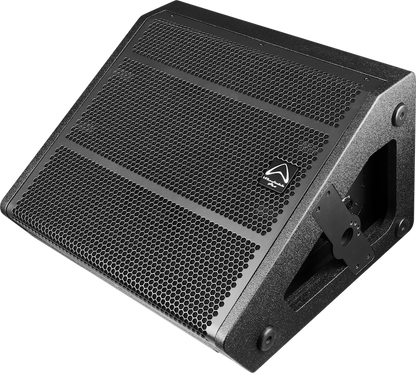

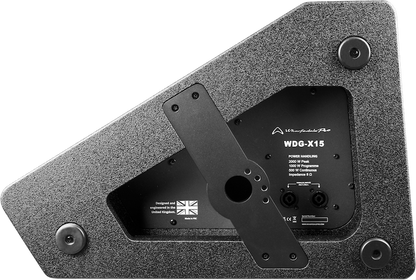

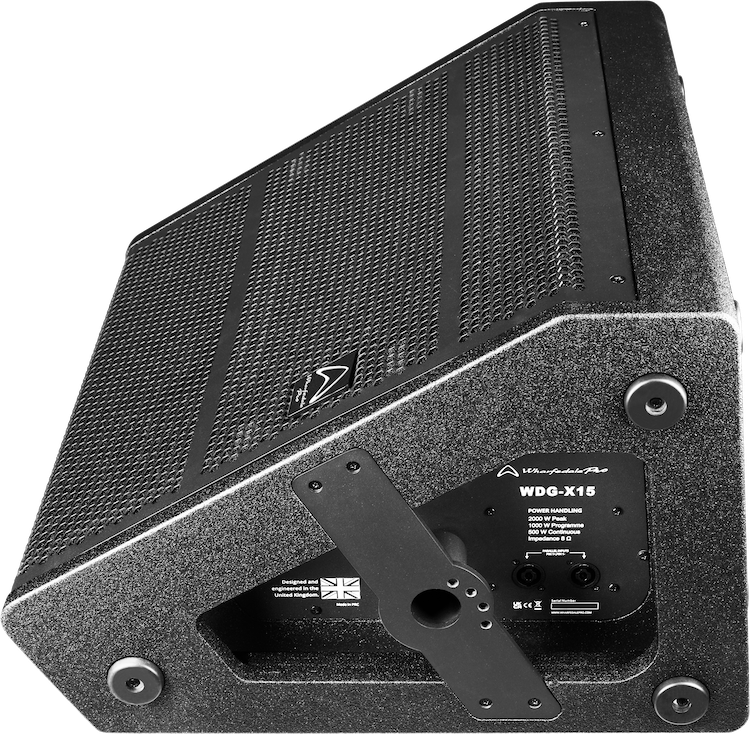

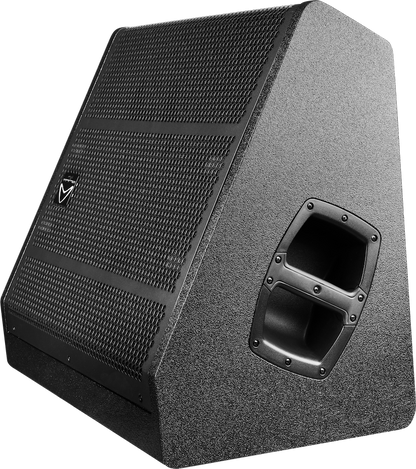

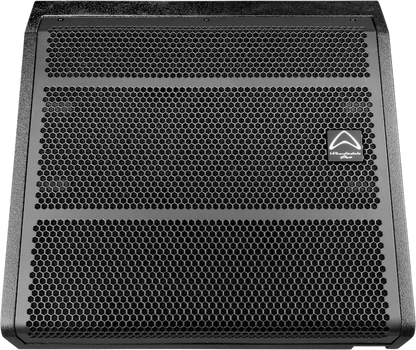

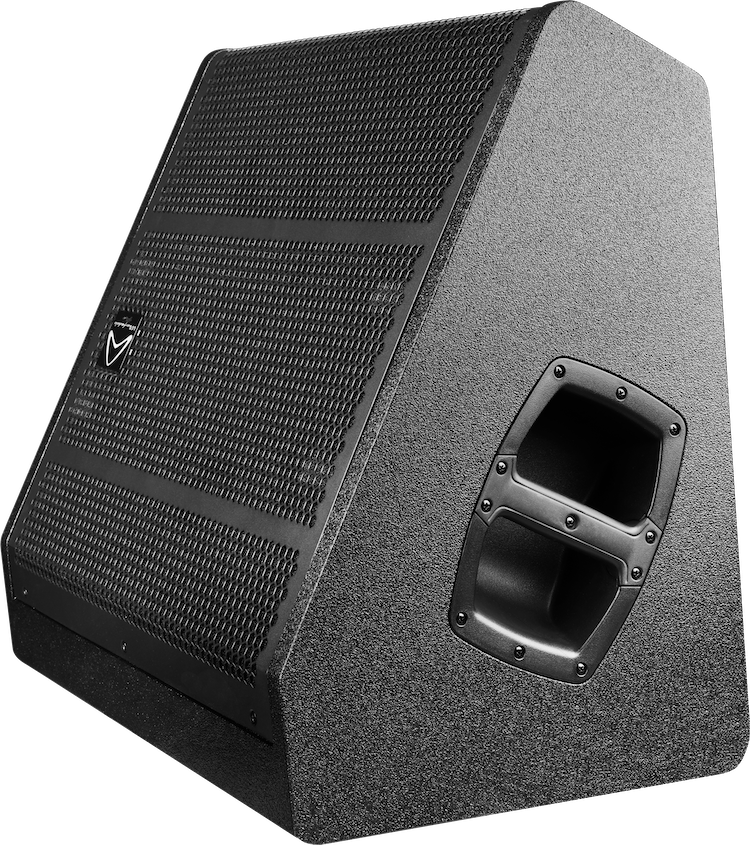

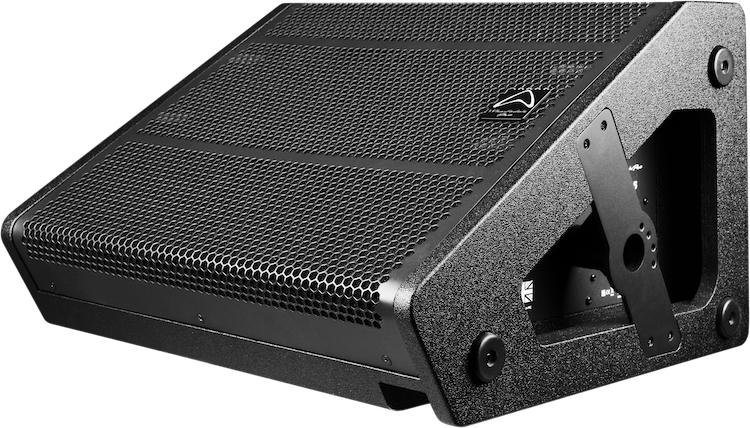

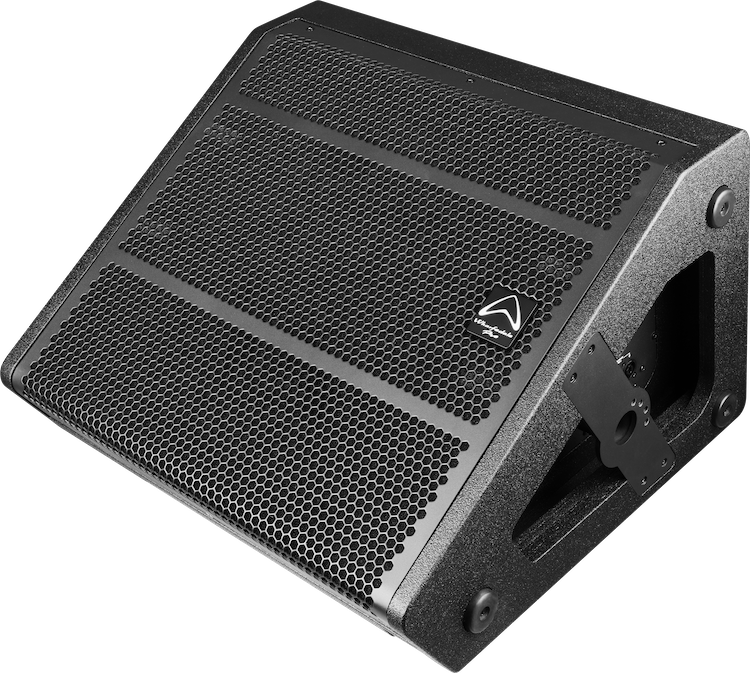

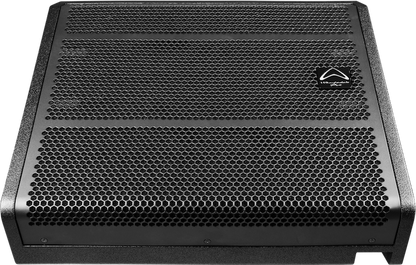

Wharfedale Pro WDG-X15 - Passive 15" Coaxial Wedge Monitor
Wharfedale Pro WDG-X15 - Passive 15" Coaxial Wedge Monitor
WDG-X Series
High-Performance Coaxial Stage Monitoring
The WDG-X series re-defines the traditional floor monitor by incorporating premium Beyma coaxial drivers. Engineered for high-performance stage applications, the WDG-X15 offers superior clarity, massive power handling, and a refined rotatable waveguide.

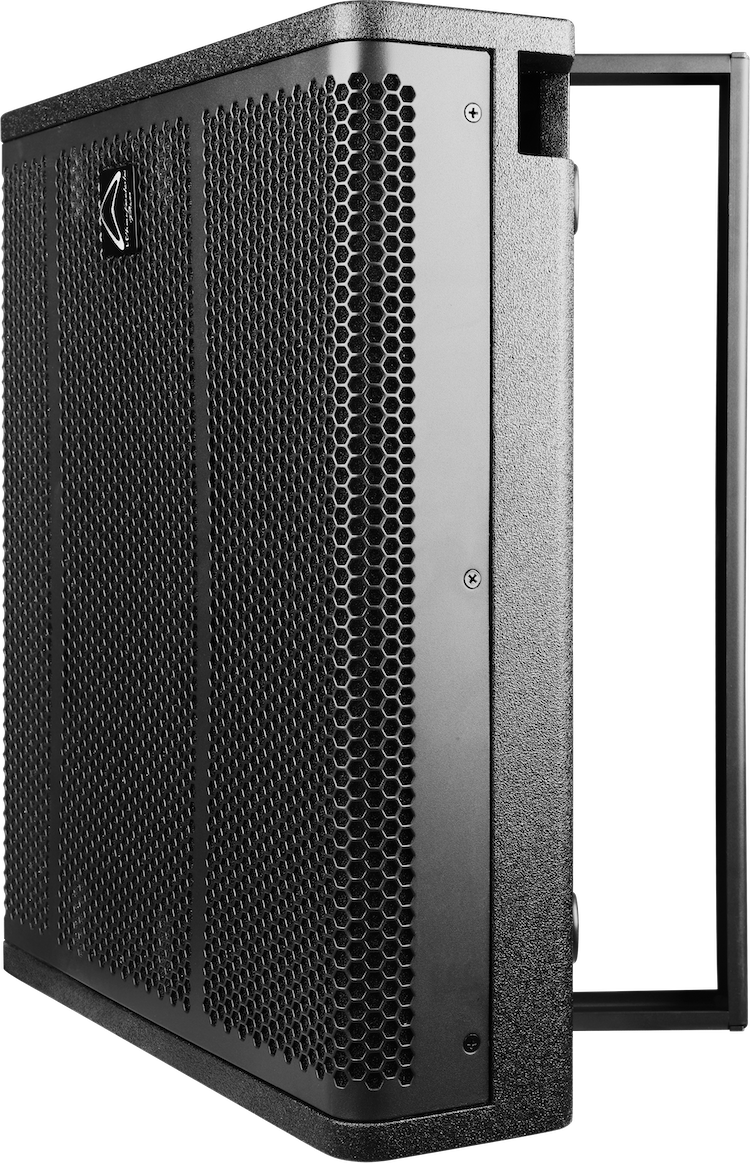

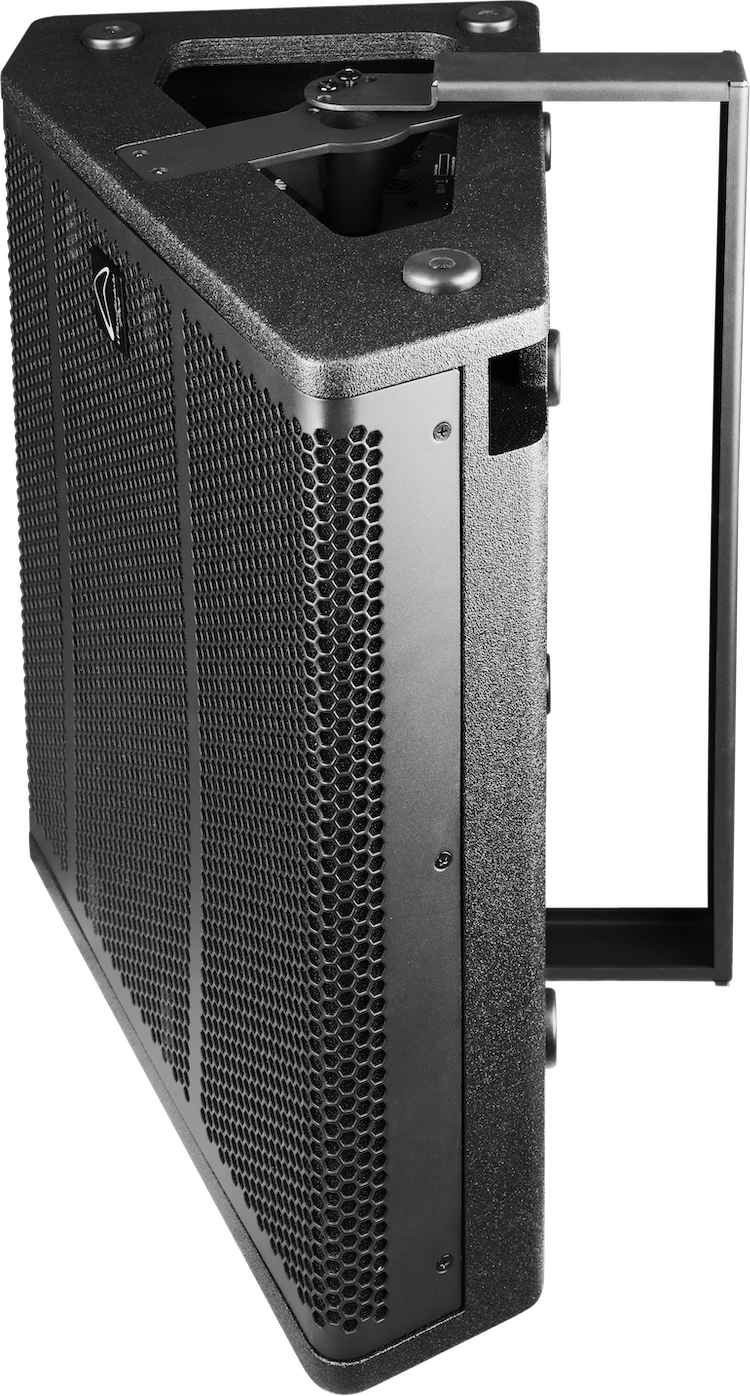

The WDG-X15 features a 15” Beyma coaxial driver and a rotatable constant directivity waveguide delivering 80° x 40° coverage. The cabinet design remains versatile, allowing for deployment at 25° for far-field or 60° for near-field applications. It also includes a 35mm pole socket and is compatible with optional WPB-7 or U-brackets for wall mounting.
Built for the road, the WDG-X15 is housed in a 15mm Birch Plywood enclosure finished in durable Black Tough-Tone paint.
FEATURES
- Premium Beyma Coaxial Design
- Improved Power: 500 W Continuous / 2000 W Peak
- Rotatable 80° x 40° Constant Directivity Waveguide
- Versatile deployment: 25° or 60° monitor angles
- 35mm Pole mount for FOH use
- Durable 15mm Birch Plywood construction with Tough-Tone finish
VERSATILE DESIGN
MAKING IT EASIER WITH PICTURES
PRODUCT DIMENSIONS
SPECIFICATIONS
Model Name |
WDG-X15 |
|
System Type |
15” Coaxial Passive Floor Monitor |
|
Configuration |
Coaxial 2-way |
|
Frequency Response (+/-3 dB) |
50 Hz – 20 kHz |
|
Frequency Range (-10 dB) |
35 Hz – 25 kHz |
|
Sensitivity (2.83 v / 1 m) |
99 dB |
|
Calculated Maximum SPL @1 m |
132 dB |
|
System Peak SPL |
138 dB* |
|
System Rated Impedance |
8 Ω |
|
* level at 1m using pink noise with crest factor 4, with dedicated preset |
|
Drivers |
|
|
LF Size |
381mm / 15” |
|
LF Voice Coil Size |
101.6mm / 4.0” |
|
LF Frame Material |
Aluminium |
|
HF Driver Type |
Compression Driver |
|
HF Voice Coil Size |
72.2mm / 2.87” |
|
HF Exit Size |
38.1mm / 1.5” |
|
Diaphragm Material |
Composite Titanium / Polyester |
|
Waveguide Type |
Constant Directivity |
|
Nominal Coverage (H x V) |
80° x 40° (Rotatable) |
|
Driver Brand |
Beyma |
Power |
|
|
System Continuous Power |
500 W |
|
System Programme Power |
1000 W |
|
System Peak Power |
2000 W |
|
Crossover frequency |
1.1 kHz |
|
Recommended HPF = BW 18dB/oct. |
30 Hz |
Construction |
|
|

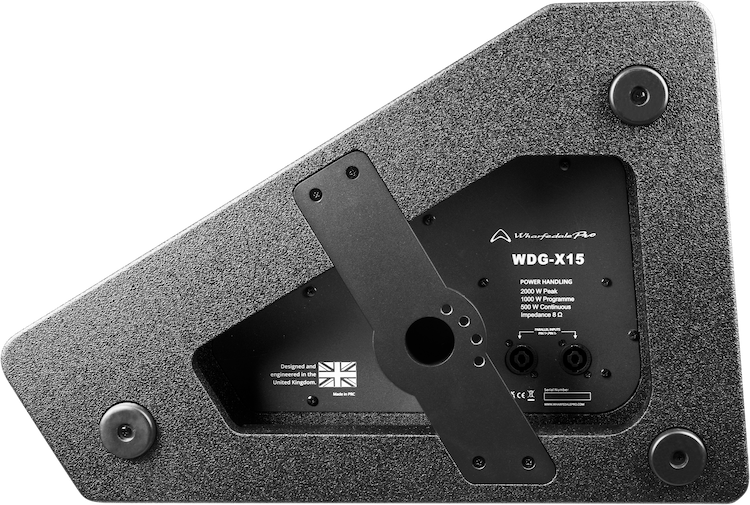

Input Connector |
2 x speakON in/out |
|
Rigging & Hardware |

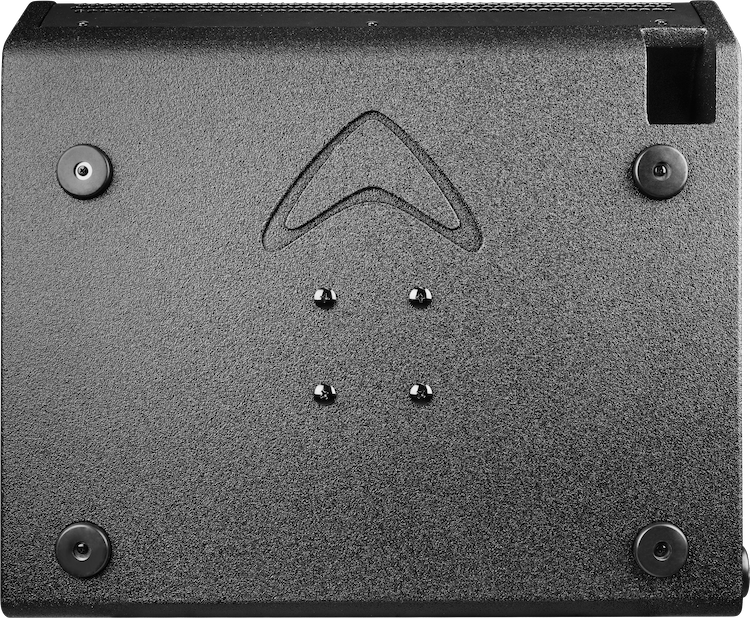

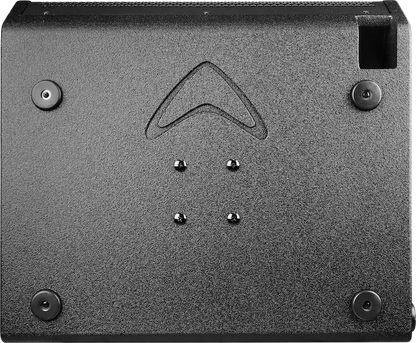

35mm Pole Mount 4 x M8 Threaded points
|
|
Vertical Splay Angle Range |
N/A |
|
Handles |
1 on top |
|
Enclosure |
Polygonal shape |
|
Enclosure Material |
15 mm Birch Plywood |
|
Finish |
Black Tough-Tone Paint |
|
Colour |
Black |
|
Grille Material & Finish |
Powder coated steel |
|
Monitor Angle (degrees) |
60° - 25° |
Dimensions – (Unpacked) |
|
|
Height |
350mm / 13.8” |
|
Width |
560 mm / 22.05” |
|
Depth |
530.8 mm / 20.9” |
Dimensions – (Packed) |
|
|
Height |
655 mm / 25.8” |
|
Width |
625 mm / 24.6” |
|
Depth |
435 mm / 17.1” |
Weight |
|
|
Net Weight (kg / lbs) |
30.2 kg / 66.4 lbs |
|
Gross Weight (kg / lbs) |
34.2 kg / 75.2 lbs |
