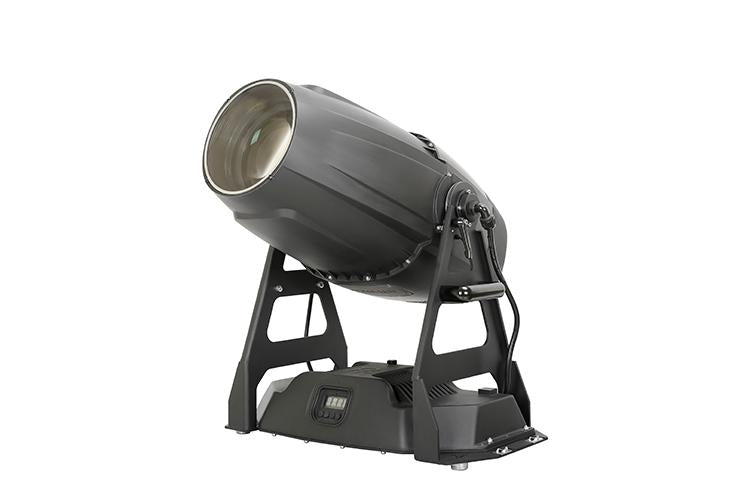

TANGO Framing

 TANGO Framing (PR-6611)

Key Features

• Light Source: Atria 620W LED white(7,000K), 20,000 hrs
• Input Voltages: 100V~240V AC, 50/60Hz
• Power Consumption: 800W@230V
• Strobe: electronic strobe 0.3-25 FP.S. with preset strobe pulse effect
• Dimmer: linear dimmer from 0-100%
• Prism:
• 1x4-facet prism, optional 3-facet prism and colorised 4-facet prism, bi-directional rotation with variable speeds, with indexing
• 1x6-facet prism, optional 3-facet prism and gradient prism, bi-directional rotation with variable speeds, with indexing
• CTO: 0-100% linear CTO system
• Effect: double layers effect wheel, independent bi-directional rotation at variable speeds
• Iris: 5-100% linear adjustment with macros
• Focus: DMX linear focus
• Zoom: DMX linearl zoom
• Light Angle: 8°~56° with16 bit adjustment
• Control: DMX512, 3 pins interface (optional 5 pins), RDM control
• Channels: short mode 26 channels , standard mode 29 channels, extended mode 38 channels
• Housing: high strength die casting aluminium high temperature resistant engineering plastics
• IP65
• Net Weight: 37.2kg

Colours

• 2 Color Wheel: 12 color filters plus open
• Half colour effect, bi-directional rainbow effect variable speeds
• 0~100％ linear CTO system

Gobo

• 1 Rotating Gobo Wheel: with 6 replaceable gobo plus open, glass or metal gobos can be installed
• Bi-directional rotating at variable speeds, index function, shaking effect at variable speeds

Framing

• 4 framing module continual framing module rotation, to make graphics of different sizes and shapes
• 4 framing blade to make full curtain effect
