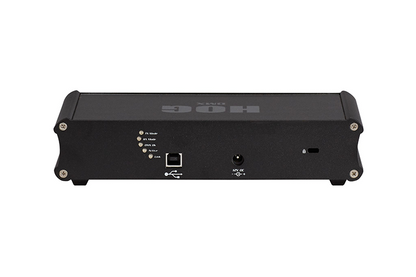

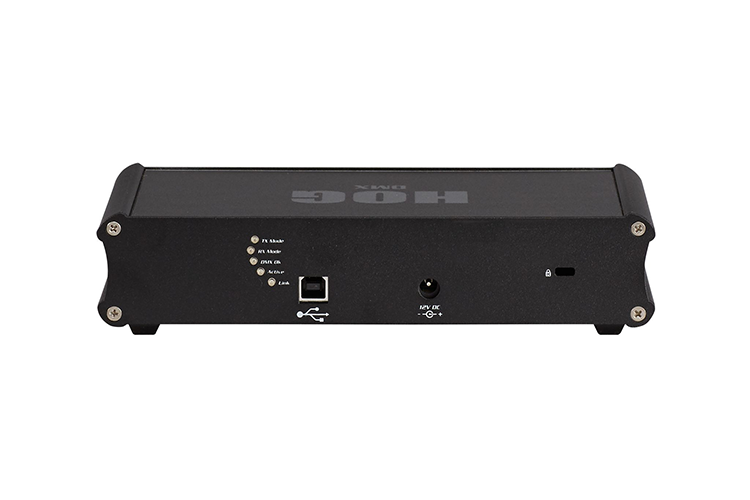

Super Widget back view

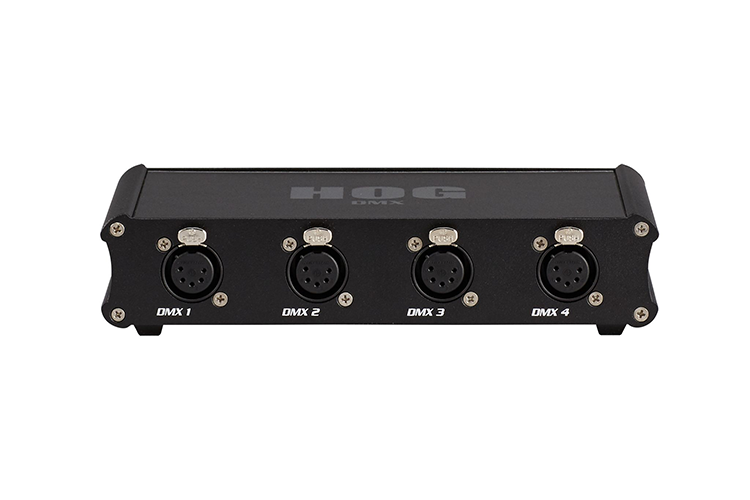

Super Widget front view

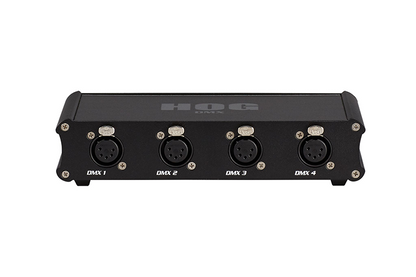

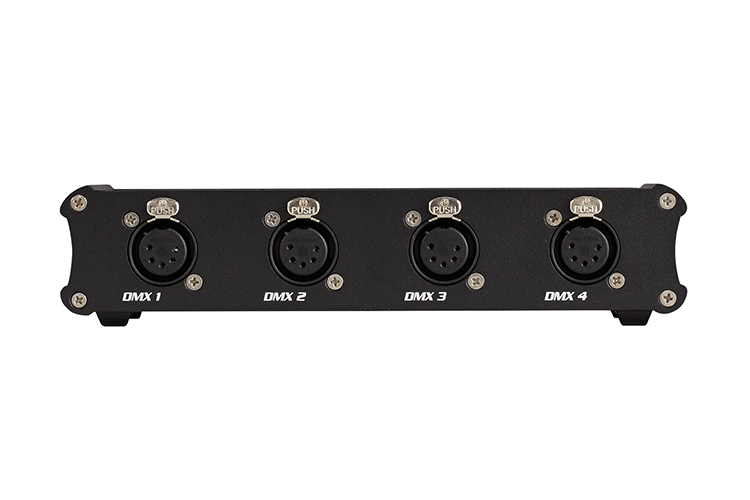

Super Widget front view

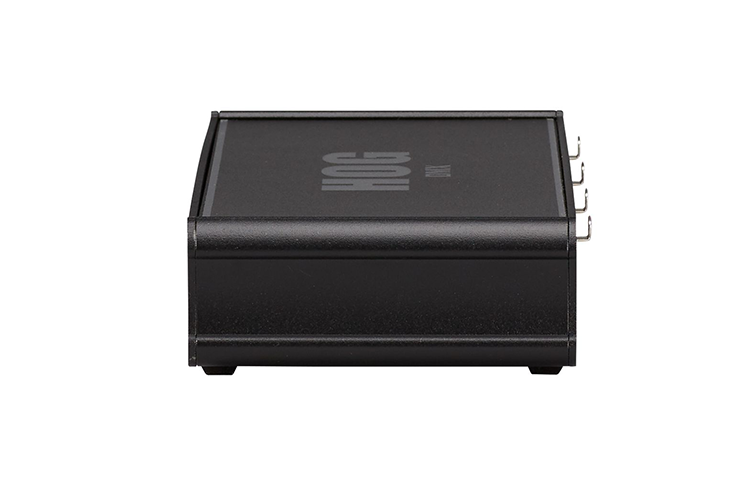

Super Widget side view
High End Systems


Regular price $2,490.00

DMX Widgets allow you to easily expand your console's DMX output. Simply attach USB DMX Super Widget and ― just like that ― you have added four ports and universes.

The USB DMX Super Widget provides four universes of DMX-512 output from any Hog 4 console or Hog 4 PC. Up to two DMX Super Widgets may be connected at once via a USB Hub to provide eight full universes of DMX-512 to the Hog 4, Full Boar 4 and Hog 4 PC. Only one USB DMX Super Widget can be connected to the Road Hog 4.

With Hog 4 PC, attaching USB DMX Super Widgets also unlocks the corresponding universes of Art-Net and sACN.


  • USB connection to any Hog 4 console as well as Hog 4 PC
  • Rugged, stackable aluminum housing
  • Four DMX 512 outputs on 5-pin XLR connectors
  • Supports up to 2048 output channels
  • One USB input connector
  • Up to two USB DMX Widgets can be connected via USB Hub
  • Kensington security slot
  • External PSU included
  • Storage Temperature 20-60°C / 0-140°F
  • Compliance: ETL, CETL, CE


    • Width: 198mm / 7.8"
    • Depth: 106mm / 4.2"
    • Height: 45mm / 1.8"
    • Weight: 0.5kg / 1.1lb

      For more information, please visit the manufacturer's website
