PR Lighting

MERLIN

MERLIN

Regular price $0.00
Regular price Sale price $0.00
Sale Contact for Availability

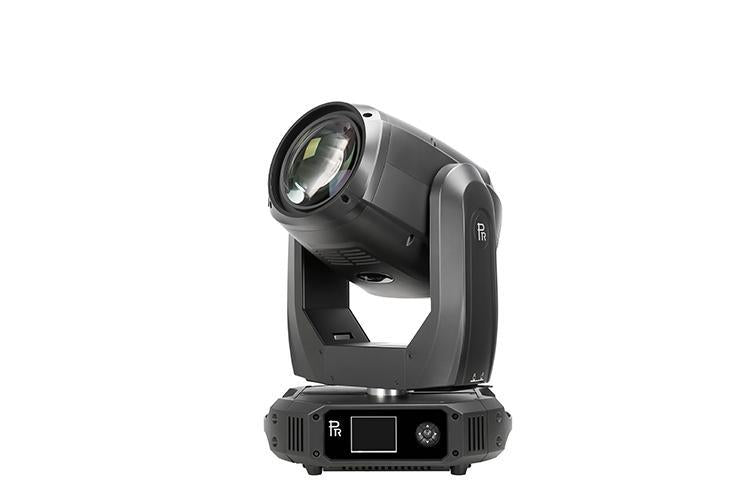

MERLIN (PR-2473) integrates three features(Spot, Wash and Beam) in a single unit. This fixture has adopted PR patented technology, combines advanced 480W lamp technology with superb optical system.

Key Features

  • Light Source: 480W(6800K), 1500 hrs
  • Input Voltages: 100V~240V AC, 50/60Hz
  • Power Consumption: 690W@220V
  • Strobe: double shutter blades, 0.3~25 F.P.S
  • Dimmer: mechanical dimmer 0-100% linearly adjustable
  • Prism: 3 prisms(standard: 2x8-facet circular prisms and 1x4-facet linear prism )bi-directional rotating at variable speeds(optional: 3-facet, 16-facet circular prism, linear prism, gradient prism)
  • Effect: 1 graphic effect wheel, bi-directional rotation with variable speeds, overlap with fixed gobos and rotating gobos
  • Frost: 1 frost filter
  • Focus: DMX linear focus
  • Light Angle:
    • beam mode: 0°~ 2.8°
    • spot mode: 2.8°~ 60°
    • wash mode: 10°~ 60°
  • Colour
    • CMY linear color mixing with macros
    • 1 Color Wheel: 12 dichroic color filters plus open
    • Rainbow effect with bi-directional and variable speeds
    • Stepping/linear color changing
  • Gobos
    • 1 Fixed Gobo Wheel: 18 gobos plus open, Bi-directionally rotatable, and shakable effect at variable speeds
    • 1 Rotating Gobo Wheel: 7 interchangeable gobos plus open, Bi-directionally Birotatable, and shakable at variable speeds
  • Head Movement: pan 540º and tilt 270º with auto position correction and adjustable speed
  • Control: DMX512, 3 pins and 5 pins interface
  • Channels: short mode 22 channels , standard mode 30 channels and extended mode 34 channels
  • Other Functions: DMX512 wireless receiver, DMX512 wireless transmitter(optional)
  • Housing: high temperature engineering plastic
  • IP20
  • Net Weight: 25kg

For more information, please visit the manufacturer's website
