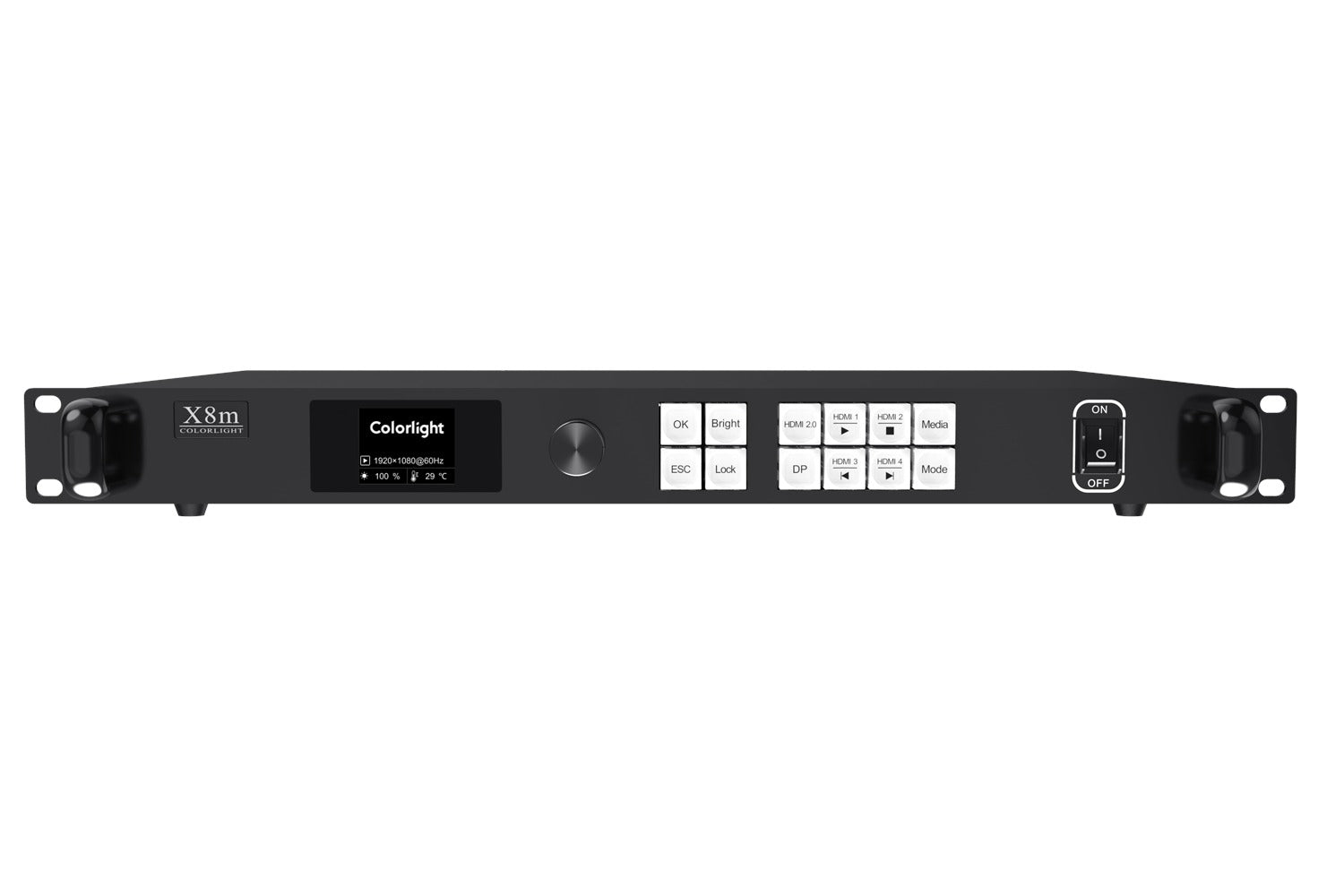

Colorlight CL-X8M Ultra-4K LED Video Processor

CL-X8m is an Ultra-4K LED video controller with powerful video signal input and processing abilities. It is so versatile, offering flexible screen control and high-quality image display portfolios. The device supports 4K and 2K video signal inputs and LAN port output mode. A load capacity of up to 5.24 million pixels creates a dynamic viewing experience that stays with you.

Features

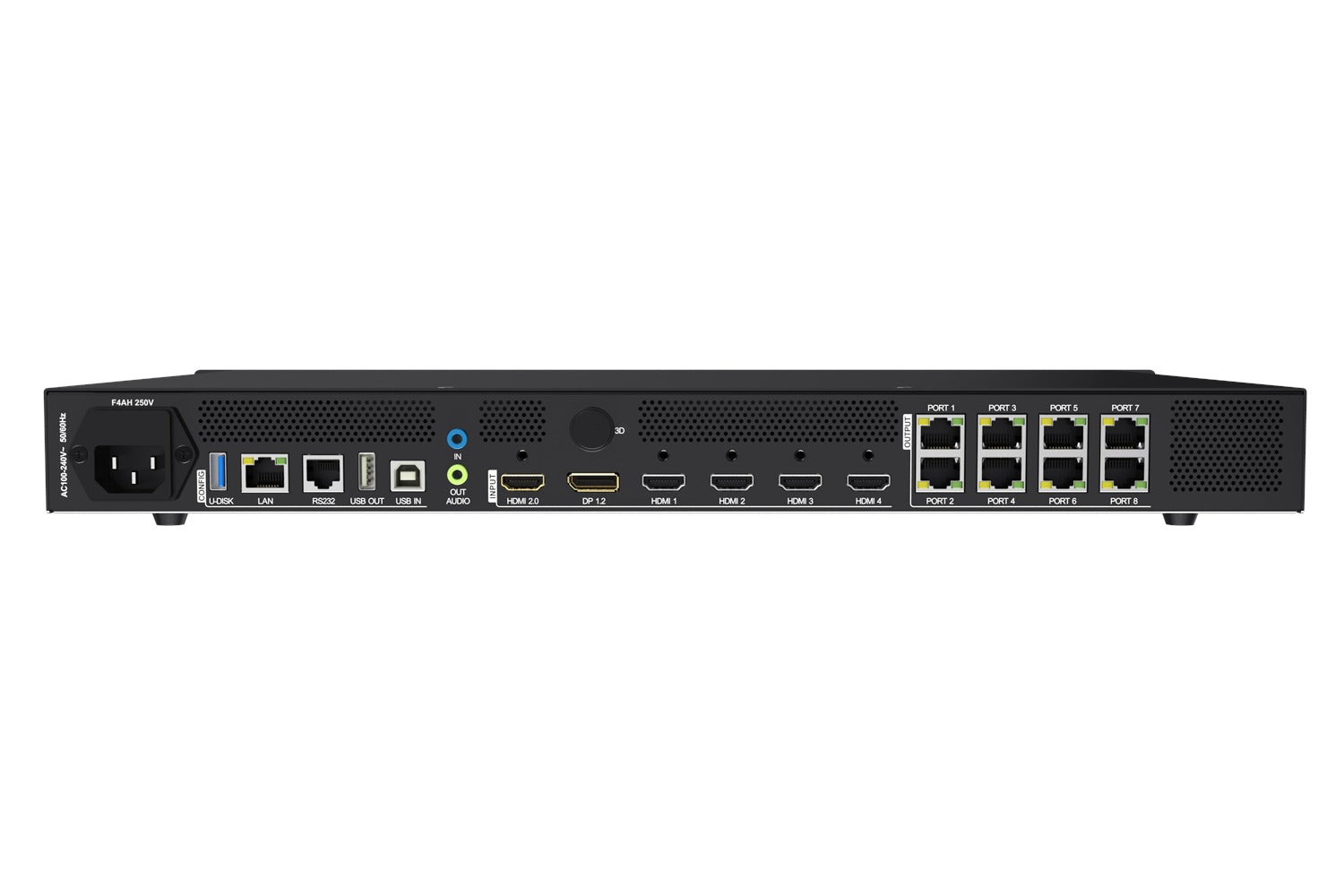

Input

• Resolution: Supports up to 4096×2160@60Hz.
• 4K Input Ports:
  • 1× DP 1.2
  • 1× HDMI 2.0
• 2K Input Ports: 4× HDMI 1.4
• Additional: 1× USB drive port

Output

• Load Capacity: Up to 5.24 million pixels.
• Ports: 8× Gigabit Ethernet ports.

Audio

• Input: 1× Independent audio input.
• Output: 1× Independent audio output.
• Decoding: Supports HDMI and DP audio decoding and output.

Functions

• Multi-Window Support:
  • Up to 6 windows (1 layer per window, overlapping).
  • Modes:
    • 1×4 Input: 4 HD inputs + 5 windows simultaneously.
    • 2×4 Inputs: 2 windows supported.
• Window Management:
  • Navigate, resize (min. 64×64), and crop seamlessly.
• Color & Display:
  • Precise color management (adjustable gamut).
  • Genlock Synchronization:
    • Internal vsync locking.
    • Auto-genlock by layer.
  • Brightness/Color: Adjustable brightness, precise color temperature.
  • 3D Support: Optional.
  • Low-Brightness Grayscale: Maintains clarity in dark scenes.
• Presets & Playback:
  • 128 preset scenes (save/load).
  • USB playback and upgrading.
  • OSD (On-Screen Display): Optional.

Control

• USB Port: For control and cascading.
• RS232 Protocol: Supported.
• LAN Port Control: Yes.
• App Control: Supported.

Configuration

• OS: Windows Server 2016 (no restrictions).
• CPU: Dual-core 2.5GHz or better.
• RAM: 8GB or above.
• SSD: 150GB or above.
