PR Lighting

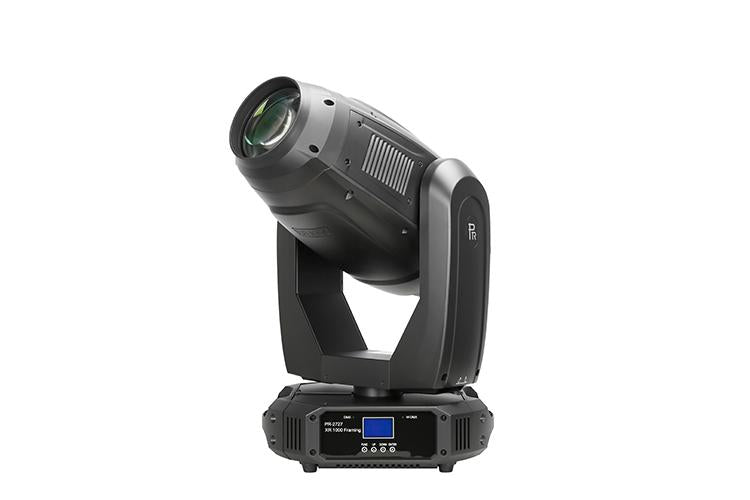

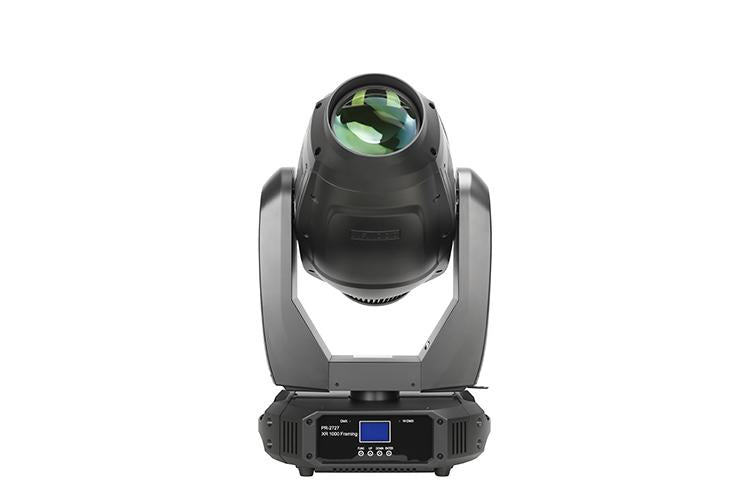

XR 1000 Framing

XR 1000 Framing

Regular price $0.00
Regular price Sale price $0.00
Sale Contact Us for Availability
Based on the same OSRAM 1000W metal halide lamp, XR 1000 Framing (PR-2727) features with 1 framing module which provides a lot of graphic and dynamic effects, this new versatile unit is designed for the most demanding lighting applications.

Key Features

  • Light Source:
    • OSRAM HTI 1000W/PS Lok-it!(5,800K, PGJX36 socket), 750hrs
    • Or PHILIPS MSR GoldTM 1000 MiniFastFit(6,000K, PGJX36 socket), 900 hrs
  • Input Voltages: 200-240V AC, 50/60Hz
  • Power Consumption:1200W@220V
  • Strobe: double shutter blades, 0.3-25 F.P.S with macros
  • Dimmer: mechanical dimmer 0-100% linearly adjustable
  • Prism: 1x3-facet prism, bi-drectionally rotating at variable speed, indexable
  • Frost: 1 frost filter
  • Iris: 5-100% linearly adjustable with macros
  • Focus/Zoom: motorized linear focus and zoom
  • Light Angle: 11° ~ 51°
  • Colours:
    • Smooth CYM colour mixing system with macros
    • 1 Color Wheel: 7 dichroic color filters plus open
    • Half colour effect, variable speed and bi-directional rainbow effect
    • Stepping/linear colour changing is available
    • Linear colour temperature correction
  • Gobos:
    • 1 Fixed Gobo Wheel: 7 interchangeable gobos plus open. Shaking at variable speed and bi-directional scrolling effect
    • 1 Rotating Gobo Wheel: 7 interchangeable gobos plus open, glass and metal gobos can be fixed. Bi-directionally rotating, index, shaking at variable speed and bi-directional scrolling effect
  • Framing:
    • 4 Sets of framing blades, 0°~90° rotation, graphics at different sizes and shapes, curtain effect
  • Head Movement: pan 540º and tilt 270º with auto position correction
  • Control: DMX512, 3 pins and 5 pins interface
  • Channels: Short mode 30 channels, standard mode 36 channels, extended mode 51 channels
  • Other Functions: DMX512 wireless receiver, DMX512 wireless transmitter(optional)
  • Housing: composite plastics
  • IP20
  • Net Weight: 32kg

      For more information, please visit the manufacturer's website
