XRLED 1500-W Spot
PR Lighting

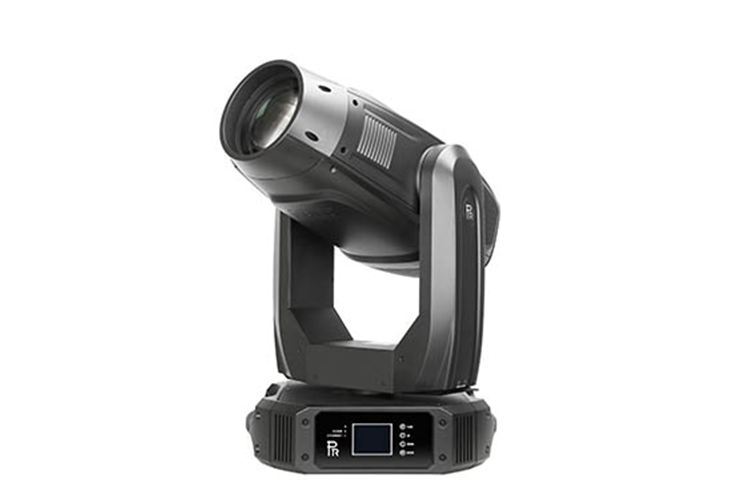

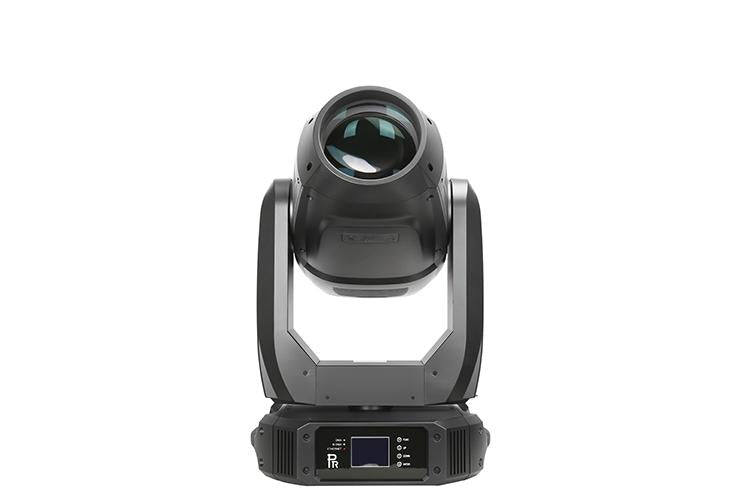

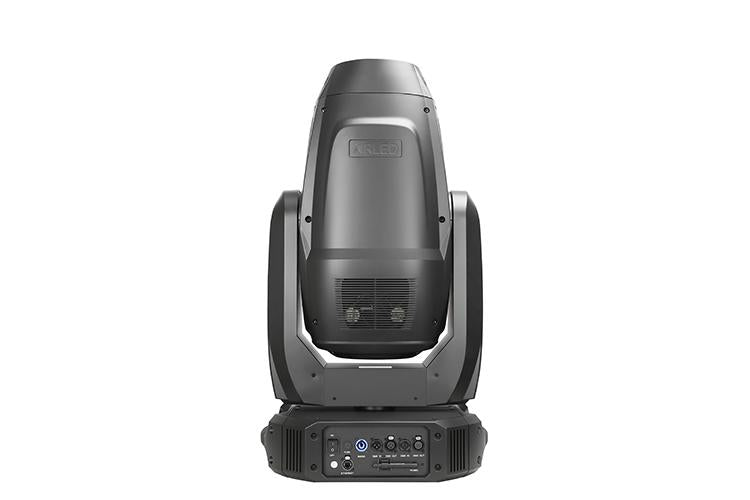

XRLED 1500-W Spot

Regular price

The XRLED 1500-W Spot (PR-8170) is a newly launched LED spot moving head, equipped with 620W LED module. The unit offers double rotating gobo wheels, colourful prism, wide range beam light, combined with touch screen, network interface, intelligent fan control...

Key Features

  • Light Source: Atria HL620-A, 620W (8,000±500K), >20,000 hrs
  • Input Voltages: 100-240V AC, 50/60Hz
  • Power Consumption: 930W@230V
  • Strobe: Electronic strobe, 0.3-25 F.P.S
  • Dimmer: 0-100% linearly adjustable, 4 kinds of optional dimmer modes
  • Prism:1x4-facet prism, bi-directionally rotatable at variable speed, indexable
  • Iris: 5-100% linearly adjusted with macros
  • CTO: 0-100% linear CTO system
  • Focus/Zoom: motorized linear focus and zoom
  • Light Angle: 8°~56°
  • Colours
    • CYM linear colour mixing with macros
    • 1 Color Wheel: 6 dichroic color filters plus open
    • Half colour effect, variable speed rainbow effect
    • Stepping/linear colour changing is optional
    • 0-100% linear colour temperature adjustment
  • Gobos

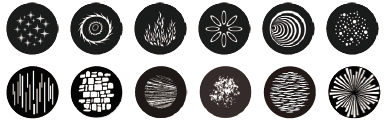

    • 2 Rotating Gobo Wheels: each with 6 replaceable gobos plus open, glass or metal gobos can be fixed. Bi-directionally rotatable and wheel scrolling at variable speed, indexable. Shakable at variable speeds
    • 1 replaceable animation wheel, bi-directionally rotatable at variable speed
  • Head Movement: pan 540º, tilt 270º with auto position correction
    • Control: DMX512, 3 pins and 5 pins interfaces,RDM, Art Net
    • Channels:short mode 25 channels, standard mode 31 channels, and extended mode 38 channels
    • Other Functions: DMX512 wireless receiver, DMX512 wireless transmitter(optional)
    • Housing: composite plastic
    • IP20
    • Light Weight: 42.5kg

    For more information, please visit the manufacturer's website
