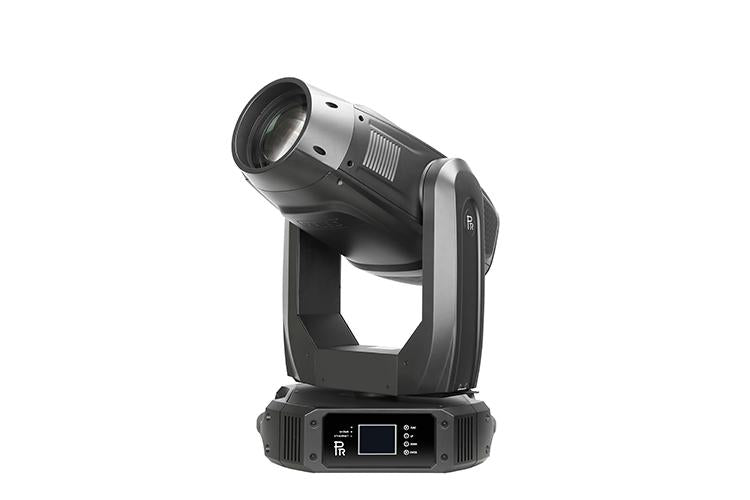

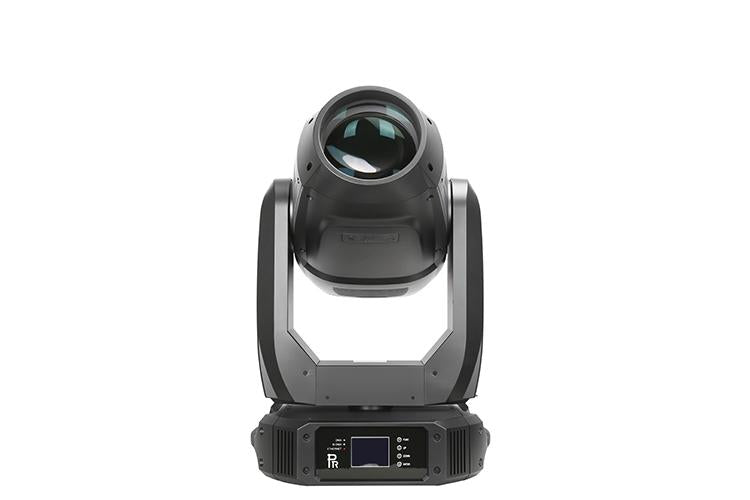

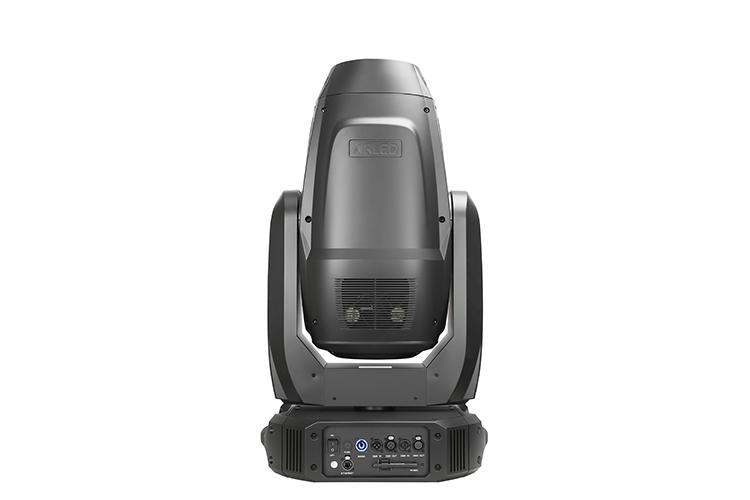

The XRLED 1500-W Framing (PR-8177) is the most advanced 620W professional LED moving head. In addition to its complete range of spotlight effects, it has an exclusive framing system.
Prism: 1x4-facet prism, bi-directionally rotatable at variable speed, indexable
CTO: 0-100% linearly adjustable
Effect: 1 replaceable animation wheel, bi-directionally rotatable at variable speed
Frost: 1 frost filter with linear frost effect
Iris: 5-100% linearly adjustable, with macro
Focus/Zoom: motorized linear focus/zoom
Light Angle: 8°~56°
Colour
CYM linear color mixing with macros
1 Color Wheel: 6 dichroic colors filters plus open
Half color effect, variable speed rainbow effect
Stepping/linear color changing is optional
Linear color temperature adjustment
Gobos
1 Fixed Gobo Wheel: 7 replaceable gobos plus open
1 Rotating Gobo Wheel: 6 replaceable gobos plus open, glass or metal gobos can be fixed. Bi-directionally rotatable and wheel scrolling at variable speed, indexable shakable at variable speeds
Framing: 4 sets of framing blades
Head Movement: pan 540°, tilt 270° with auto position correction
Control: DMX512, 3 pins and 5 pins interfaces, RDM, Art Net
Channel: short mode 33 channels, standard mode 39 channels and extended mode 54 channels
Other Functions: DMX512 wireless receiver, DMX512 wireless transmitter(optional)
