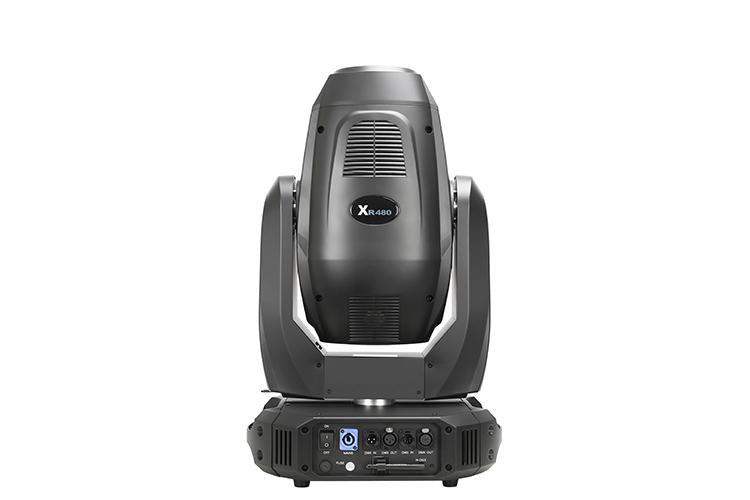

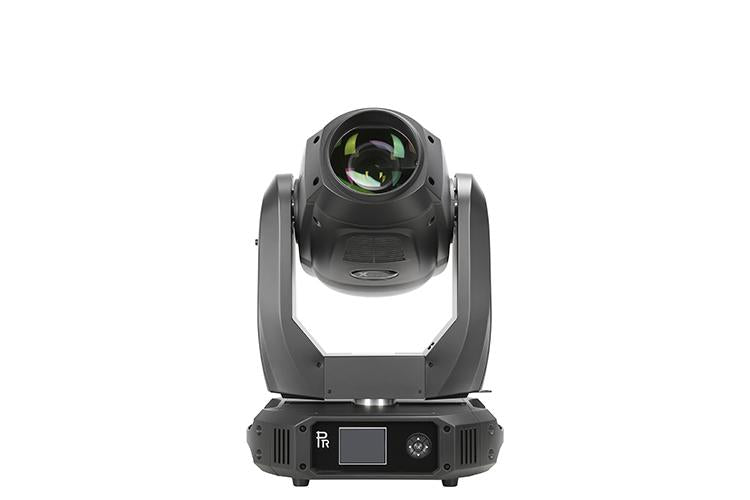

XR 480 BWS

The new hybrid versatile 3-in-1 luminaire XR 480 BWS (PR-2493） integrates three features(Beam, Wash, Spot) in a single unit. It has adopted PR patented technology, combines advanced 480W lamp technology with superb optical system.

Key Features

• Light Source: 480W(7000K, 1500 hrs)
• Input Voltages: 100V~240VAC, 50/60Hz
• Power Consumption: 680W@220V
• Strobe: double shutter blades, 0.3~25 F.P.S with macro
• Dimmer: 0-100% linearly adjustable
• Prism: 2 prisms(standard: 8-facet and 16-facet prisms)Optional: 3-facet/16-facet liner prism or gradient prism. Bi-directional rotating at variable speeds
• Frost: 1 individual frost filter
• Diffuser: 1 independent diffuser(optional even beam mode)
• Focus/Zoom: DMX linear focus and zoom
• Light Angle:
• beam mode: 2.3°~ 10°
• spot mode: 5°~ 40°
• wash mode: 5°~ 50°
• Colours:
• CYM linear color mixing with macros
• 1 Color Wheel: 13 dichroic color filters(with CTO) plus open
• Rainbow effect with bi-directional and variable speeds
• Stepping/linear color changing
• Gobos:
• 1 Fixed Gobo Wheel: 10 gobos plus open. Bi-directionally rotatable, and shakable effect at variable speeds
• 1 Rotating Gobo Wheel: 9 interchangeable gobos plus open. Bi-directionally rotatable, and shakable at variable speeds
• Head Movement: pan 540º and tilt 270º with auto position correction
• Control: DMX512, 3 pins and 5 pins interface
• Channels: short mode 23 channels , standard mode 28 channels and extended mode 33 channels
• Other Functions: DMX512 wireless receiver, DMX512 wireless transmitter(optional)
• IP20
• Net Weight: 22.2kg

For more information, please visit the manufacturer's website
