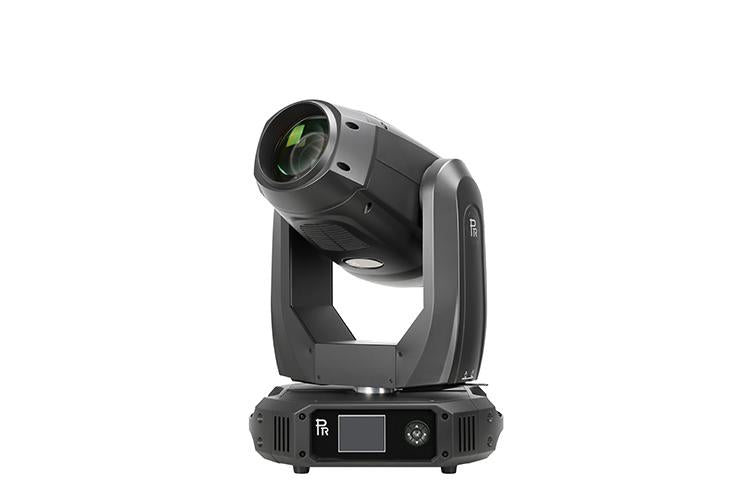

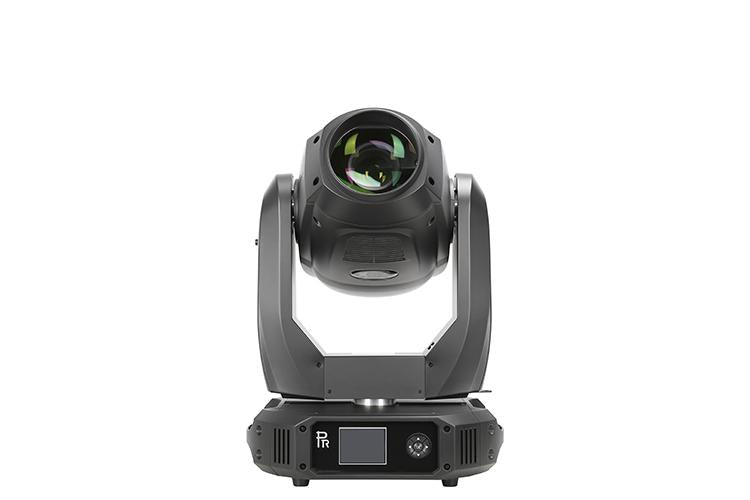

The XR 350B BWS (PR-2392) is a hybrid versatile 3-in-1(Beam, Wash, Spot) luminaire, 2.3° to 10° zoom in beam mode, 5° to 40° zoom in spot mode and 16° to 50° zoom in wash mode. Light weight and easy maintenance.
Key Features
Light Source:
USHIO NSL-350A 350W (6800K,1500 hrs)
Optional: PHILIPS 17R350W
Input Voltages:100V~240V AC, 50/60Hz
Power Consumption: 470W@220V
Strobe: double shutter blades, 0.3~25 F.P.S
Dimmer: 0-100% linearly adjustable
Prism: 2 prisms(standard: 8-facet and 16-facet prisms). (optional: 3-facet prism and gradient prisms)bi-directional rotating at variable speeds
Frost: 1 frost filter
Diffuser: 1 independent diffuser, optional even beam mode
Focus/Zoom: motorized linear focus and zoom
Light Angle:
beam mode: 2.3°~ 10°
spot mode: 5°~ 40°
wash mode: 16°~ 50°
Colour:
CYM linear colour mixing with macros
1 Colour Wheel: 13 dichroic colour filters(with CTO) plus open
Rainbow effect with bi-directional and variable speeds
Stepping/linear colour changing
Gobos:
1 Fixed Gobo Wheel: 10 gobos +open +animation effect. Bi-directionally rotatable, and shakable effect at variable speeds, 2 channels to control gobos and shift between animation effects
1 Rotating Gobo Wheel: 9 interchangeable gobos plus open. Bi-directionally rotatable, and shakable at variable speeds
Head Movement: pan 540º and tilt 270º with auto position correction
Control: DMX512, 3 pins and 5 pins interface
Channels: short mode 23 channels, standard mode 28 channels, extended mode 33 channels
Other Functions: DMX512 wireless receiver, DMX512 wireless transmitter(optional)
