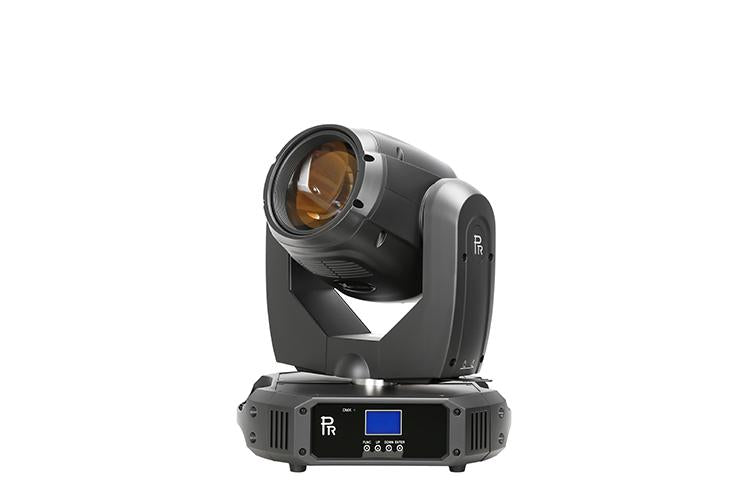

PR Lighting XR 230 BEAM
XR 230 Beam
PR Lighting

XR 230 Beam

Regular price

Equipped with OSRAM 230 HRI lamp, XR 230 Beam (PR-2205) light with a brightness usually achievable only with far greater wattages, weighing only 16 kg, it produces a perfectly parallel, laser-like beam with an incredible output of 68,600 lx at 20m.

Key Features

  • Light Source: OSRAM SIRIUS HRI 230W (8,000K), 2,000 hrs
  • Input Voltages: 100V~240V AC, 50/60Hz
  • Power Consumption: 310W@220V
  • Strobe: double shutter blades, 0.3-20 F.P.S
  • Dimmer: 0-100% linearly adjustable
  • Prism: 1x8-facet prism +CTO +frost filter plus open, bi-directional with variable speeds
  • Focus: motorized linear focus
  • Light Angle: 0°~4°
  • Colours:
    • 1 Color Wheel: 14 dichroic color filters plus open
    • Variable speed and bi-directional rainbow effect
    • Stepping/linear colour changing is available
  • Gobos:

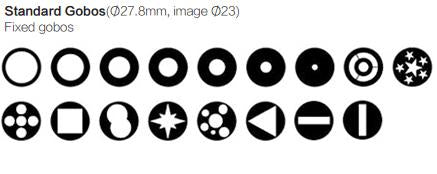

    • 1 Fixed Gobo Wheel: 17 fixed gobos plus open
    • Shaking and bi-directional wheel scrolling at variable speeds
    • Gobo changing is available
  • Head Movement: pan 540º and tilt 270º with auto position correction
  • Control: DMX512, 3 pins and 5 pins interface
  • Channels: short mode 10 channels, standard mode 14 channels and extended mode 16 channels
  • Other Functions: DMX512 wireless receiver(optional), DMX512 wireless transmitter(optional)
  • Housing: composite plastics
  • IP20
  • Net Weight: 16kg
        For more information, please visit the manufacturer's website
