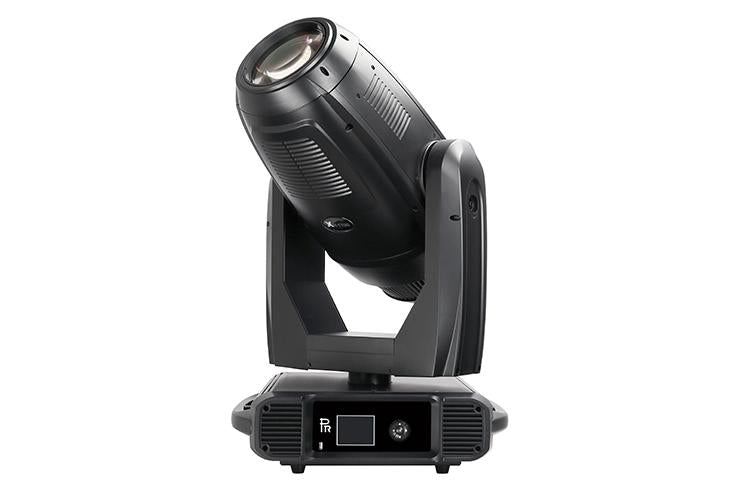

XR 1700 Spot

XR 1700 Spot (PR-2880) is a very powerful moving head, equipped with advanced OSRAM 1700W lamp and optimised optical system, which can produce sharp beam (narrow angle 5°) effect. 5° to 55° zoom, CMY linear colour mixing system can provide a full spectrum of colours.

Key Features

• Light Source: OSRAM HTI Lok-it 1700/PS(5,600K,single-ended), 750hrs
• Input Voltages:100V~240V AC, 50/60Hz
• Power Consumption: 2100W@220V
• Strobe: double shutter blades, 0.3~25 F.P.S
• Dimmer: mechanical dimmer 0-100% linearly adjustable
• Prism: 2x6-facet prisms(circular and linear), bi-drectionally rotating at variable speed, indexable
• Frost: 2 frost filters(heavy +light), linearly adjustable and both can overlap
• Iris: 5-100% linearly adjustable with macros
• CTO: 0-100% linear CTO system
• Focus/Zoom: DMX linear focus/zoom
• Light Angle: 5°~55°
• Colour:
• Smooth CMY colour mixing system with macros
• 2 Colour Wheels: each with 7 dichroic colour filters plus open
• Half colour effect, variable speed and bi-directional rainbow effect
• Stepping/linear colour changing is available
• Linear colour temperature correction system
• Gobos:
• 2 Rotating Gobo Wheels: each with 6 interchangeable gobos plus open, glass and metal gobos can be fixed. Bi-directionally rotating, index, shaking at variable speed and bi-directional scrolling effect
• Effect: double effect wheels, individually and bi-directionally rotatable at variable speeds
• Head Movement: pan 540º and tilt 270º with auto position correction
• Control: DMX512, 3 pins and 5 pins interface
• Channels: short mode 32 channels, standard mode 39 channels, and extended mode 46 channels
• Other Functions: DMX512 wireless receiver, DMX512 wireless transmitter(optional)
• Housing: composite plastic
• IP20
• Net Weight: 52kg
