PR Lighting Moving Head
XR 1700 Framing
PR Lighting

XR 1700 Framing

Regular price

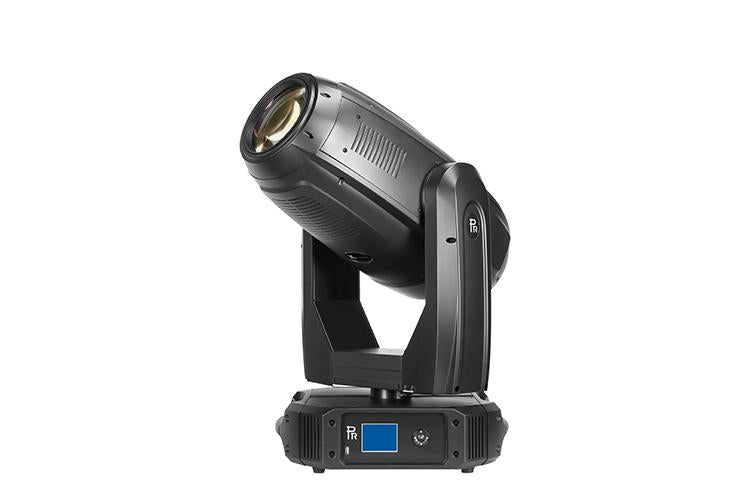

XR 1700 Framing (PR-2887) is the new flagship framing moving head in PR's XR series range. It produces unprecedented light output from its 1700 watt. 4 framing blades entire module with endless rotation is a truly great breakthrough for XR 1700 Framing, in addition, graphics in different sizes and shapes can creates full curtain effect.

Key Features:

  • Light Source: OSRAM Lok-it 1700/PS (6000K, socket: single-ended ), 750 hours
  • Input Voltages: 200V~240V AC, 50/60Hz
  • Power Consumption: 2000W@220V
  • Strobe: double shutter blades, 0.3-25 F.P.S
  • Dimmer: 0-100% linear adjustment
  • Prism: 2x6-facet prisms(circular and linear), bi-directional rotation with variable speeds, with indexing function
  • CTO : 0-100% linear CTO system
  • Effect: double effect wheel, bi-directional rotation with variable speeds
  • Frost: 2 individual frost filters, light and heavy
  • Iris: 5-100% linear adjustment with macros
  • Focus: DMX linear focusing
  • Light Angle: 5°~55°
  • Colours:
    • CMY linear color mixing system with macros
    • 1 Color Wheel: 7 colors plus open half-color effect, bi-directional rainbow effect with variable speeds
    • Stepping/linear color changing
  • Gobos:
    • 2 Rotating Gobo Wheels: each 6 interchangeable gobos plus open, glass gobos or metal gobos
    • Bi-directionally rotatable, scrolling and shakable at variable speeds, indexing
  • Framing:
    • 1 Framing Module: 4 framing blades entire module with endless rotation, graphics in different sizes and shapes 4 framing blades make full curtain effect
  • Head Movement: pan 540° and tilt 270° , with auto-positioning correction
  • Control: DMX512, 3 pins and 5 pins interface
  • Channels: short mode 40 channels, standard mode 46 channels, extended mode 62 channels
  • Other Functions: DMX512 wireless receiver, DMX512 wireless transmitter(optional)
  • Housing: high temperature ABS
  • IP20
  • Net Weight: 52kg
