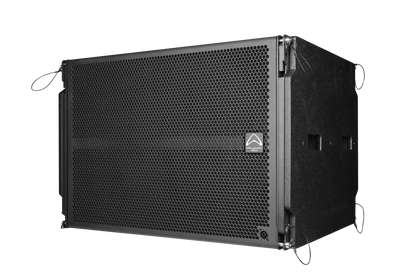

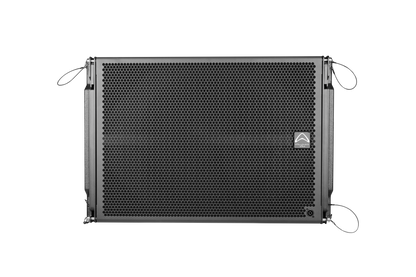

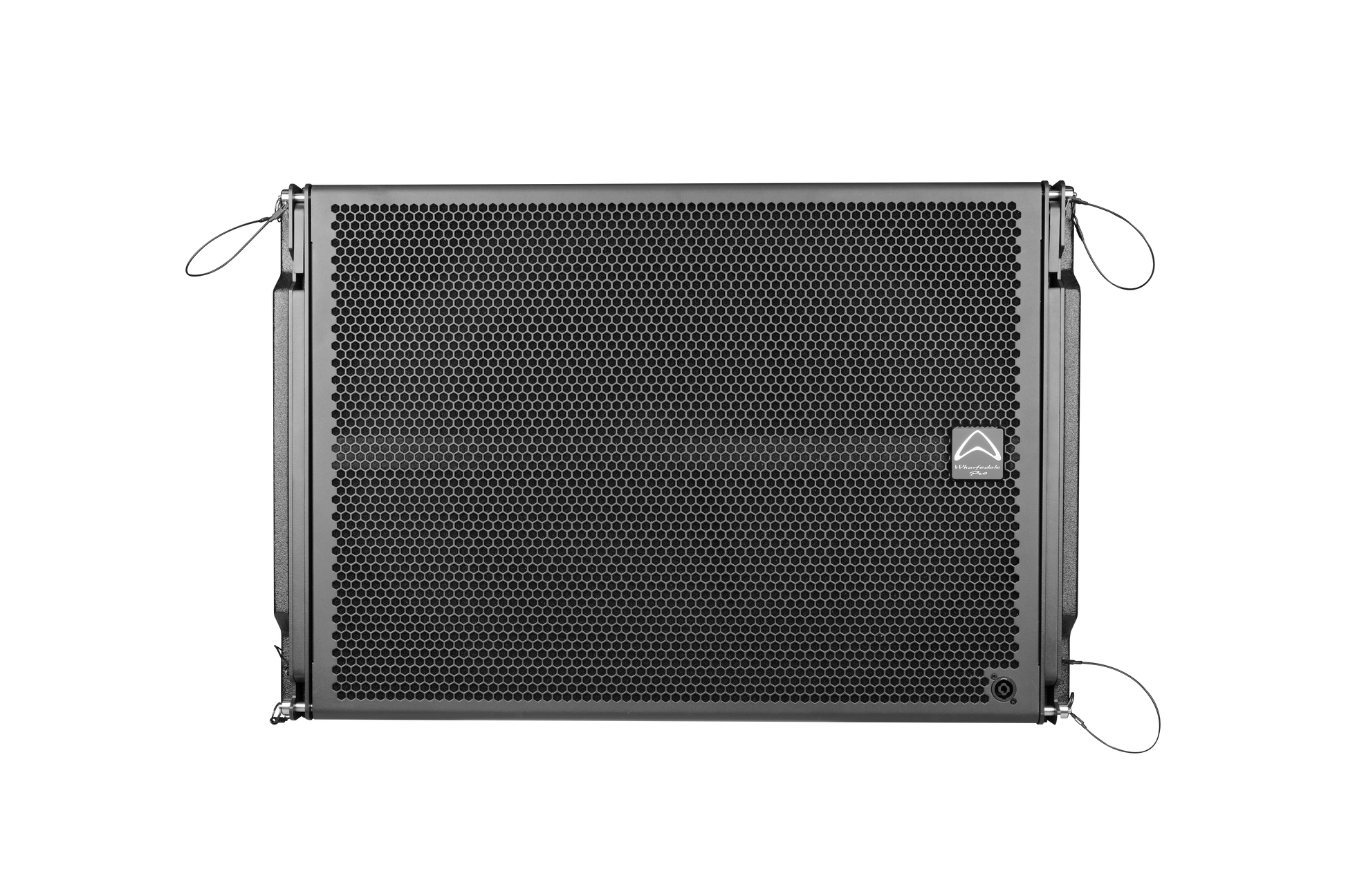

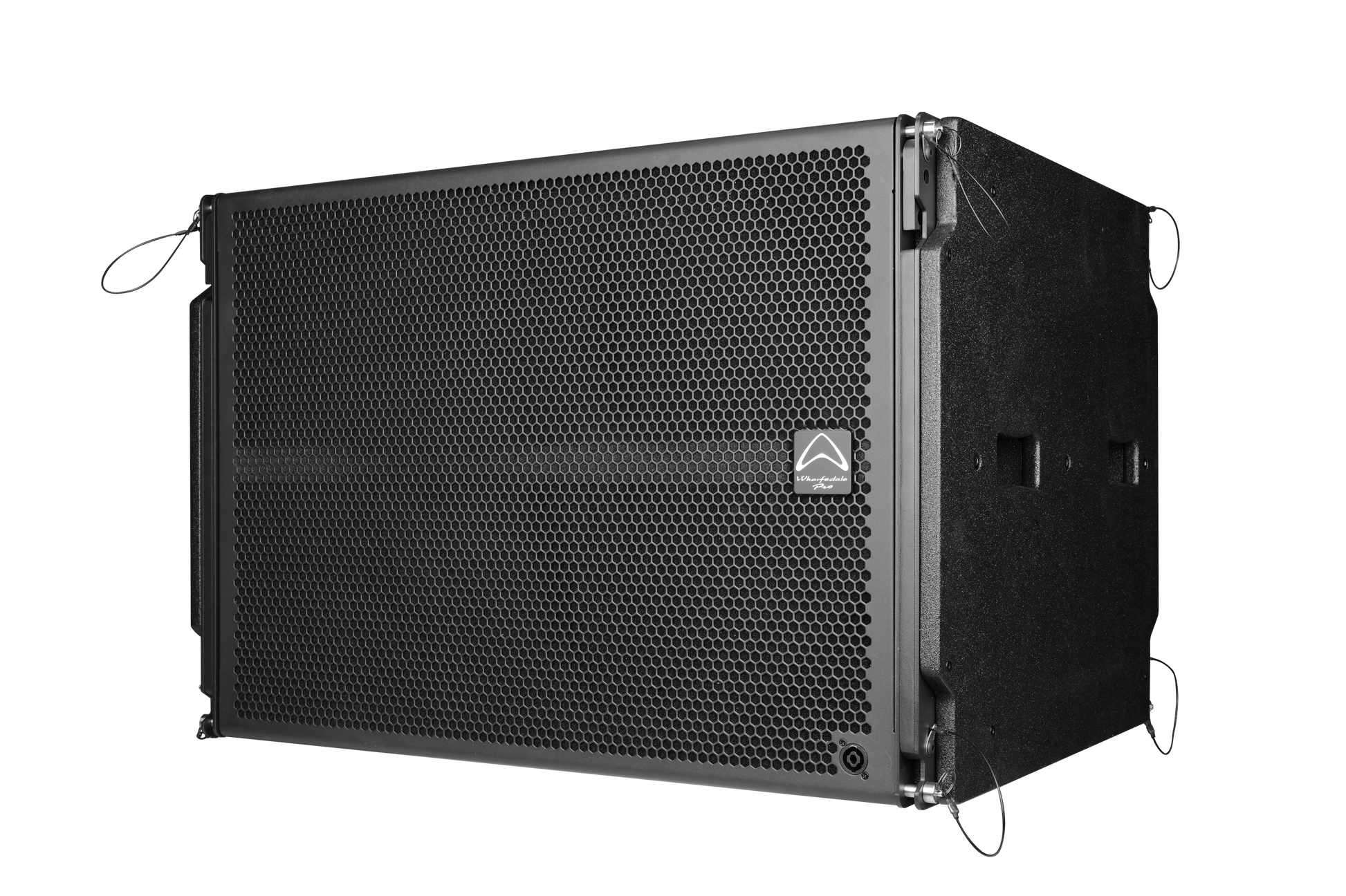

Wharfedale Pro XLA-118SUB - Passive Line Array Subwoofer
Wharfedale Pro XLA-118SUB - Passive Line Array Subwoofer
XLA SERIES
Simply.....over-engineered
The XLA Series is Wharfedale Pro’s all-new flagship line array system.
With two subwoofer models and a 3-way full-range coaxial element, the system employs advanced acoustical engineering to deliver stunning, immersive sound.
At the core of the XLA-308 full-range element is a centrally mounted coaxial mid-high transducer, integrated with Wharfedale Pro’s innovative EVO-FLOW waveguide. Flanked by two advanced 8” neodymium woofers in separate vented enclosures, this design ensures precise, high-performance low- frequency output while maintaining compact dimensions and reduced weight. Custom drivers, crafted by B&C in Italy, provide exceptional clarity, uniformity, and sonic detail across all frequencies above 500 Hz.
For deep, powerful bass and unmatched system versatility, XLA Series offers two subwoofers. The XLA-118SUB is Wharfedale Pro’s first cardioid-arrayable flown subwoofer, designed for maximum flexibility and precision. Complementing it is the overwhelming XLA-221SUB, (yes 2 x 21”) which delivers the INFRABASS that customers around the world have been anticipating.
Both subwoofers are equipped with advanced custom drivers from Beyma featuring Maltcross technology and 4.0” multi- layer voice coils. This ensures superior heat management and reliable performance even under demanding conditions.
With flexible rigging options, including cardioid flown configurations, rugged construction, and tailored FIR presets, the XLA Series ensures unmatched clarity, precision, and power.
XLA has been over-engineered to ensure that the audience hears every nuance of the performance with unprecedented clarity and uniformity. It's not just about volume; it's about delivering sound with precision and power.
Specifications
Model Name |
XLA-118SUB |
System Type |
Subwoofer (Passive) |
Configuration |
Single 18” Driver, Ported Subwoofer |

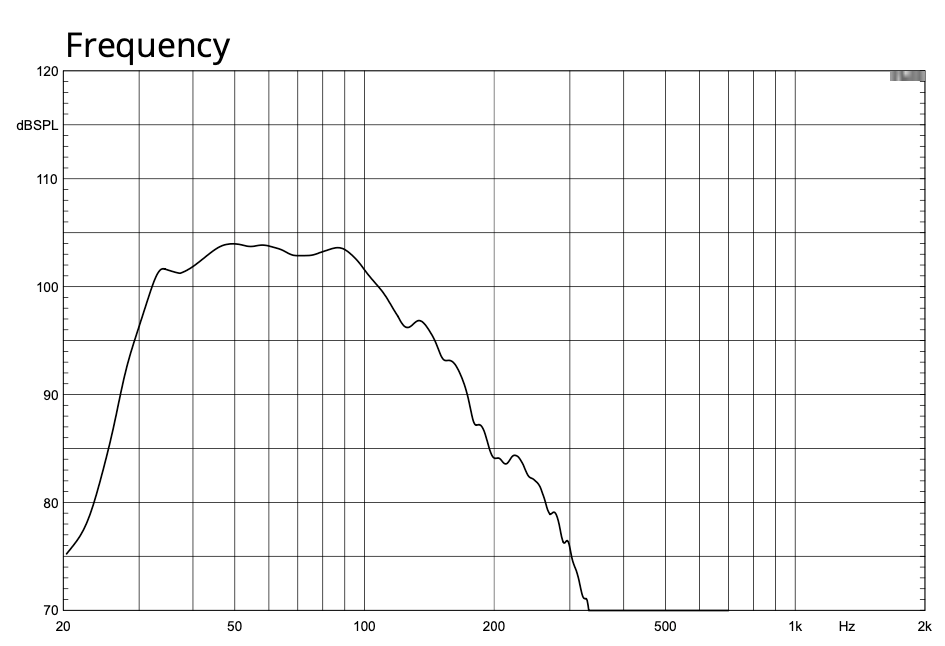

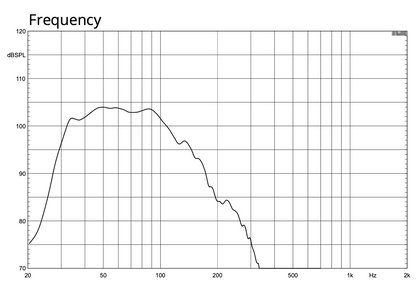

Frequency Response (+/-3 dB) |
35 Hz – 125 Hz |
Frequency Range (-10 dB) |
28 Hz – 160 Hz |
Sensitivity (2.83 v / 1 m) |
103 dB* |
Calculated Maximum SPL @1 m |
141 dB* |
System Peak SPL |
147 dB** |

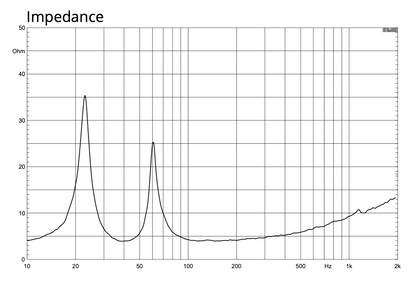

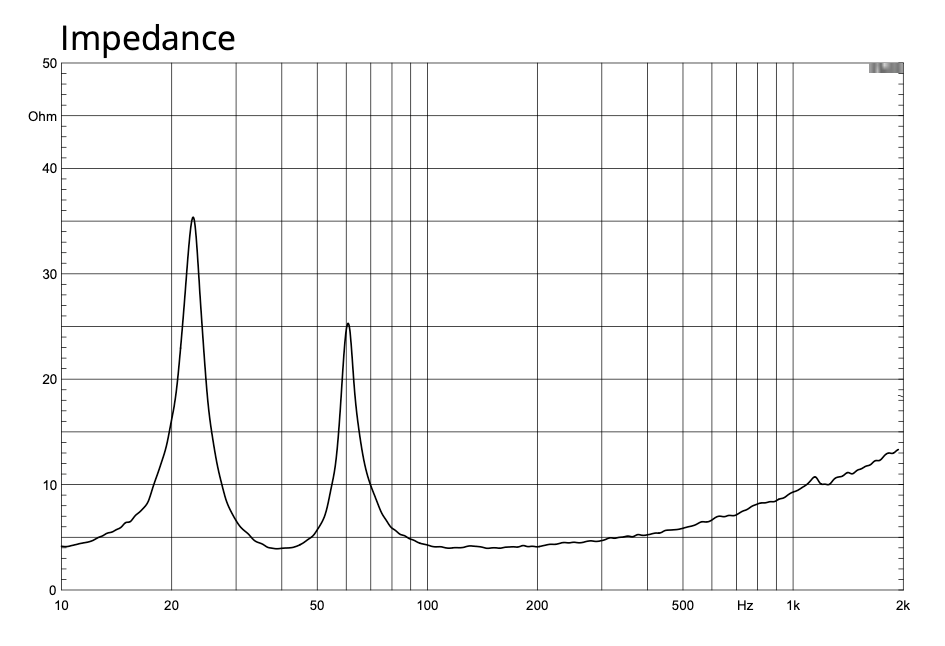

System Rated Impedance |
4 Ω |
* level at 1m under half space conditions using pink noise with crest factor 2, with dedicated preset |
|
Low Frequency Transducer |
|
Size |
18” |
Voice Coil Size |
101.6 mm / 4.0” DUO in/out voice coil |
LF Frame Material |
Cast Aluminium |
Special Features |
Aluminium demodulating ring Waterproof LF cone Maltcross® TCS iSGA configurable |
Driver Brand |
BEYMA |
Low Frequency Transducer Power (AES2) |
|
System Continuous Power |
1600 W |
System Programme Power |
3200 W |
System Peak Power |
6400 W |
Crossover frequency |
100 Hz |
Recommended HPF = BW 18dB/oct. |
30 Hz |
Construction |
|
Input Connector |
3 x speakON NL4 (2 rear, 1 front) |
Rigging & Hardware |
4 points for rigging |
Vertical Splay Angle Range |
0° |
Optional Accessories |
Dolly Board |
Hardware |
XLA Common Fly Frame |
Stand Pole |
M20 Pole Mount |
Handles |
2 side (4 pcs) + 2 back |
Enclosure |
Rectangular |
Enclosure Material |
18 mm Plywood |
Finish |
Tough-Tone Finish |
Colour |
Black |
Grille Material & Finish |
Powder coated perforated steel |

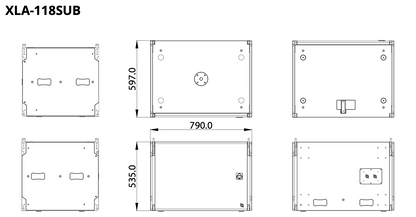

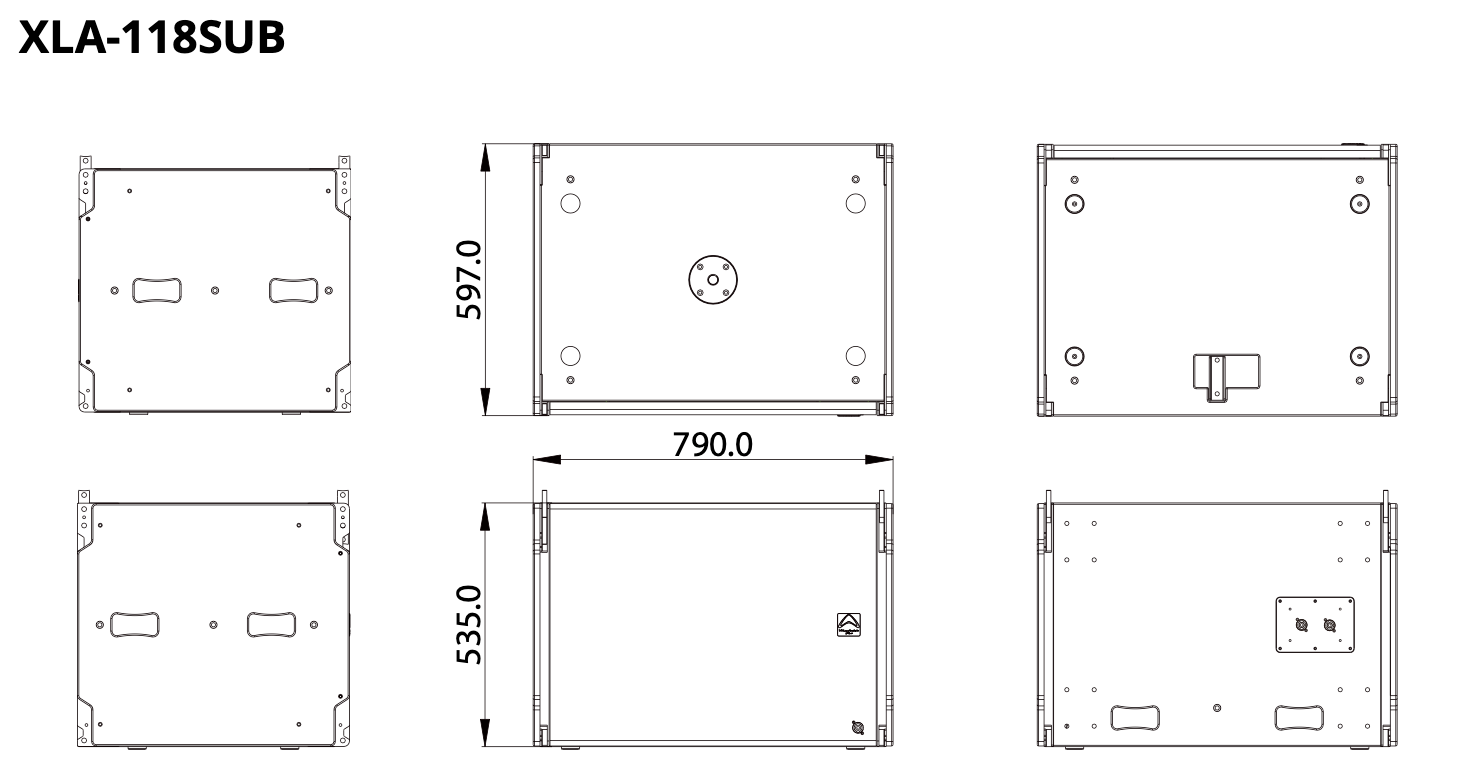

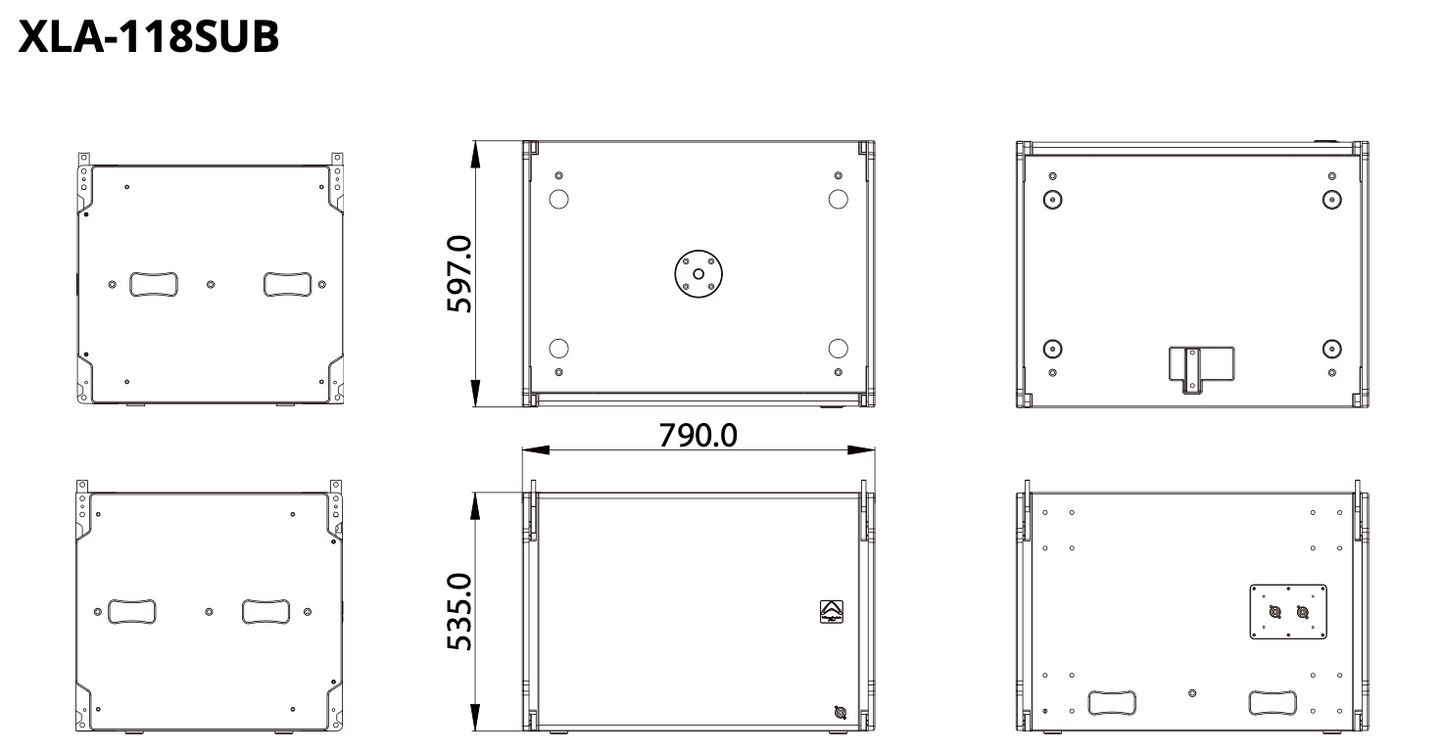

Dimensions – (Unpacked) |
|
Height |
535 mm / 21.1” |
Width |
790 mm / 29.9” |
Depth |
566 mm / 23.4” |
Dimensions – (Packed) |
|
Height |
620 mm / 24.4” |
Width |
870 mm / 34.3” |
Depth |
675 mm / 26.6” |
Weight |
|
Net Weight (kg / lbs) |
70.70 kg / 155.54 lbs |
Gross Weight (kg / lbs) |
81.9 kg / 180.2 lbs |
