High End Systems

USB MIDI/LTC WIDGET

USB MIDI/LTC WIDGET

Regular price $0.00
Regular price Sale price $0.00
Sale Contact for Availability

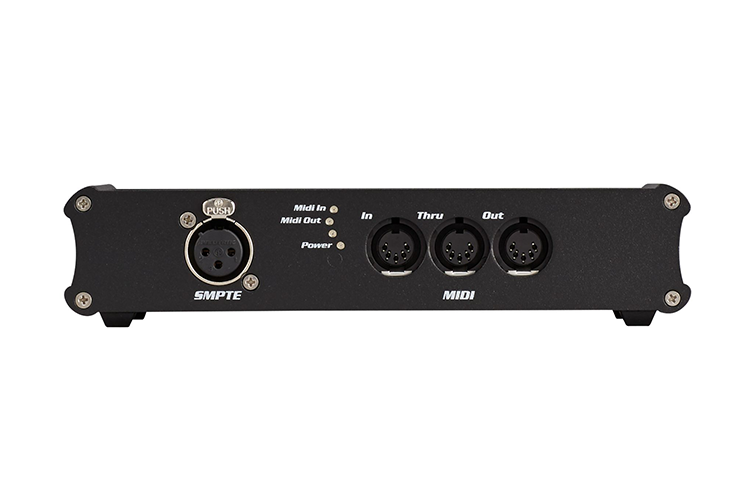

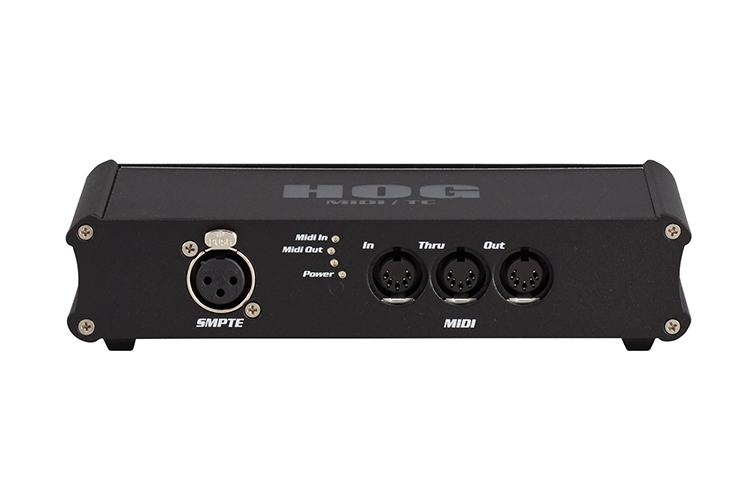

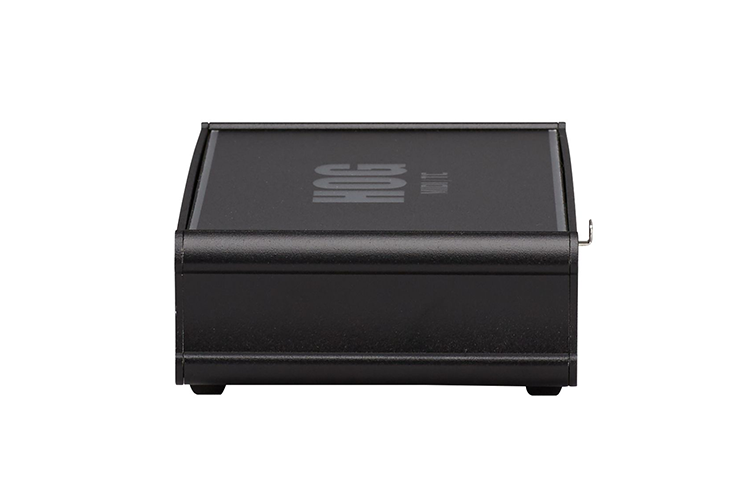

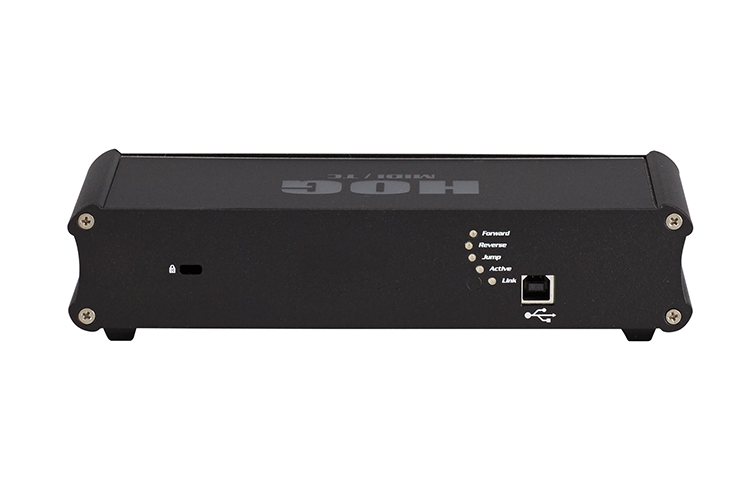

The MIDI/LTC Widget provides a single Linear Timecode input and MIDI in/out/thru for any Hog 4 OS console or Hog 4 PC. When used in conjunction with Hog 4, Full Boar 4, or Road Hog 4, the LTC Widget provides a powerful level of timecode functionality.

The USB MIDI/LTC Widget provides a single Linear Timecode input and MIDI in/out/thru for any Hog 4 OS console or Hog 4 PC.

You are able to connect up to eight MIDI/LTC widgets to your console or each DMX Processor 8000, bringing multiple timecode sources to the console.

FEATURES

  • USB connection to any Hog 4 console as well as Hog 4 PC
  • Rugged, stackable aluminum housing
  • One USB input connector providing power
  • One Linear Timecode (LTC/SMPTE) input on 3 pin XLR connector
  • MIDI in/out/thru supporting MIDI messages, MIDI Show Control, and MIDI Time Code
  • Multiple USB MIDI/LTC Widgets can be connected via USB Hub
  • Kensington security slot
  • Storage Temperature 20-60°C / 0-140°F
  • Compliance: ETL, CETL, CE

    WEIGHTS AND DIMENSIONS

    • Width: 198mm / 7.8"
    • Depth: 106mm / 4.2"
    • Height: 45mm / 1.8"
    • Weight: 0.5kg / 1.1lb

          For more information, please visit the manufacturer's website
