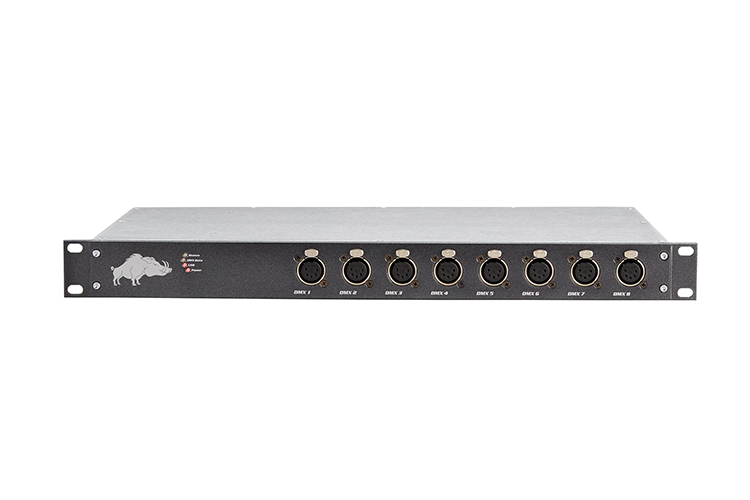

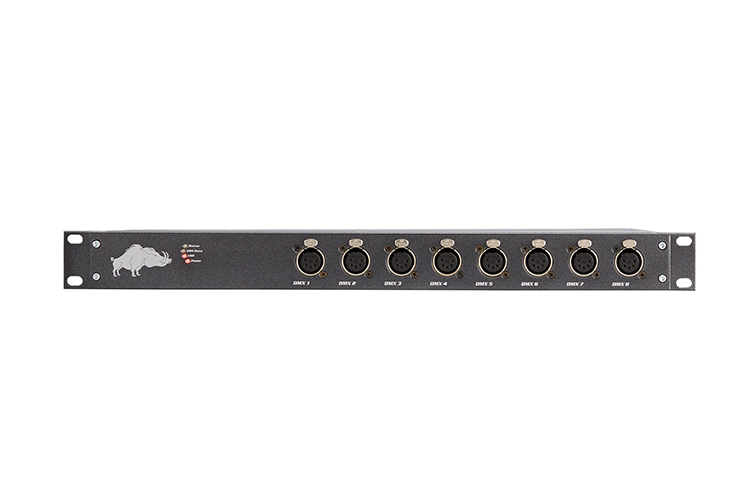

Super Duper Widget front view
Super Duper Widget front view

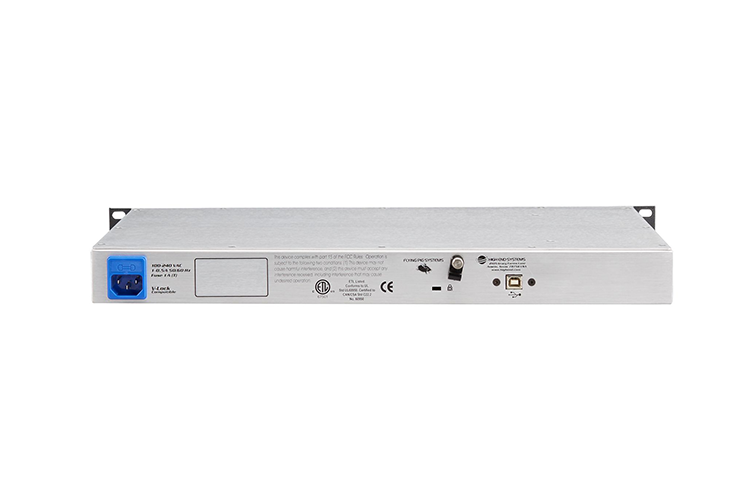

Super Duper Widget rear view

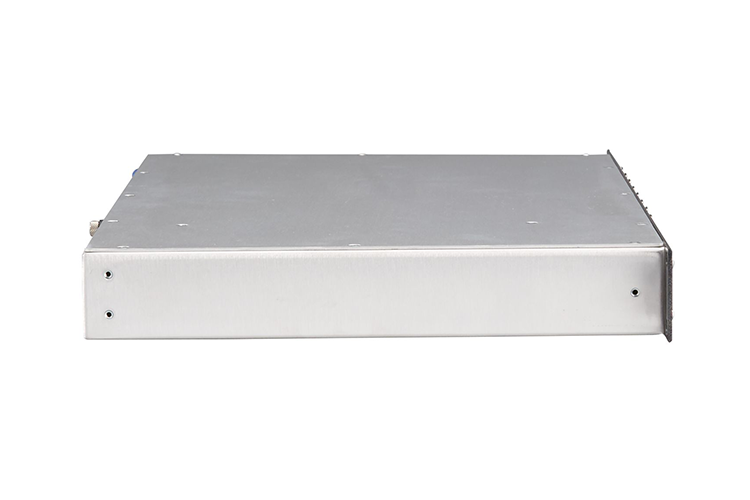

Super Duper Widget side view
High End Systems

USB DMX SUPER DUPER WIDGET

Regular price

DMX Widgets allow you to easily expand your console's DMX output. Simply attach USB DMX Super Duper Widget and ― just like that ― you have added eight ports and universes.

The USB DMX Super Duper Widget provides eight universes of DMX-512 output from any Hog 4 console or Hog 4 PC (four universes on Road Hog 4).

With Hog 4 PC, attaching USB DMX Super Duper Widgets also unlocks the corresponding universes of Art-Net and sACN.

FEATURES

  • USB connection to any Hog 4 console as well as Hog 4 PC
  • 19" Rackmount form factor
  • Eight DMX-512 outputs on 5-pin XLR connectors
  • Supports up to 4096 output channels
  • Kensington security slot
  • One USB input connector
  • Storage Temperature 20-60°C / 0-140°F

ELECTRICAL

  • Compliance: ETL, CETL, CE
  • Mains power: 100-250VAC, 50/60Hz, max 200W
  • Mains connector:  IEC320 C13
  • Fuse: 1x 5x20mm 5AT fuse

      WEIGHTS AND DIMENSIONS

      • Width: 483mm / 19.1"
      • Depth: 277mm / 10.9"
      • Height: 45mm / 1.75"
      • Weight: 2.6kg / 5.75lb

          For more information, please visit the manufacturer's website
