High End Systems

HEDGEHOG 4 Console

Regular price

HedgeHog 4 consoles might be small but they pack a serious punch! Built for travel (even on a plane), these consoles are compact and lightweight ― perfect for new users and smaller venues. School theaters, nightclubs, corporate events, medium-scale rental events and houses of worship are the HedgeHog 4’s natural habitat. HedgeHog 4 consoles share the same programming layout and capability as their larger brothers, and can happily load show files from any console in the range.

There are two models ― the base-level HedgeHog 4 and the expanded HedgeHog 4X. Both have an internal 12.1-inch multi-touch monitor, ten faders and four encoder wheels. The 4X has expanded networking capabilities and increased output capacity out of the box, while HedgeHog 4 users can perform a software update to unlock the 4X features at a later date.

FEATURES

  • Robust Hog 4 OS operating system
  • Hog-Net connector
  • Fixture-Net connector
  • Unlimited simultaneous crossfades
  • Internal solid-state hard drive
  • One internal 12-inch 10-point touchscreen

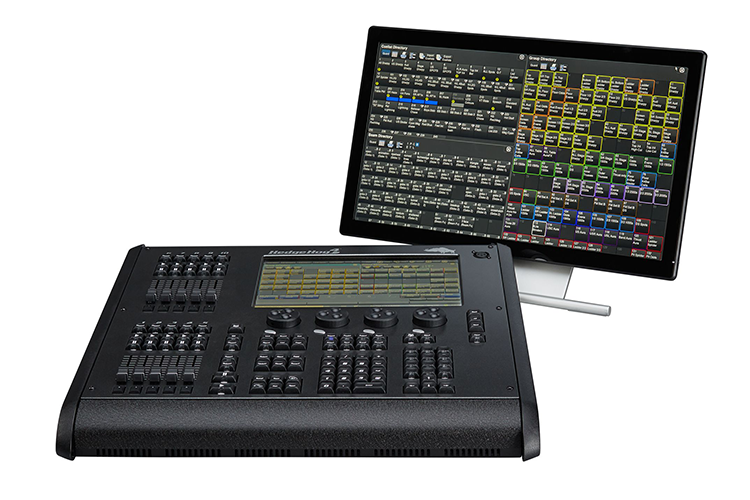

  • One external DVI-I monitor/touchscreen supported
  • 10 manual playback faders
  • Four expanded-wheelset encoders
  • 12 user-assignable function keys
  • Kensington security slot

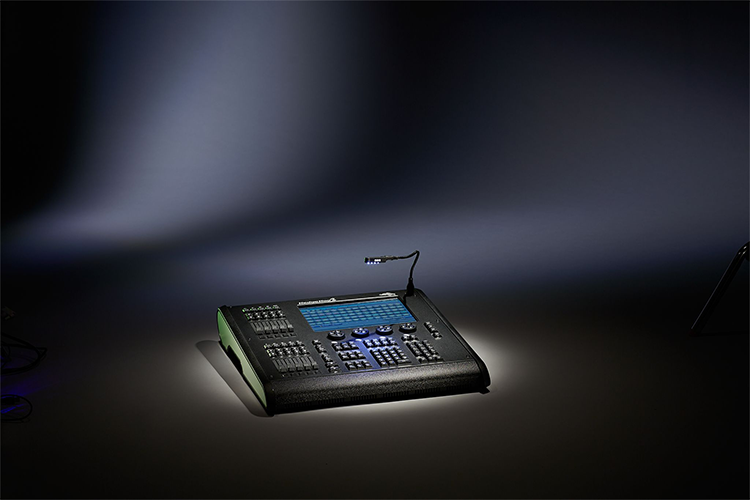

  • One dimmable white desk light included
  • Two USB flash drives for show storage and console recovery included
  • Dust cover included
  • Custom road case available

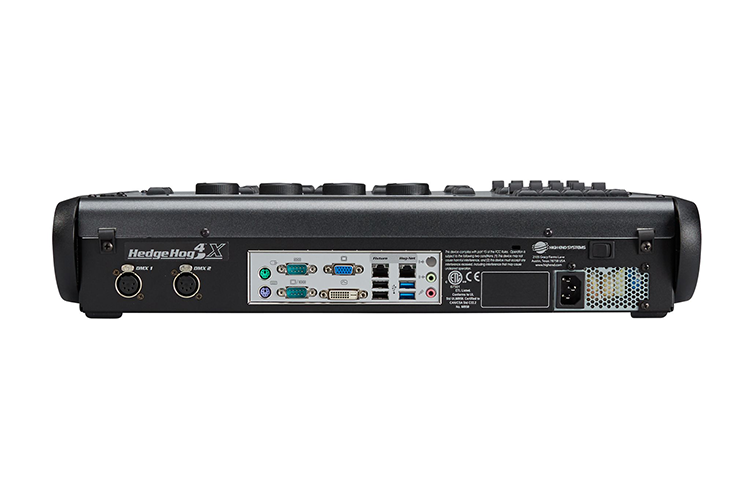

CONNECTIVITY

  • Local output processing: 4x universes (2048 output channels)
  • Local DMX-512 outputs: 2x Neutrik 5-pin XLR
  • Expandable DMX-512 outputs via USB DMX Widgets
  • MIDI in/out/thru supporting MIDI messages, MIDI Show Control, and MIDI Time Code
  • Connectivity with visualizers via Fixture-Net (Art-Net or E1.31/sACN, unrestricted by local output capacity)
  • Supports USB playback and expansion Wings
  • Software-upgradable to HedgeHog 4X
  • USB 2.0 ports: 2 rear
  • USB 3.0 ports: 2 rear

ELECTRICAL

  • Compliance: ETL, CETL, CE
  • Mains power: 100-250VAC, 50/60Hz, max 55W
  • Mains connector:  IEC320 C13
  • Fuse: 1x 5x20mm 5AT fuse

WEIGHTS AND DIMENSIONS

  • Width: 527mm / 20.8"
  • Depth: 555mm / 21.9"
  • Height: 101mm / 4.0"
  • Weight: 7.7kg / 17lb

OPTIONAL ACCESSORIES

  • HEDGEHOG4DC - HedgeHog 4 dust cover (replacement)
  • HOGDLW - Hog white desk light (replacement)
  • HEDGEHOG4CB - HedgeHog 4 soft carry bag
  • HEDGEHOG4GC - HedgeHog 4 Gator hard case
  • HEDGEHOG4RC - HedgeHog 4 Keal road case
  • HEDGEHOG4SU - Software upgrade: HedgeHog 4/4N/4S to 4X
  • HEDGEHOG4SU4 - Hardware/software upgrade: Gen. 1 HedgeHog 4 to 4X
  • HEDGEHOG4DCSU4N - Hardware/software upgrade: Gen. 1 HedgeHog 4N to 4X

For more information, please visit the manufacturer's website
