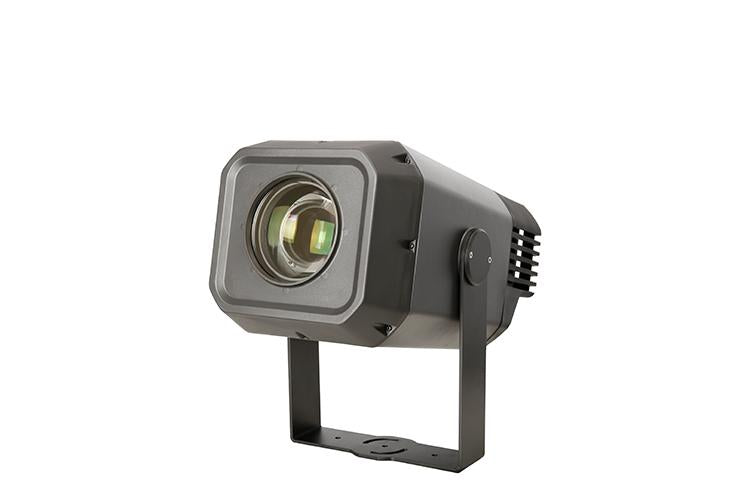

CUBIX500

CUBIX500 (PR-6600) is high temperature resistant and high-brightness luminaire equipped with a 250W LED lamp. It features colour wheel, gobo wheel, animation flame effect wheel, two prisms, 8°~40° zoom, rating IP65, etc. It's widely applied in multi-scale of locations.

Key Features

• Light Source: 250W white LED(6,500k), 50,000 hrs
• Input Voltages: 100-240V AC, 50/60Hz
• Power Consumption: 350W@220V
• Strobe: electronic strobe, 0-25 F.P.S
• Dimmer: 0-100% linearly adjustable
• Prism: 2 prisms(3-facet prism and 4-facet prism), bi-directionally rotating
• Effect: 1 flame effect wheel, with bi-directional rotation, animation wheel is replaceable
• Focus: DMX linear focus
• Zoom: DMX linear zoom
• Light Angle: beam angle(1/2 peak)θ1/2­: 8° ~ 40°
• Control: DMX512, 3 pins (optional 5 pins) interface
• Channels: short mode 14 channels, standard mode 17 channels and extended mode 19 channels
• Housing: cast aluminium, high temperature resistant/ anti-ultraviolet engineering plastic
• IP65
• Net Weight: 18.5kg

Colours

• 1 Colour Wheel: 6 dichroic colour filters(with CTO) plus open

Gobo

• 1 Rotating Gobo Wheel: 7 gobos plus open, gobos can be fixed.

For more information, please visit the manufacturer's website.
