Colorlight CL-X20 Video Processor
Colorlight CL-X20 Video Processor
Regular price
$3,790.00
Regular price
Sale price
$3,790.00
Unit price
/
per

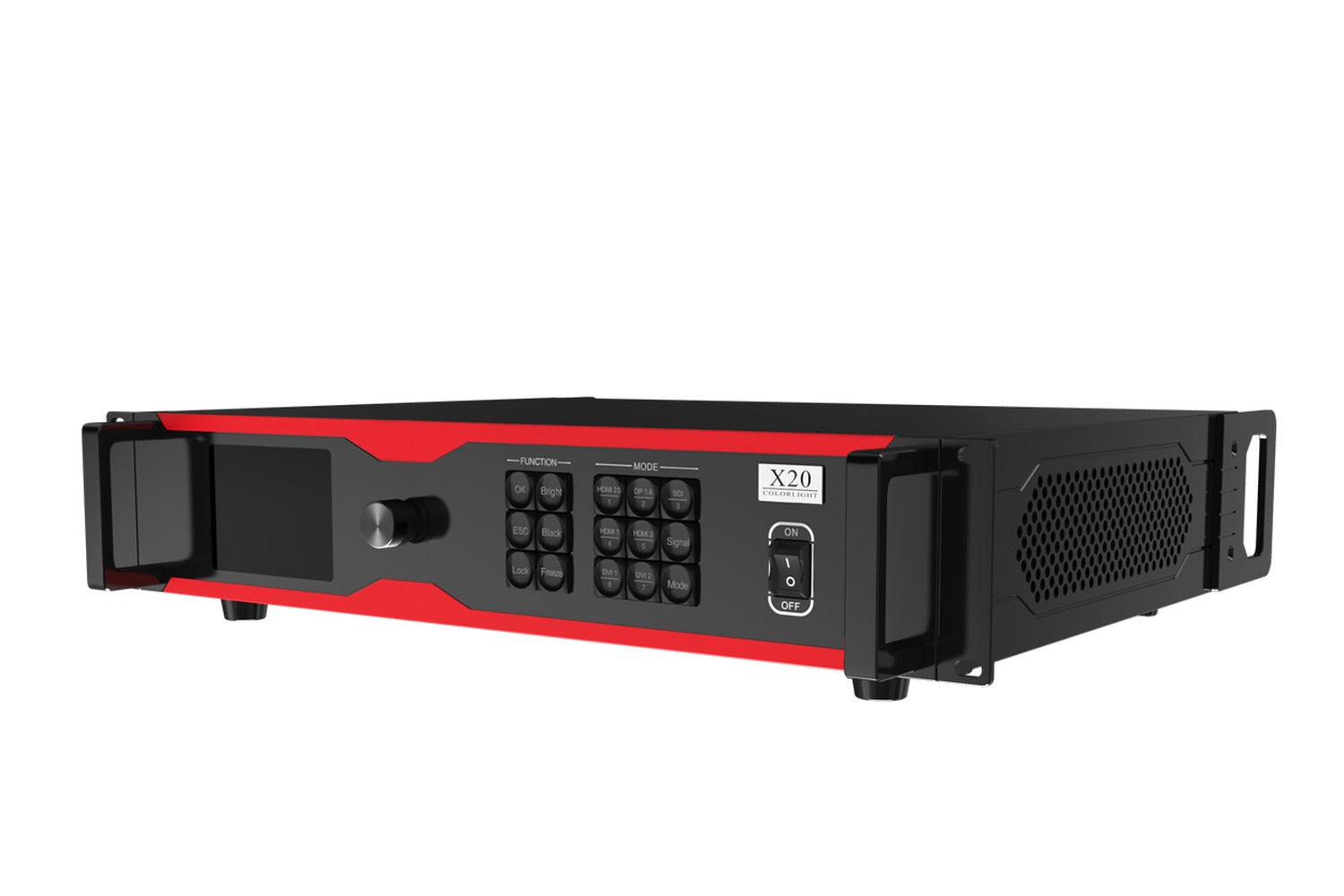

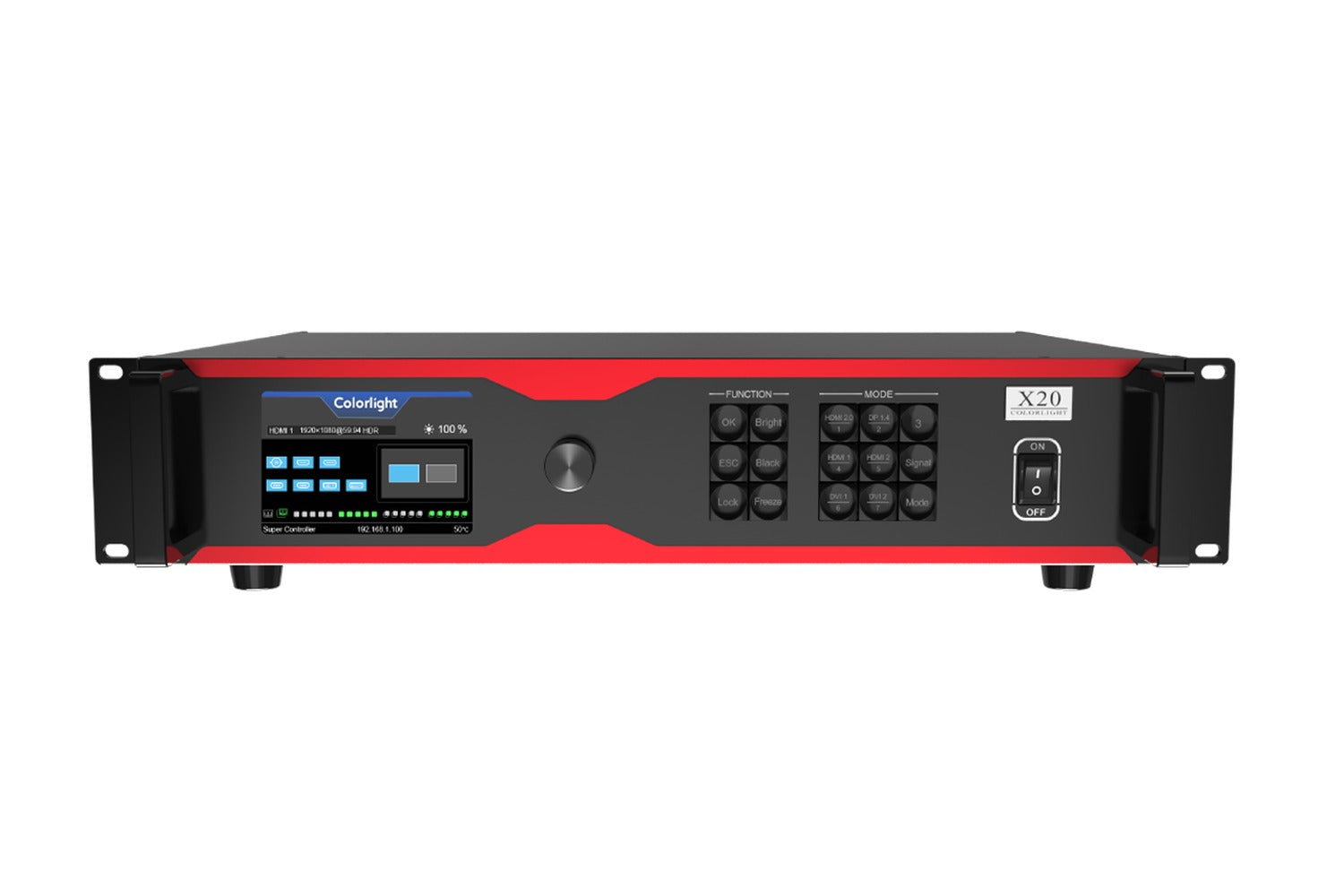

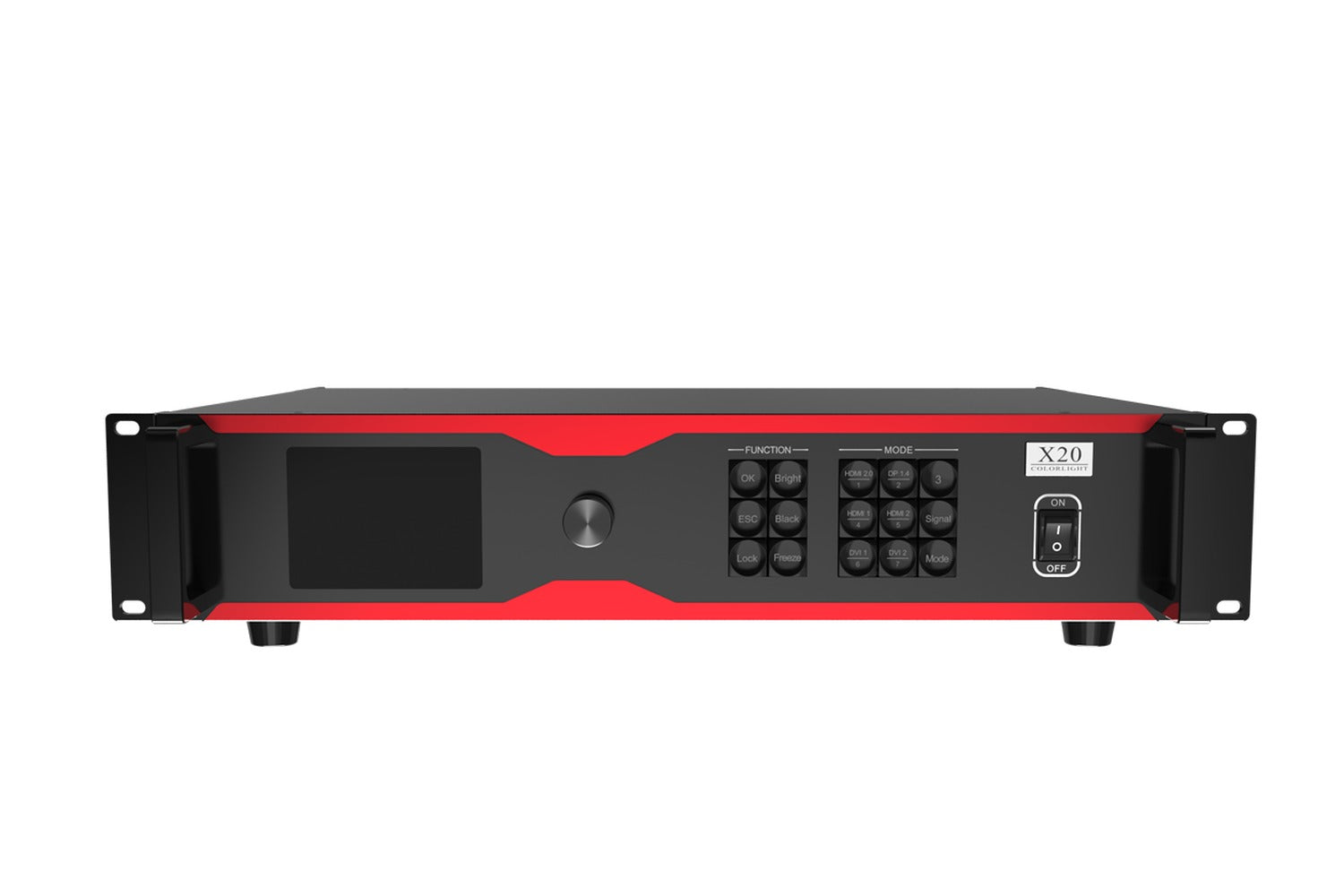

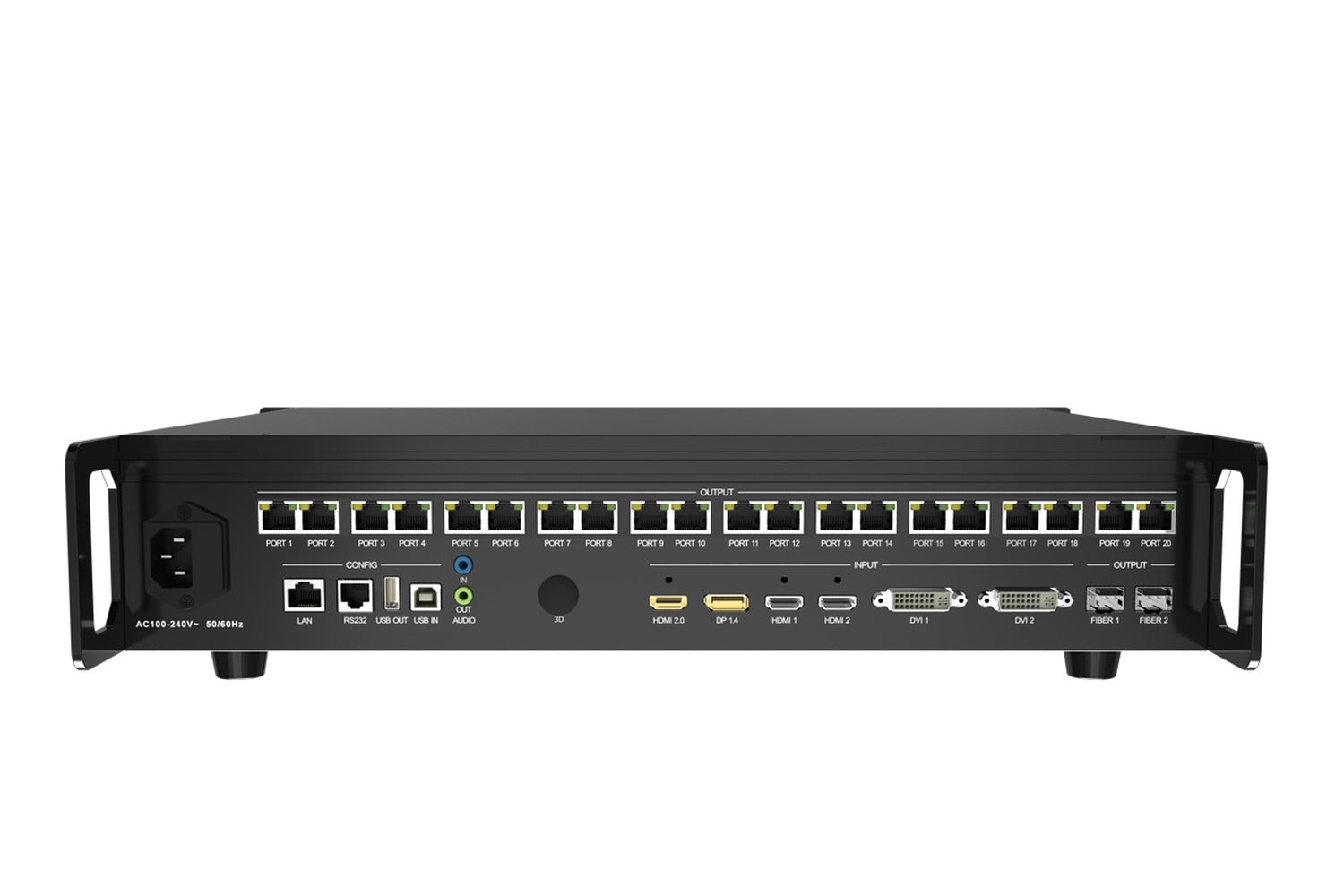

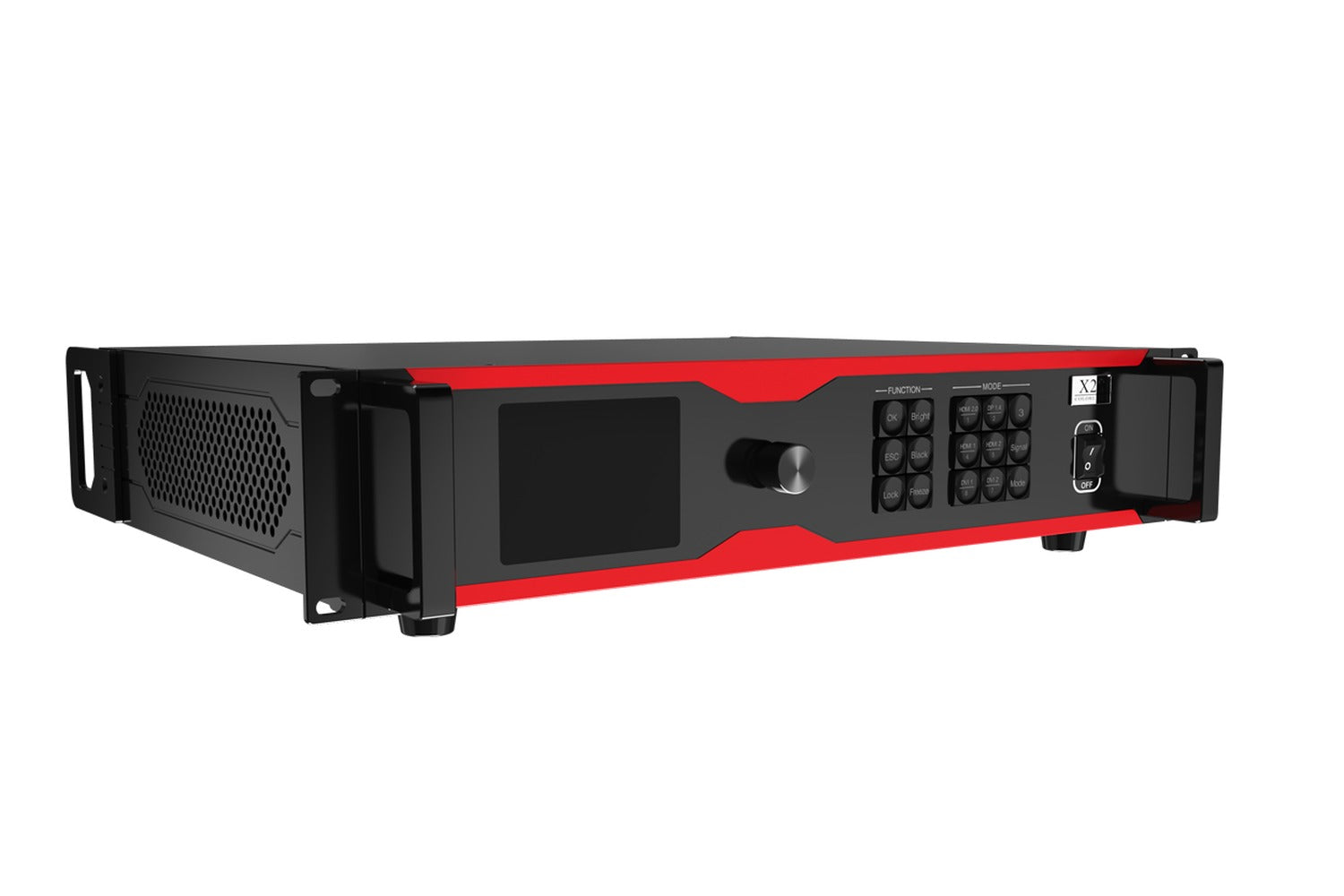

X20 is a controller with powerful video input and processing capacity. It supports 4K inputs with DP1.2 and HDMI2.0 connectors, and 2K inputs with HDMI1.4 and DVI connectors. A single unit features a loading capacity of 13.00 million pixels. Equipped with 20x 1G Ethernet ports and 2x 10G optical fiber ports, X20 meets the need of different scenarios. Additionally, X20 boasts abundant practical functions that enable flexible screen control and high-quality image display.
Features
Inputs
- Maximum 4096x2160@60Hz.
- 4K input interface: lx DPI.2, lx HDM12.0.
- 2K input interface: 2x HDM11.4, 2x DVI.
Outputs
- Up to 13.00 million pixels load capacity, with maximum 16384 pixels in width and
- 8192 pixels in height.
- 20x IG Ethernet outputs or 2x 10 Gigabit optical ports output.
Audio
- lx 3.5mm input.
- lx 3.5mm output, support HDMI and DP audio.
Functions
- Up to 6 windows, support window overlay.
- Window roaming and free scaling.
- Free cropping and seamless switching.
- Adjust color gamut with precise color management.
- Brightness and color temperature adjustment.
- 3D display (purchase corresponding accessories separately).
- Improving grayscale performance with Better Grayscale at Low Brightness.
- Save and recall 16 preset scenes.
Control
- USB port for control and cascading.
- RS232 protocol.
- LAN port for TCP/IP control.
- Android APP for mobile devices.
