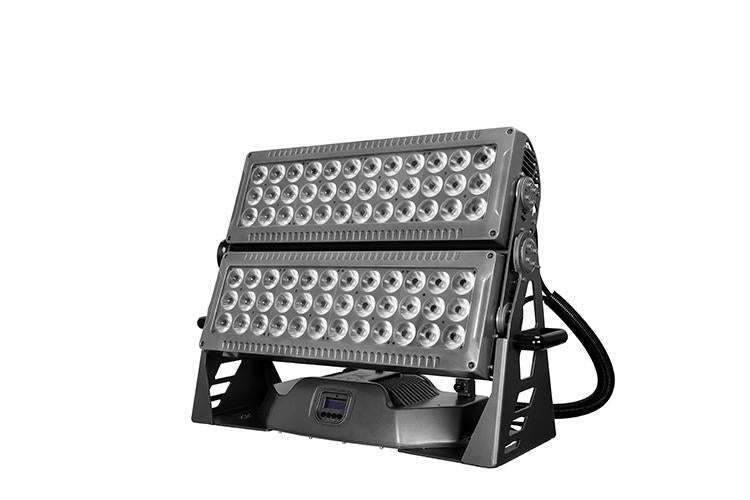

ARC LED 1572

ARC LED 1572 (PR-6262) is a new launched IP67 architectural luminaire, with two independent heads. It features 72pcs of Philips 15W LEDs(RGBW), color temperature linear adjustment, combined with 4 individual areas control, 37°×57° square light.

Key Features:

• Light Source: PHILIPS 72x15W LEDs (RGBW 4 in 1), 50,000 hrs
• Input Voltages: 100-240V AC, 50/60Hz
• Power Consumption: 1080W@230V
• Strobe: electronic strobe, 0-25 F.P.S
• Dimmer: linear dimmer from 0-100%

• Light Angle:

• beam angle (1/2peak) θ1/2: 14°
• Field angle (1/10peak) θ1/10: 37°×57°
• Head Movement: tilt180°, manual adjustment
• Control: DMX512, 3 pins interface (optional 5 pins)
• Channels: standard mode 10 channels, and extended mode 23 channels
• Other Functions: DMX512 control, wireless receiver and transmitter(optional)
• Housing: high tensile cast aluminium alloy
• IP67
• Net Weight: 46kg

Colours

• RGBW 4-in-1
• Linear colour temperature adjustment

For more information, please visit the manufacturer's website
